Locking Differential Clutch Spring

10

Locking Differential Clutch Spring Retainer

11

Differential Carrier Lock Pin

12

Differential Side Gear Thrust Washer

13

Locking Differential Side Gear

14

Pinion Thrust Washer

15

Differential Pinion Gear

16

Differential Side Gear

17

Differential Side Gear Thrust Washer

18

Differential Pinion Gear

19

Pinion Thrust Washer

20

Differential Pinion Shaft Lock Screw

21

Electric Locking Differential Case Assembly

22

Differential Pinion Gear Shaft



2007 Hummer H3

2007 Driveline/Axle Rear Drive Axle - H3



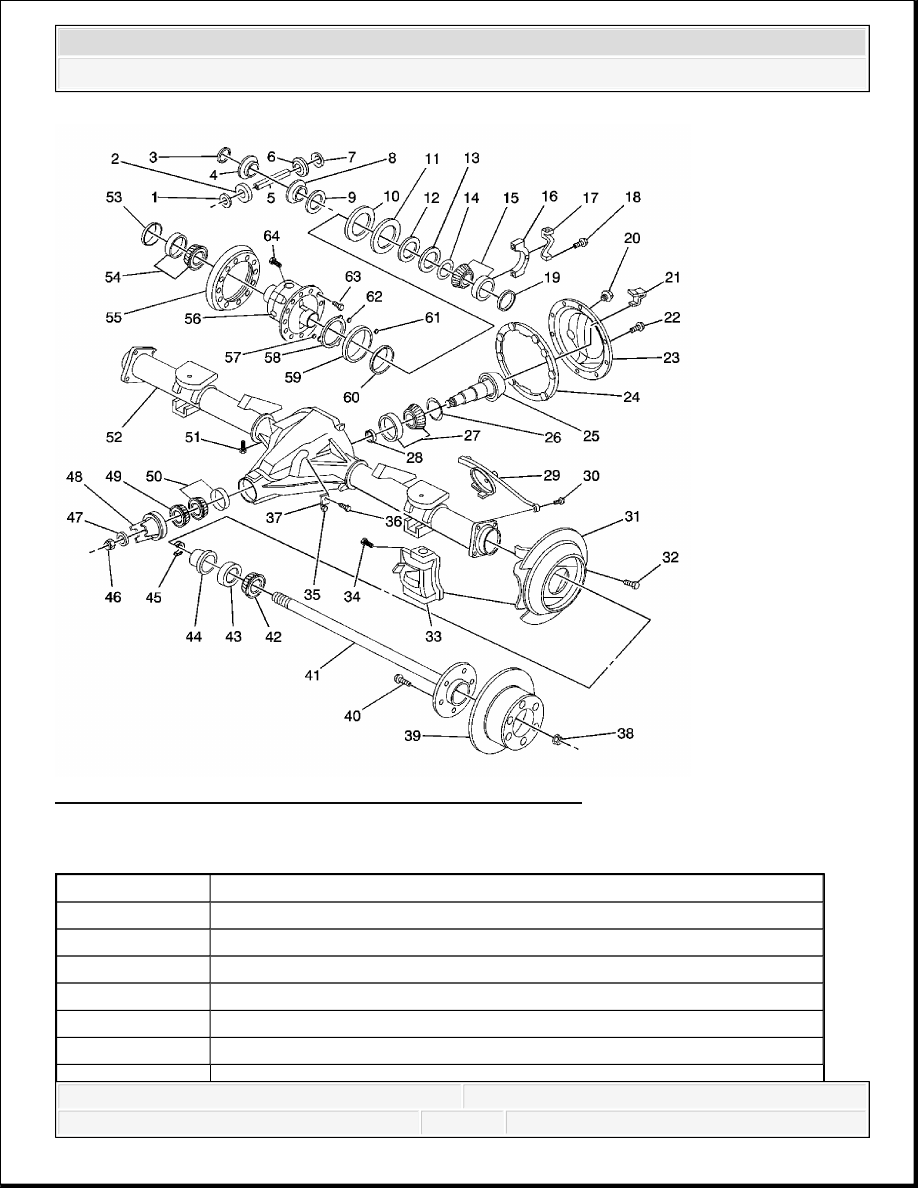

Fig. 5: Rear Axle With Electric Locker Disassembled View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

Callout

Component Name

1

Differential Side Gear Thrust Washer

2

Differential Side Gear

3

Differential Side Gear Thrust Washer

4

Differential Side Locker Gear

5

Differential Pinion Gear Shaft

6

Differential Side Gear



2007 Hummer H3

2007 Driveline/Axle Rear Drive Axle - H3



7

Differential Side Gear Thrust Washer

8

Differential Side Locker Gear

9

Differential Side Gear Thrust Washer

10

Differential Bearing Spacer

11

Electric Locking Differential Coil Lock

12

Locking Differential Bearing Assembly

13

Locking Differential Spacer

14

Locking Differential Clutch Spring Retainer

15

Differential Bearing Assembly

16

Rear Axle Housing Assembly

17

Rear Axle Housing Assembly

18

Rear Axle Housing Assembly

19

Differential Bearing Spacer

20

Differential Carrier Fill Plug

21

Brake Pipe Bracket

22

Rear Axle Housing Cover Bolt/Screw

23

Rear Axle Housing Cover

24

Rear Axle Housing Cover Gasket

25

Differential Ring and Drive Pinion 4.56 Ratio Gear Set

26

Differential Drive Pinion Spacer

27

Differential Drive Pinion Gear Inner Bearing Assembly

28

Differential Drive Pinion Gear Bearing Spacer

29

Rear Wheel Speed Sensor Assembly

30

Rear Wheel Speed Sensor Bolt/Screw

31

Differential Assembly Park Brake

32

Park Brake Bolt/Screw

33

Rear Disc Brake Assembly Caliper

34

Rear Disc Brake Caliper Bolt/Screw

35

Differential Housing Bolt/Screw

36

Differential Housing Bolt/Screw

37

Differential Housing Bracket

38

Rear Brake Rotor Retainer

39

Rear Brake Rotor Assembly

40

Rear Wheel Stud

41

Rear Axle Shaft

42
