DOOR LOCK STRIKER ADJUSTMENT

Preliminary Procedures

1. Remove the interior trim panel. Refer to Front Side Door Trim Panel

Replacement .

2. Remove the water deflector. Refer to Front Side Door Water Deflector

Replacement .

3. Remove the outside door handle. Refer to Front Side Door Outside Handle

Replacement.

Bolt, Front Side Door Lock Housing

Tighten: 7 N.m (62 lb in)

Housing, Front Door Handle
Tip:

1. Disconnect the lock and handle rods to remove the housing.

2. Transfer the lock cylinder to the new housing. Refer to Door Lock

Cylinder Replacement.

NOTE:

Striker alignment is a crucial part of door latch operation. Do not
use the door striker to adjust the door to the vehicle. Failure to
properly adjust the striker can result in damage to the door latch
and the striker.

2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Vehicle Access - H3

2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Vehicle Access - H3

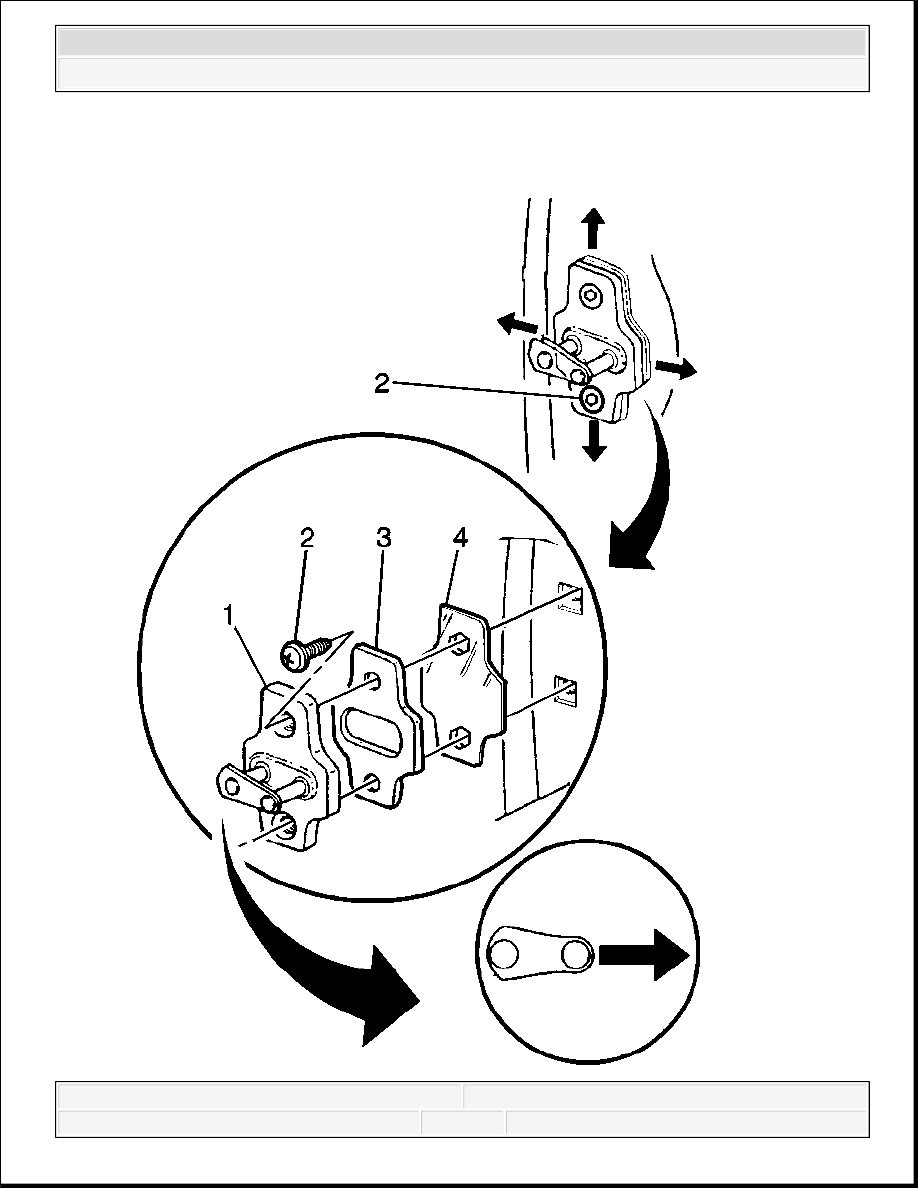

Fig. 27: Exploded View Of Door Striker
Courtesy of GENERAL MOTORS CORP.

1. Loosen the striker bolts (2) until the striker is movable.

2. Pull on the outside handle.

3. Gently push the door against the body in order to ensure that the striker (1) allows a flush

fit.

4. Slowly open the door.

5. Tighten the bolts (2).

Tighten: Tighten the striker bolts (2) to 25 N.m (18 lb ft).

6. Touch up any exposed or unpainted surface on the lock pillar.

DOOR STRIKER REPLACEMENT

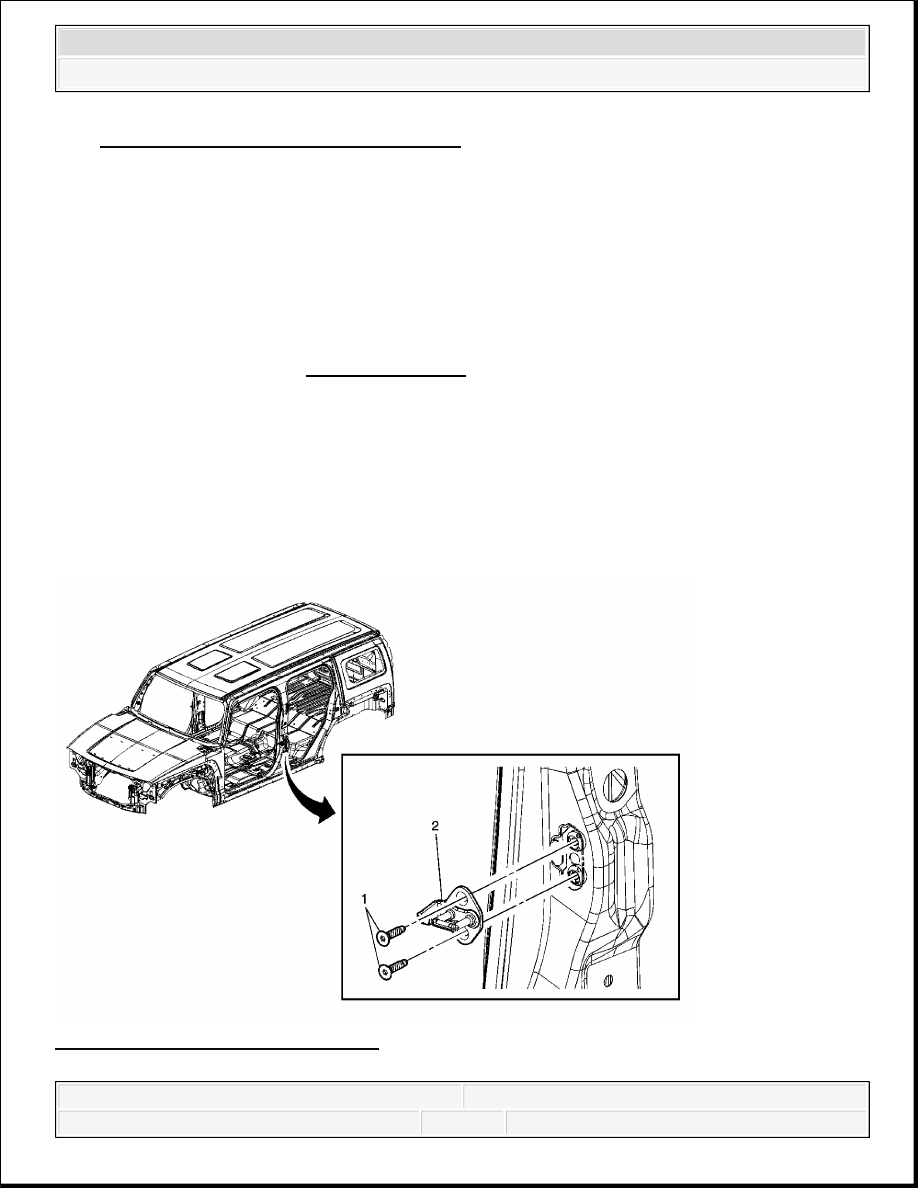

Fig. 28: Striker Replacement - Door
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice .

2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Vehicle Access - H3

Door Striker Replacement

ENDGATE LOCK STRIKER REPLACEMENT

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

NOTE:

Refer to Fastener Notice .

Bolt, Door Lock/Latch Striker (Qty: 2)

Tighten: 25 N.m (18 lb ft)

Striker, Door Lock/Latch

2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Vehicle Access - H3
