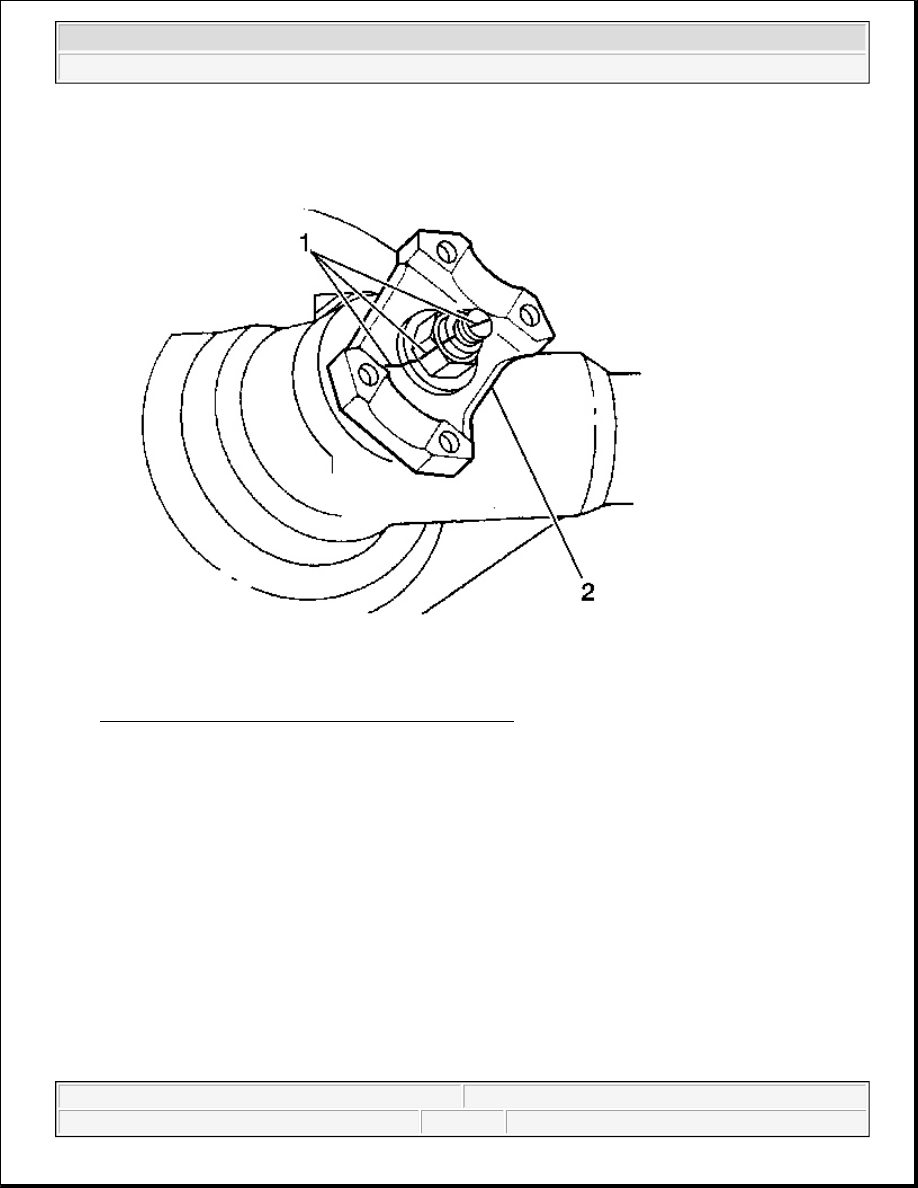

Fig. 52: Scribing Line On Pinion Shaft & Pinion Yoke
Courtesy of GENERAL MOTORS CORP.

10. Scribe a line (1) on the pinion shaft and the pinion yoke (2).



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

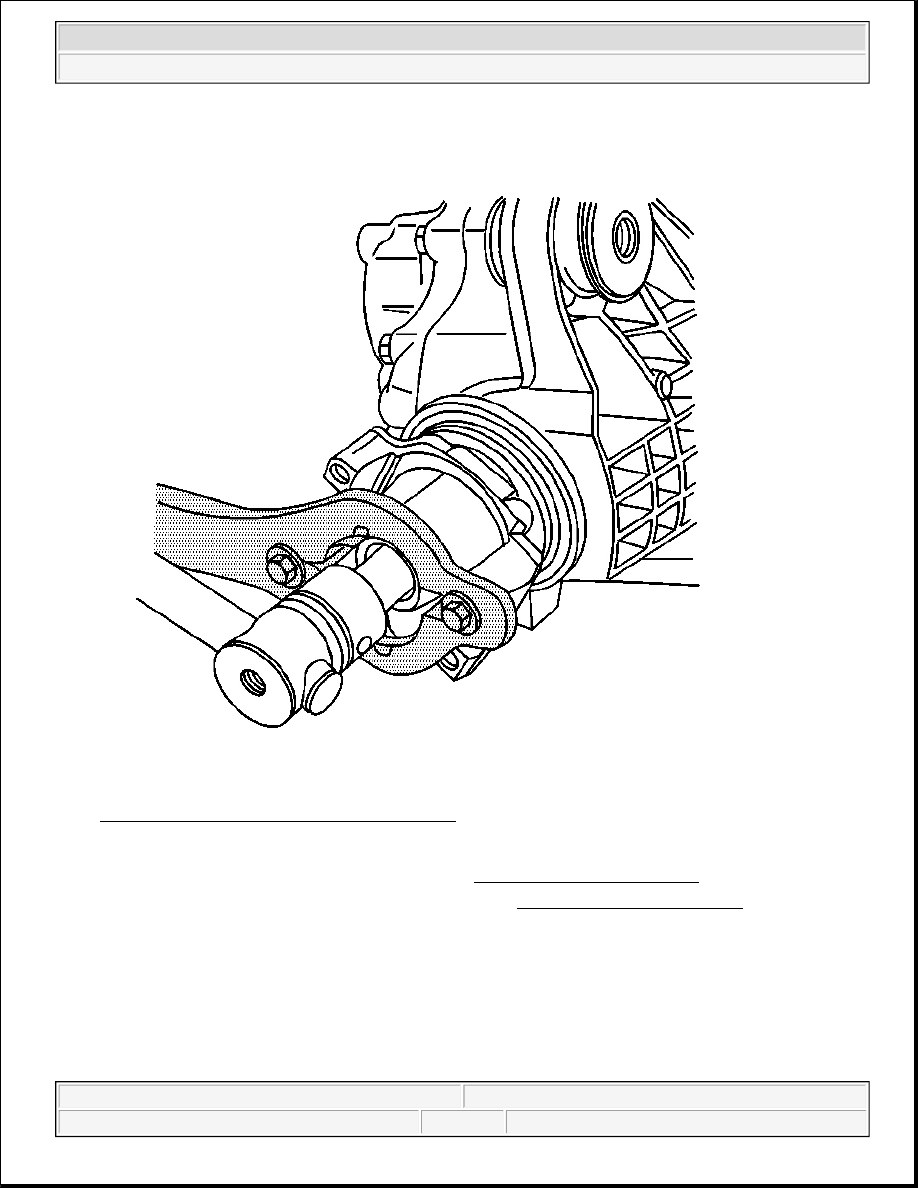

Fig. 53: Installing J 8614-01 Onto Pinion Yoke
Courtesy of GENERAL MOTORS CORP.

11. Install the J 8614-01 onto the pinion as shown. See Special Tools and Equipment .

12. Remove the pinion nut while holding the J 8614-01 . See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

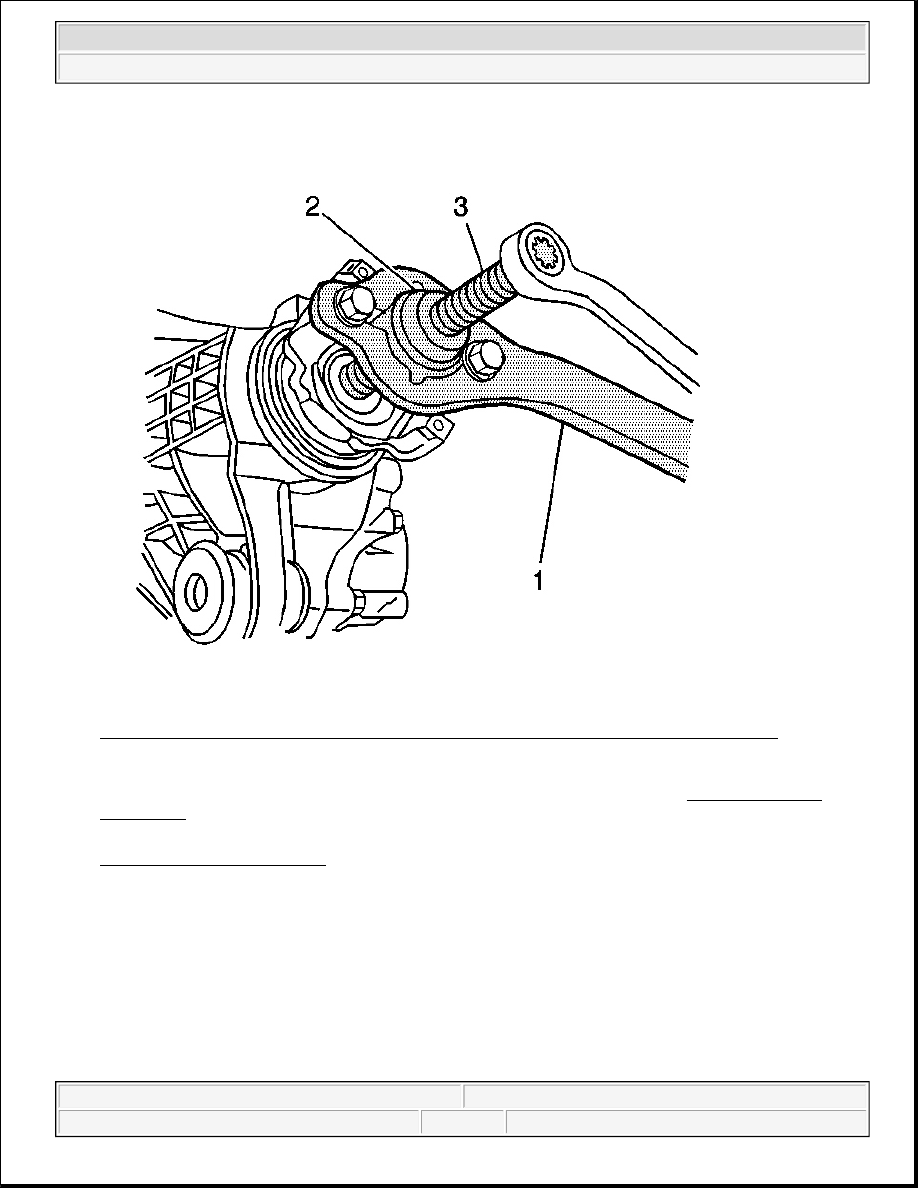

Fig. 54: Remove Pinion Yoke Using J 8614-2 & J 8614-3 Into J 8614-01 (8.25 Inch Axles)
Courtesy of GENERAL MOTORS CORP.

13. Install the J 8614-2 (2) and the J 8614-3 (3) into the J 8614-01 (1) as shown. See Special Tools and

Equipment .

14. Remove the pinon yoke by turning the J 8614-3 (3) clockwise while holding the J 8614-01 (1). See

Special Tools and Equipment .

15. Remove the oil seal using a suitable seal removal tool.

Installation Procedure

IMPORTANT: Carefully pry the seal from the bore. Do not distort or scratch the

aluminum case.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

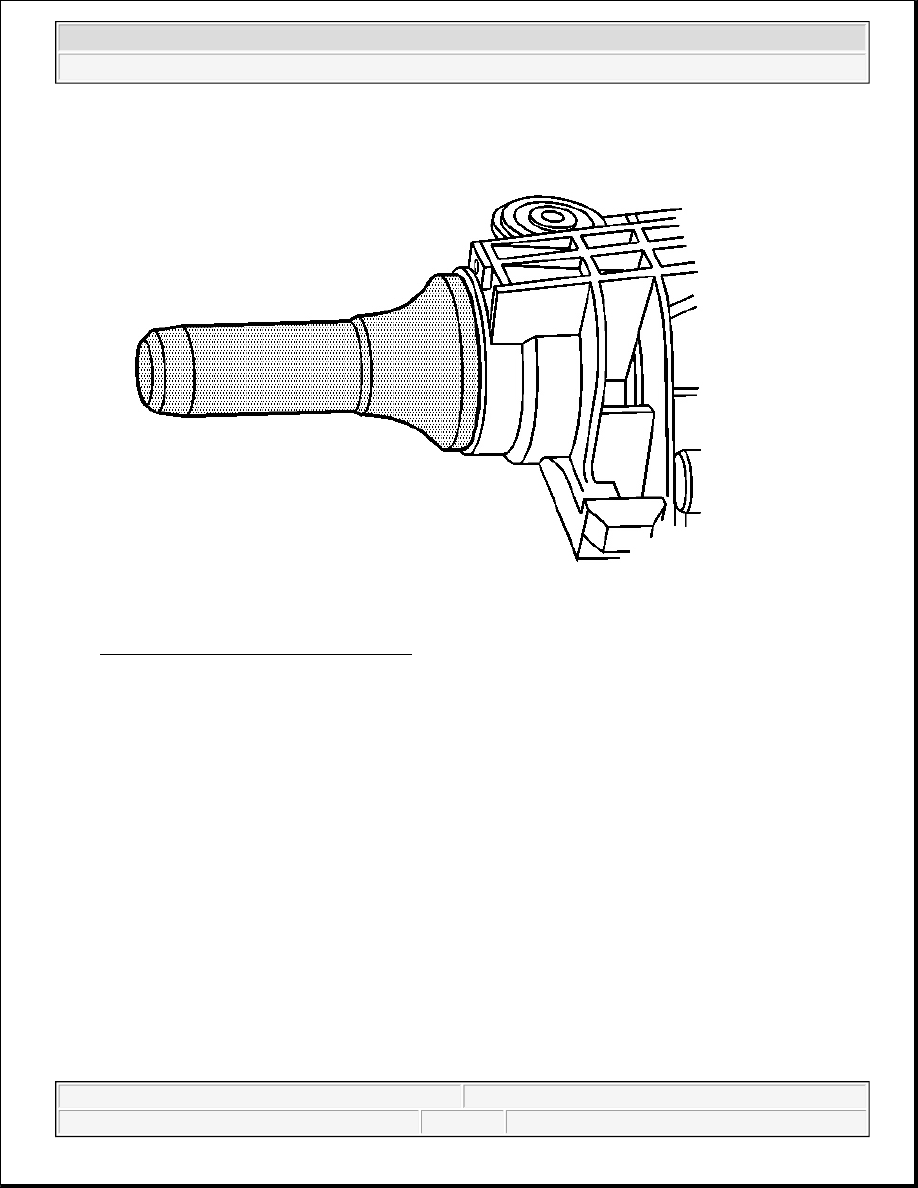

Fig. 55: Installing Oil Seal Using J 36366
Courtesy of GENERAL MOTORS CORP.

1. Install the oil seal by doing the following:

1. Position the oil seal in the bore.

2. Install the J 36366 over the oil seal.

3. Strike the J 36366 with a hammer until the seal flange seats on the axle housing surface.

2. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the splines of the drive

pinion yoke.

3. Install the pinion yoke.

Align the reference marks made during removal.

4. Seat the pinion yoke onto the pinion shaft by tapping it with a soft-faced hammer until a few pinion shaft

IMPORTANT: Drive the seal in straight, not at an angle.

NOTE:

Do not hammer the pinion flange/yoke onto the pinion shaft. Pinion
components may be damaged if the pinion flange/yoke is hammered onto
the pinion shaft.
