4. If replacing the right side bearing, perform the following steps:

1. Remove the inner axle shaft and housing assembly from the differential carrier case assembly.

Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle .

2. Install the inner axle shaft housing into a vise.

Clamp only on the mounting flange of the inner axle shaft housing.

3. Install the J 29369-2 behind the inner axle shaft seal. See Special Tools and Equipment .

4. Install the J 2619-01 (2) to the J 29369-2 (1). See Special Tools and Equipment .

5. Remove the inner axle shaft seal using the J 2619-01 .

6. Install the J 29369-2 behind the inner axle shaft bearing. See Special Tools and Equipment .

7. Install the J 2619-01 (2) to the J 29369-2 (1). See Special Tools and Equipment .

8. Remove the inner axle shaft bearing using the J 2619-01 .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Fig. 46: Installing J 29369-2 Behind Inner Axle Shaft Seal Or Inner Axle Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

5. If replacing the left side seal and/or bearing, perform the following steps:

1. Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .

2. Place the differential carrier assembly into a vise.

Clamp only on the mounting flange of the differential carrier assembly case.

3. Remove the inner axle shaft using a hammer and a brass drift.

4. Install the J 29369-2 (2) behind the inner axle shaft seal or the inner axle shaft bearing as

necessary. See Special Tools and Equipment .

5. Install the J 2619-01 (1) to the J 29369-2 (2). See Special Tools and Equipment .

6. Remove the inner axle shaft seal and/or the inner axle shaft bearing using the J 2619-01 .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Installation Procedure

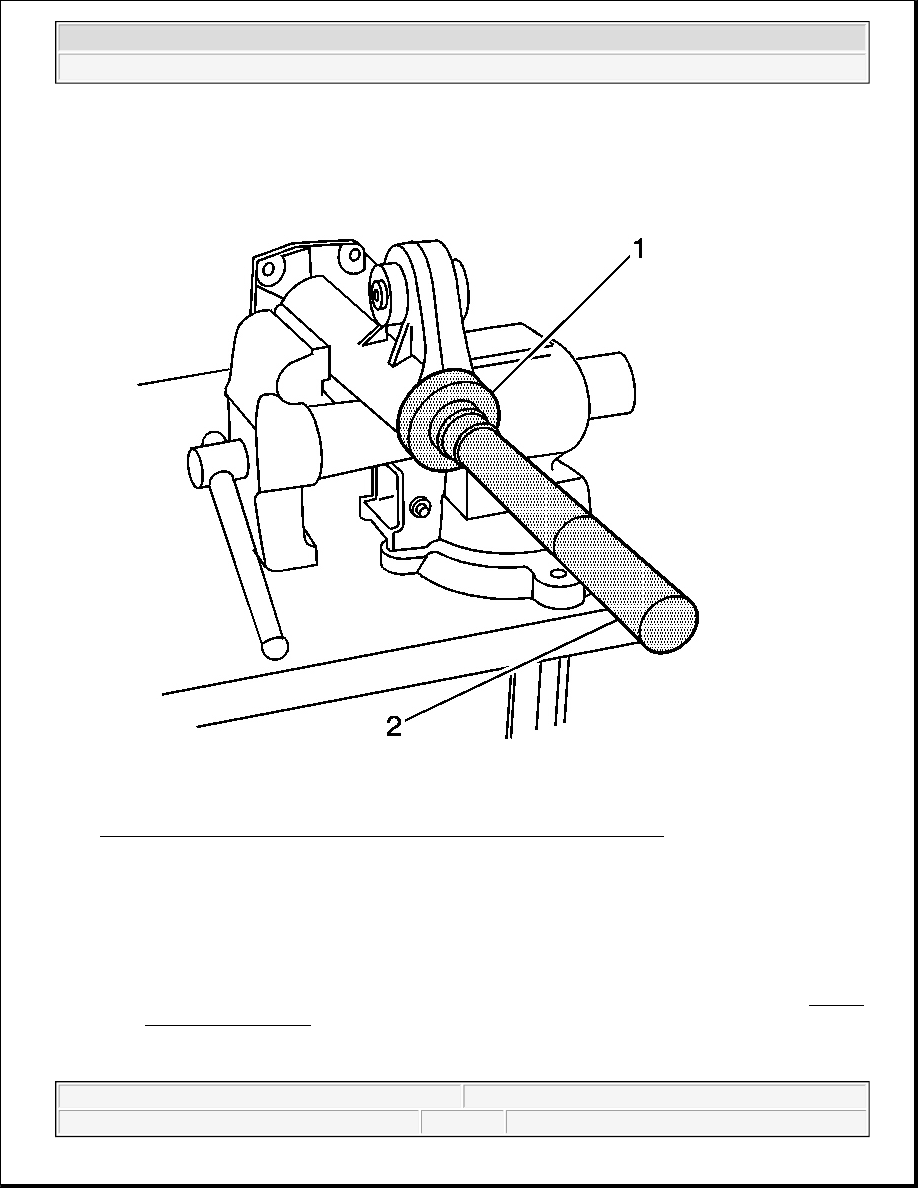

Fig. 47: Installing Bearing With Square Shoulder Using J 36609 & J 8092
Courtesy of GENERAL MOTORS CORP.

1. If installing the right side bearing, perform the following steps:

1. Install the inner axle shaft housing into a vise.

Clamp only on the mounting flange of the inner axle shaft housing.

2. Install the bearing with the square shoulder in using the J 36609 (1) and the J 8092 (2). See Special

Tools and Equipment .

2. If installing the right side inner axle shaft seal, perform the following steps:

1. Install the inner axle shaft housing into a vise.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Clamp only on the mounting flange of the inner axle shaft housing.

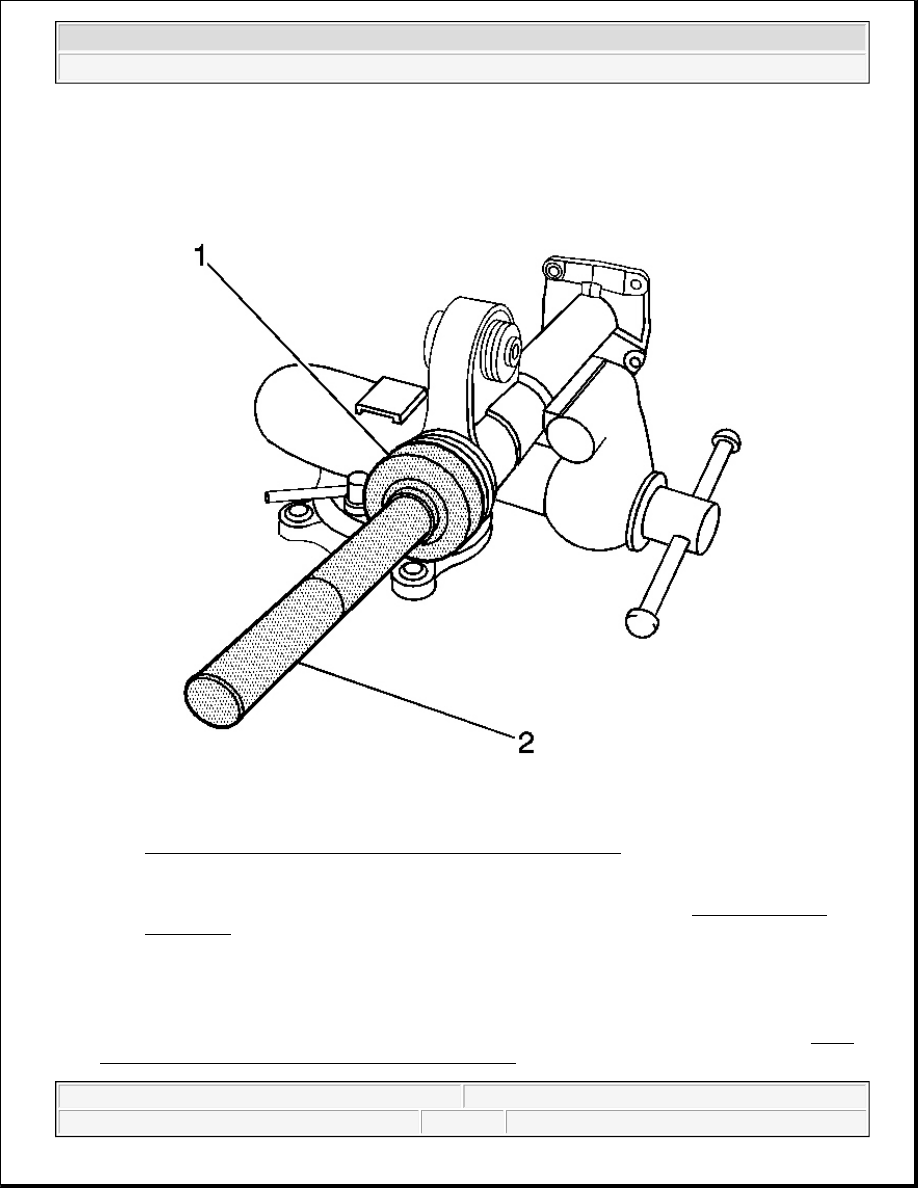

Fig. 48: Installing New Axle Shaft Seal Using J 45225 & J8092
Courtesy of GENERAL MOTORS CORP.

2. Install the new axle shaft seal using the J 45225 (1) and the J 8092 (2). See Special Tools and

Equipment .

3. Install the inner axle shaft into the inner axle shaft housing.

Carefully tap the inner axle shaft into place with a soft-faced mallet.

4. Install the inner axle shaft and housing assembly to the differential carrier case assembly. Refer to Inner

Shaft and/or Housing Replacement - Front Drive Axle .
