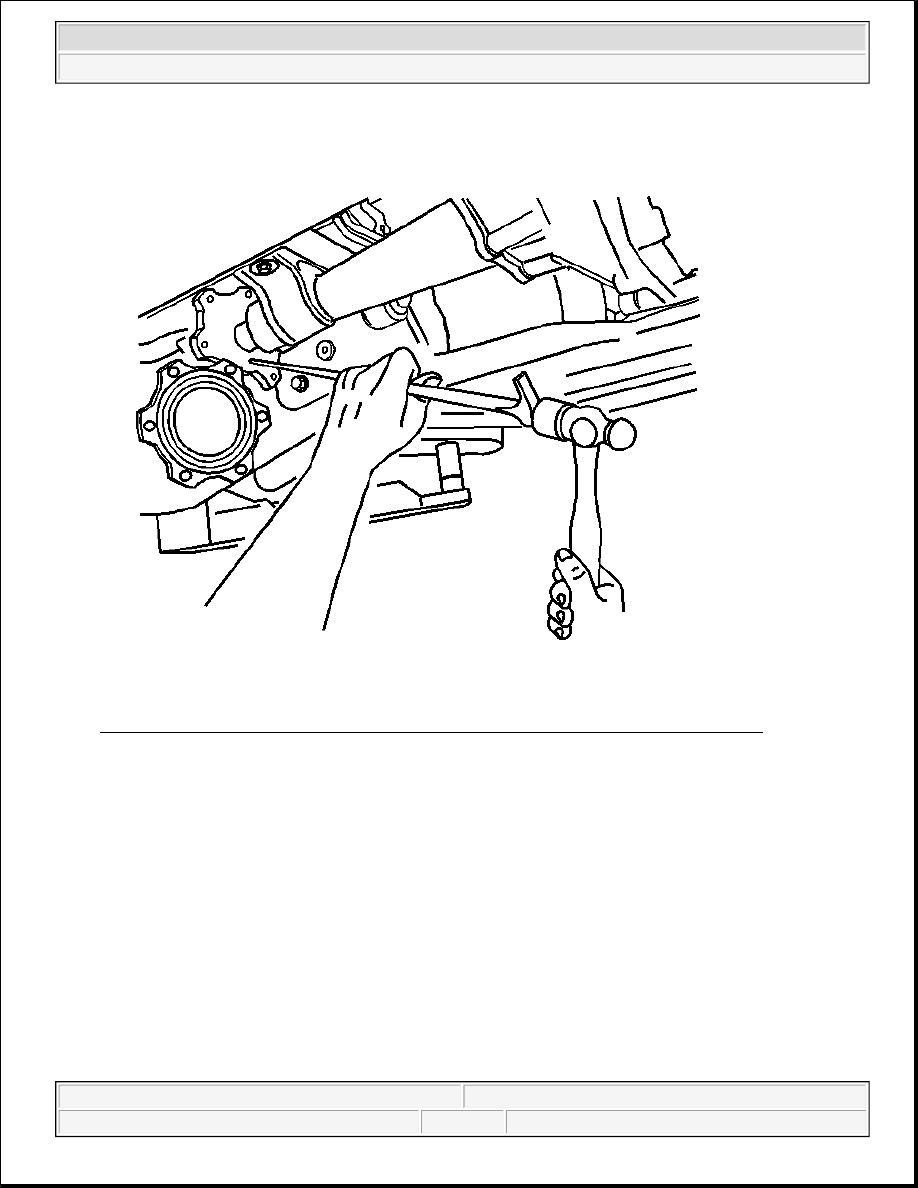

Fig. 38: Disconnecting Front Drive Inner Axle Shaft From Differential Case Side Gear
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the inner axle shaft from the differential case side gear using a hammer and brass drift.

2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

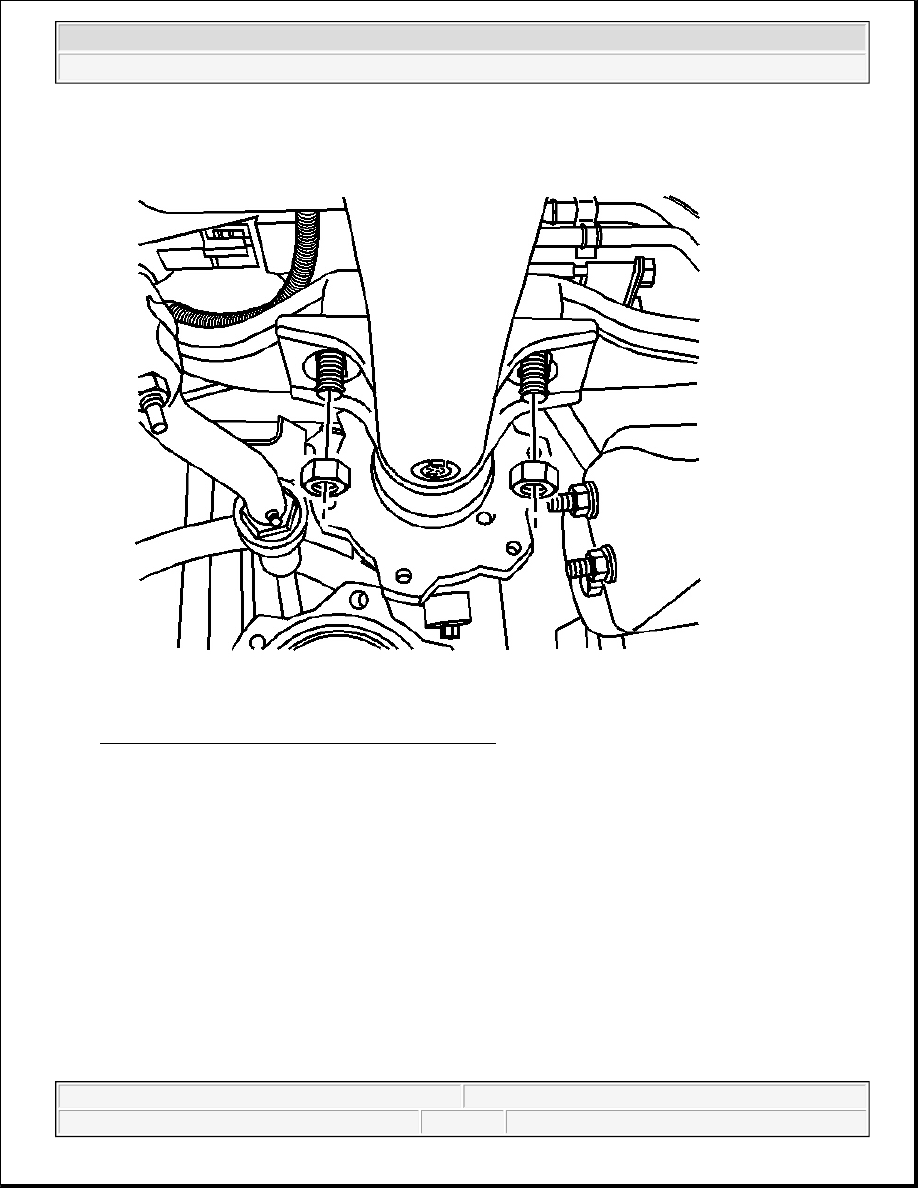

Fig. 39: Front Drive Inner Axle Shaft Housing Nuts
Courtesy of GENERAL MOTORS CORP.

6. Remove the inner axle shaft housing nuts from the bracket.

2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

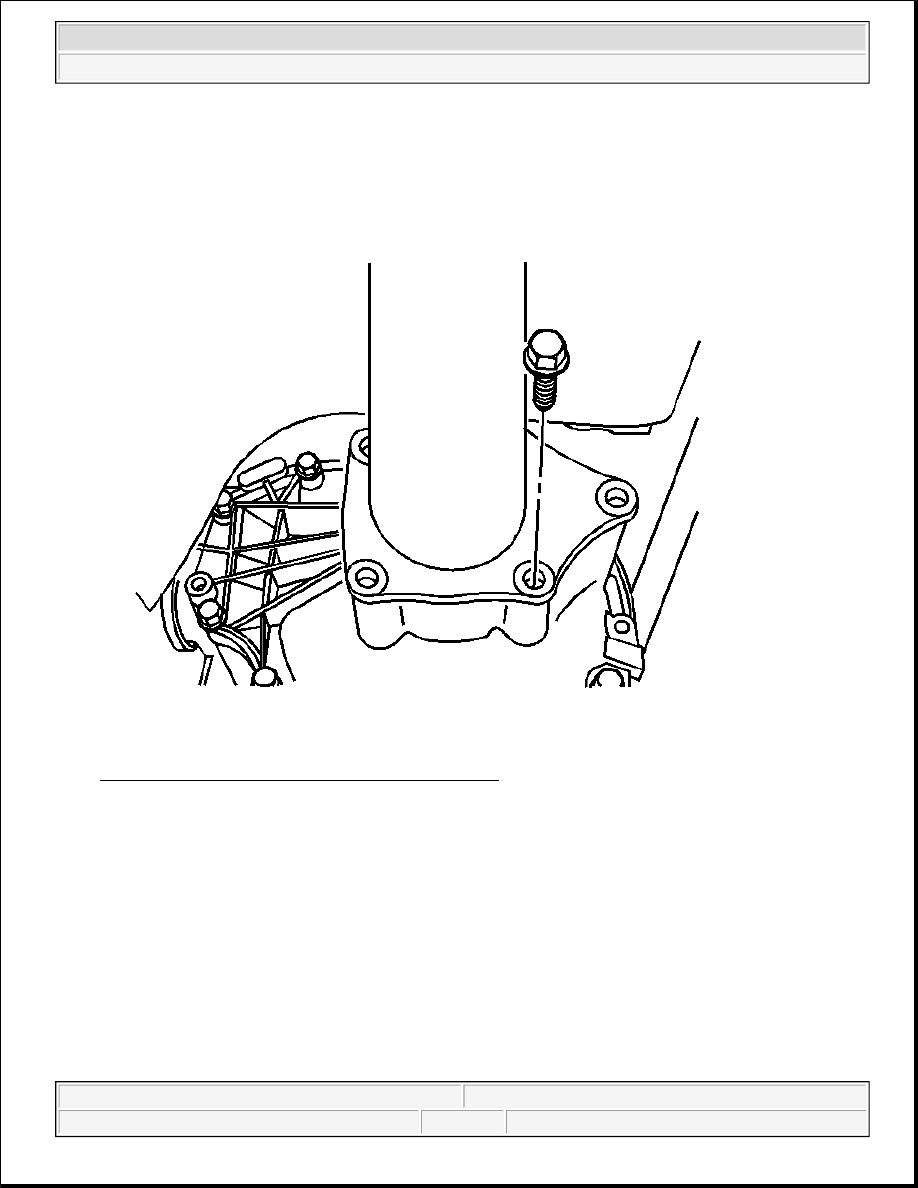

Fig. 40: Front Drive Inner Axle Shaft Housing Bolts
Courtesy of GENERAL MOTORS CORP.

7. Remove the inner axle shaft housing bolts from the differential carrier assembly.

8. Remove the inner axle shaft and inner axle shaft housing from the vehicle.

9. Remove the inner axle shaft from the inner axle shaft housing.

10. Remove the inner axle shaft seal and the bearing from the inner axle shaft housing. Refer to Inner Axle

Seal and/or Bearing Replacement - Front Drive Axle .

Installation Procedure

1. Install the new inner axle shaft bearing and the new seal to the inner axle shaft housing. Refer to Inner

Axle Seal and/or Bearing Replacement - Front Drive Axle .

2. Install the inner axle shaft into the inner axle shaft housing.

Do not install the inner axle shaft completely into the inner axle shaft housing at this time.

3. Apply sealant GM P/N 1052942 (Canadian P/N 10953466) or equivalent to the inner axle housing to

2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

differential carrier sealing surface.

4. Install the inner axle shaft and the inner axle shaft housing to the differential carrier assembly.

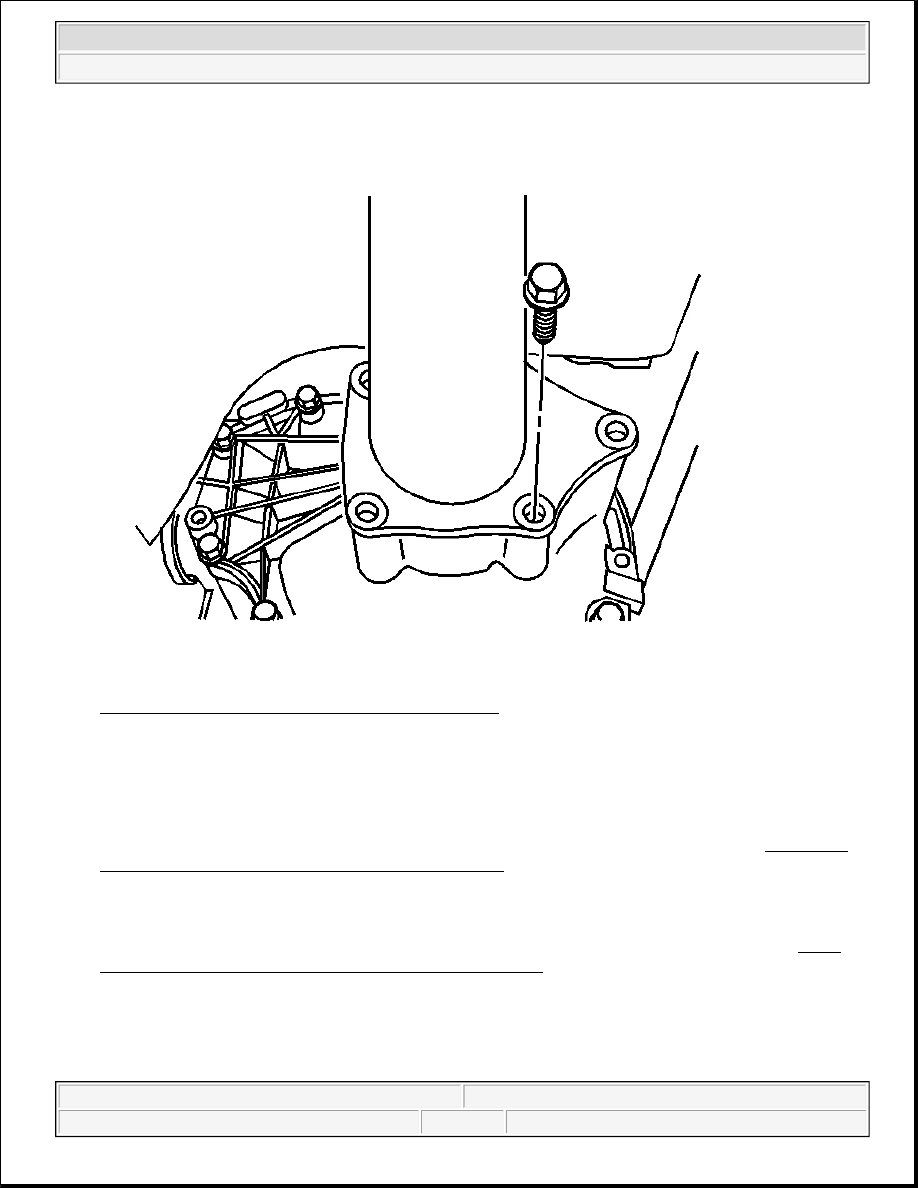

Fig. 41: Front Drive Inner Axle Shaft Housing Bolts
Courtesy of GENERAL MOTORS CORP.

5. Install the inner axle shaft housing bolts.

Tighten: Tighten the inner axle shaft housing bolts to 40 N.m (30 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
