Hummer H2. Manual - part 957

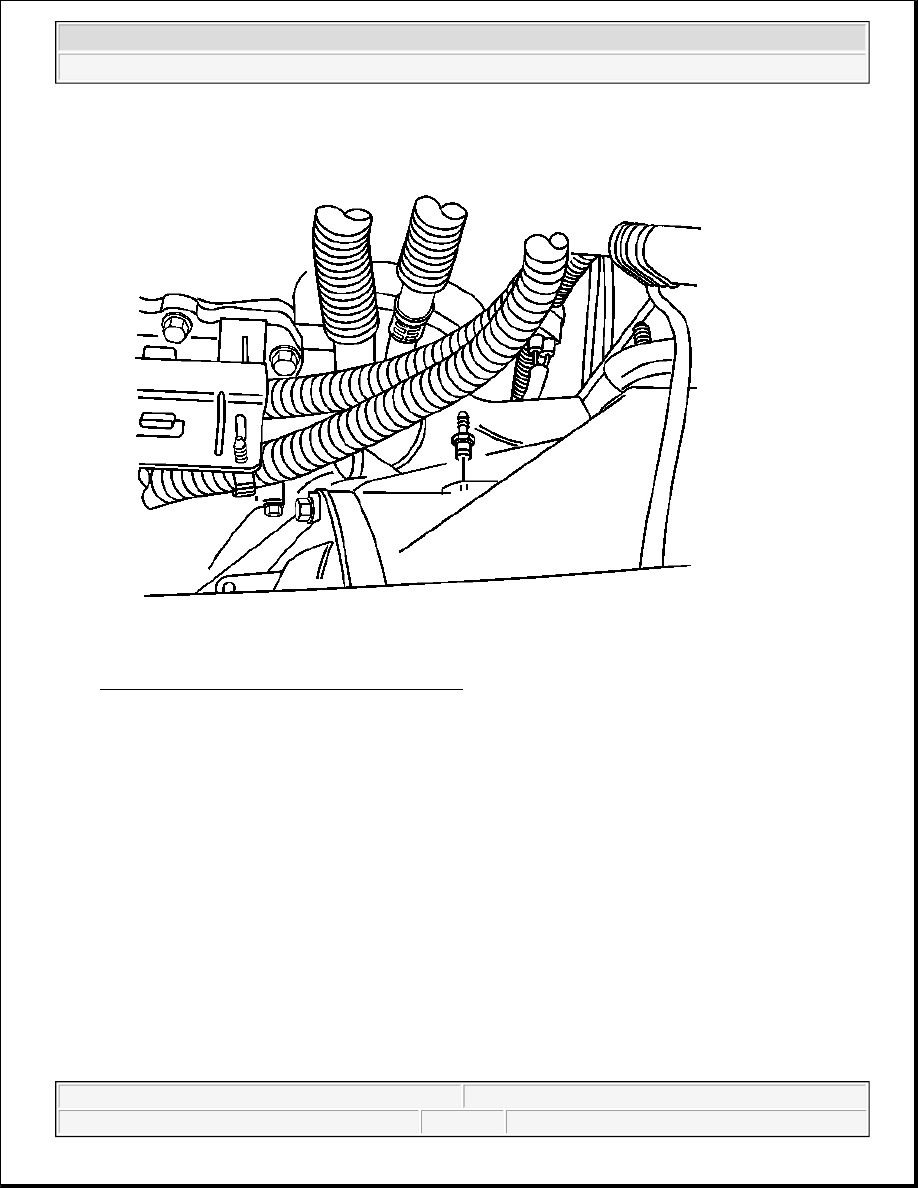

Fig. 34: Front Drive Axle Vent Hose Connector
Courtesy of GENERAL MOTORS CORP.

4. Remove the vent hose connector.

Installation Procedure



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



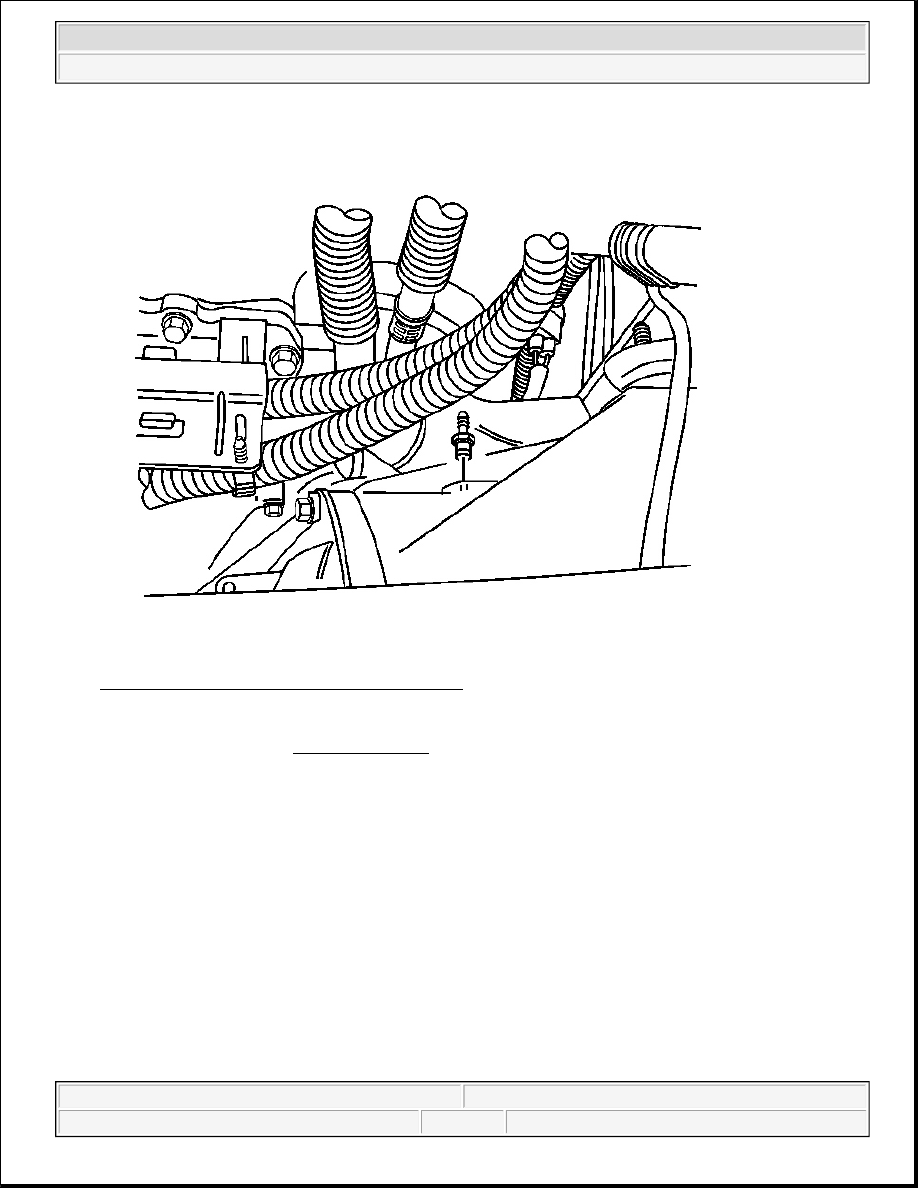

Fig. 35: Front Drive Axle Vent Hose Connector
Courtesy of GENERAL MOTORS CORP.

1. Install the vent hose connector.

Tighten: Tighten the vent hose connector to 20 N.m (15 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



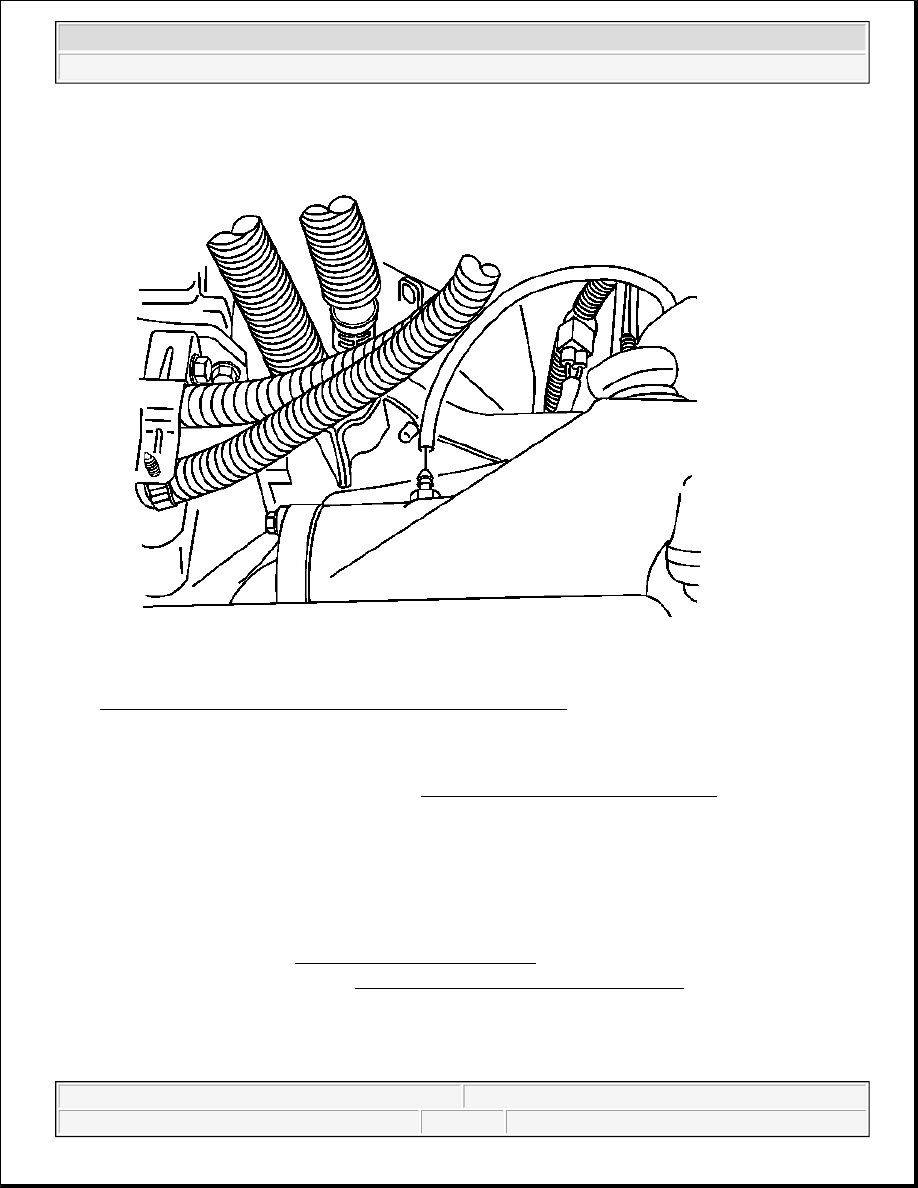

Fig. 36: Front Drive Axle Vent Hose & Vent Hose Connector
Courtesy of GENERAL MOTORS CORP.

2. Connect the vent hose to the vent hose connector.

3. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

4. Lower the vehicle.

INNER SHAFT AND/OR HOUSING REPLACEMENT - FRONT DRIVE AXLE

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Drain the front drive axle. Refer to Lubricant Replacement - Front Drive Axle .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

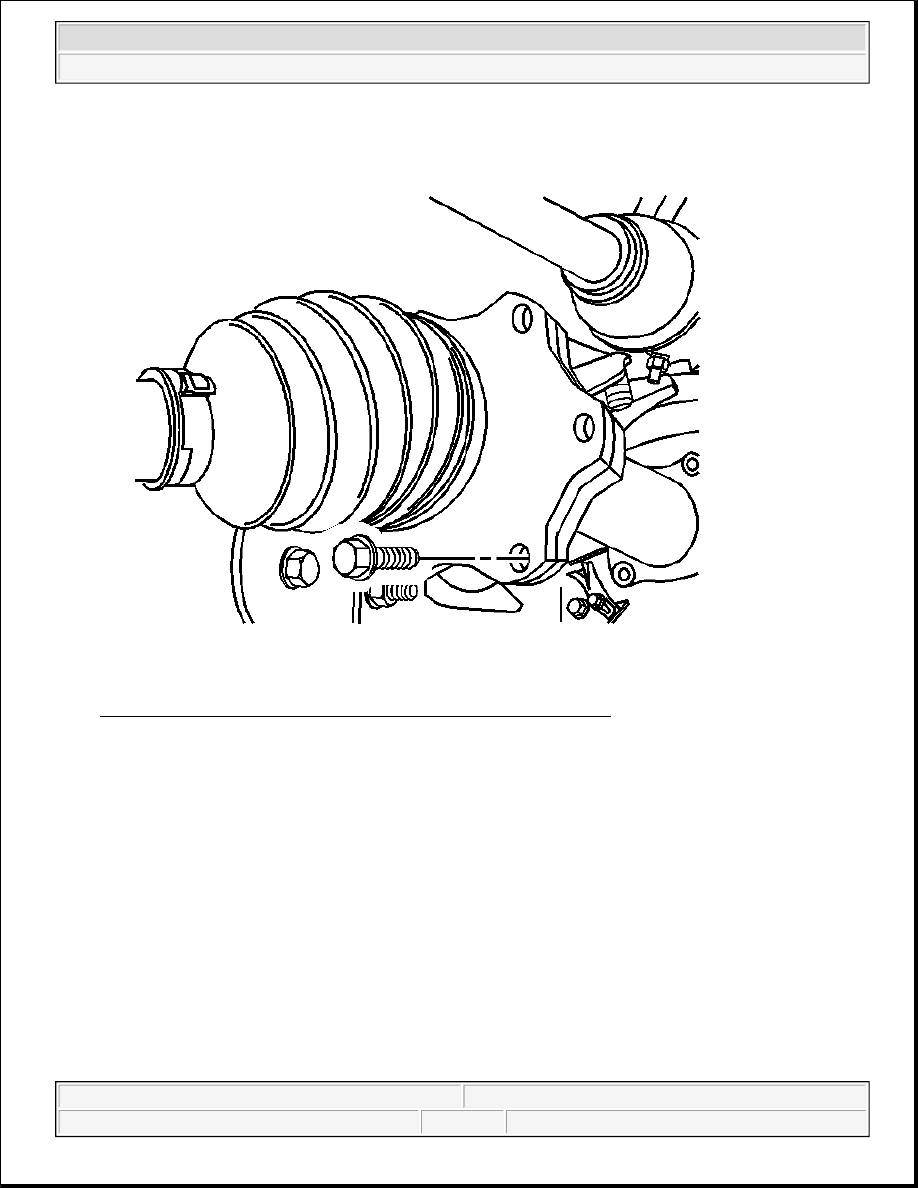

Fig. 37: Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle
Courtesy of GENERAL MOTORS CORP.

3. Remove the right wheel drive shaft inboard flange bolts from the inner axle shaft.

4. Disconnect the right wheel drive shaft from the inner axle shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2
