Wear (Minor)

Fig. 17: Minor Wear
Courtesy of GENERAL MOTORS CORP.

Light pattern on races and rollers can be caused by fine abrasives. Clean all of the parts including the housings.
Check the seals. Replace the bearings if rough or noisy. Replace the shaft if damaged.

Wear (Major)



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



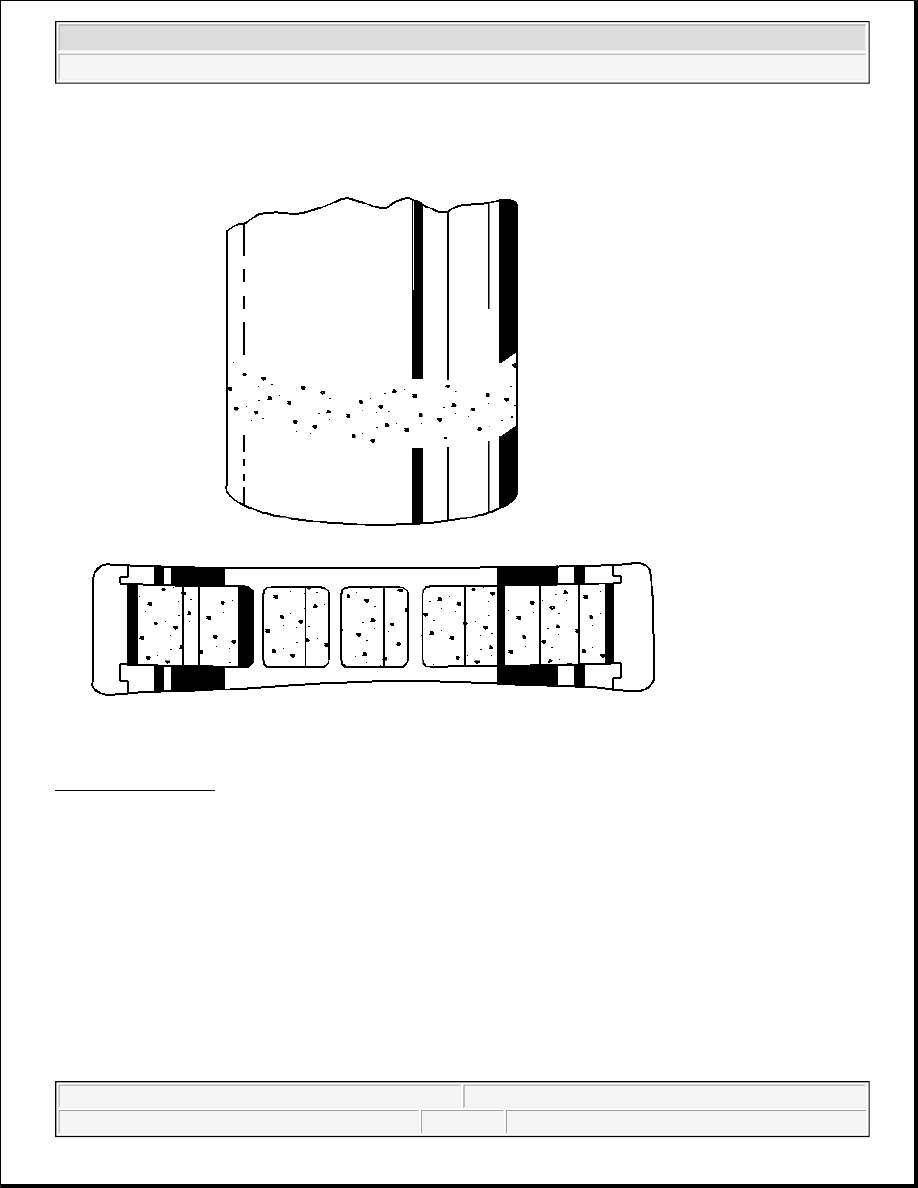

Fig. 18: Major Wear
Courtesy of GENERAL MOTORS CORP.

Heavy pattern on races and rollers can be caused by fine abrasives. Clean all of the parts including the housing.
Check the seals. Replace the bearings if rough or noisy. Replace the shaft if damaged.

Brinelling



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



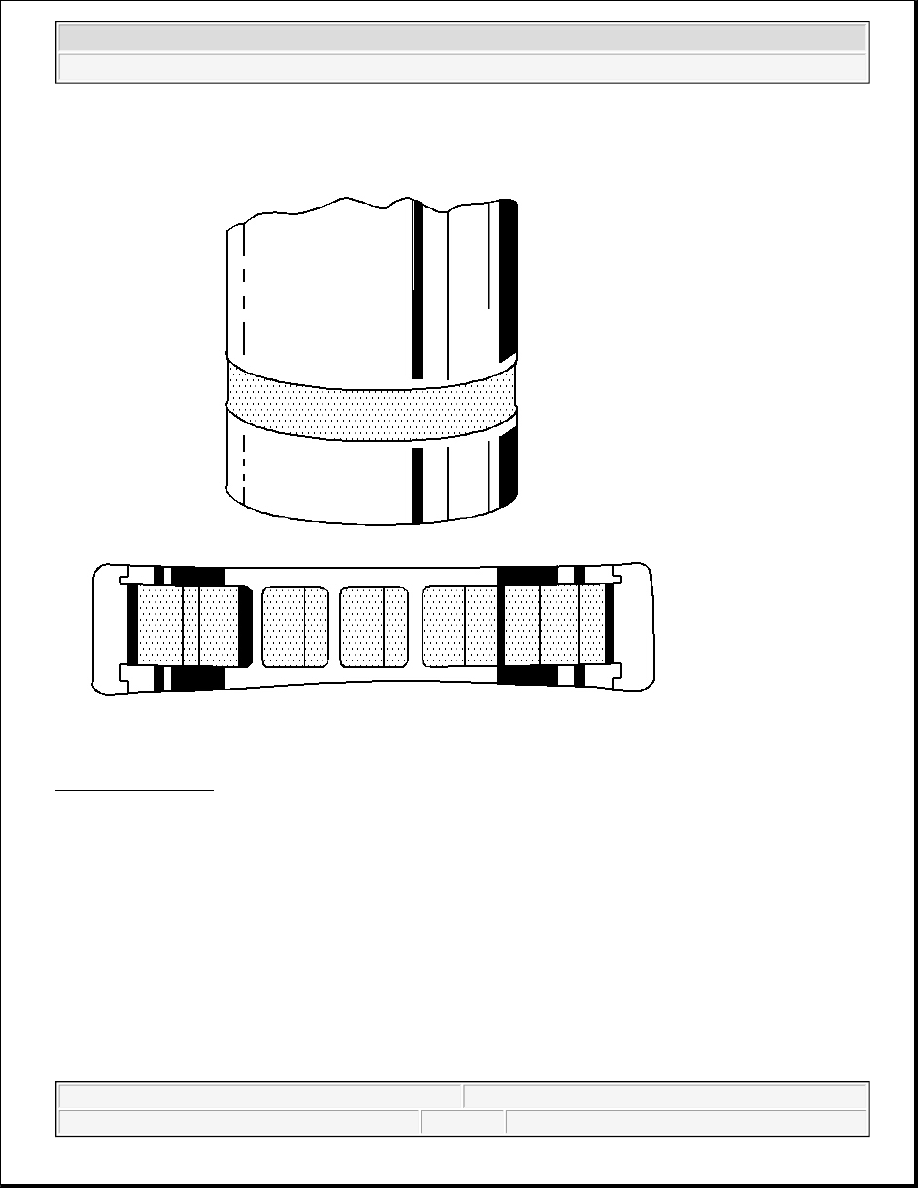

Fig. 19: Brinelling
Courtesy of GENERAL MOTORS CORP.

Surface indentations in the raceway can be caused by roll either under impact loading or vibration while the
bearing is not rotating. Replace the bearing if rough or noisy. Replace the shaft if damaged.

Indentations



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



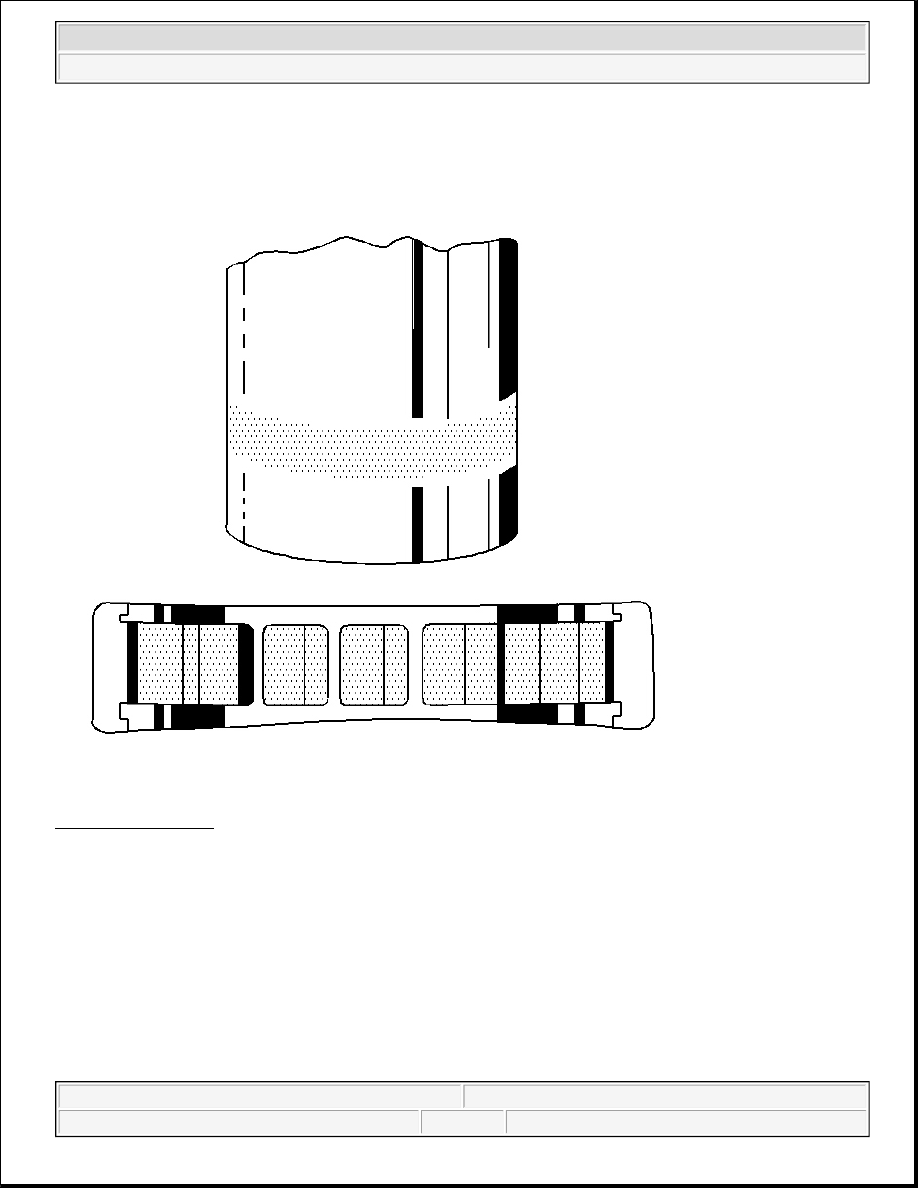

Fig. 20: Indentations
Courtesy of GENERAL MOTORS CORP.

Surface depressions on race and rollers can be caused by hard particles of foreign material. Clean all of the
parts, including the housing. Check the seals. Replace the bearings if rough or noisy. Replace the shaft if
damaged.
