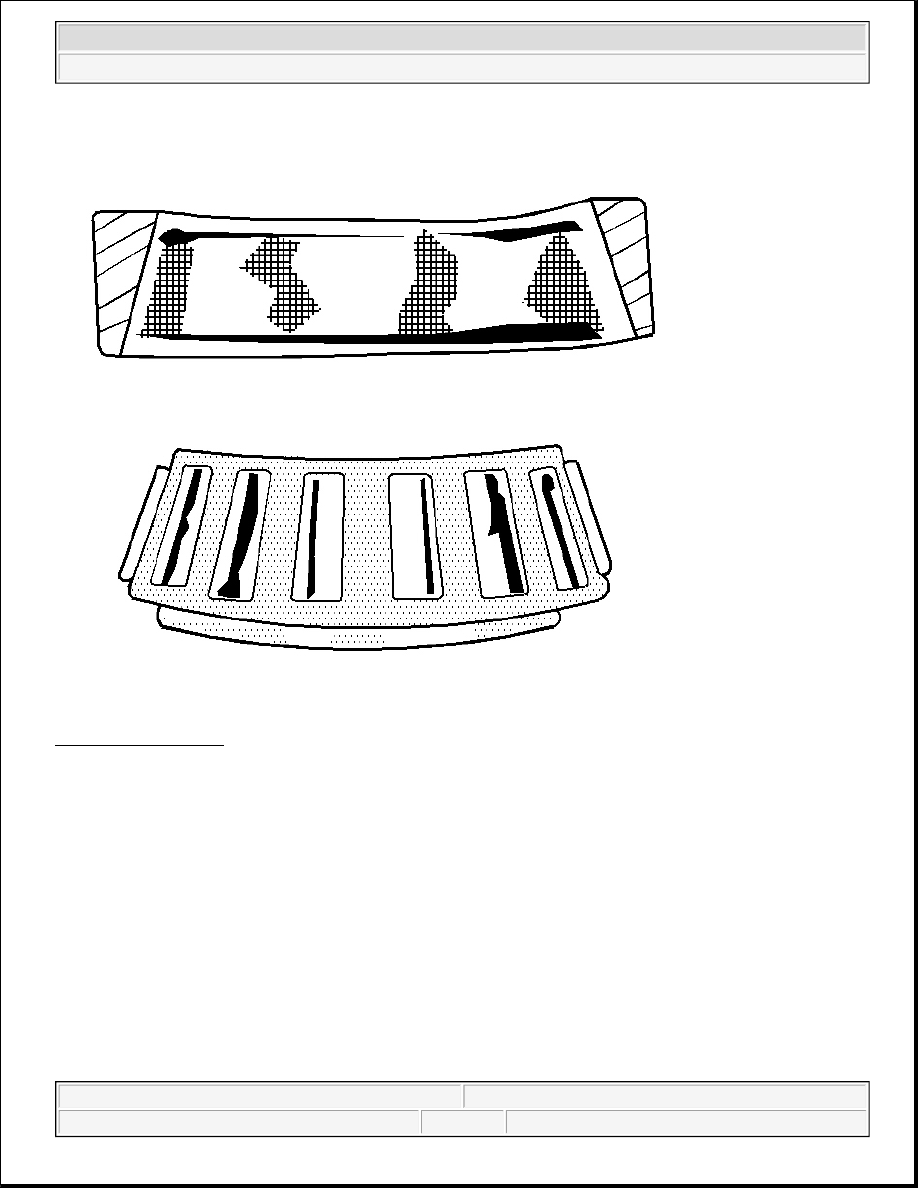

Fig. 13: Misalignment
Courtesy of GENERAL MOTORS CORP.

A misaligned outer race due to a foreign object. Clean the related parts. Replace the bearing. Ensure the races
are properly sealed.

Cracked Inner Race



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



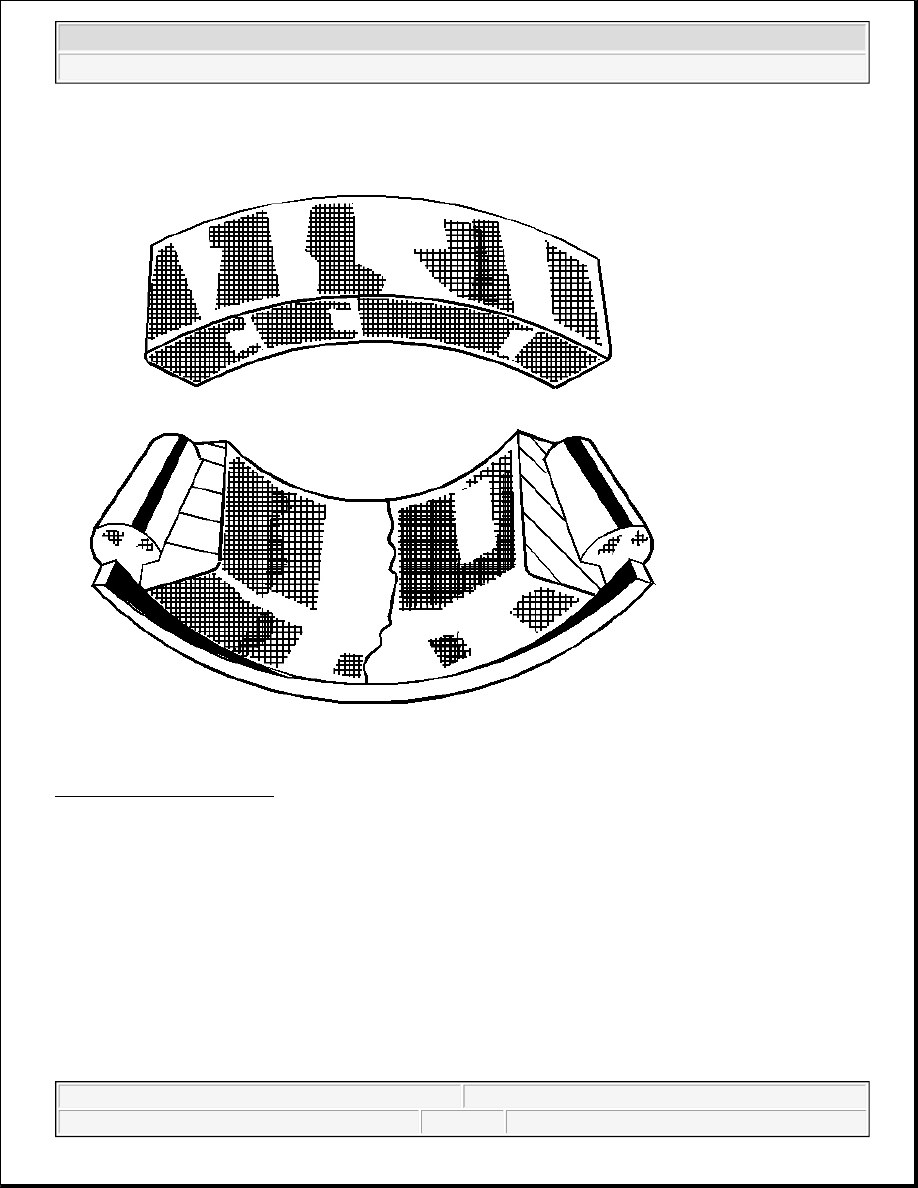

Fig. 14: Cracked Inner Race
Courtesy of GENERAL MOTORS CORP.

Cracked race due to improper fit, cocking, or poor bearing seats. Replace the bearing. Correct bearing seats.

Fatigue Spalling



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



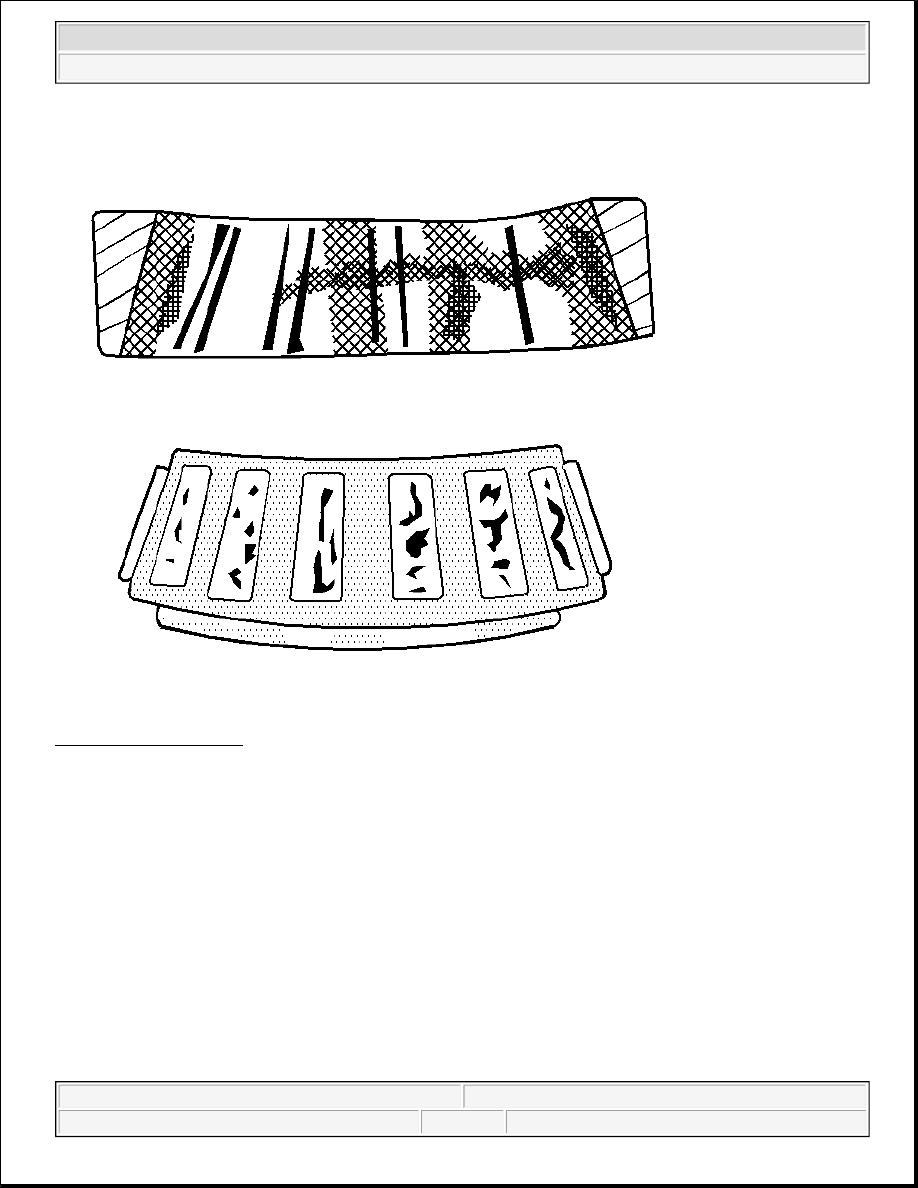

Fig. 15: Fatigue Spalling
Courtesy of GENERAL MOTORS CORP.

Flaked surface metal that results from fatigue. Replace the bearing. Clean all related parts.

Brinelling



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



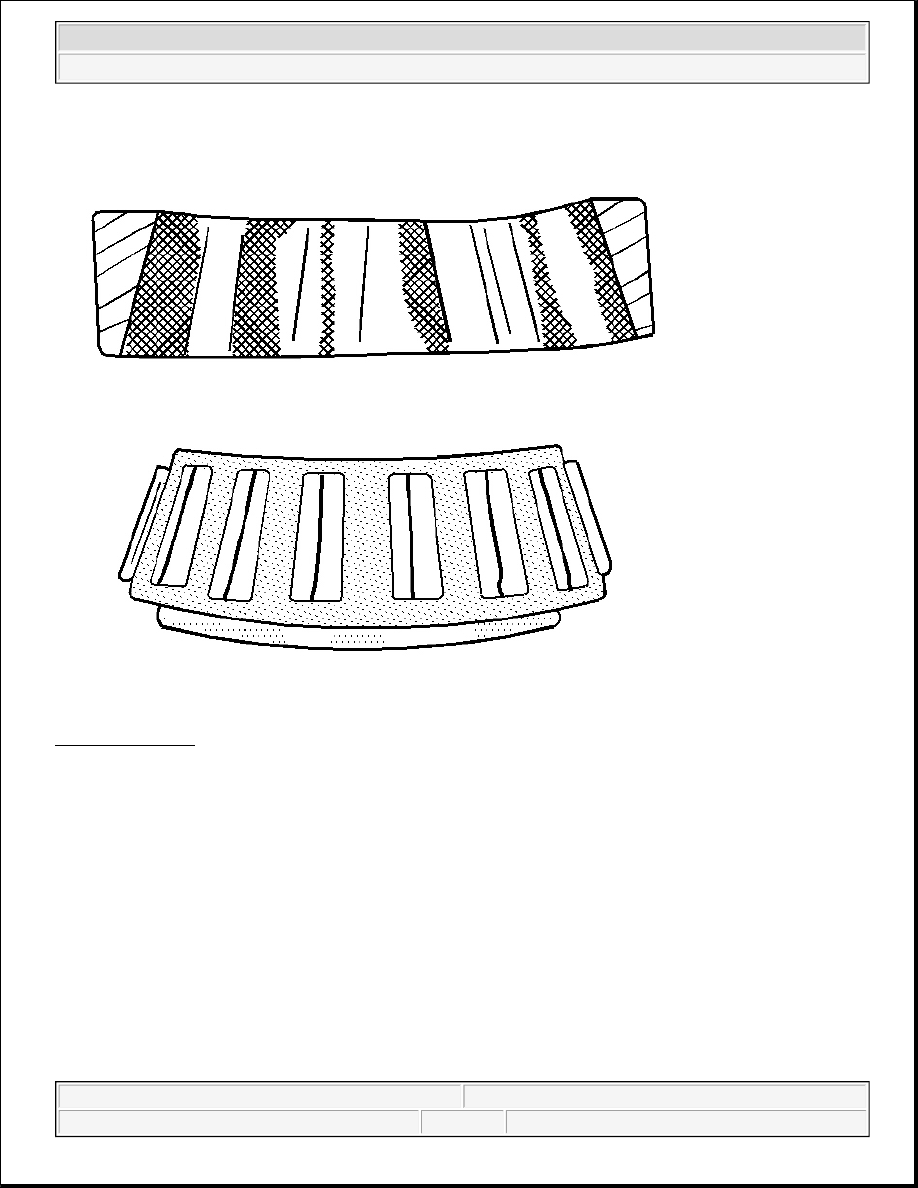

Fig. 16: Brinelling
Courtesy of GENERAL MOTORS CORP.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while
the bearing is not rotating. Replace a rough or noisy bearing.

WHEEL BEARING WEAR - FRONT DRIVE AXLE (STRAIGHT)

Straight Roller Bearing Diagnosis

Consider the following factors when diagnosing a bearing condition:

z

Note the general condition of all parts during disassembly and inspection.

z

Classify the failure with the aid of the illustrations.

z

Determine the cause.

z

Make all repairs following recommended procedures.
