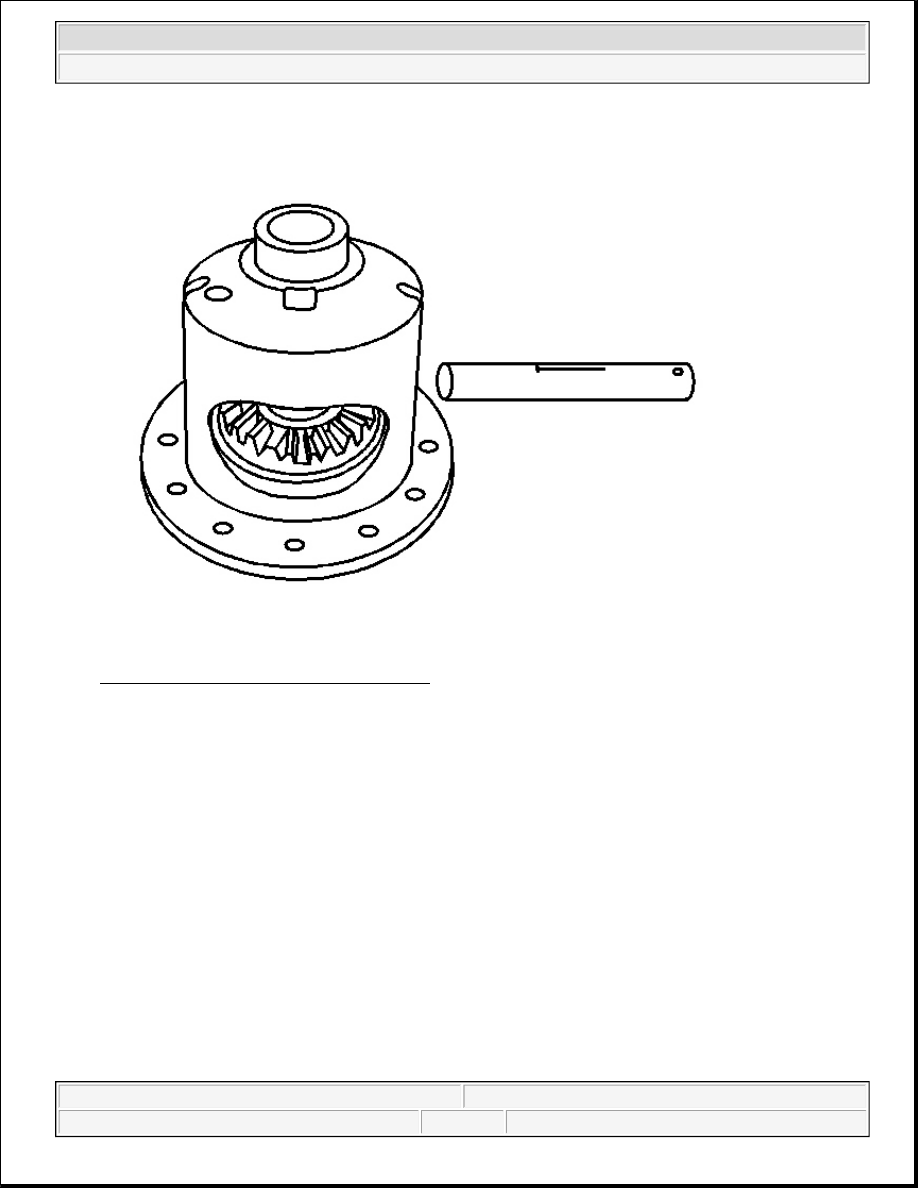

Fig. 100: View Of Differential Components
Courtesy of GENERAL MOTORS CORP.

5. Install the pinion gear shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



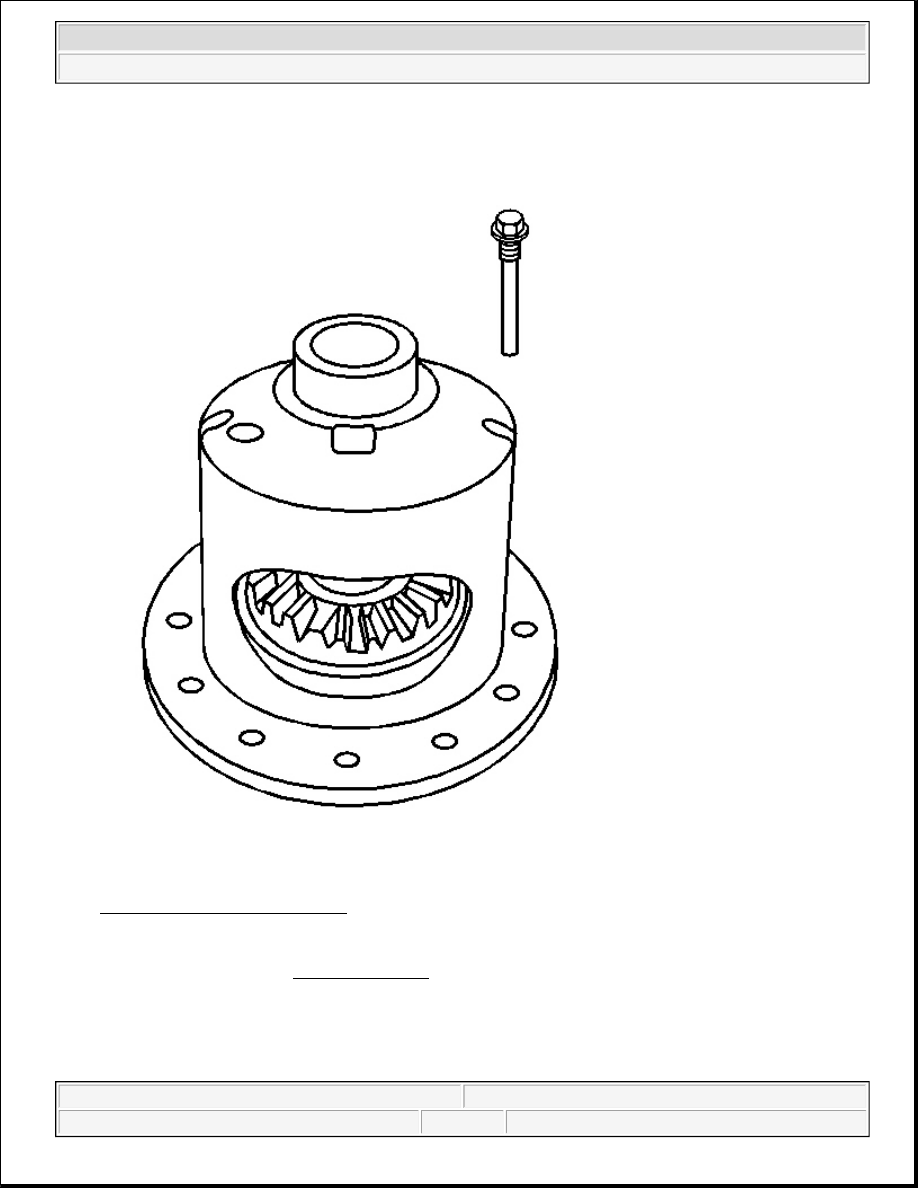

Fig. 101: Pinion Shaft Lock Bolt
Courtesy of GENERAL MOTORS CORP.

6. Install the pinion shaft lock bolt.

Tighten: Tighten the pinion shaft lock bolt to 53 N.m (39 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



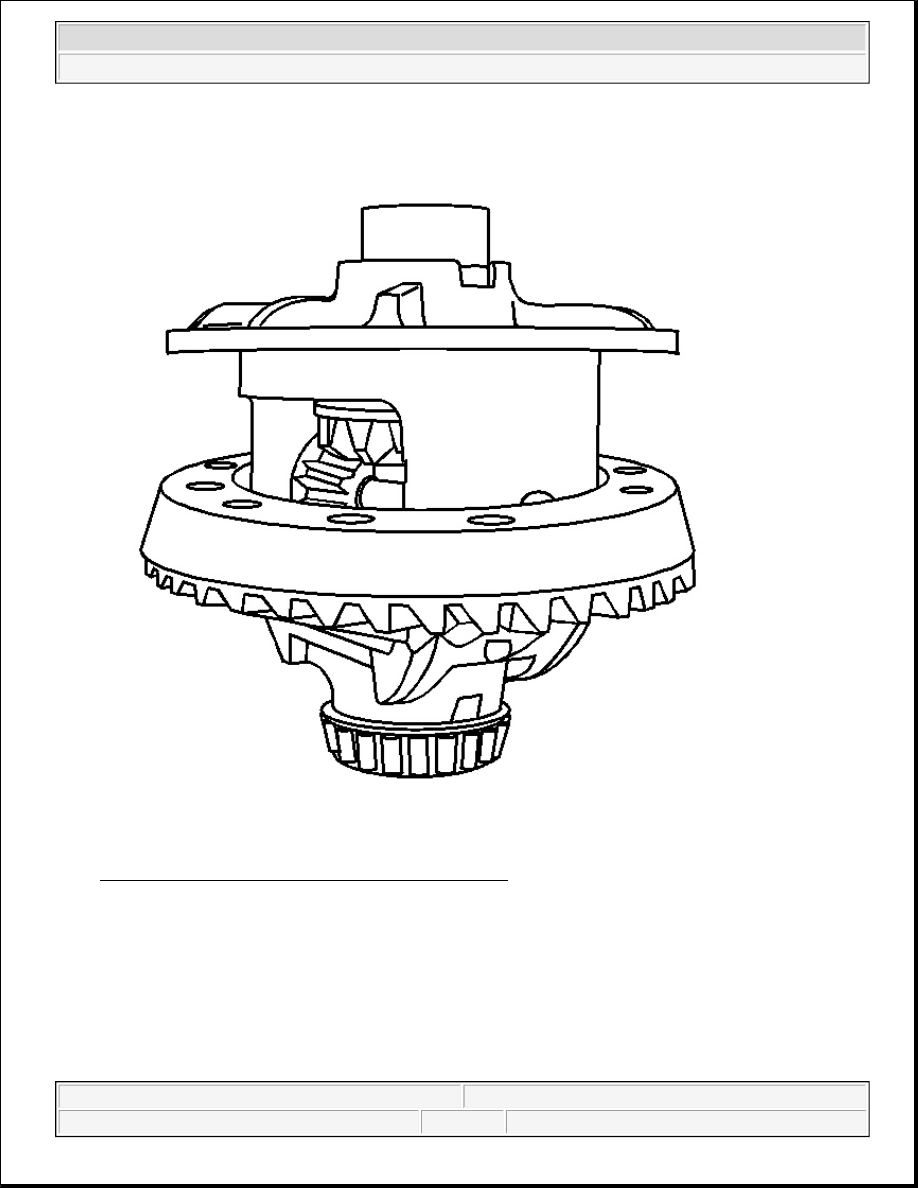

Fig. 102: Installing Ring Gear Onto Differential Case
Courtesy of GENERAL MOTORS CORP.

7. Install the ring gear onto the differential case.

IMPORTANT: The mating surface of the ring gear and the differential case must be

clean and free of burrs before installing the ring gear.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



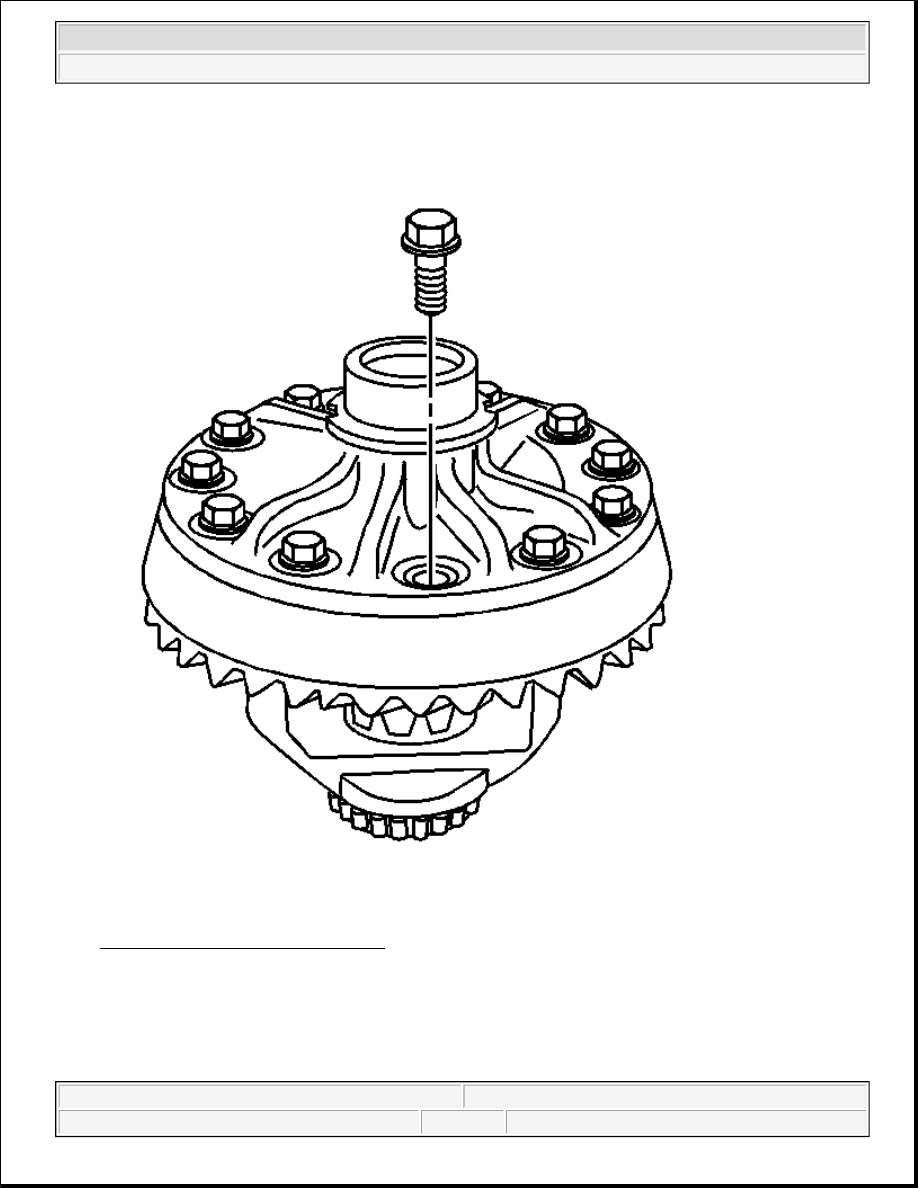

Fig. 103: Identifying Ring Gear Bolts
Courtesy of GENERAL MOTORS CORP.

8. Install the new ring gear bolts.

IMPORTANT: The ring gear bolts have left-hand threads.
