3. Remove the ring gear bolts. Discard the bolts.

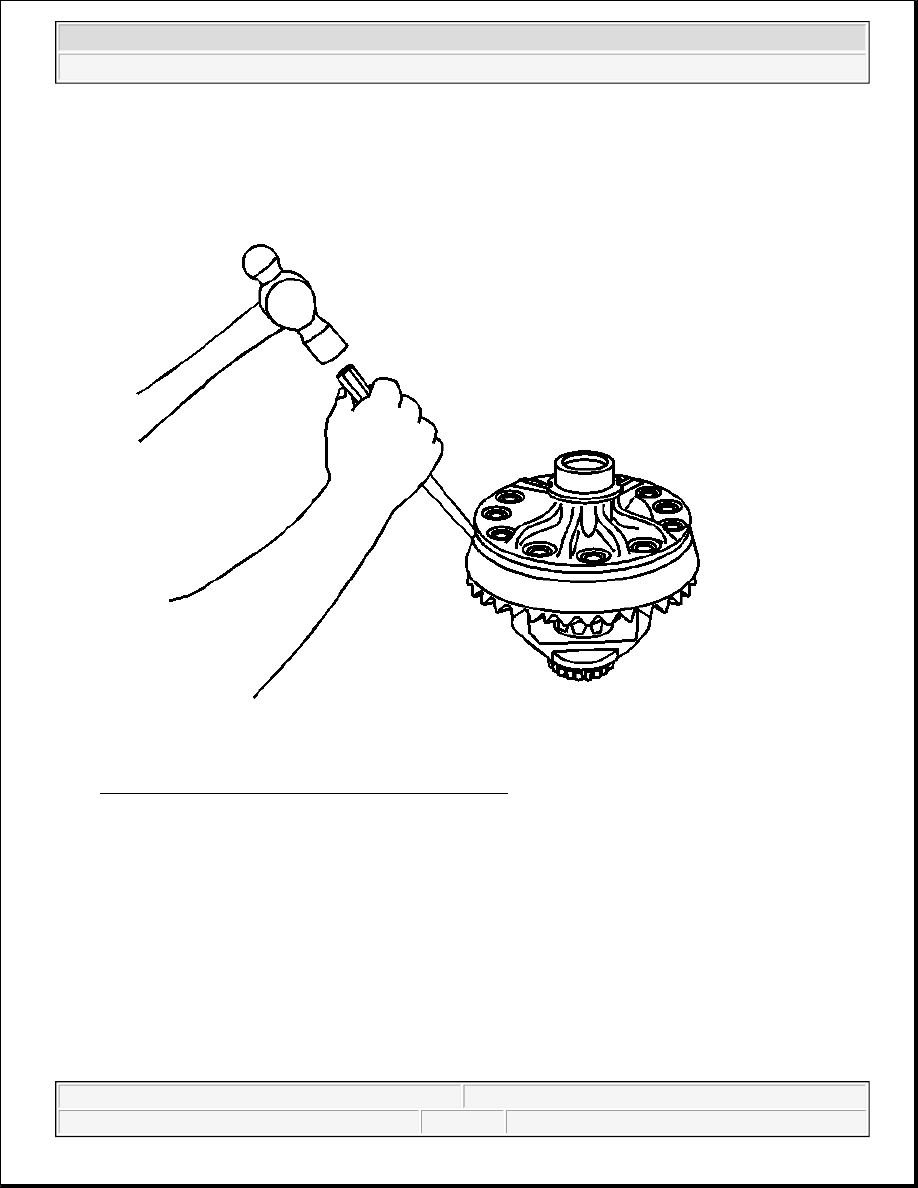

Fig. 93: Removing Ring Gear From Differential Case
Courtesy of GENERAL MOTORS CORP.

4. Remove the ring gear from the differential case.

Drive the ring gear off with a brass drift if necessary.

NOTE:

Do not pry the ring gear from the differential case. Prying the ring gear
from the differential case may cause damage to the ring gear and/or the
differential case.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

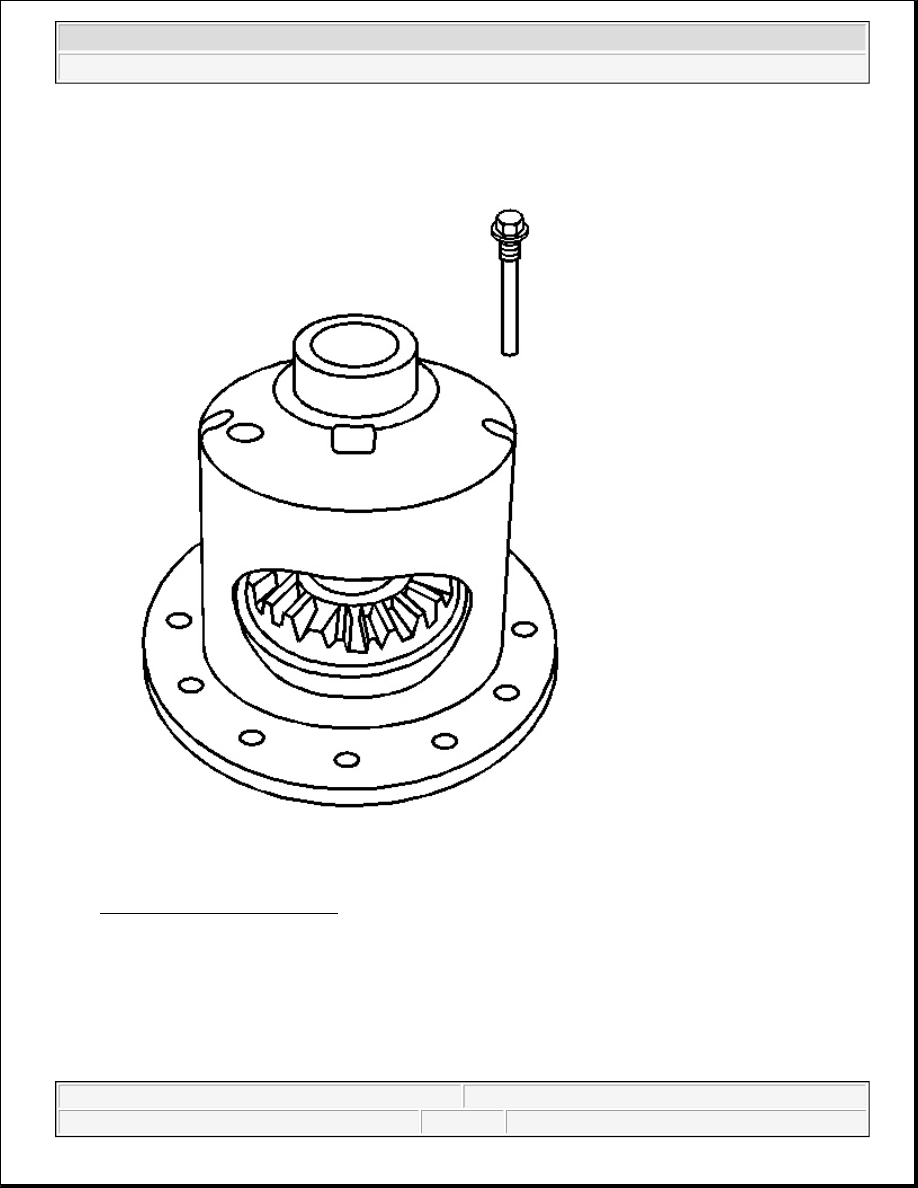

Fig. 94: Pinion Shaft Lock Bolt
Courtesy of GENERAL MOTORS CORP.

5. Remove the pinion shaft lock bolt.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

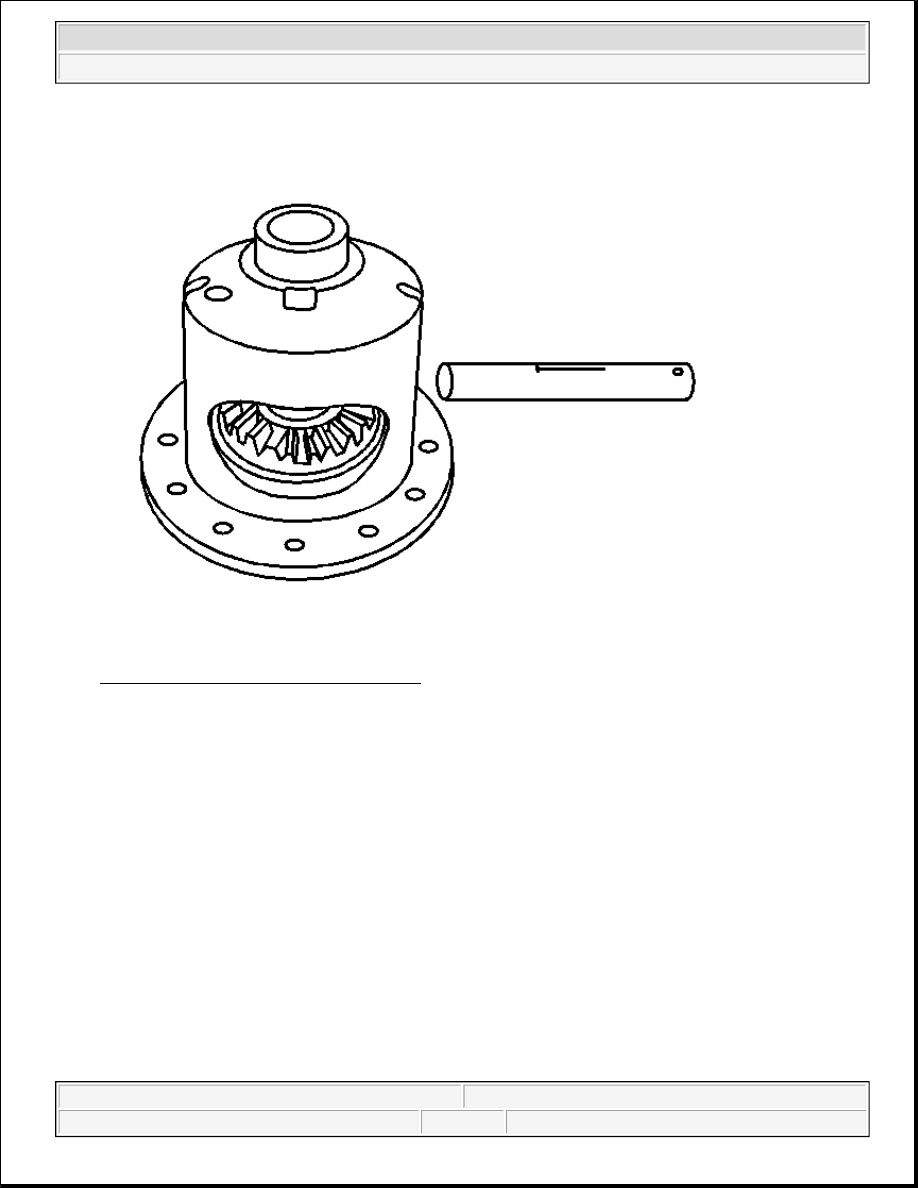

Fig. 95: View Of Differential Components
Courtesy of GENERAL MOTORS CORP.

6. Remove the pinion shaft.

7. Remove the differential side gear spacers.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

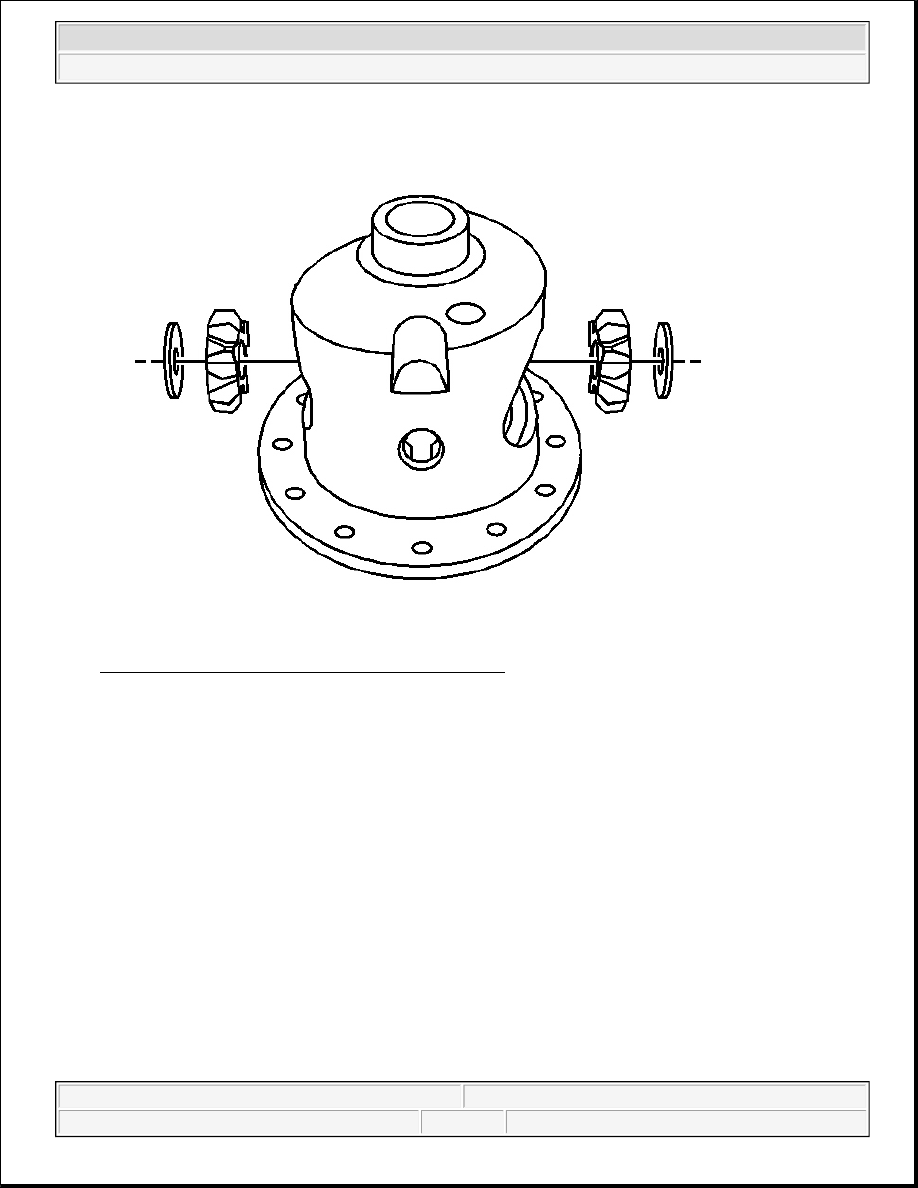

Fig. 96: Differential Pinion Gears & Thrust Washers
Courtesy of GENERAL MOTORS CORP.

8. Remove the differential pinion gears and thrust washers by performing the following steps:

1. Drive the pinion gear thrust washers out from the differential case using a hammer and a brass drift.

2. Roll the differential pinion gears out of the differential case.

Mark the pinion gears and thrust washers top and bottom.
