differential carrier sealing surface.

4. Install the inner axle shaft and the inner axle shaft housing to the differential carrier assembly.

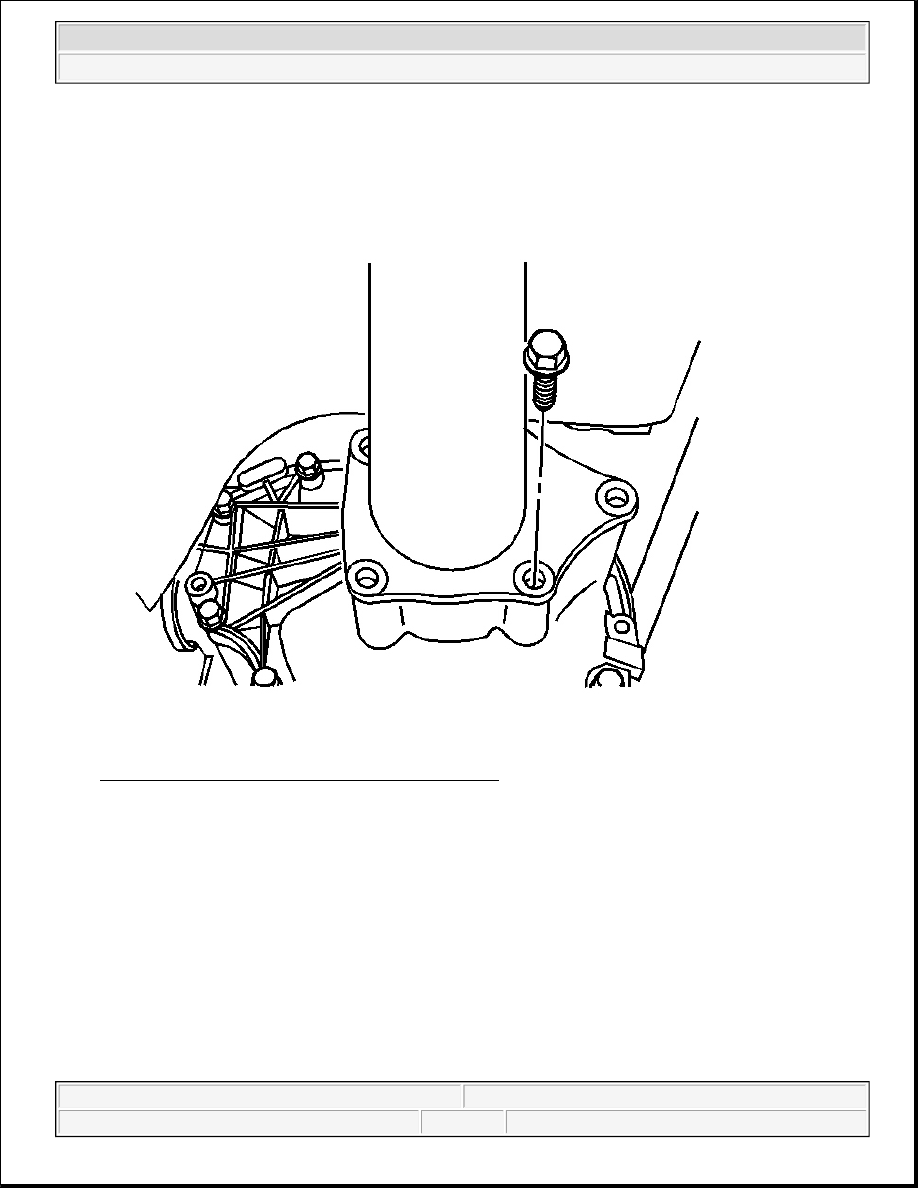

Fig. 41: Front Drive Inner Axle Shaft Housing Bolts
Courtesy of GENERAL MOTORS CORP.

5. Install the inner axle shaft housing bolts.

Tighten: Tighten the inner axle shaft housing bolts to 40 N.m (30 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



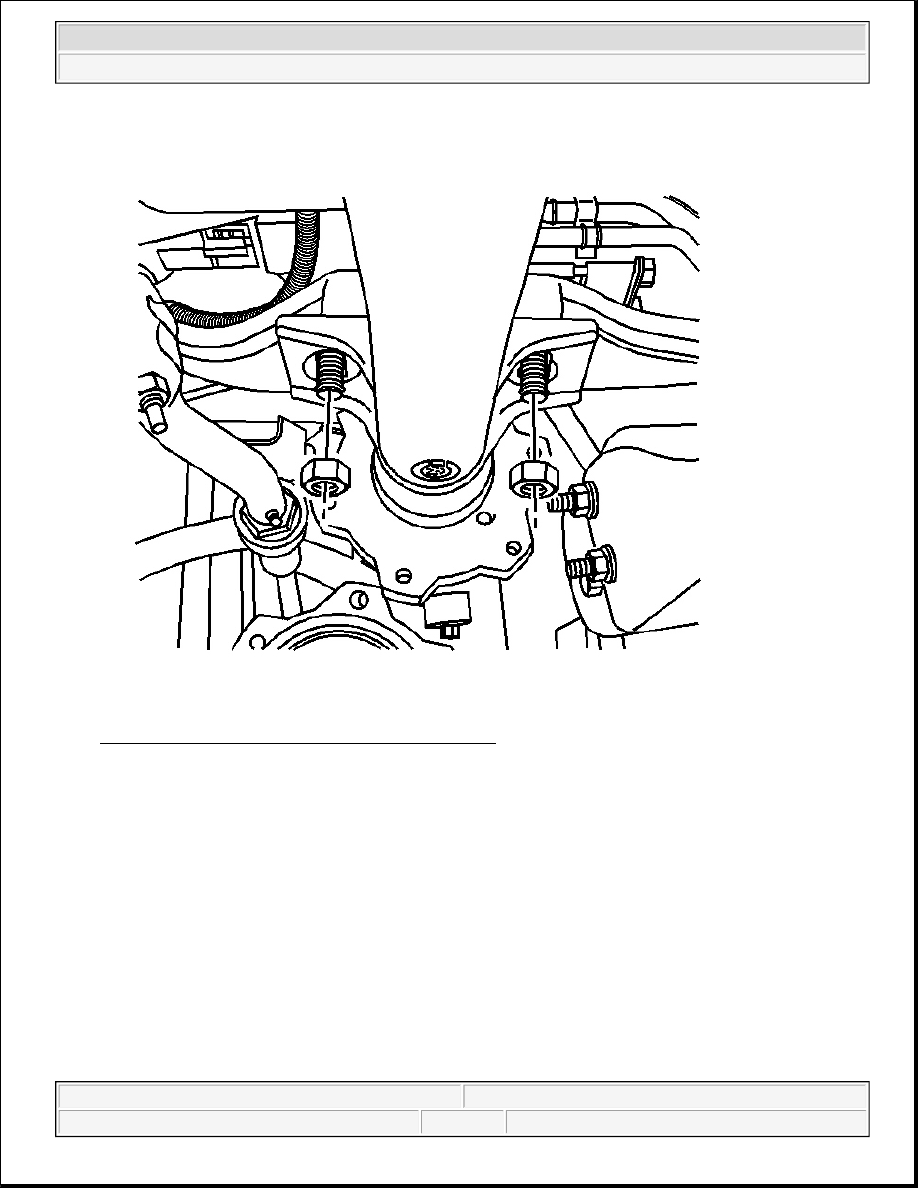

Fig. 42: Front Drive Inner Axle Shaft Housing Nuts
Courtesy of GENERAL MOTORS CORP.

6. Install the inner axle shaft housing nuts to the bracket.

Tighten: Tighten the inner axle shaft housing nuts to 100 N.m (75 lb ft).

7. Install the inner axle shaft into the differential case side gear by doing the following:

1. Turn the inner axle shaft and align the splines of the inner axle shaft with the splines on the

differential side gear.

2. Drive the inner axle shaft into the differential case side gear assembly using a soft-faced mallet

until the retaining ring on the inner axle shaft is fully seated within the groove in the differential
case side gear.

3. Pull back on the inner axle shaft to ensure that the inner axle shaft is properly retained in the

differential case side gear.

8. Install the right wheel drive shaft to the inner axle shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



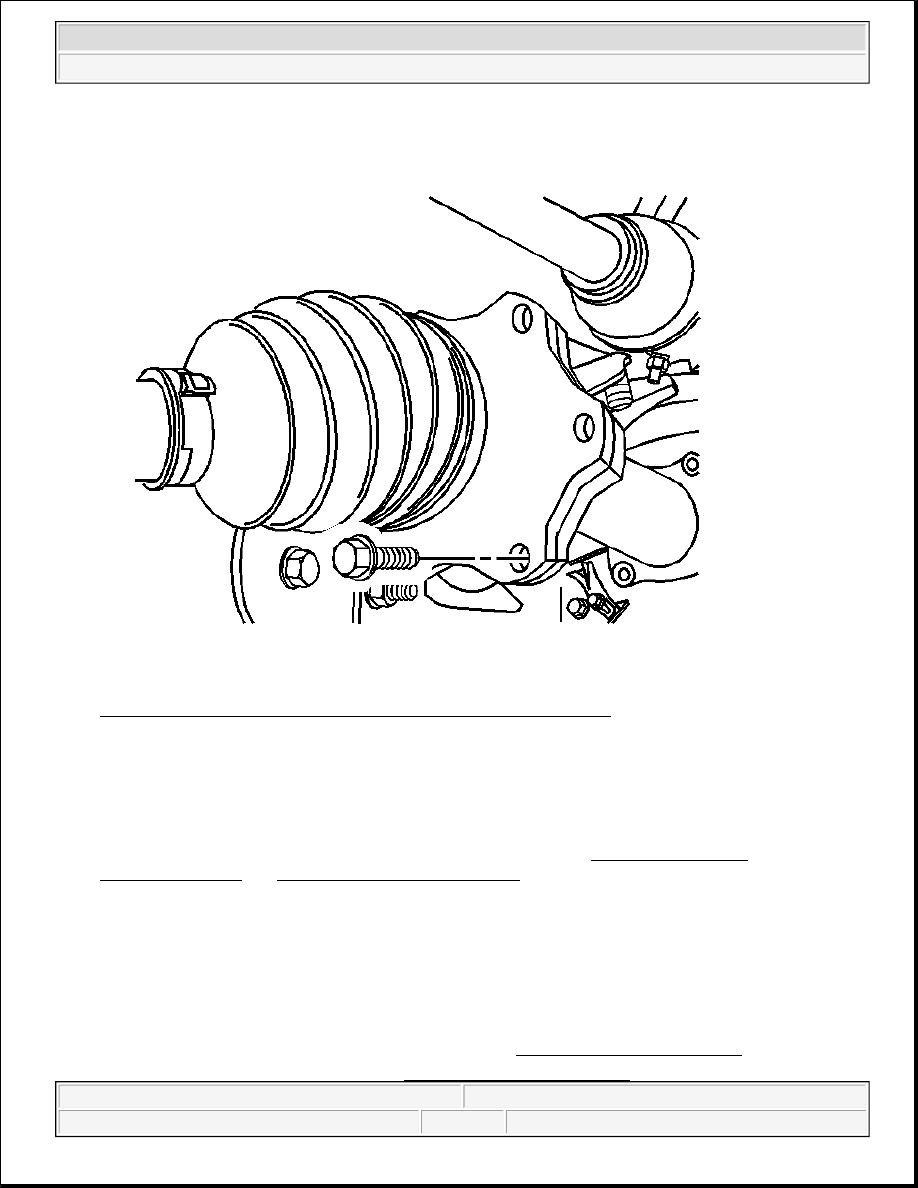

Fig. 43: Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle
Courtesy of GENERAL MOTORS CORP.

9. Install the right wheel drive shaft inboard flange to inner axle shaft bolts.

Tighten: Tighten the wheel drive shaft inboard flange to inner axle shaft bolts to 79 N.m (58 lb ft).

10. Fill the front axle with axle lubricant. Use the proper fluid. Refer to Fluid and Lubricant

Recommendations and Capacities - Approximate Fluid in Maintenance and Lubrication.

11. Lower the vehicle.

INNER AXLE SEAL AND/OR BEARING REPLACEMENT - FRONT DRIVE AXLE

Tools Required

z

J 2619-01 Slide Hammer

z

J 29369-2 Bushing and Bearing Remover (2-3 inch). See Special Tools and Equipment .

z

J 36609 Axle Tube Bearing Installer. See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



z

J 45225 Axle Seal Installer. See Special Tools and Equipment .

z

J 8092 Universal Driver Handle - 3/4 in - 10. See Special Tools and Equipment .

Removal Procedure

Fig. 44: View Of J 29369-2 & J 2619-01
Courtesy of GENERAL MOTORS CORP.

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Drain the differential carrier assembly. Refer to Lubricant Replacement - Front Drive Axle .

3. If replacing the right side seal, perform the following steps:
