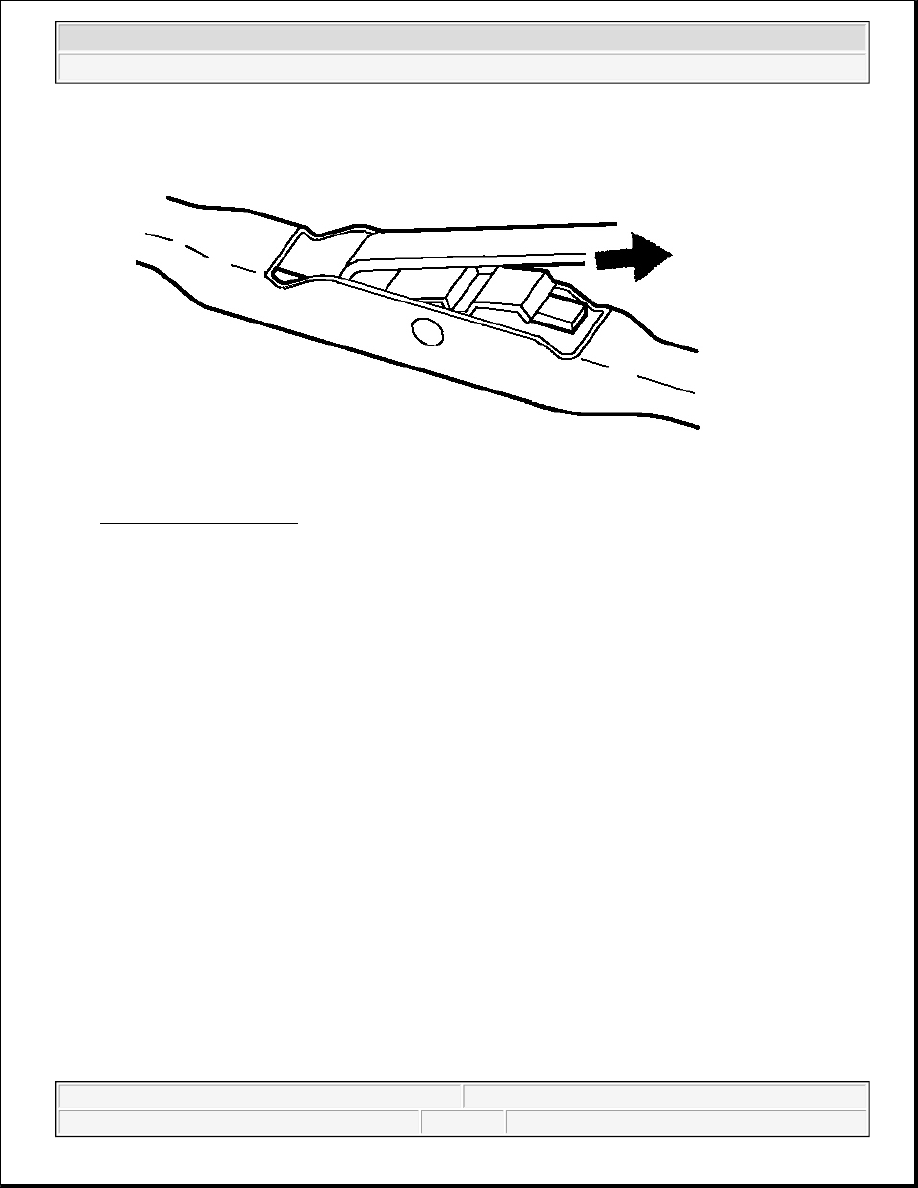

Fig. 23: Wiper Arm To Wiper Blade
Courtesy of GENERAL MOTORS CORP.

5. Bring the wiper arm out through the opening in the wiper blade.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2

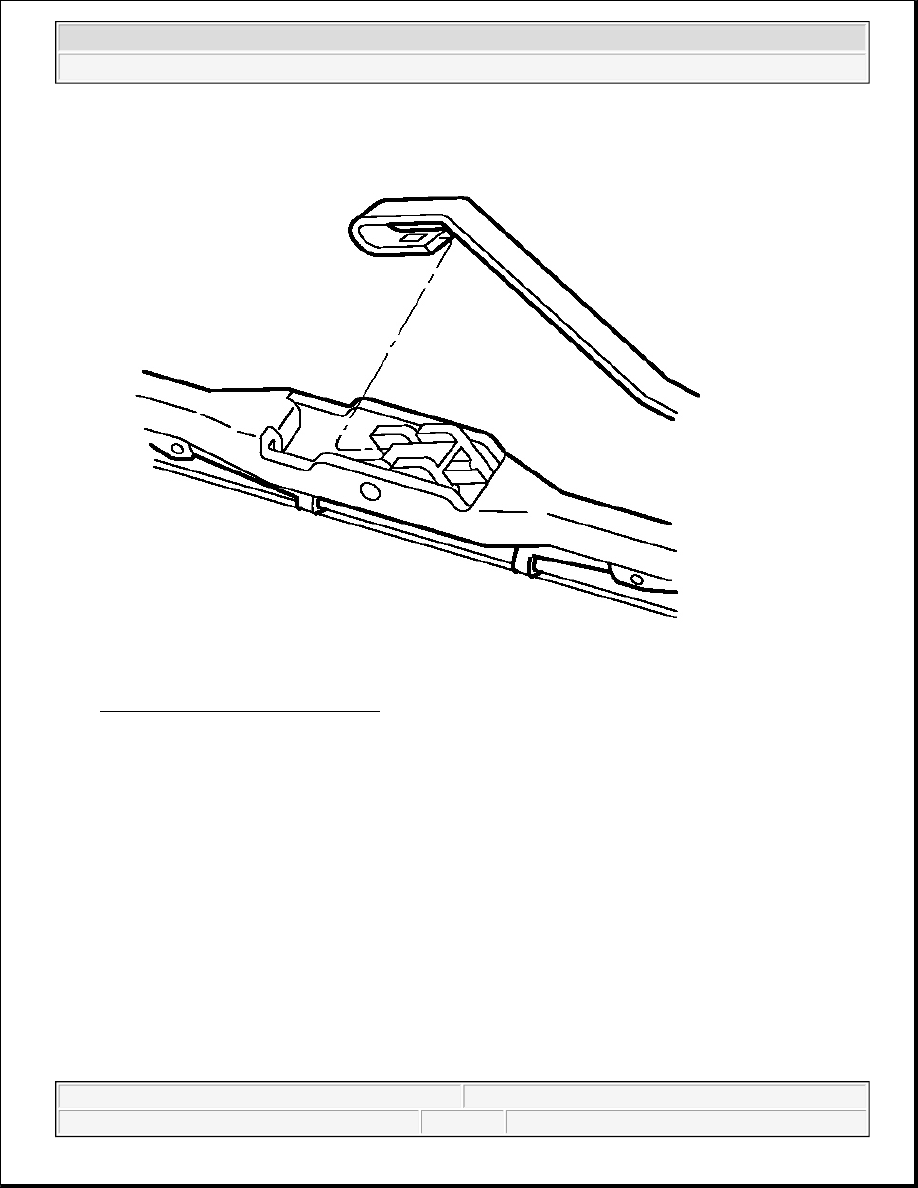

Fig. 24: Wiper Arm To Wiper Blade
Courtesy of GENERAL MOTORS CORP.

1. Insert the hook of the wiper arm through the opening in the wiper blade.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



Fig. 25: Wiper Blade Clip
Courtesy of GENERAL MOTORS CORP.

2. Position the wiper blade pivot in the inside radius of the wiper arm hook.

3. Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.

4. Operate the wipers and inspect for proper operation.

WIPER BLADE ELEMENT REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2

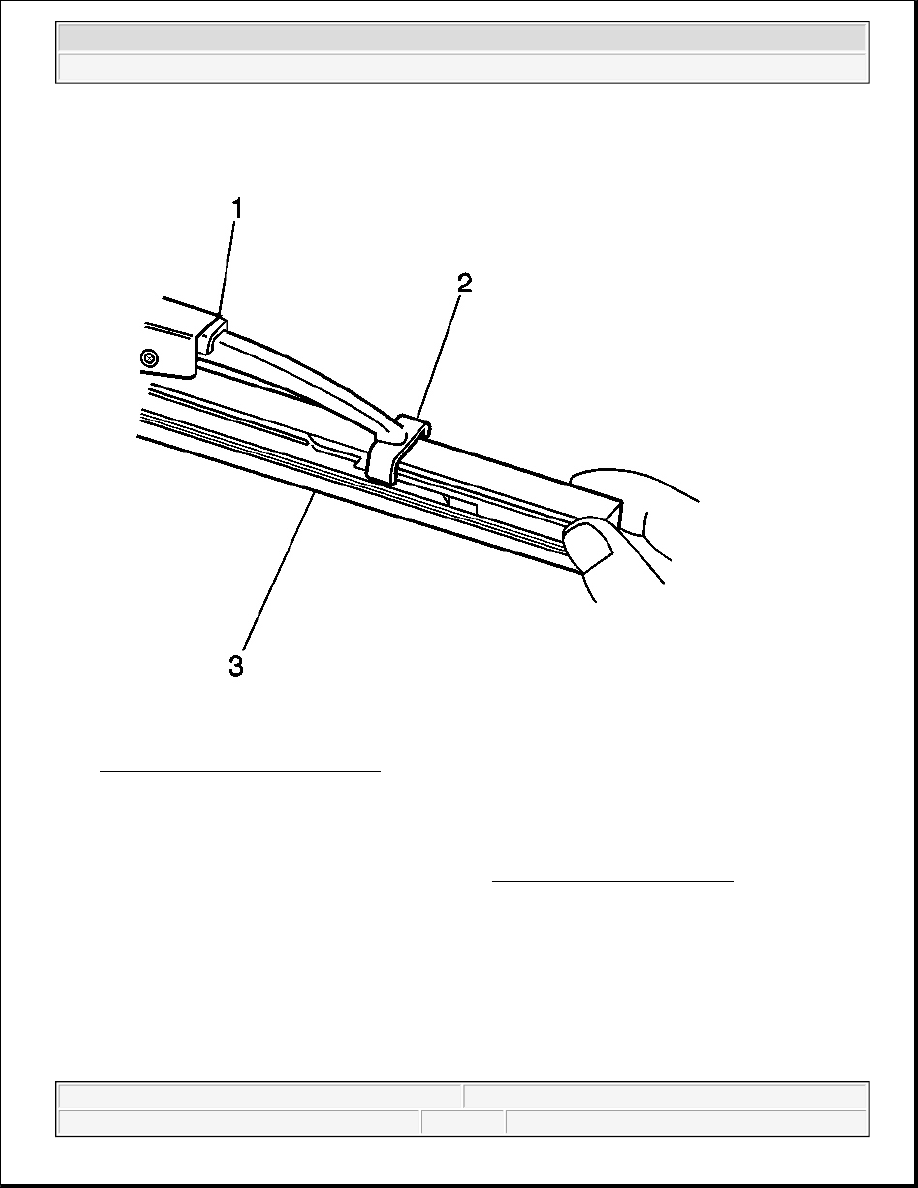

Fig. 26: Wiper Blade & Components
Courtesy of GENERAL MOTORS CORP.

1. Remove the wiper blade from the wiper arm. Refer to Wiper Arm Blade Replacement .

2. Remove the bottom claws (2) of the wiper blade (1) from the notches in the wiper blade element (3).

3. Pull the wiper blade element (3) out through the wiper blade claws (2).

Installation Procedure

IMPORTANT: Replace the wiper blade element if it is removed from the wiper blade.
