Removal Procedure

1. Remove the washer solvent container. Refer to Washer Solvent Container Replacement .

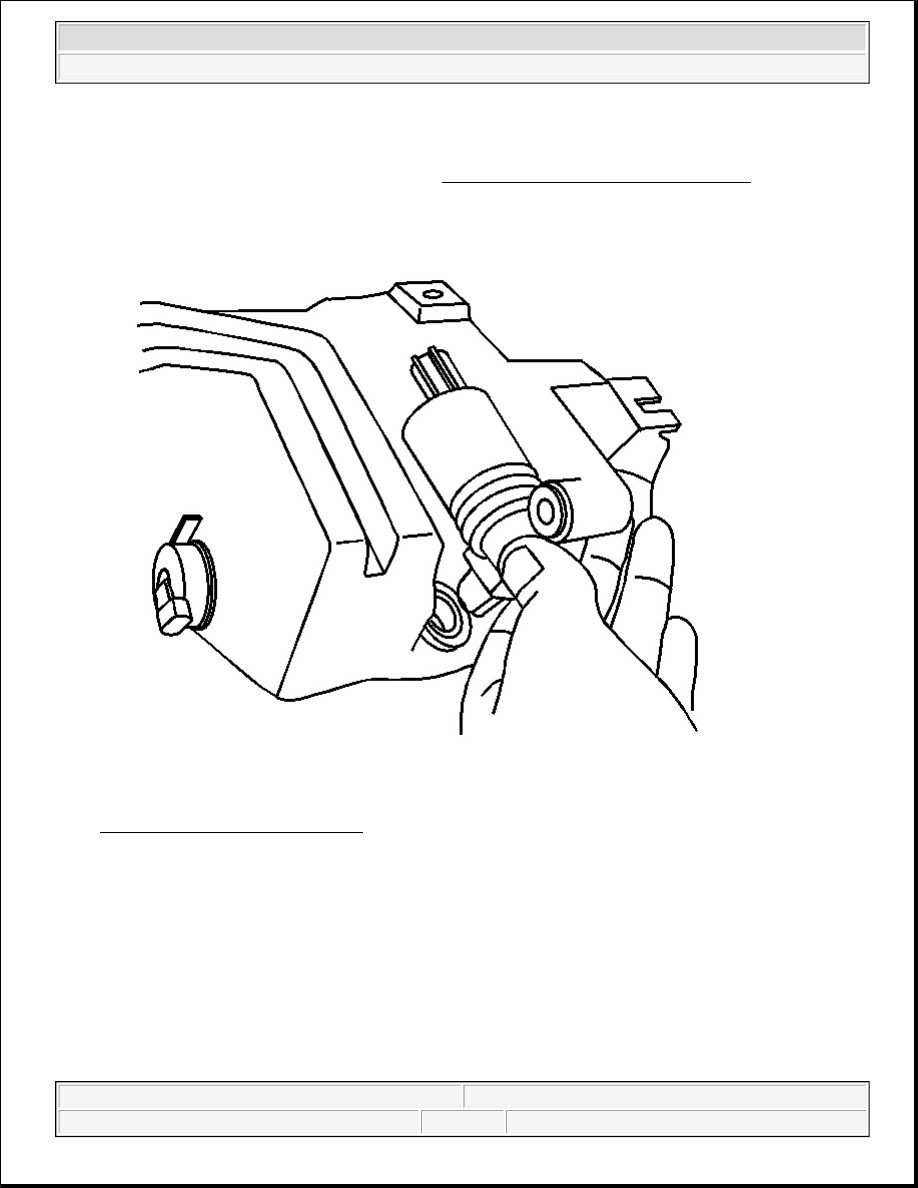

Fig. 15: Identifying Washer Pump
Courtesy of GENERAL MOTORS CORP.

2. Remove the washer pump from the washer solvent container by gently prying the pump from the

container using 2 flat-bladed tools.

3. Remove the washer pump.

4. Discard the washer pump grommet.

Installation Procedure

1. Install a new washer pump grommet into the container.

2. Lubricate the washer pump pickup with clean washer solvent.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



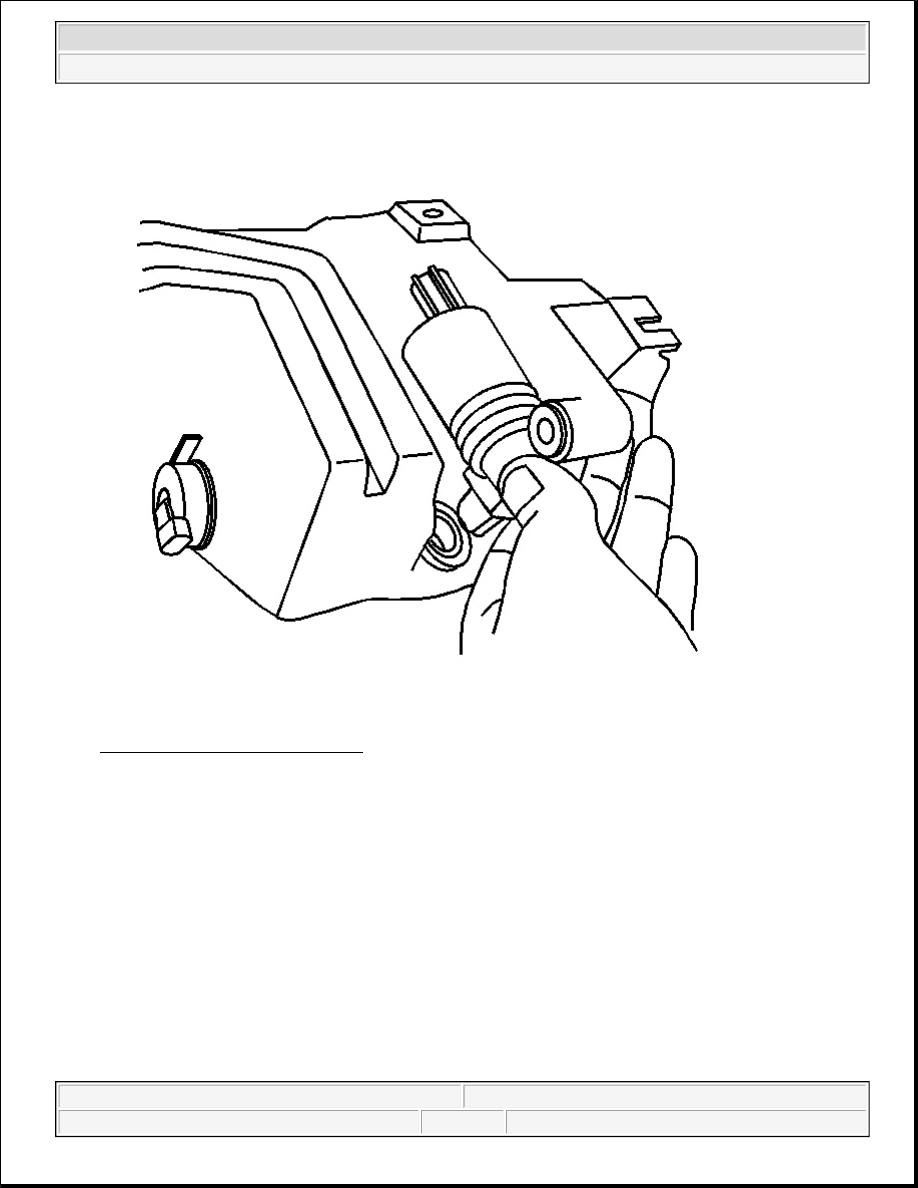

Fig. 16: Identifying Washer Pump
Courtesy of GENERAL MOTORS CORP.

3. Install the washer pump in the washer solvent container - gentle pressure is required.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



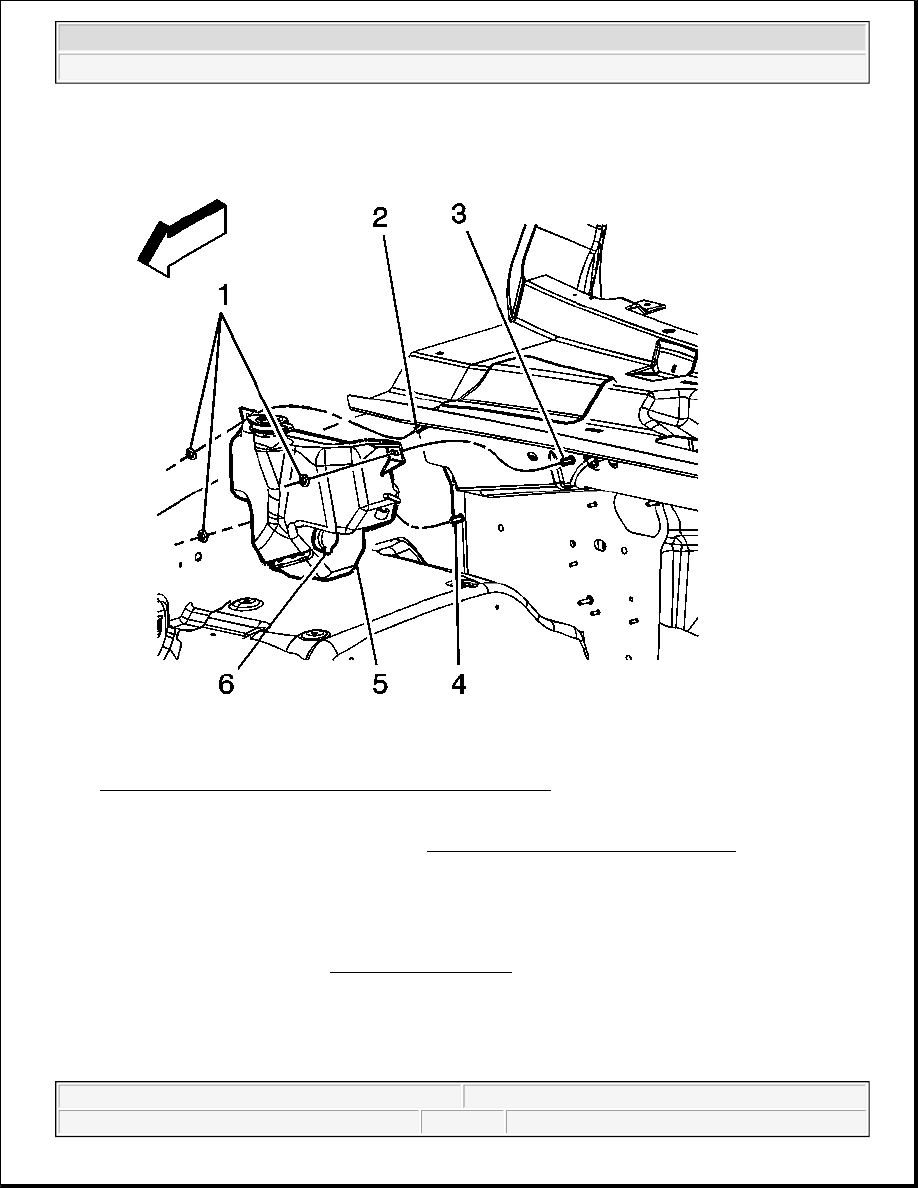

Fig. 17: Washer Solvent Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

4. Install the washer solvent container. Refer to Washer Solvent Container Replacement .

WASHER HOSE REPLACEMENT - HEADLINER

Removal Procedure

1. Remove the headliner. Refer to Headliner Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



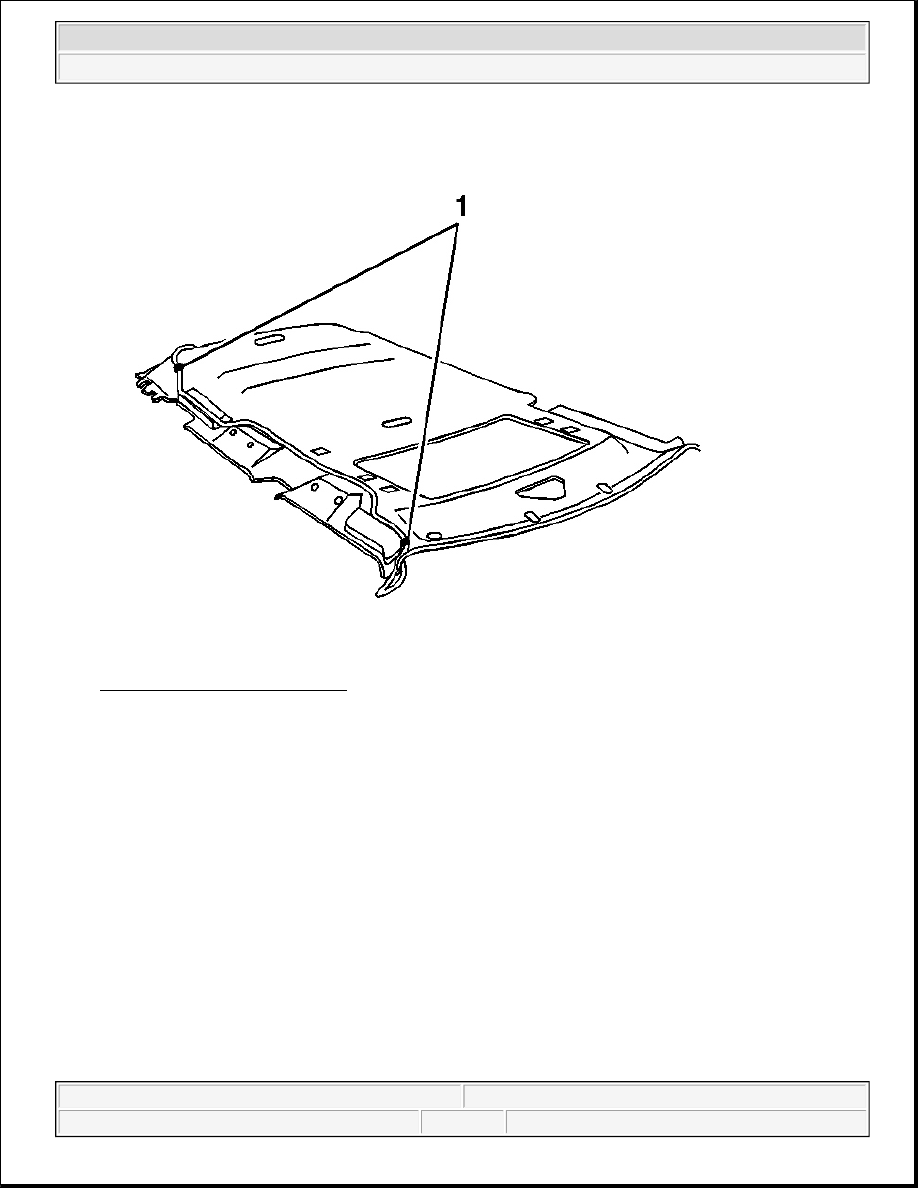

Fig. 18: Headliner Washer Hose
Courtesy of GENERAL MOTORS CORP.

2. Cut off the ends of the original washer hose at the points called out (1).

Installation Procedure
