Hummer H2. Manual - part 743

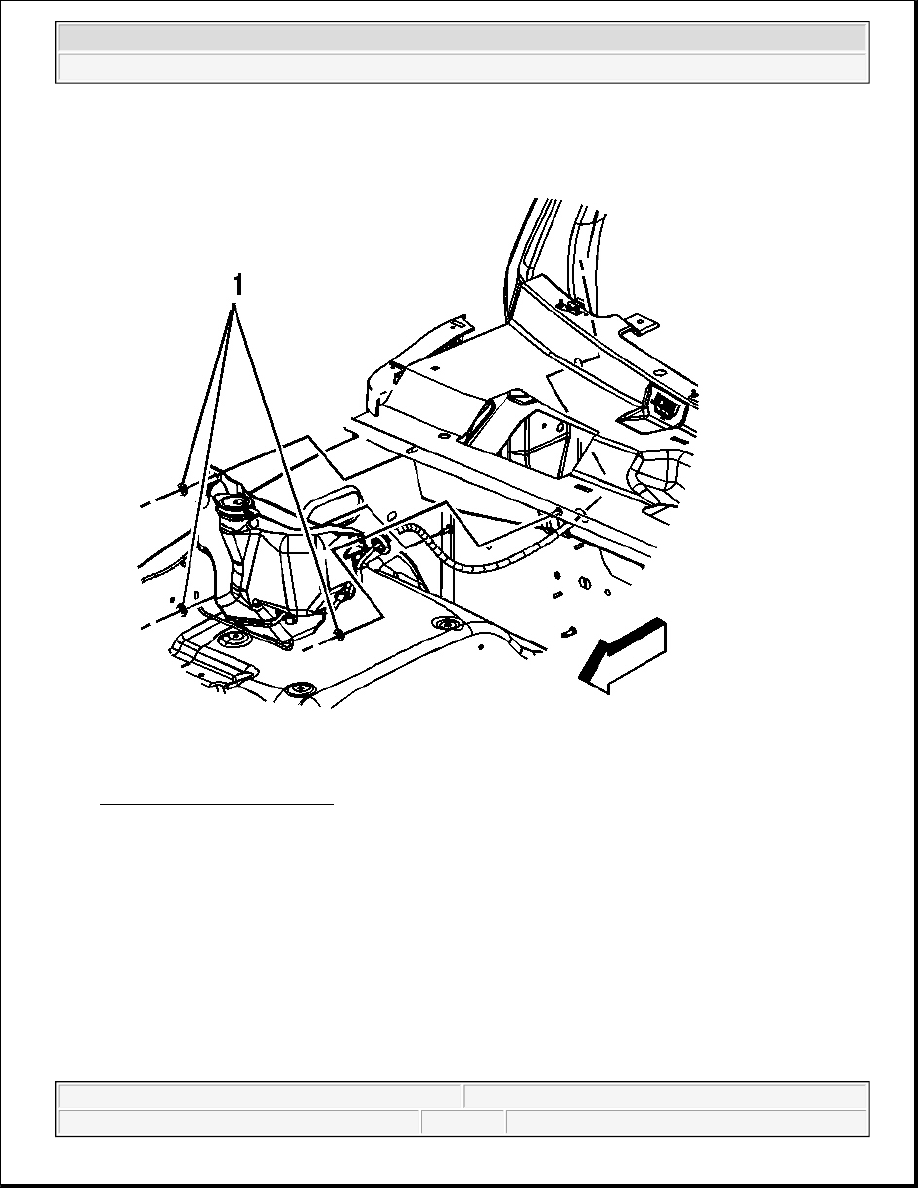

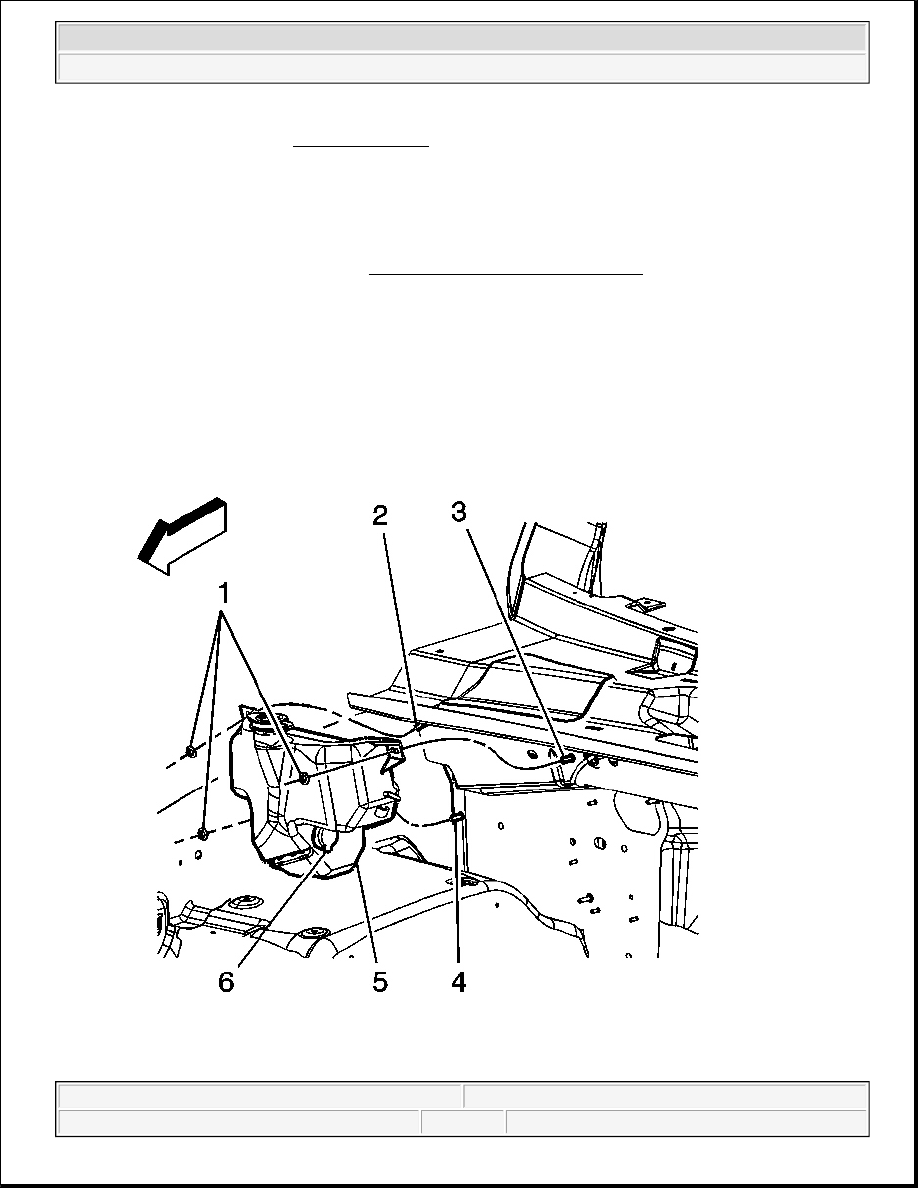

Fig. 7: Solvent Container Nuts
Courtesy of GENERAL MOTORS CORP.

3. Remove the nuts (1) retaining the solvent container to the vehicle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2

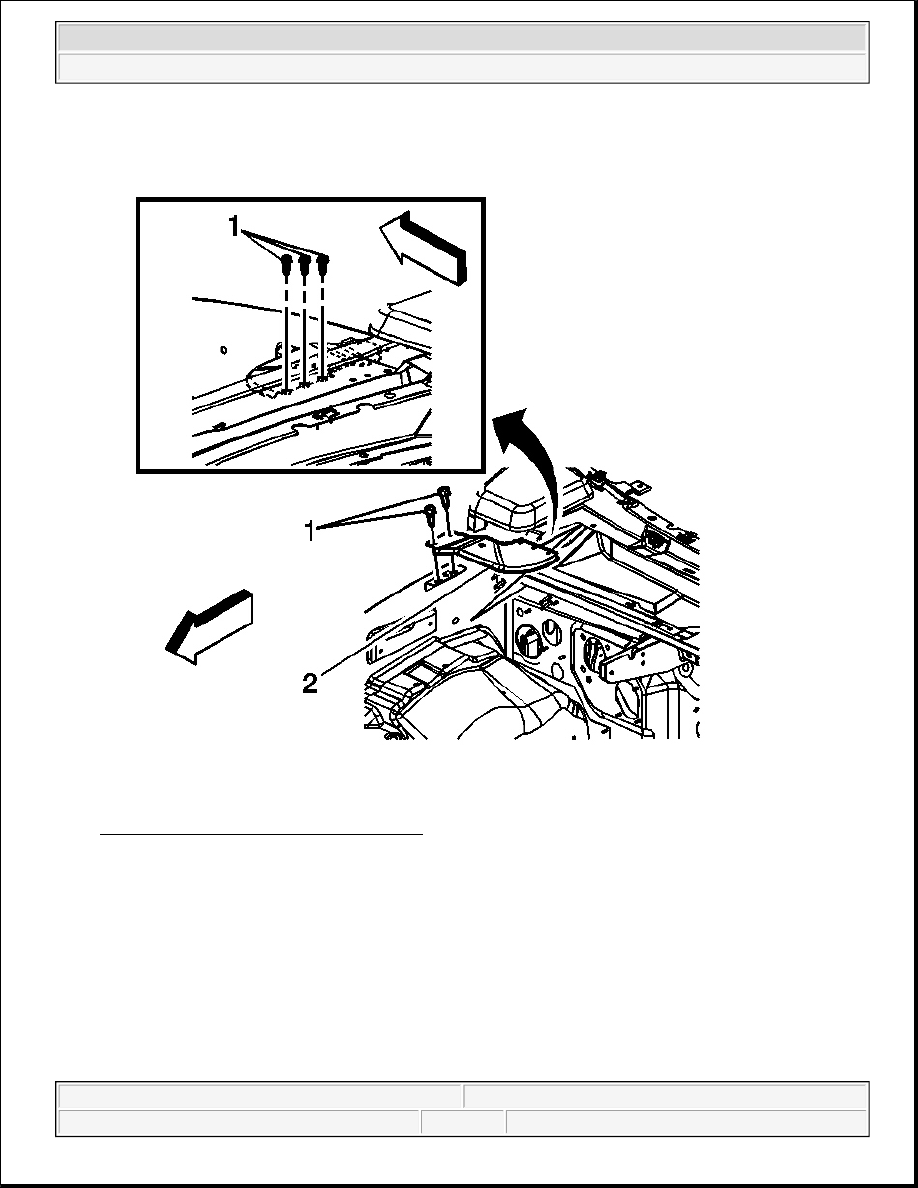

Fig. 8: Front End Inner Side Panel Gusset
Courtesy of GENERAL MOTORS CORP.

4. Remove the front end inner side panel gusset (2) by removing the fasteners (1).

5. Remove the washer hoses from the "T" connections at washer pump and unseat them from the grooves in

the washer bottle.

6. Disconnect the washer pump electrical connector.

7. Disconnect the washer level sensor electrical connector.

8. Remove the washer reservoir from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



1. Connect the washer level sensor electrical connector.

2. Connect the washer pump electrical connector.

3. Seat the washer hoses in the grooves on the washer bottle, and connect the hoses to the "T" connector at

the motor.

4. Set the solvent container in place on the vehicle, but do not install the fasteners.

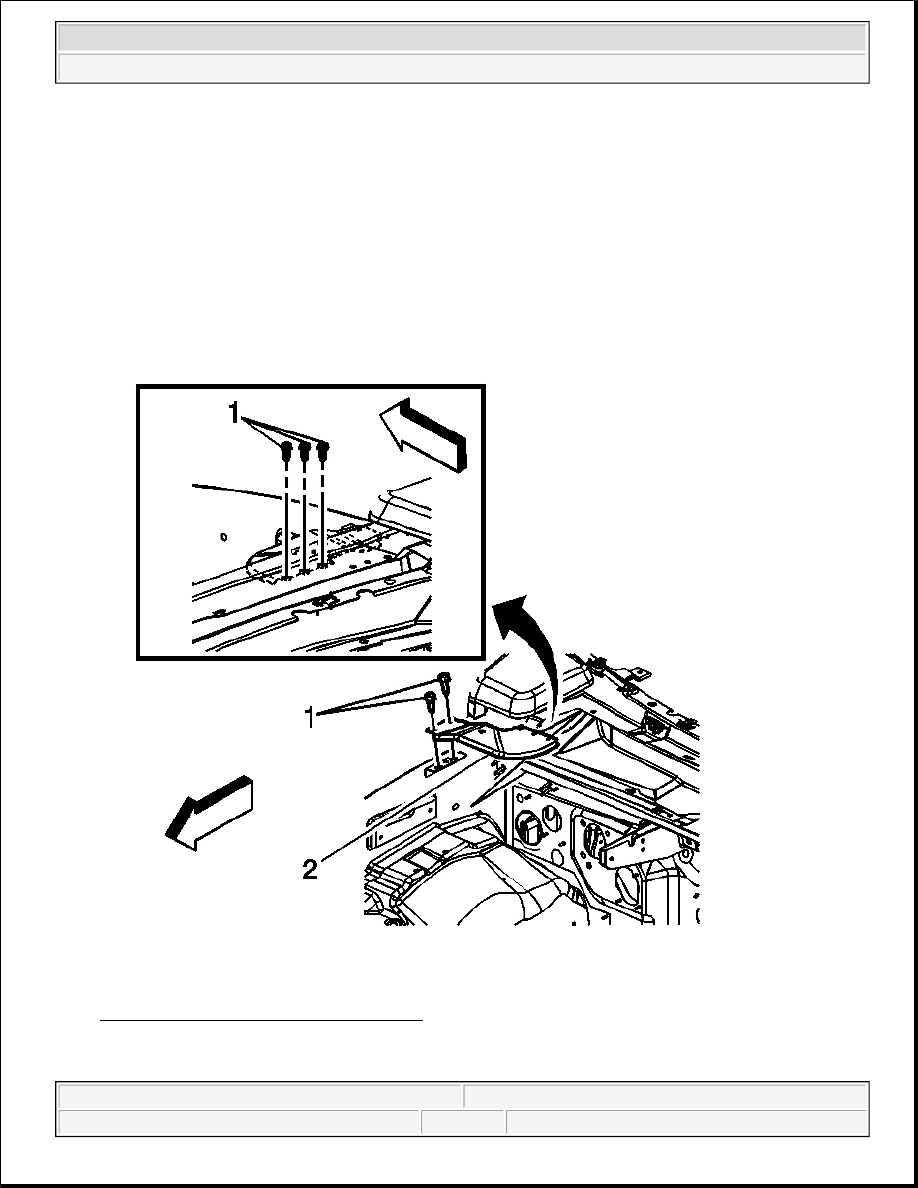

Fig. 9: Front End Inner Side Panel Gusset
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: If replacing reservoir, make sure to transfer all necessary components.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



5. Install the front end inner side panel gusset (2) and the fasteners retaining it to the vehicle.

Tighten: Tighten the fasteners to 25 N.m (18 lb ft).

6. Install air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls 6.0L

(LQ4).

7. Fill the washer solvent container.

WASHER SOLVENT CONTAINER LEVEL SENSOR REPLACEMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2
