WIPER ARM TIP PRESSURE CHECK

14

Test the rear window wiper switch signal circuit
for an open or high resistance. Refer to Circuit
Testing and Wiring Repairs in Wiring Systems.
Did you find and correct the condition?

Go to Step 23

Go to Step 15

15

Inspect for poor connections at the harness
connector of the rear wiper/washer switch. Refer
to Testing for Intermittent Conditions and
Poor Connections and Connector Repairs in
Wiring Systems.
Did you find and correct the condition?

Go to Step 23

Go to Step 21

16

Inspect for poor connections at the harness
connector of the rear wiper module. Refer to
Testing for Intermittent Conditions and Poor
Connections and Connector Repairs in Wiring
Systems.
Did you find and correct the condition?

Go to Step 23

Go to Step 22

17

Repair an open or high resistance in the rear
window wiper switch signal circuit. Refer to
Circuit Testing and Wiring Repairs in Wiring
Systems.
Did you complete the repair?

Go to Step 23

-

18

Repair an open or a short to ground in the battery
voltage circuit of the rear wiper module. Refer to
Circuit Testing and Wiring Repairs in Wiring
Systems.
Did you complete the repair?

Go to Step 23

-

19

Repair an open or high resistance in the ground
circuit of the rear wiper module. Refer to Circuit
Testing and Wiring Repairs in Wiring Systems.
Did you complete the repair?

Go to Step 23

-

20

Repair a short to ground in the rear window
wiper switch signal circuit. Refer to Circuit
Testing and Wiring Repairs in Wiring Systems.
Did you complete the repair?

Go to Step 23

-

21

Replace the rear window wiper/washer switch.
Refer to Wiper/Washer Switch Replacement -
Rear .
Did you complete the replacement?

Go to Step 23

-

22

Replace the rear wiper motor module. Refer to
Wiper Motor Replacement - Rear .
Did you complete the replacement?

Go to Step 23

-

23

Operate the system in order to verify the repair.
Did you correct the condition?

System OK

Go to Step 3



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



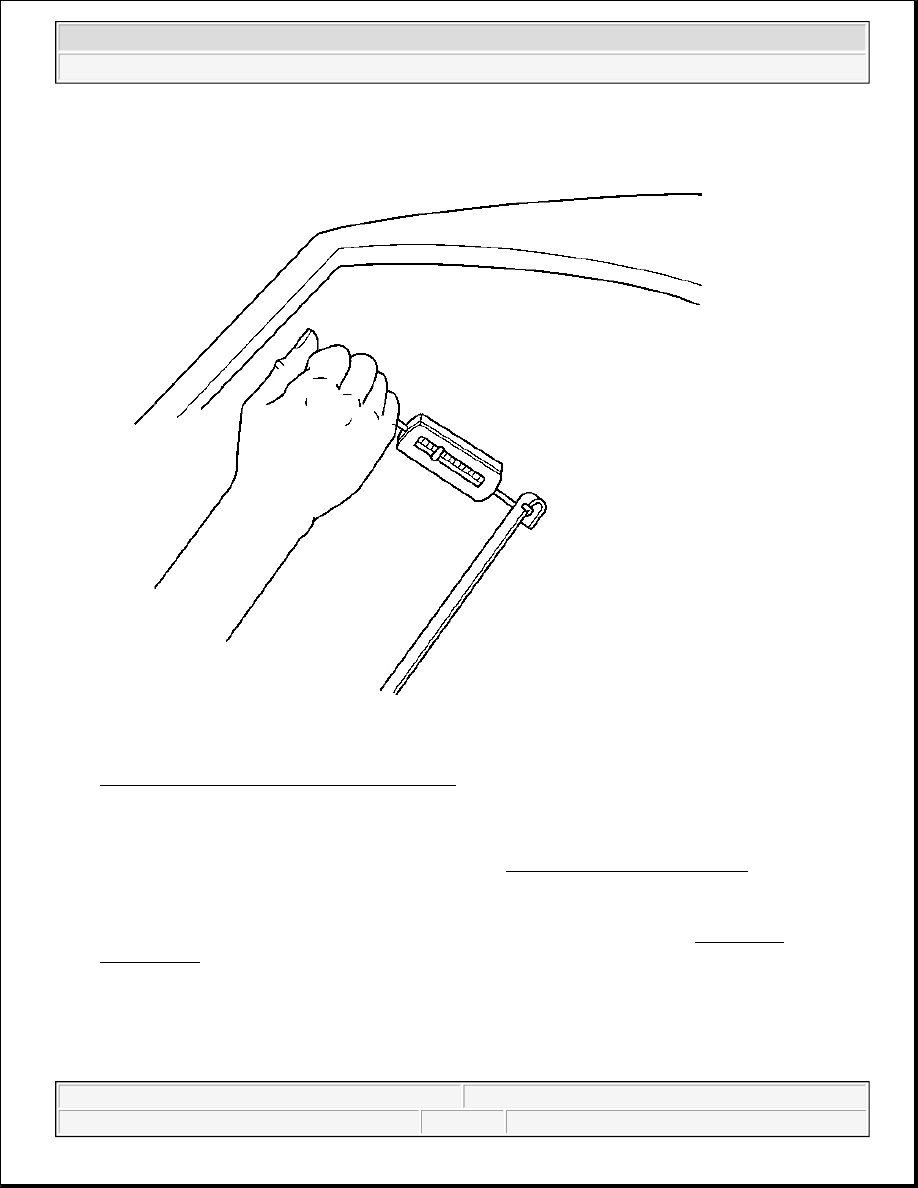

Fig. 5: Measuring Required Wiper Arm Force
Courtesy of GENERAL MOTORS CORP.

1. Run the wiper arms to the mid-wipe position.

2. Remove the wiper blades from the wiper arms. Refer to Wiper Arm Blade Replacement .

3. Attach a scale to the end of the wiper arm and measure the force required to lift the wiper arm

perpendicular to the windshield to normal working height with the blade attached.

4. Replace the wiper arm if the measurement is not within the specification. Refer to Wiper Arm

Replacement .

Tip Pressure:

z

Driver Side - 8.1-9.5 Newtons (29- 34 Ounces)

z

Passenger Side - 5.8-7.0 Newtons (21- 25 Ounces)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



WIPER BLADE ELEMENT CHECK

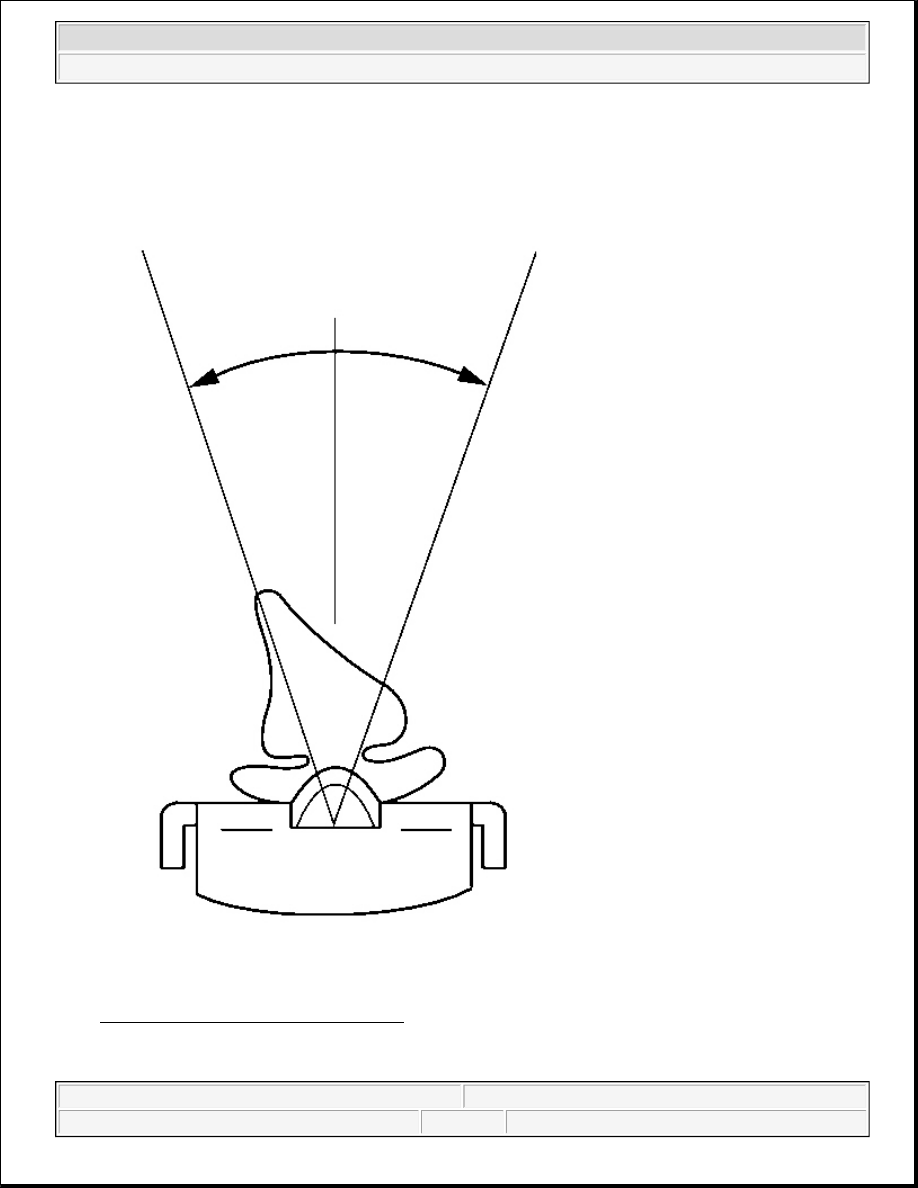

Fig. 6: Inspecting Wiper Blade Element
Courtesy of GENERAL MOTORS CORP.

1. Remove the wiper blades from the wiper arms. Refer to Wiper Arm Blade Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



2. Look down the length of the blade element.

3. Replace the wiper blade element if the rubber element which contacts the glass is not on the centerline of

the blade +/-15 degrees. Refer to Wiper Blade Element Replacement .

4. Install the wiper blades on the wiper arms. Refer to Wiper Arm Blade Replacement .

REPAIR INSTRUCTIONS

WASHER SOLVENT CONTAINER REPLACEMENT

Removal Procedure

1. Remove the washer solvent and place in a suitable container.

2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls 6.0L

(LQ4).
