Hummer H2. Manual - part 737

Turn Signal/Multifunction Terminal Identification Switch - C2

Washer Fluid Level Terminal Identification Sensor

Connector Part Information

z

15393435

z

10-Way F Micro-Pack (GY)

Pin

Wire Color

Circuit No.

Function

A-C

-

-

Not Used

D

BK/WH

1851

Ground

E

BN/WH

230

Instrument Panel Lamps Dimming Control

F

GY

391

Rear Window Wiper Switch Signal

G

YE

343

Accessory Voltage

H

D-GN

392

Rear Window Washer Pump Control

J

WH

393

Rear Window Wiper Motor Wash Signal

K

-

-

Not Used

Connector Part Information

z

15339058

z

7-Way F Metri-Pack 150 Series (MD GY)

Pin

Wire Color

Circuit No.

Function

G

-

-

Not Used

H

PK

94

Windshield Washer Switch Signal

J

GY

478

Windshield Washer Switch Supply Voltage

K

D-BU/

WH

477

Windshield Wiper Switch High Signal

L-N

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



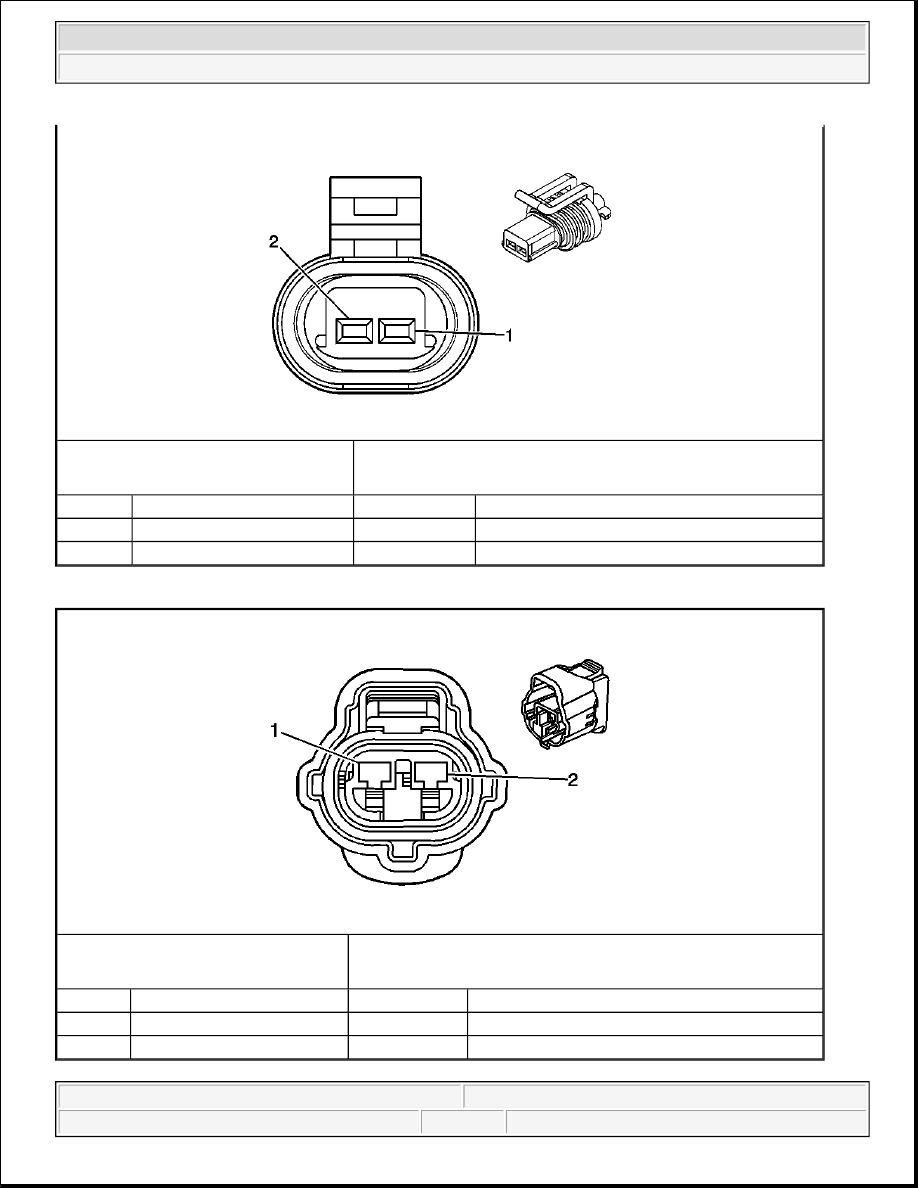

Washer Fluid Pump Terminal Identification - Reversible

Connector Part Information

z

15336024

z

2-Way F GT 150 Sealed (BK)

Pin

Wire Color

Circuit No.

Function

1

BK/WH

174

Low Washer Fluid Indicator Signal

2

BK

150

Ground

Connector Part Information

z

15423480

z

2-Way F Yazaki Sealed (BK)

Pin

Wire Color

Circuit No.

Function

1

RD

228

Windshield Washer Pump Control

2

D-BU

227

Rear Window Washer Pump Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



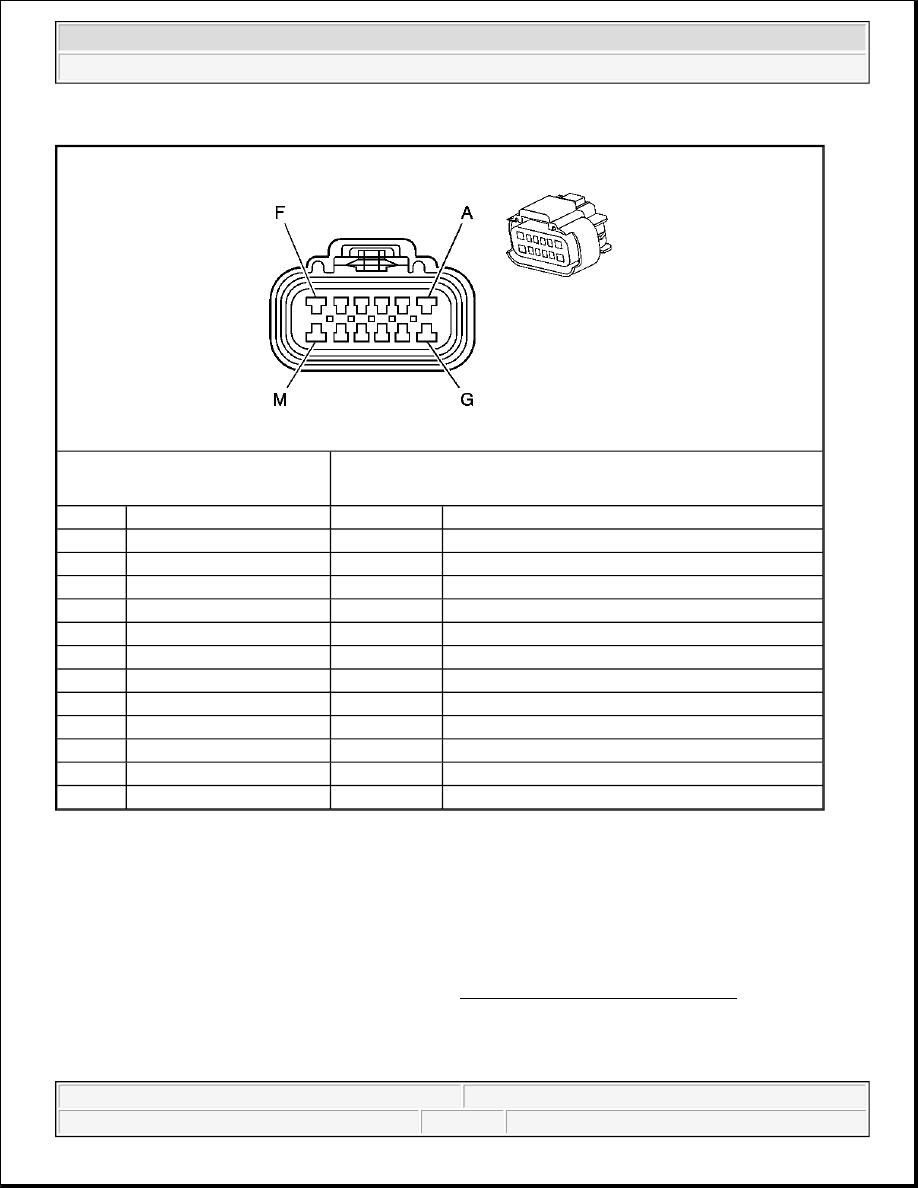

Windshield Wiper Terminal Identification Motor and Module

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - WIPER/WASHER SYSTEMS

Begin the system diagnosis by reviewing the system Description and Operation. Reviewing the Description and
Operation information will help you determine the correct symptom diagnostic procedure when a malfunction
exists. Reviewing the Description and Operation information will also help you determine if the condition
described by the customer is normal operation. Refer to Symptoms - Wiper/Washer Systems in order to
identify the correct procedure for diagnosing the system and where the procedure is located.

SCAN TOOL DATA LIST

Connector Part Information

z

15326939

z

12-Way F GT 150 SLD (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN/WH

266

Washer Fluid Pump Supply Voltage

B

RD

228

Windshield Washer Pump Control

C

D-GN

392

Rear Window Washer Switch Signal

D

D-BU

477

Windshield Wiper Switch High Signal

E

GY

478

Windshield Wiper Switch Supply Voltage

F

YE

143

Accessory Voltage

G

BK

1050

Ground

H

D-BU

227

Rear Window Washer Pump Control

J

OG

2268

Washer Fluid Pump Relay Control

K

PK

94

Windshield Washer Switch Signal

L

D-GN

113

Windshield Wiper Switch Signal 2

M

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



Scan Tool Data List

SCAN TOOL DATA DEFINITIONS

Front Wipers Active

Input from the windshield wiper motor and module indicating the status of wipers/washer system.

SYMPTOMS - WIPER/WASHER SYSTEMS

z

Wiper/Washer System Description and Operation

z

Rear Wiper/Washer System Description and Operation

Visual/Physical Inspection

z

Inspect for aftermarket devices which could affect the operation of the Windshield Wiper/Washer
System. Refer to Checking Aftermarket Accessories in Wiring Systems.

z

Inspect the easily accessible or visible system components for obvious damage or conditions which could
cause the symptom.

z

Inspect the washer fluid reservoir for the proper fluid level.

Intermittent

Faulty electrical connections or wiring may be the cause of intermittent conditions. Refer to Testing for
Intermittent Conditions and Poor Connections in Wiring Systems.

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

z

Low Washer Fluid Indicator Malfunction

z

Washers Always On

z

Washers Inoperative

z

Wipers Always On

z

Wipers Inoperative - All Modes

z

Wipers Inoperative - One or More Modes

z

Washer Inoperative - Rear

Scan Tool Parameter

Data List

Units Displayed

Typical Data Value

Operating Conditions: BCM powered and communicating with the scan tool.

Front Wipers Active

Inputs

On/Off

Off

IMPORTANT: Refer to the system description and operation from the following list in order to

familiarize yourself with the system functions.
