Hummer H2. Manual - part 736

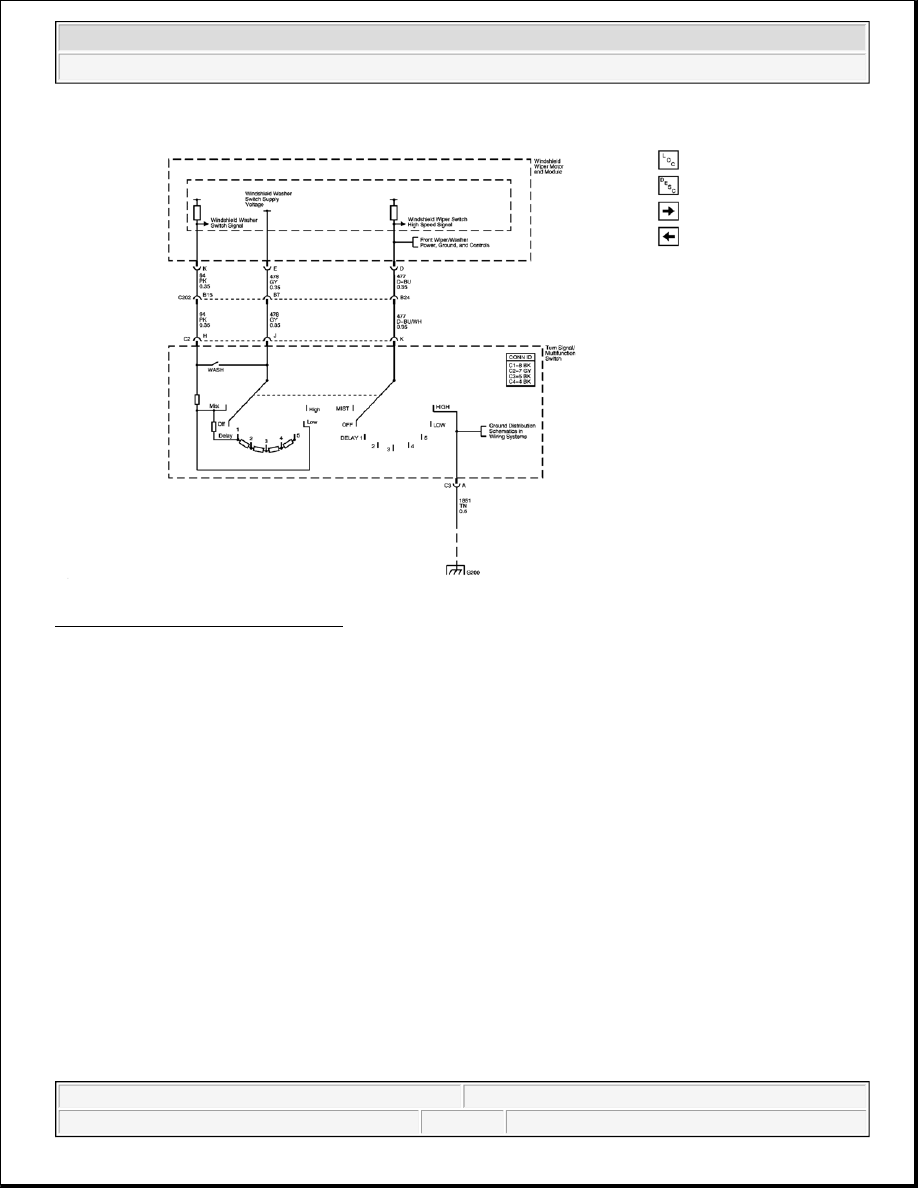

Fig. 2: Front Wiper/Washer Controls
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



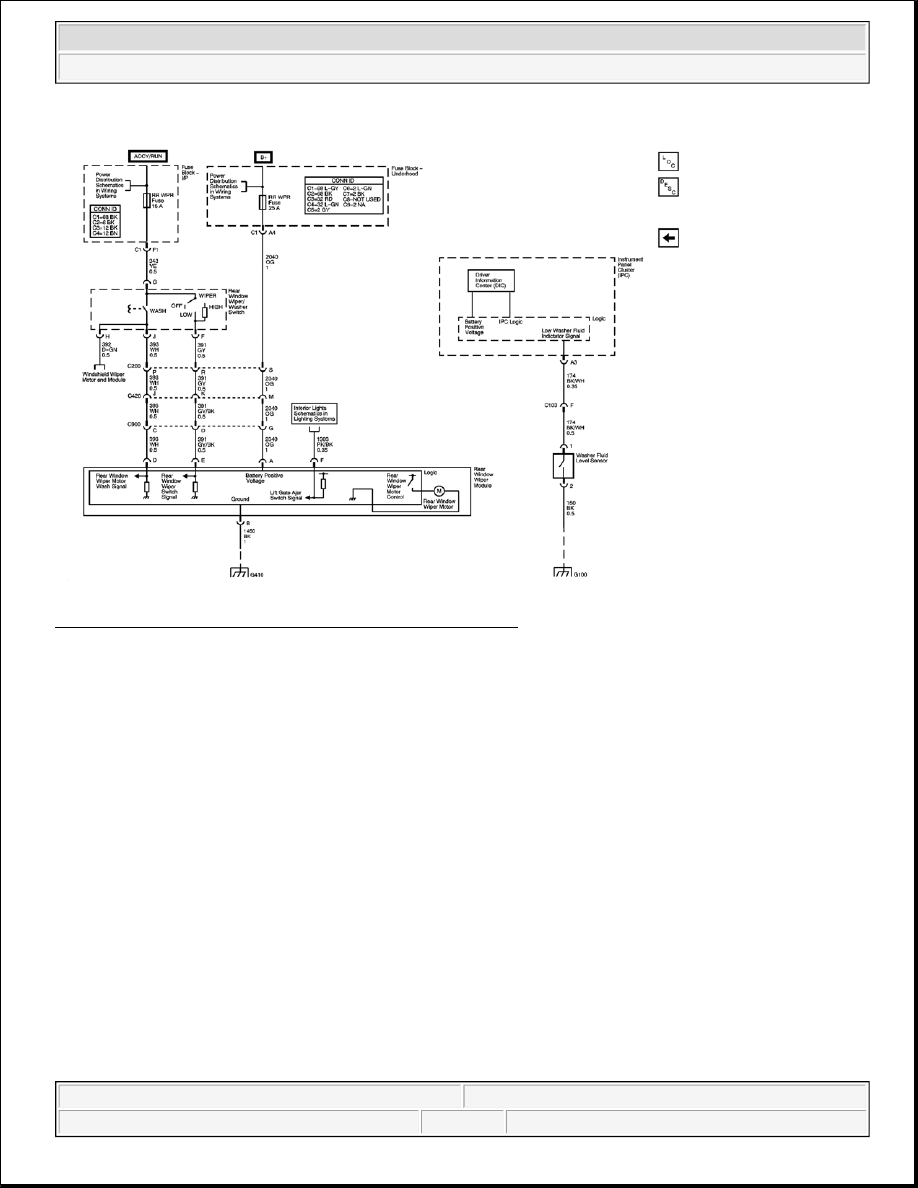

Fig. 3: Rear Wiper Controls and Washer Fluid Level Sensor
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

WIPER/WASHER SYSTEM COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



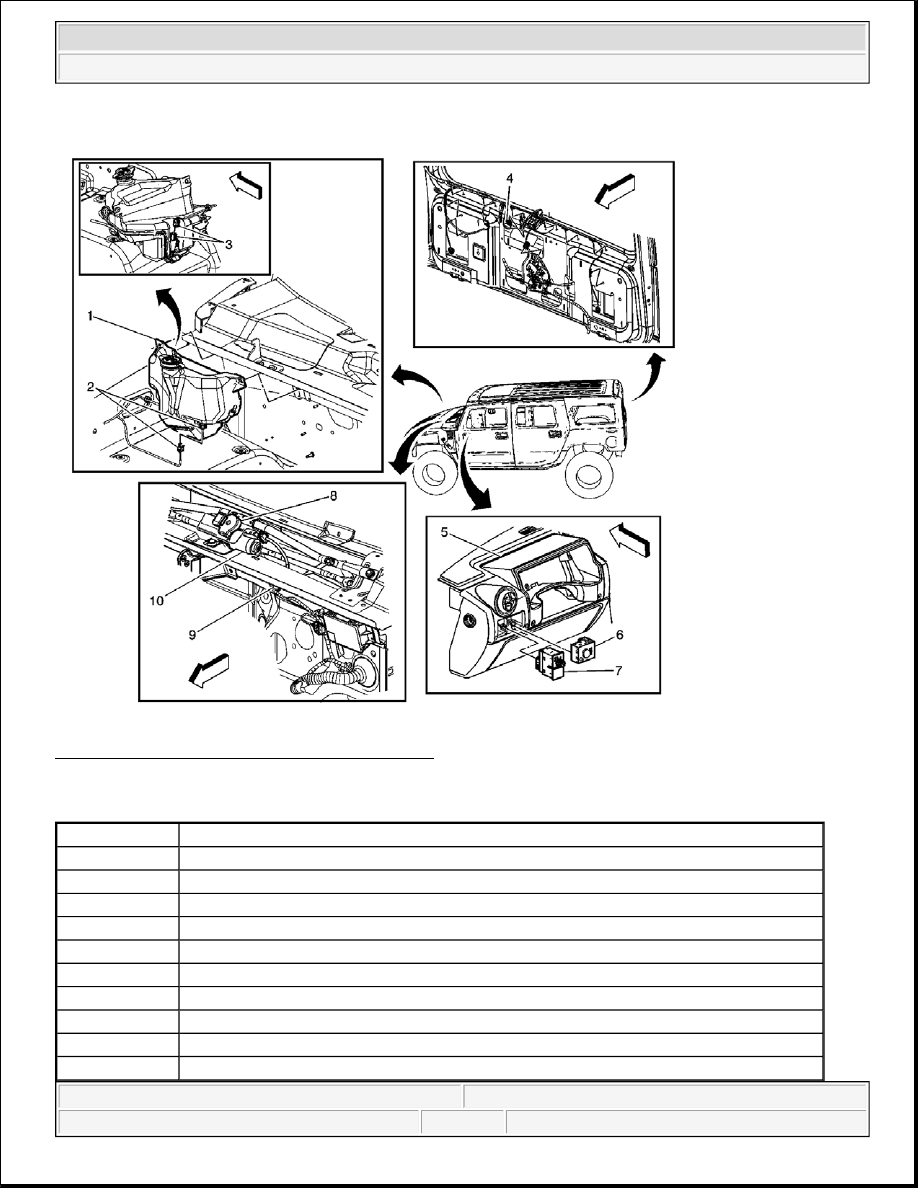

Fig. 4: Wiper/Washer Systems Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

Callout

Component Name

1

Windshield Washer Fluid Container

2

Washer Fluid Level Sensor

3

Windshield Washer Fluid Pump - Reversible

4

Rear Window Wiper Motor

5

I/P Cluster

6

Headlamp and Panel Dimmer Switch

7

Rear Wiper/Washer Switch

8

Windshield Wiper/Washer Module

9

I/P Harness

10

Windshield Wiper Motor



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



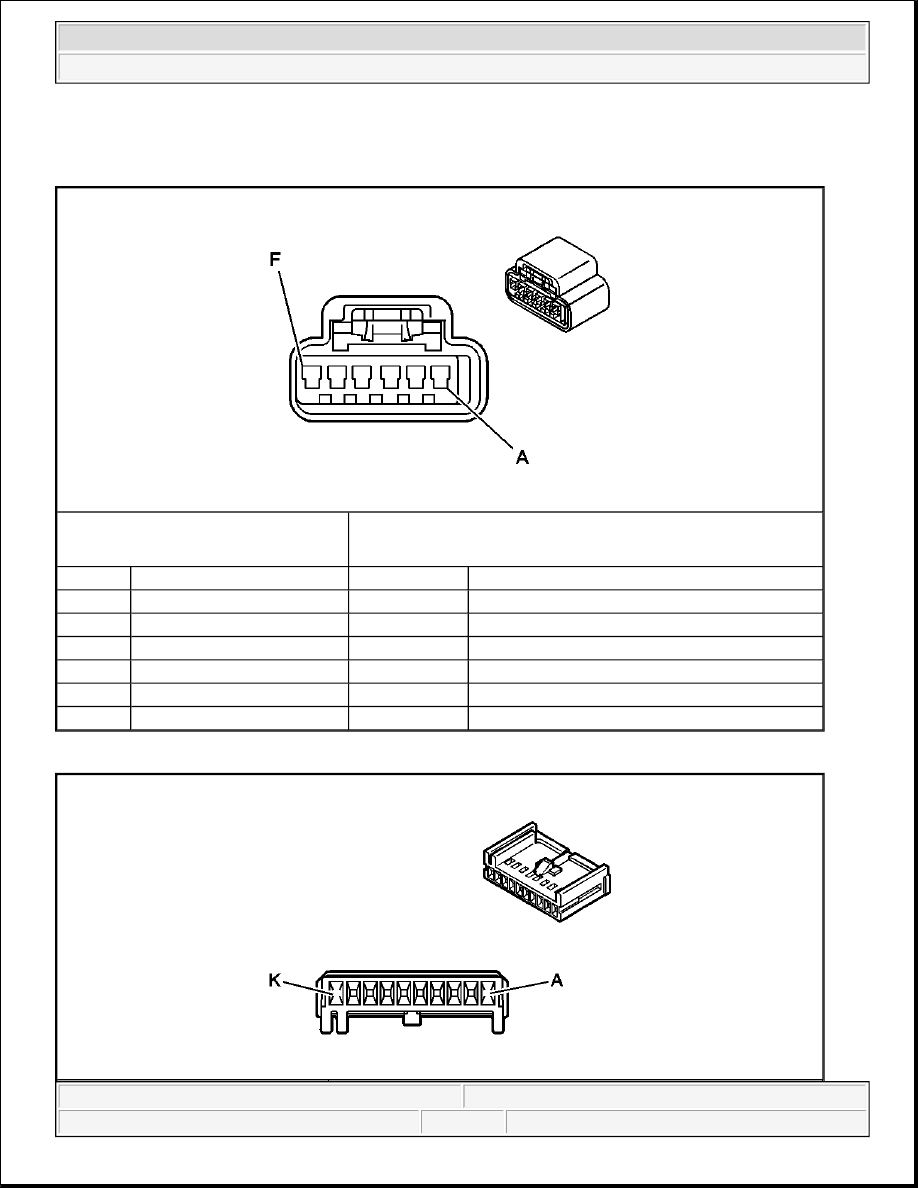

WIPER/WASHER SYSTEM CONNECTOR END VIEWS

Rear Window Wiper Terminal Identification Module

Rear Window Wiper/Washer Terminal Identification Switch

Connector Part Information

z

15332141

z

6-Way F GT 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

2040

Battery Positive Voltage

B

BK

1450

Ground

C

-

-

Not Used

D

WH

393

Rear Window Washer Switch Signal

E

GY

391

Rear Window Wiper Switch Signal

F

PK/BK

1303

Liftgate Ajar Switch Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2
