Hummer H2. Manual - part 722

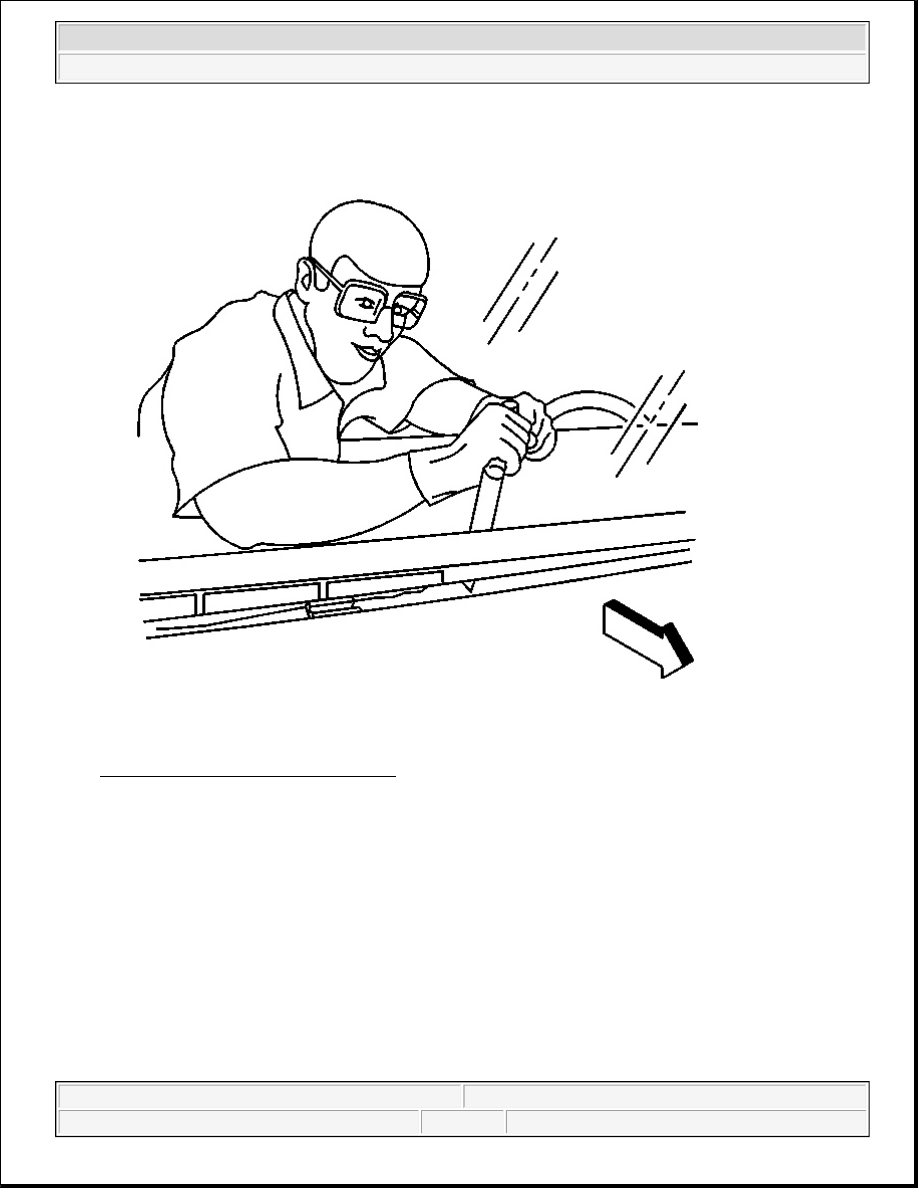

Fig. 21: Removing Bottom Of Window
Courtesy of GENERAL MOTORS CORP.

9. Remove the bottom of the window from the urethane adhesive using a long utility knife or similar tool.

Keep the cutting edge of the utility knife against the glass.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



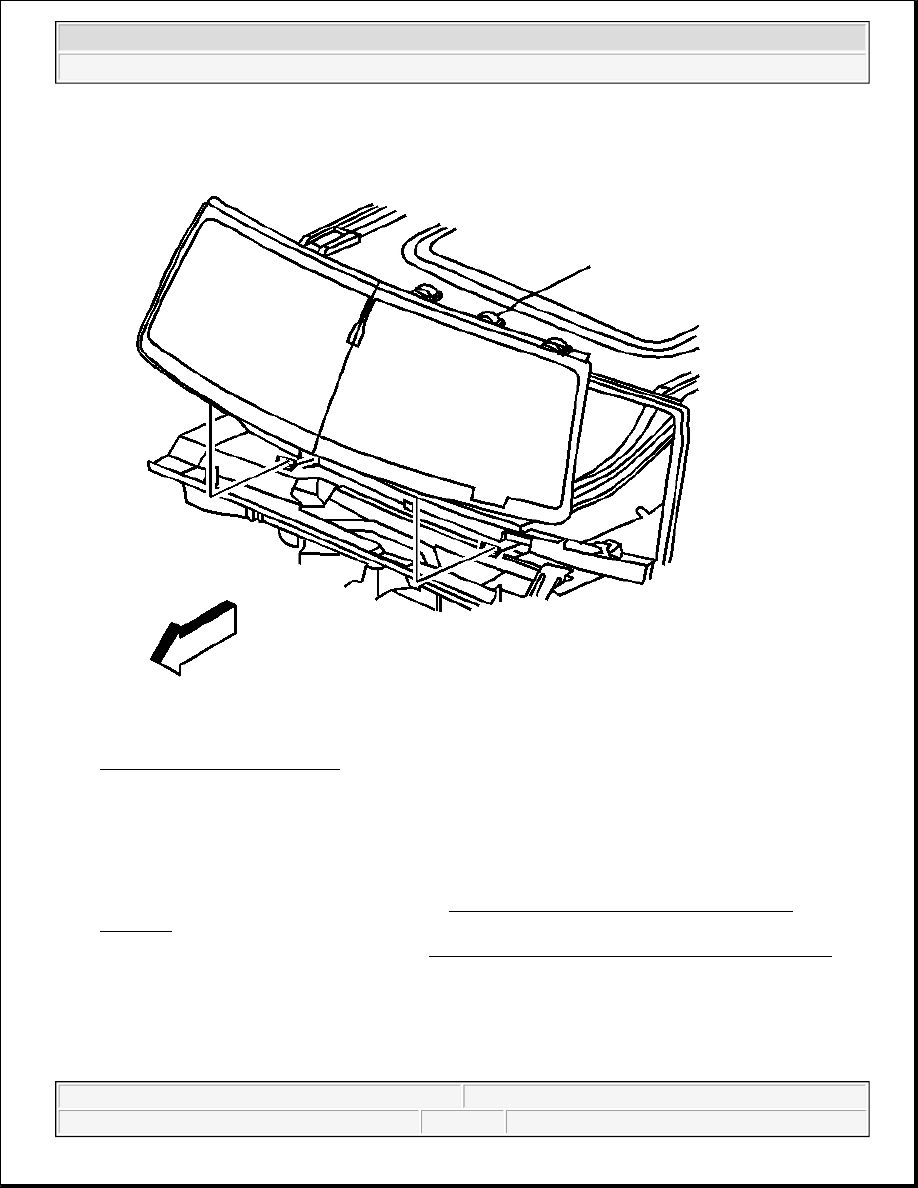

Fig. 22: Identifying Windshield
Courtesy of GENERAL MOTORS CORP.

10. With the aid of an assistant remove the window from the vehicle.

Installation Procedure

1. Install the windshield into the opening. Refer to Urethane Adhesive Installation of Stationary

Windows .

2. Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement - Non Functional in

Exterior Trim.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



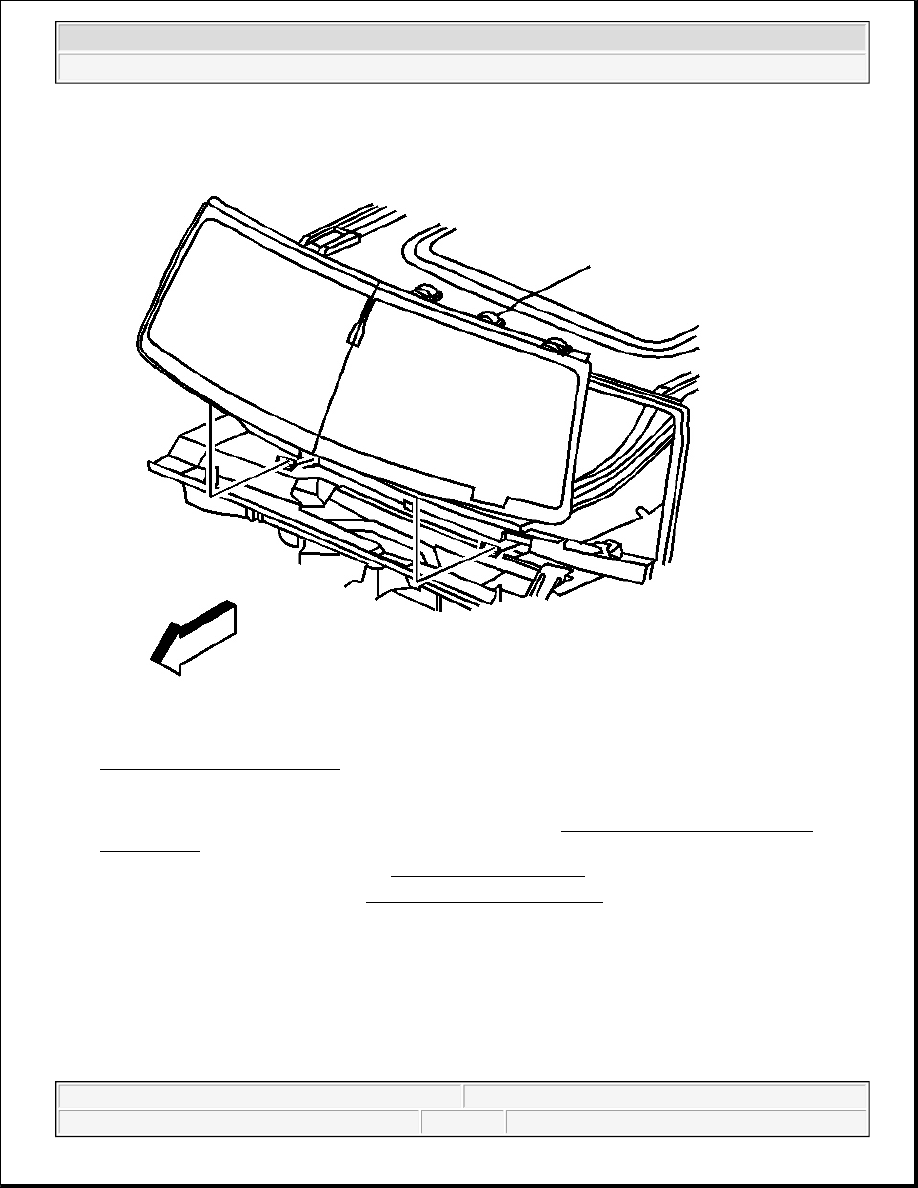

Fig. 23: Identifying Windshield
Courtesy of GENERAL MOTORS CORP.

3. Install the window side reveal moldings to the vehicle. Refer to Windshield Side Reveal Molding

Replacement .

4. Install the window wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.

5. Install the rear view mirror. Refer to Rearview Mirror Replacement .

6. Close the hood.

7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior

trim.

QUARTER WINDOW REPLACEMENT (SUV BODY SIDE QUARTER WINDOW)

Tools Required



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



z

J 24402-A Glass Sealant Remover (Cold Knife). See Special Tools and Equipment .

z

J 39032 Stationary Glass Removal Tool. See Special Tools and Equipment .

z

J 34940 Rivet Gun

z

Urethane Adhesive Kit GM P/N 12346392 or Equivalent

z

Isopropyl Alcohol or Equivalent

z

Cartridge-type Caulking Gun

z

Commercial-type Utility Knife

z

Razor Blade Scraper

z

Suction Cups

z

Plastic Paddle

Removal Procedure

1. Apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim, to

help prevent damage.

2. Cover to protect the following parts from broken glass as necessary:

The seats and carpeting

CAUTION: If a window is cracked but still intact, crisscross the window with

masking tape in order to reduce the risk of damage or personal
injury.

CAUTION: If broken glass falls into the defroster outlets, it can be blown into the

passenger compartment and cause personal injury.
