Hummer H2. Manual - part 719





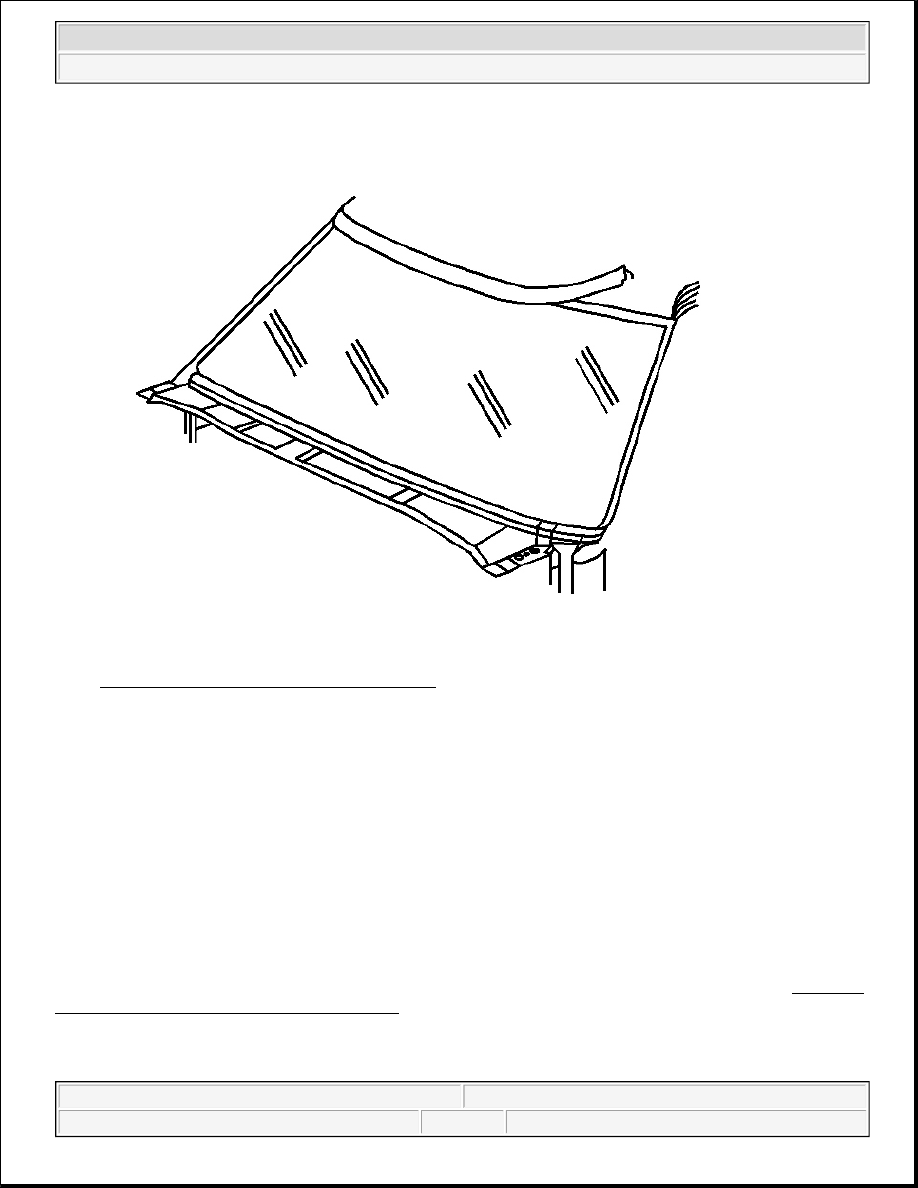

Fig. 11: Identifying Loose Window Molding
Courtesy of GENERAL MOTORS CORP.

7. Reinstall the window reveal molding.

1. Start from the loose area and hand-press the reveal molding into place over the edge of the window.

2. Run warm water over the reveal molding in order to speed the setup time of the urethane adhesive.

3. Tape should be applied in order to retain the reveal molding to the window. This will maintain a

flush fit with the body.

4. The tape is to be removed after 6 hours.

WINDSHIELD REVEAL MOLDING REPLACEMENT

The windshield reveal molding is an applied molding design separate from the window. The reveal molding is
bonded to the windshield and may be bonded to the body. The reveal molding may be replaced with the
windshield as an assembly, or the reveal molding may be available as a separate service part. Refer to Urethane
Adhesive Installation of Stationary Windows .

WINDSHIELD SIDE REVEAL MOLDING REPLACEMENT



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Removal Procedure

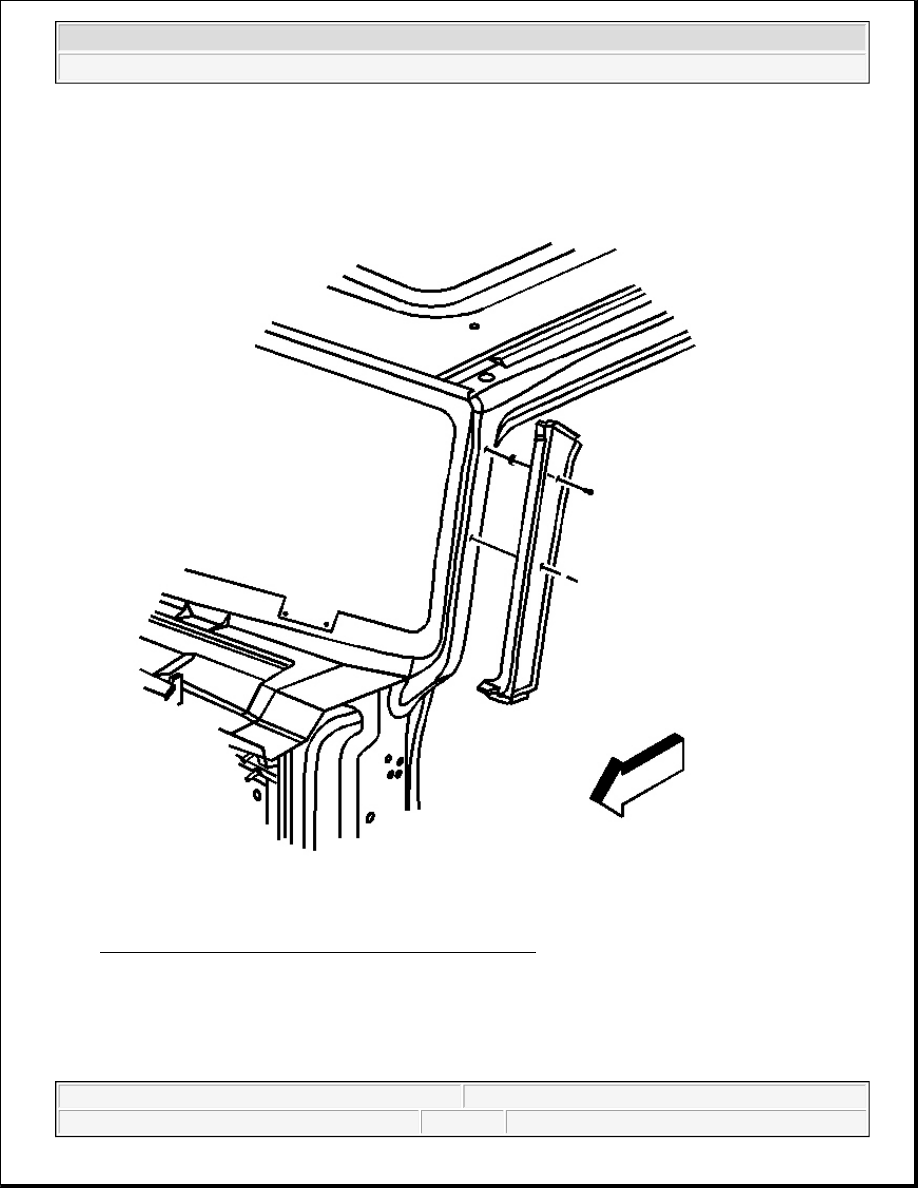

Fig. 12: Windshield Reveal Molding & Windshield Pillar
Courtesy of GENERAL MOTORS CORP.

1. Pull back the front door sealing weatherstrip to expose the windshield reveal molding screws.

2. Remove the screws from the windshield reveal molding.

3. Remove the windshield reveal molding from the windshield pillar.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Installation Procedure

1. Install the windshield reveal molding to the windshield pillar.

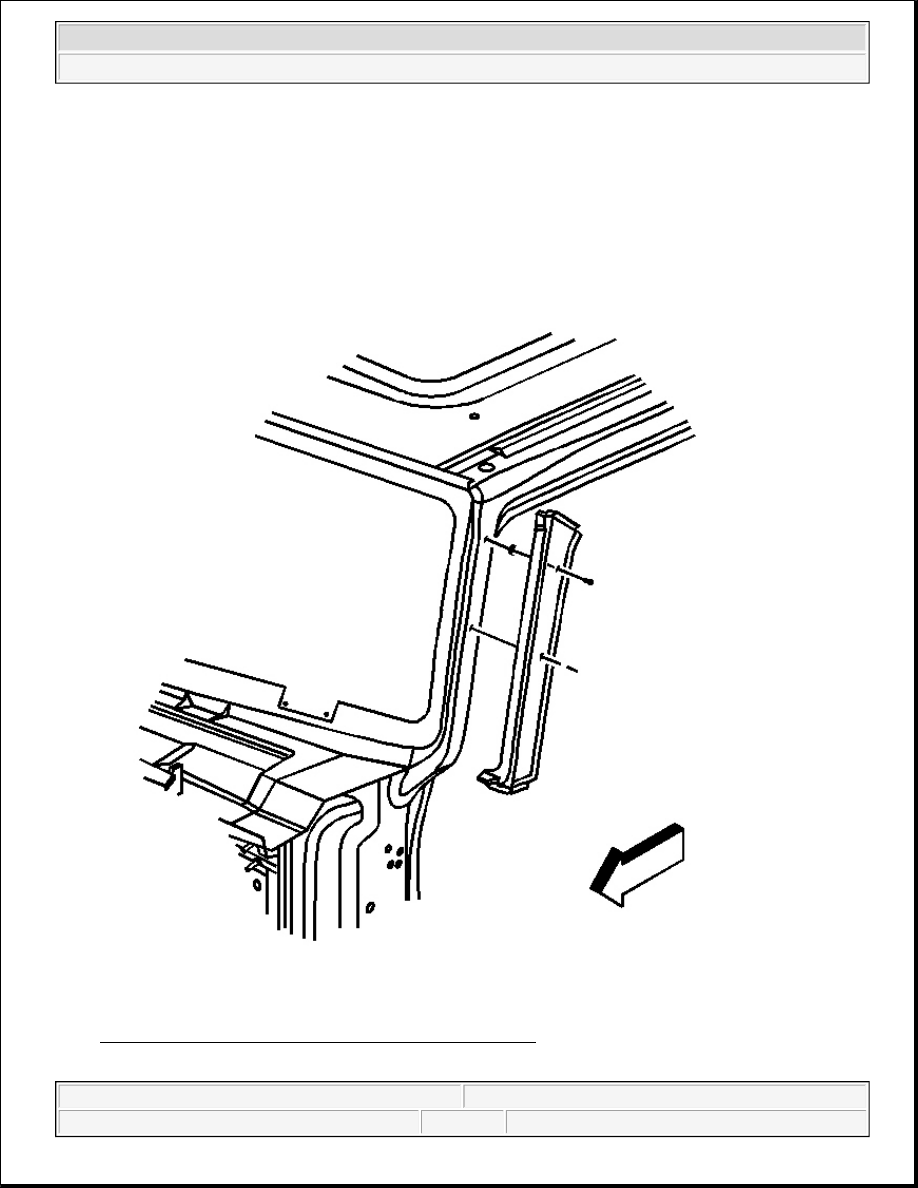

Fig. 13: Windshield Reveal Molding & Windshield Pillar
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



2. Install the screws to the windshield reveal molding.

Tighten: Tighten the screws to the windshield reveal molding to 2 N.m (18 lb in).

3. Install the front door sealing weatherstrip (1) to the pinchweld.

4. Close the door.

REARVIEW MIRROR REPLACEMENT

Removal Procedure

1. Use a flat-bladed tool in order to remove the wire cover, if equipped.

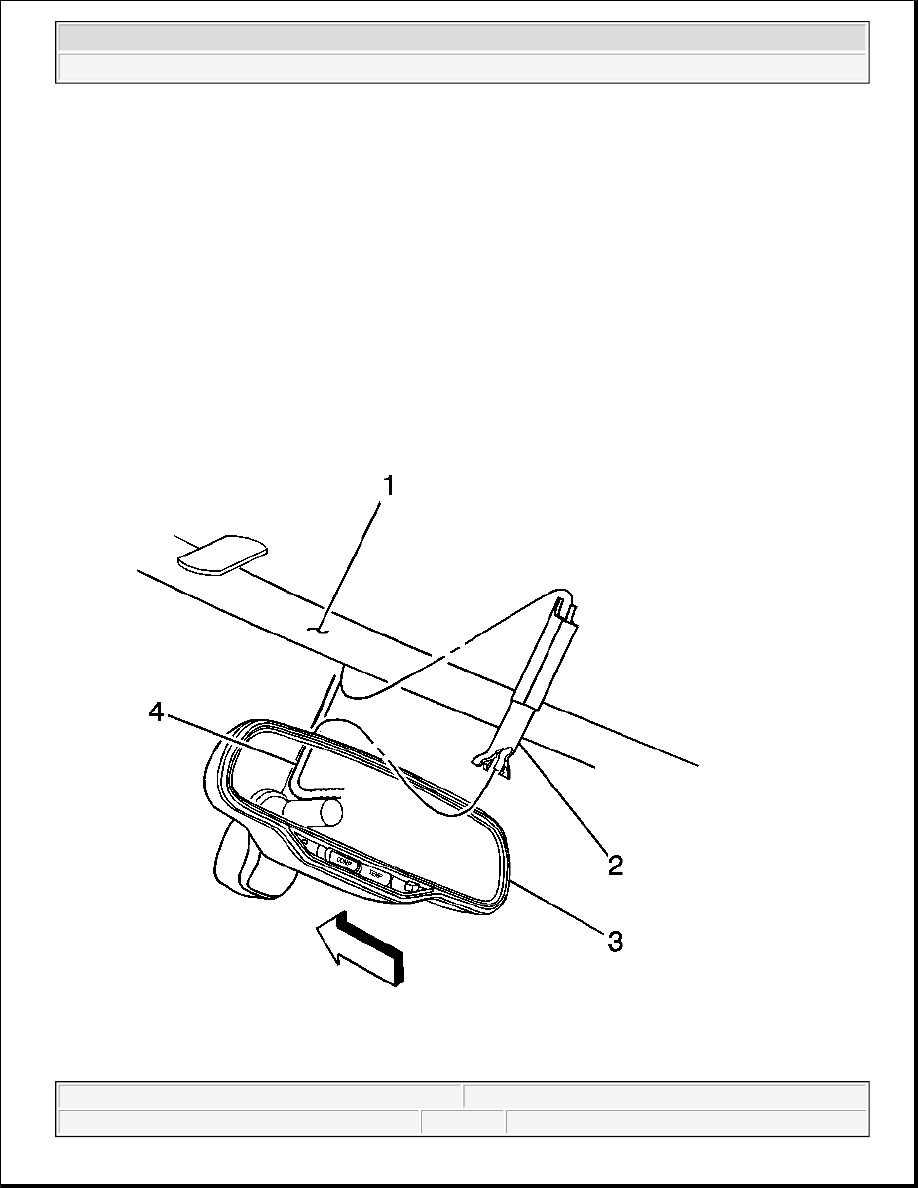

Fig. 14: Electrical Connector & Rearview Mirror



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2
