Hummer H2. Manual - part 718

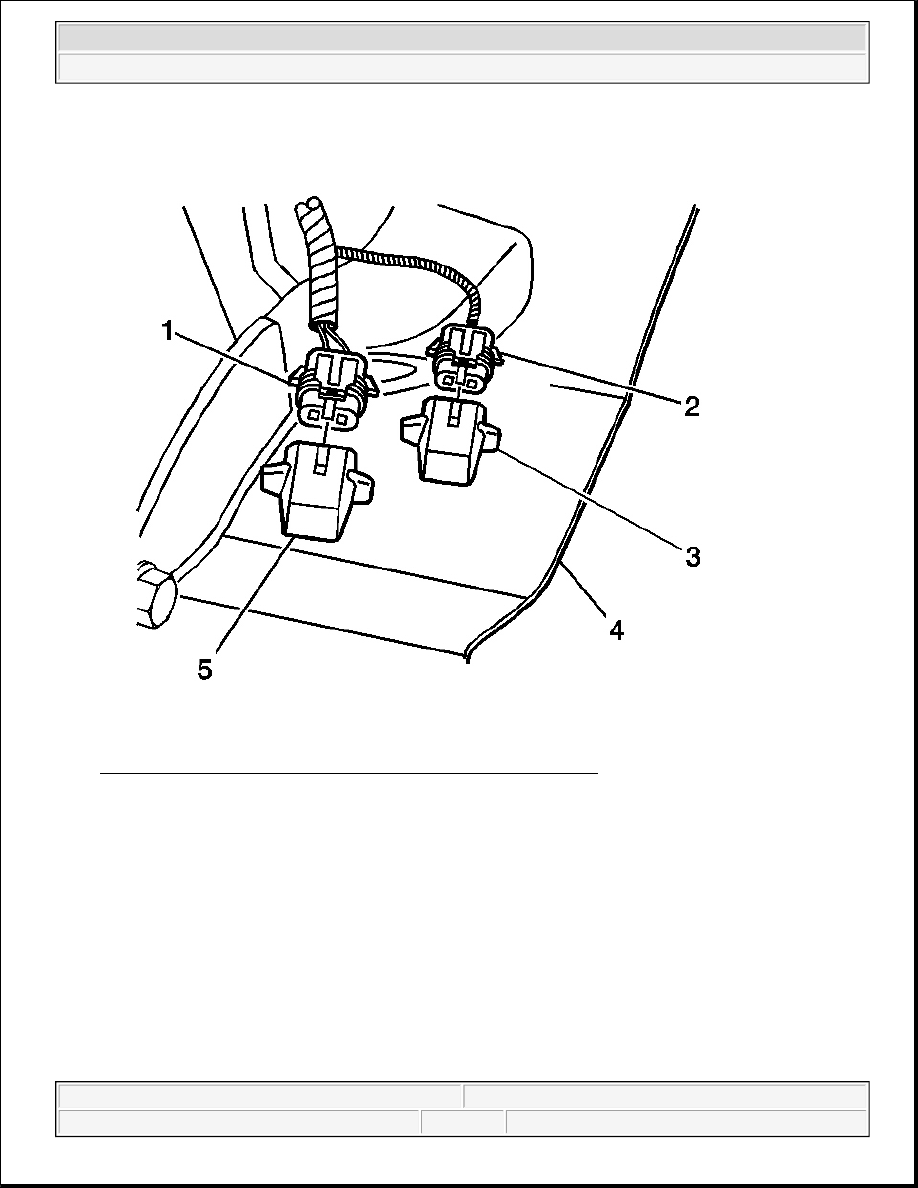

Fig. 7: Electrical Connector & Ambient Air Temperature Sensor
Courtesy of GENERAL MOTORS CORP.

1. Install the ambient air temperature sensor (5) to the vehicle (4).

2. Connect the electrical connector (1) to the ambient air temperature sensor (5).

STATIONARY WINDOW REVEAL MOLDING REPAIR

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

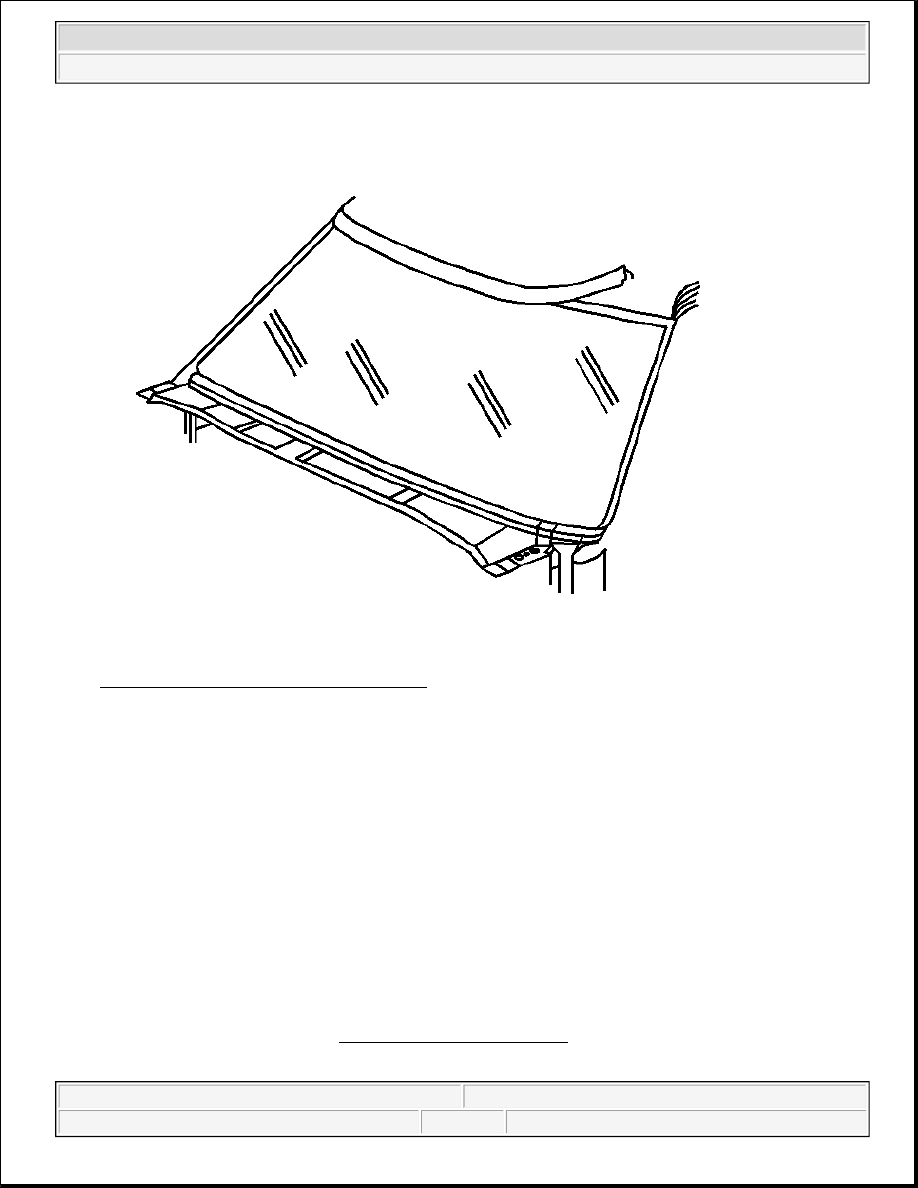

Fig. 8: Identifying Loose Window Molding
Courtesy of GENERAL MOTORS CORP.

1. Lift up on the loose area of the reveal molding.

2. Clean the top edge of the window surface and the reveal molding with a 50/50 mixture of isopropyl

alcohol and water by volume on a dampened lint-free cloth.

Installation Procedure

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and

Notices.

IMPORTANT: The window reveal molding fills the cavity between the body and window.

If the reveal molding is stretched or damaged, it cannot be reused and it
must be replaced.

CAUTION: Refer to Window Retention Caution in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



1. Verify all primers and urethane adhesive are within expiration dates.

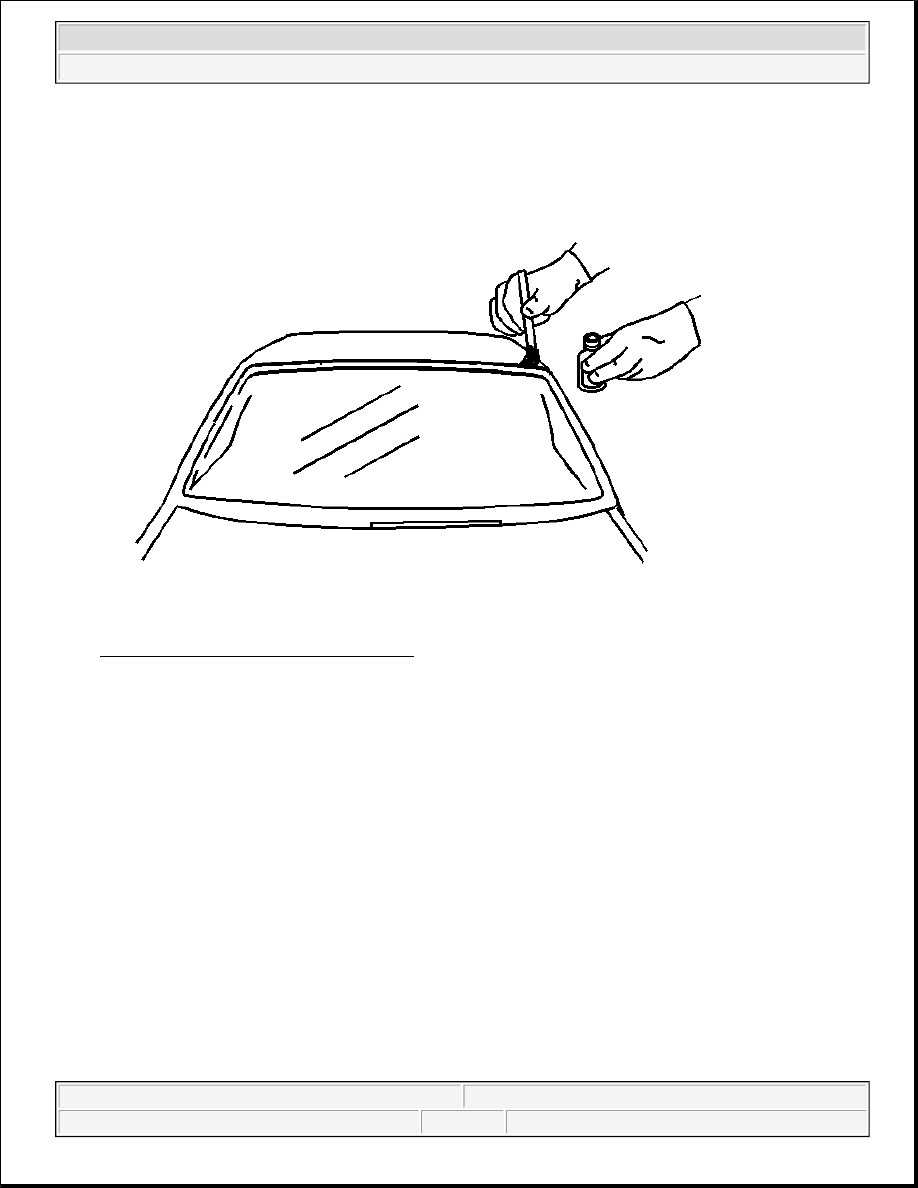

Fig. 9: Applying Glass Primer (Black #2)
Courtesy of GENERAL MOTORS CORP.

2. Use a new dauber in order to apply glass prep, clear #1, to the channel area approximately 13 mm (1/2 in)

to the upper edge of the window.

3. Wipe the glass primed area immediately with a clean lint-free cloth.

4. Shake the glass primer, black #2, for at least 1 minute.

5. Use a new dauber in order to apply glass primer, black #2, to the top edge of the window.

IMPORTANT: Use care when applying the prep, clear #1, to the window. This primer

dries almost instantly, and may stain the viewing area of the window if not
applied evenly.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

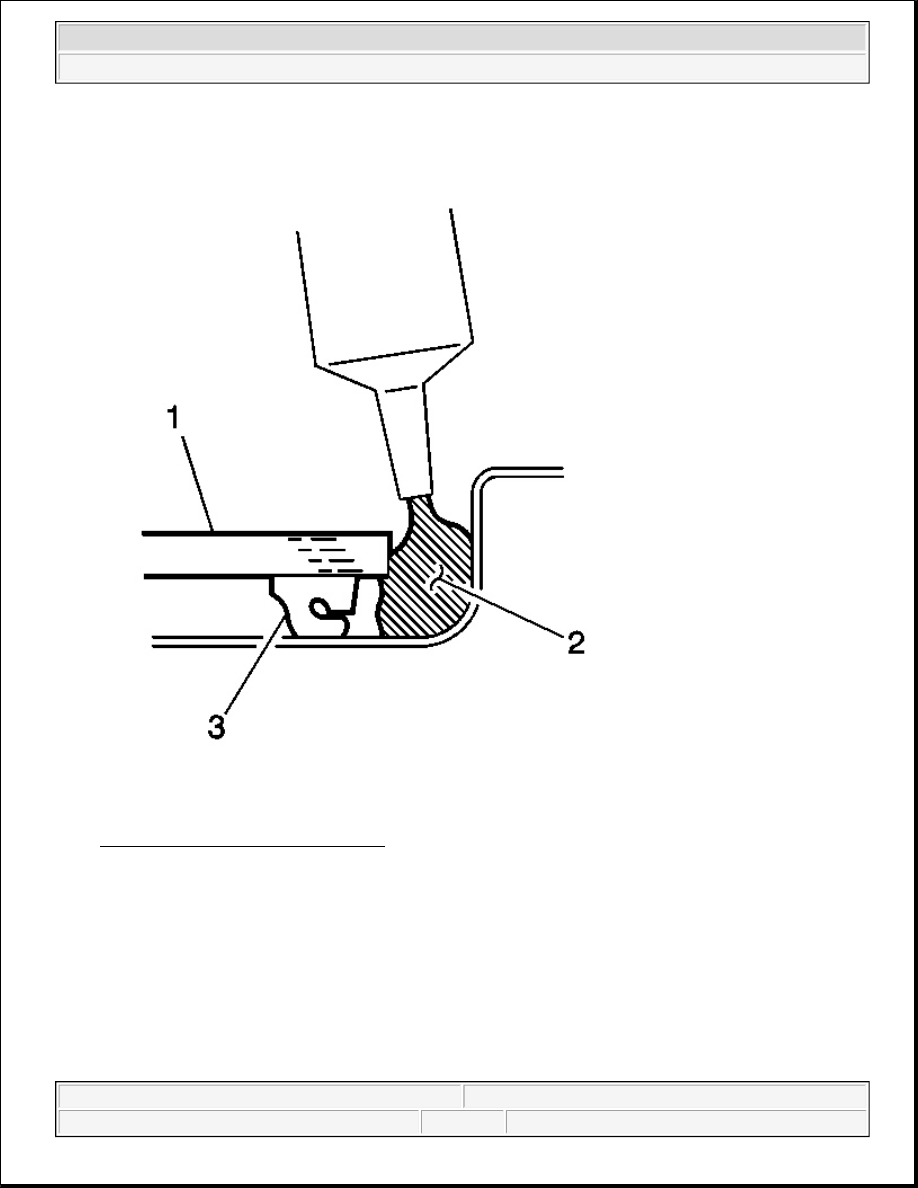

Fig. 10: Applying Urethane Adhesive
Courtesy of GENERAL MOTORS CORP.

6. Apply a small bead of urethane adhesive (2) between the window (1) and the pinch-weld.
