SPECIAL TOOLS AND EQUIPMENT

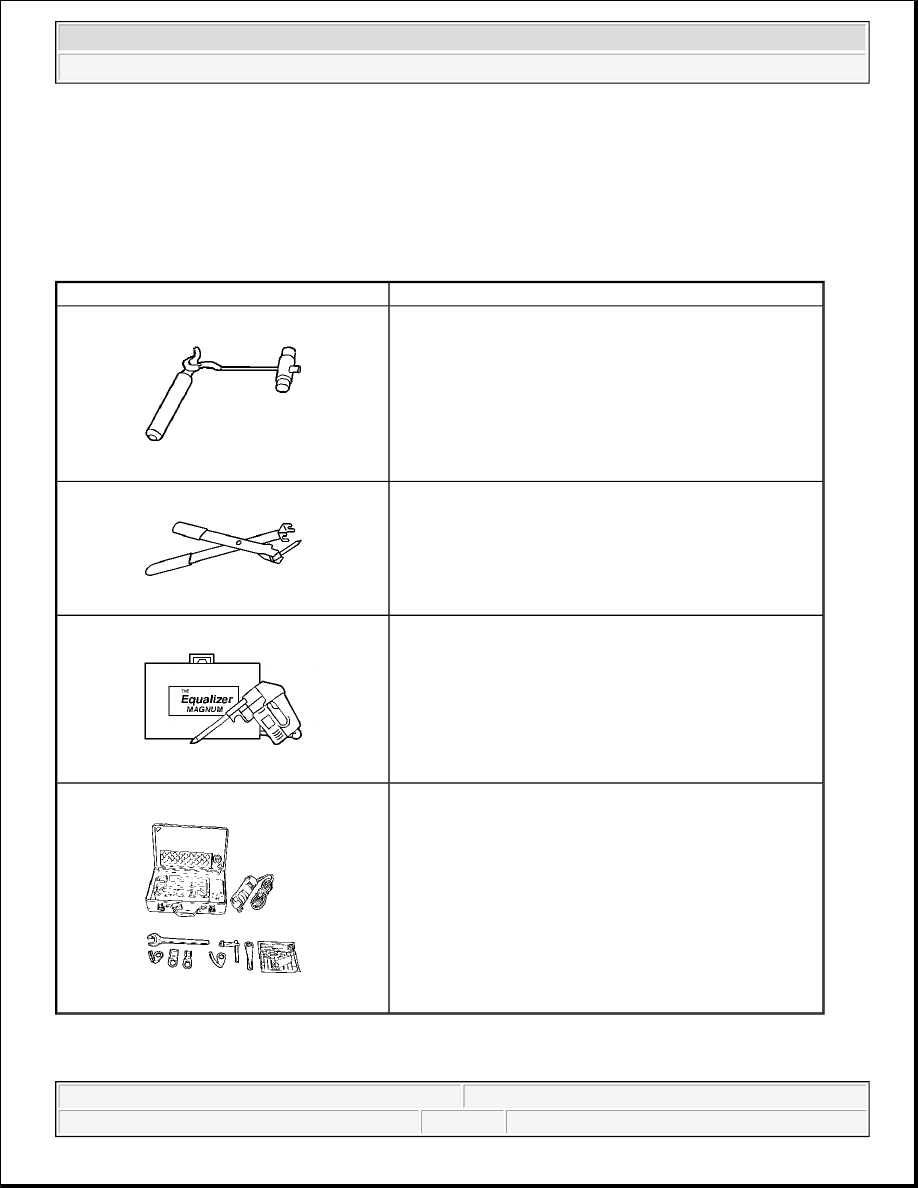

SPECIAL TOOLS

Special Tools

of the flange in the bonding area. Allow the primer to dry for 10 minutes.

Illustration

Tool Number/Description

J 24402-A

Glass Sealant Cold Knife Remover

J 34946

Window Pin Remover

J 39032

Stationary Glass Removal Tool

J 39040

Quarter Window Remover



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



2004 ACCESSORIES & EQUIPMENT

Stationary Windows - Hummer H2

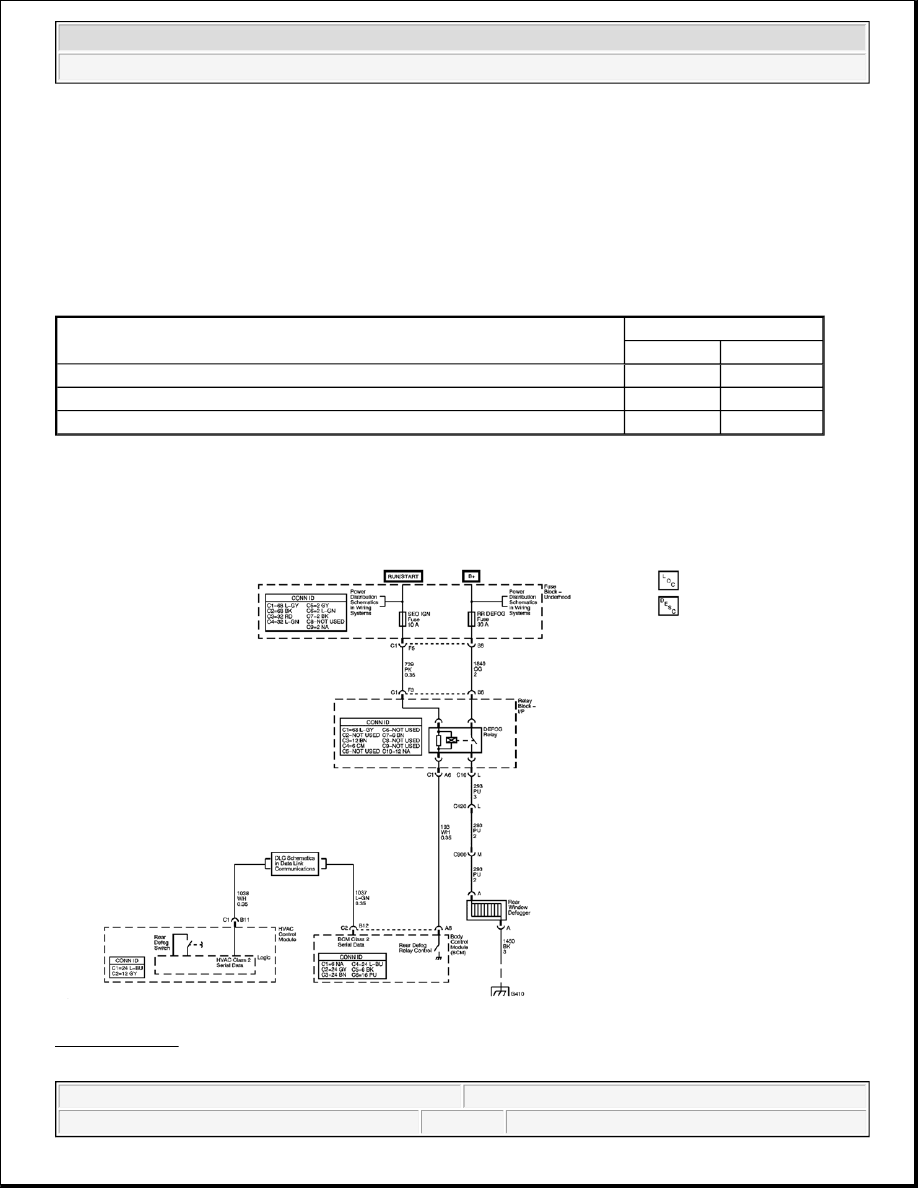

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

DEFOGGER SCHEMATICS

Fig. 1: Defogger
Courtesy of GENERAL MOTORS CORP.

Application

Specification

Metric

English

Ambient Air Temperature Sensor

10 N.m

89 lb in

Rearview Mirror Screw

2 N.m

18 lb in

Windshield Reveal Molding Right or Left Sides

2 N.m

18 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



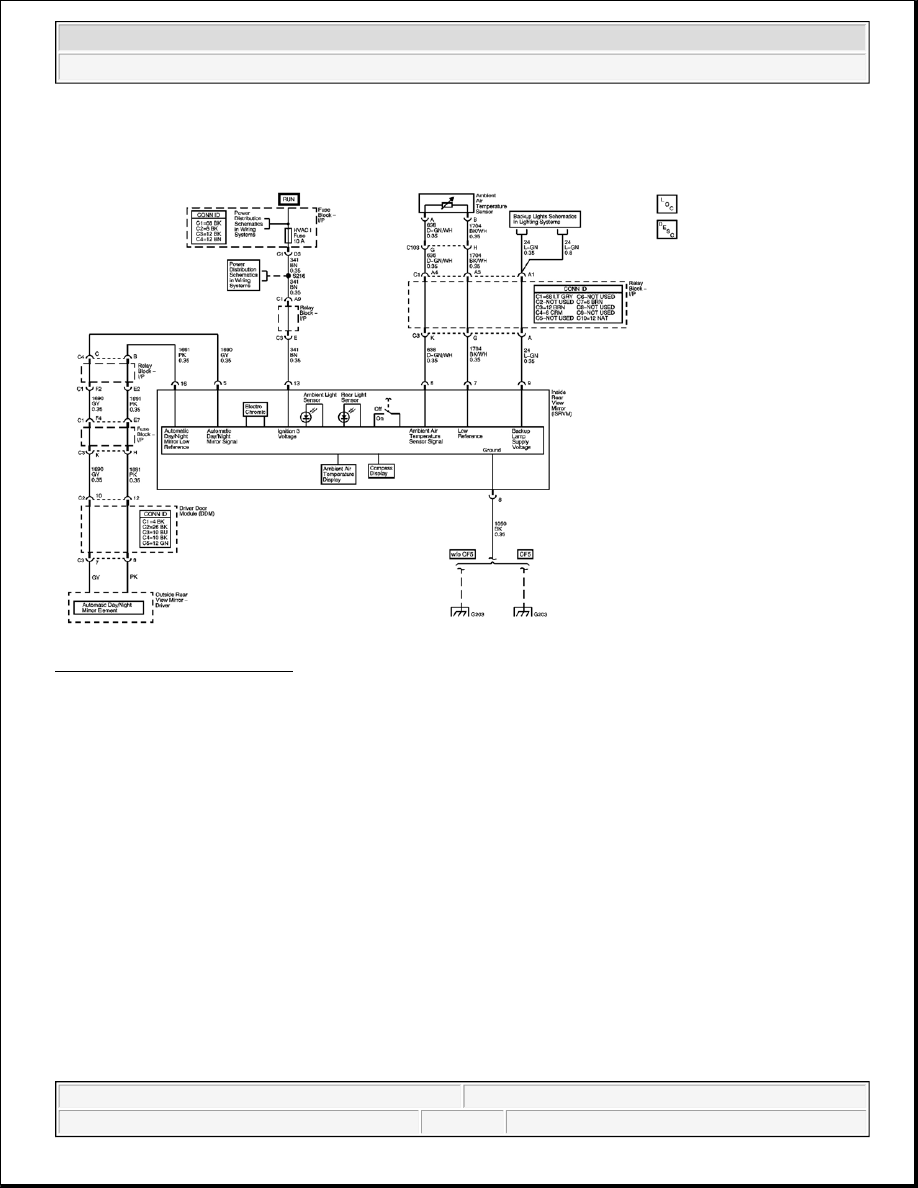

INSIDE REARVIEW MIRROR SCHEMATICS

Fig. 2: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

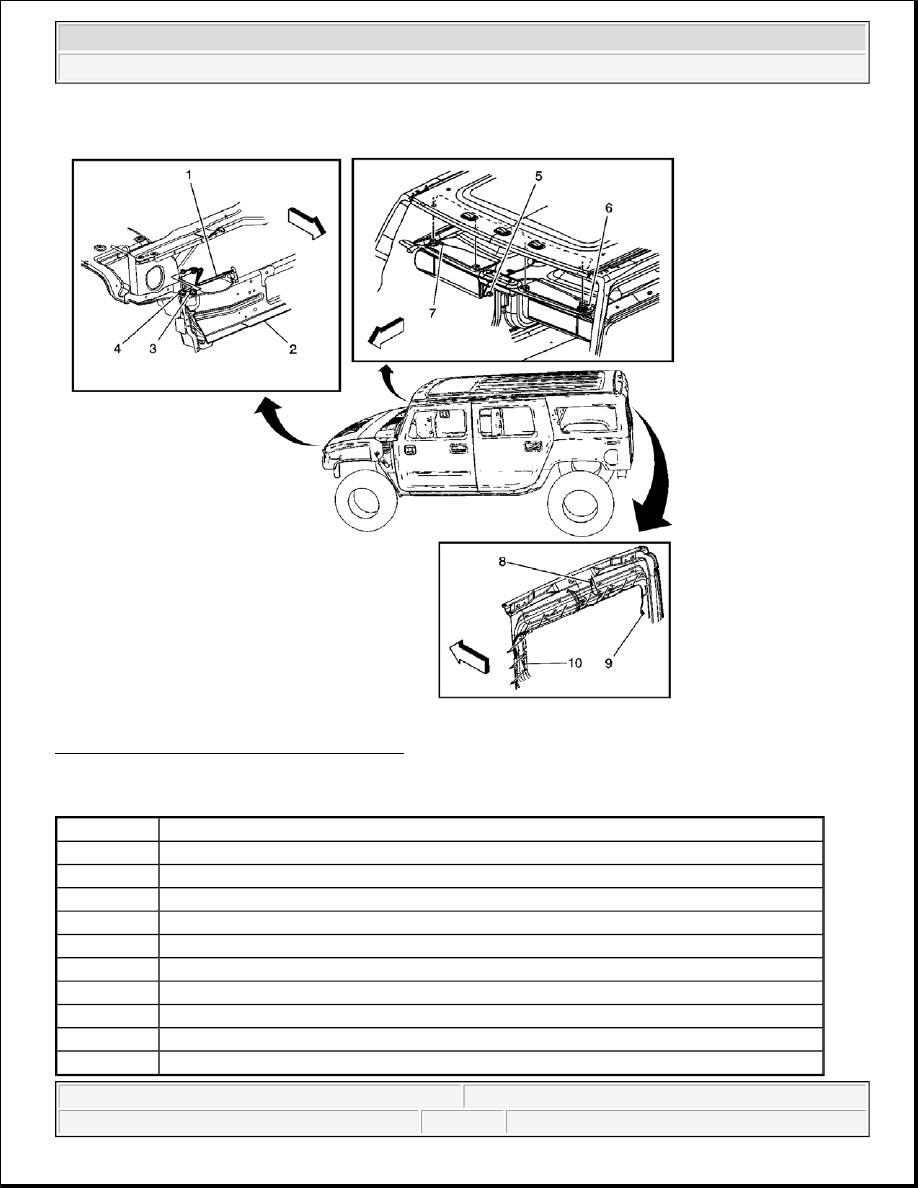

STATIONARY WINDOWS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Fig. 3: Stationary Window Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Forward Lamp Harness

2

Radiator Support

3

Ambient Air Temperature Sensor - HVAC

4

Ambient Air Temperature Sensor - Mirror

5

Inside Rearview Mirror Connector

6

Vanity Mirror Lamp Connector - Left

7

Vanity Mirror Lamp Connector - Right

8

Center High Mounted Stop Lamp (CHMSL) Connector

9

Rear Window Defogger Grid Connector

10

Rear Window Defogger Grid Connector
