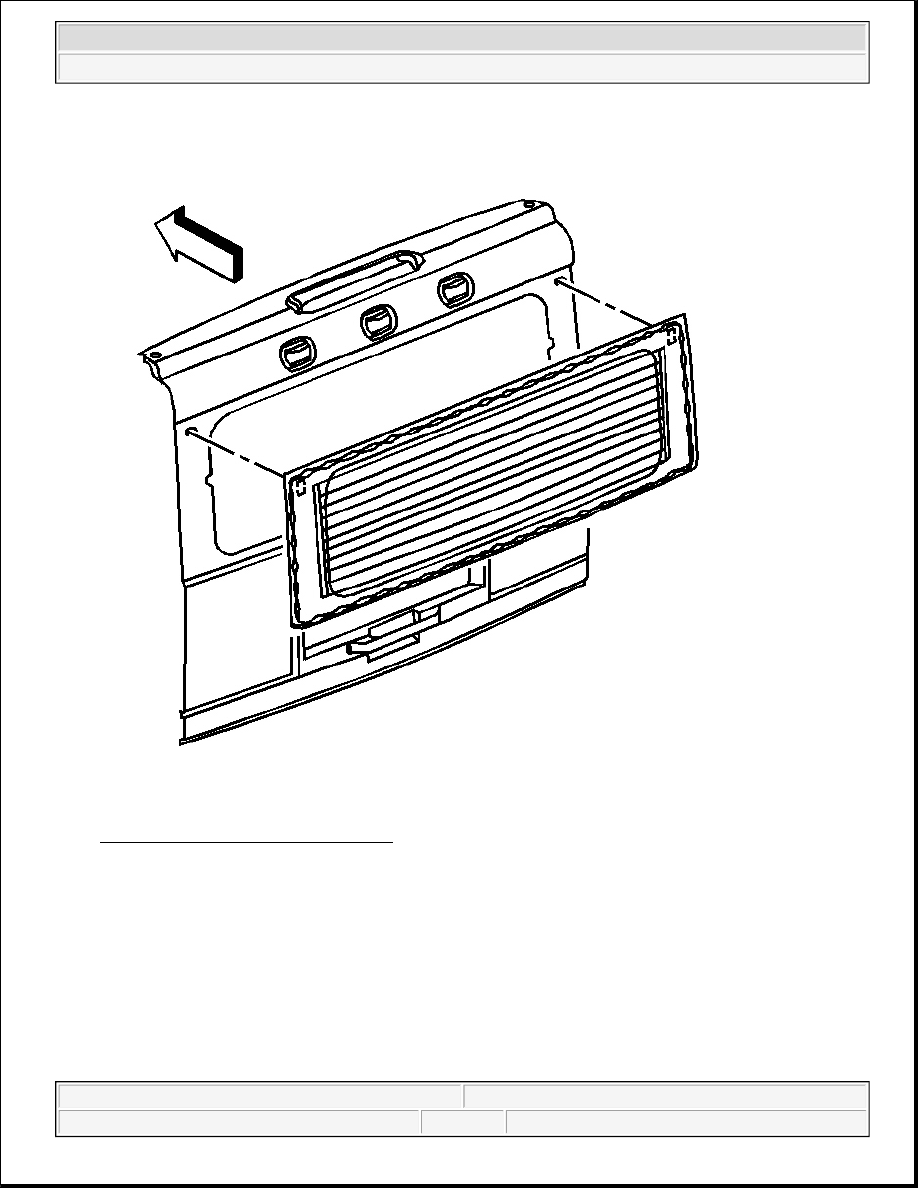

Fig. 43: Identifying Rear Lift Window
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connector to the window defogger on the window, if equipped.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



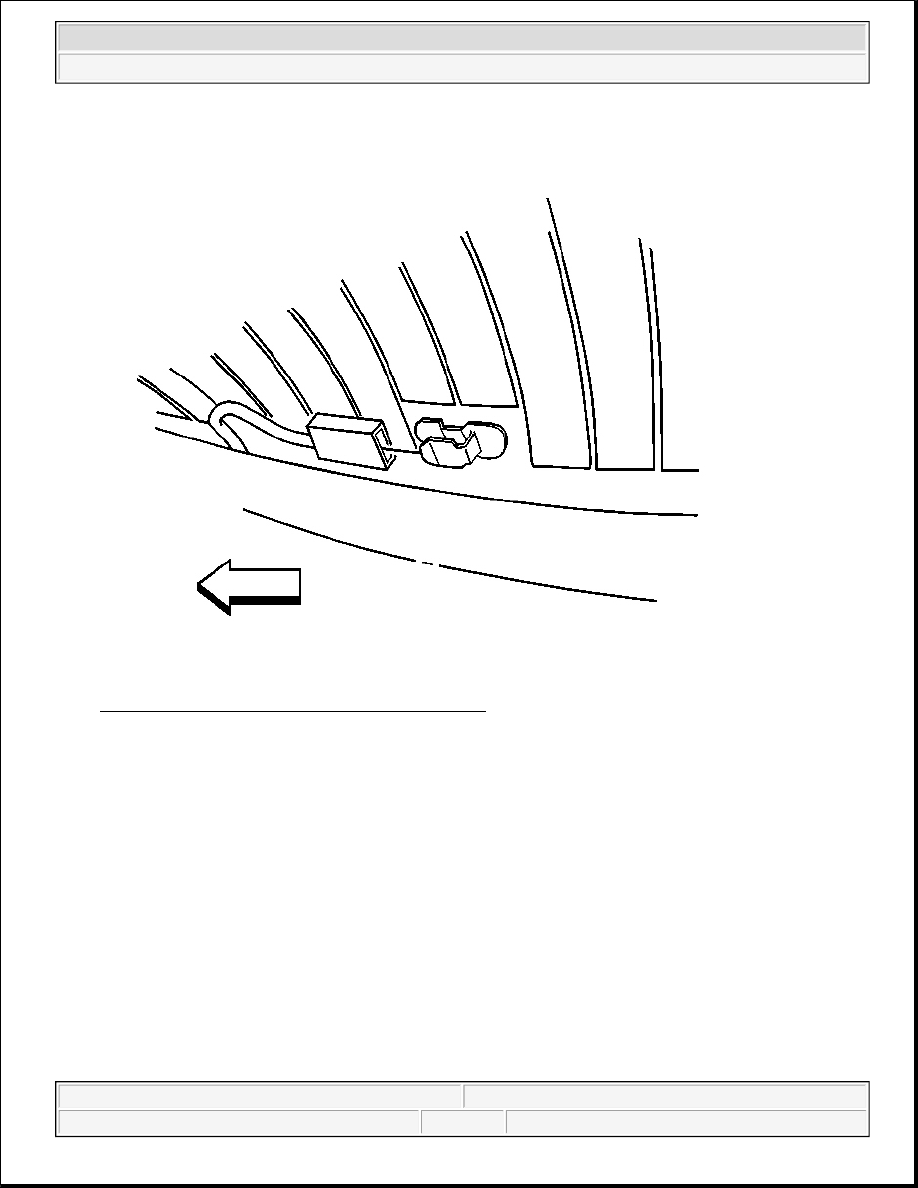

Fig. 44: Electrical Connector & Window Defogger
Courtesy of GENERAL MOTORS CORP.

3. Install the window garnish molding to the door frame.

4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior

trim.

DESCRIPTION AND OPERATION

ADHESIVE SERVICE KIT DESCRIPTION

The GM Adhesive Caulking Kit P/N 12346392 contains the following items:

z

4 different primers

z

A tube of urethane adhesive with a nozzle

z

4 daubers

z

Instructions with warnings



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



z

Use the urethane adhesive caulking kit for replacement of any urethane adhesive-installed window using
the Full Cut Method.

You may use an equivalent urethane adhesive system if the system meets GM Specification GM 3651M.
Always follow the system manufacturer's instructions for application, handling, and curing.

AUTOMATIC DAY-NIGHT MIRROR DESCRIPTION AND OPERATION

Inside Rearview Mirror with the Automatic Day-Night Feature System Components

The inside rearview mirror with the automatic day-night feature system consists of the following components:

z

Inside rearview mirror

z

Ambient air temperature sensor

Power and Ground of the Inside Rearview Mirror

z

With the ignition ON, ignition voltage is supplied to the mirror from the IGN E fuse in the underhood
fuse block.

z

Ground for the mirror is provided by G302.

Inside Rearview Mirror with the Automatic Day-Night Feature System Operation

The inside rearview mirror uses 2 photocell sensors. One sensor is the headlight sensor, located on the face side
of the mirror. The headlight sensor is used to determine light conditions present at the mirror face. The other
sensor is the ambient light sensor, located on the rear of the mirror or windshield side. The ambient light sensor
is used to determine the exterior light conditions. With a low exterior light condition detected, and a high light
condition from behind of the car, at the headlight sensor, the inside rearview mirror will automatically darken
the face of the mirror.

In the daytime, the mirror is in a normal state because of the high exterior light condition that is indicated by the
ambient light sensor. With the gear selector lever in the REVERSE position, backup lamp supply voltage is
supplied as an input to the inside rearview mirror. The mirror monitors this input to disable the automatic day-
night feature. This allows the driver to see objects in the mirror clearly when backing up, even during the night.

Compass

The mirror uses 2 magnetic field sensors for compass direction. One sensor is for north and south, the other is
for east and west. The mirror supplies a signal and low reference to each sensor. As the vehicle travels with or
against the earths magnetic pull, there will be a change in voltage on one or both sensors. As a result of the
change in voltage, the mirror changes the heading on the compass display.

Temperature Display

The inside rearview mirror monitors the ambient air temperature sensor. As the outside air temperature gets
warmer, the ambient air temperature sensor will lower resistance. The inside rearview mirror monitors this



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



change and will show this as a warmer temperature on the display. Temperatures exceeding 62°C (143°F) will
be out of the mirror's temperature range and SC will be shown on the temperature display. In colder outside air
temperatures, the ambient air temperature sensor will raise in resistance. The inside rearview mirror will show a
colder temperature on the display. Temperatures lower than -40°C (-40°F) will be out of the mirrors
temperature range which OC will be shown on the temperature display. In cold temperatures such as 3°C (37°F)
or below, the temperature display will show ICE when the ignition is first turned ON. The display will toggle
between ICE and the actual outside temperature until the temperature update process is complete.

Temperature Display Update Process

The inside rearview mirror has a temperature program that takes in account the fact that the radiator will heat
the ambient air temperature sensor if the radiator is warm and the vehicle is not moving. If the vehicle has been
off for more than 2 hours, the mirror temperature program assumes that the radiator has cooled and that the
temperature supplied by the ambient air temperature sensor is accurate. Because of this, if the vehicle has been
off for more than 2 hours, the mirror displays the temperature as reported by the ambient air temperature sensor.
When the ambient air temperature sensor reports a new temperature to the mirror, one of the following cases
will apply:

z

Ignition is OFF for more than 2 hours, then is turned ON for more than 3 minutes. The outside
temperature is greater than the last temperature recorded by the mirror for 2 minutes. The mirror will
increase the last temperature reading by one degree every 2 minutes for 8 consecutive times. If the outside
temperature is not matched after the 8th update, the mirror will then display the current outside
temperature.

z

Ignition is off for more than 2 hours, then is turned ON for less than 3 minutes. The mirror will update the
temperature display every 2 seconds.

z

Ignition is OFF for more than 2 hours, then is turned ON for more than 3 minutes. The outside
temperature is less than the last temperature recorded by the mirror. The mirror will then display the
current outside temperature.

z

Ignition has been OFF for less than 2 hours. The outside temperature is greater than the last temperature
recorded by the mirror, but the ignition is cycled from ON to OFF within 2 minutes. The mirror will
display the old temperature.

z

Ignition has been OFF for less than 2 hours. The outside temperature is less than the last temperature
recorded by the mirror. The mirror will then display the current outside temperature.

Switches of the Inside Rearview Mirror with the Automatic Day-Night Feature and Compass without OnStar(R)

The inside rearview mirror has 2 switches that perform the following functions:

z

The MIRROR switch is used to enable or disable the automatic day-night feature of the mirror. With the
ignition in the ON position, depress the MIRROR switch to enable the automatic day-night feature of the
mirror. A green indicator will illuminate on the mirror when the automatic day-night feature is enabled.
To disable the automatic day-night feature of the mirror, depress the MIRROR switch.

z

The COMPASS switch is used to turn the compass ON and OFF. With the ignition in the ON position,
depress the COMPASS switch to turn the compass ON. Depress the COMPASS switch again to turn the
compass OFF. The COMPASS switch is also used to place the compass into a calibration or zone mode.
For more information, refer to Compass Calibration and Variance Procedure .
