Removal Procedure

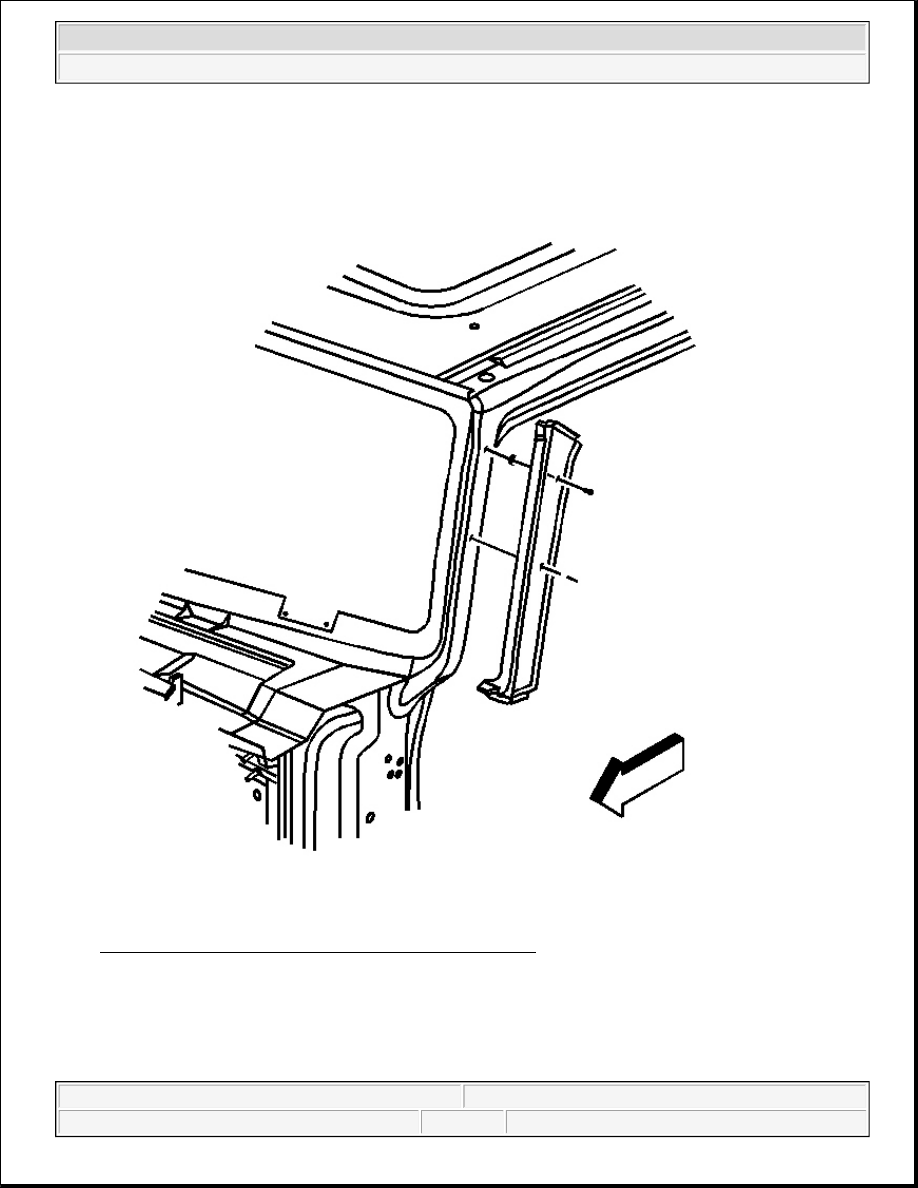

Fig. 12: Windshield Reveal Molding & Windshield Pillar
Courtesy of GENERAL MOTORS CORP.

1. Pull back the front door sealing weatherstrip to expose the windshield reveal molding screws.

2. Remove the screws from the windshield reveal molding.

3. Remove the windshield reveal molding from the windshield pillar.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Installation Procedure

1. Install the windshield reveal molding to the windshield pillar.

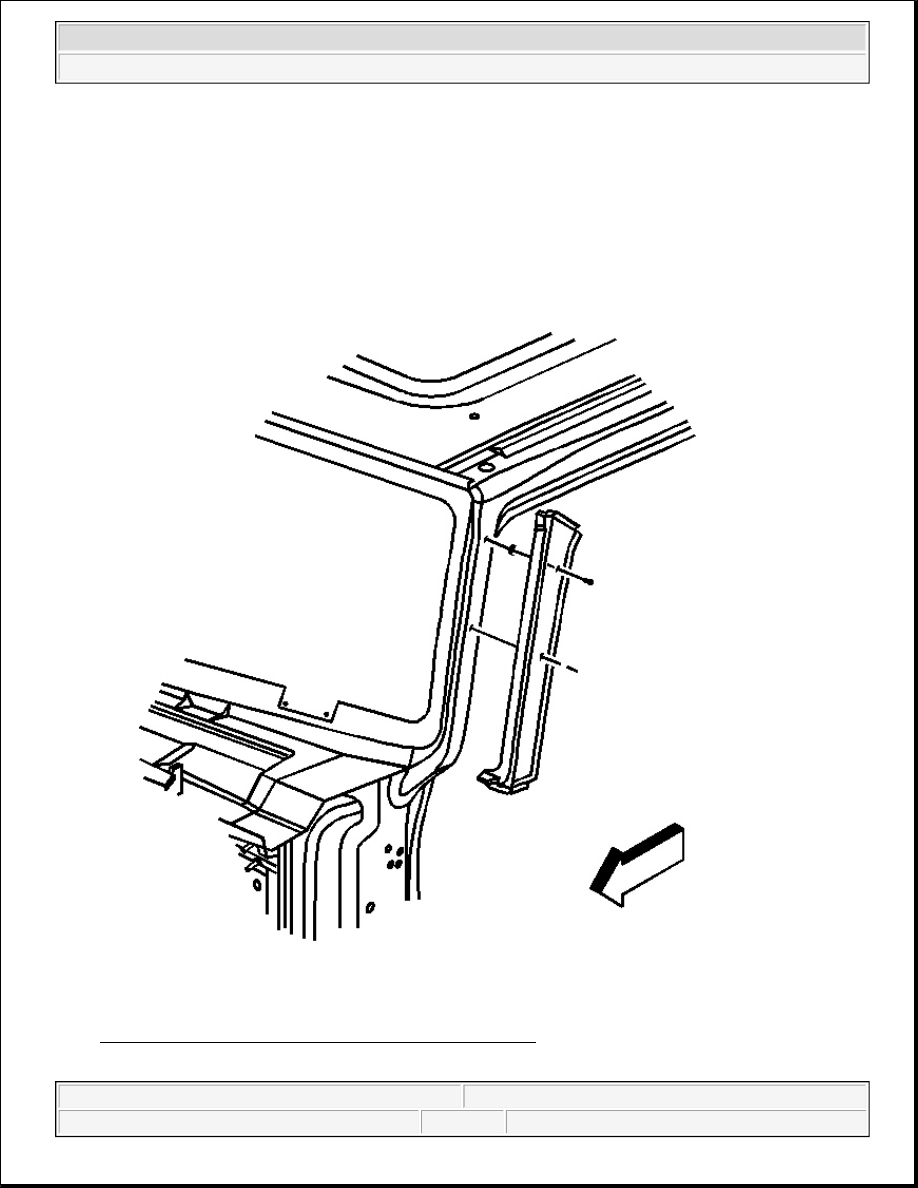

Fig. 13: Windshield Reveal Molding & Windshield Pillar
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



2. Install the screws to the windshield reveal molding.

Tighten: Tighten the screws to the windshield reveal molding to 2 N.m (18 lb in).

3. Install the front door sealing weatherstrip (1) to the pinchweld.

4. Close the door.

REARVIEW MIRROR REPLACEMENT

Removal Procedure

1. Use a flat-bladed tool in order to remove the wire cover, if equipped.

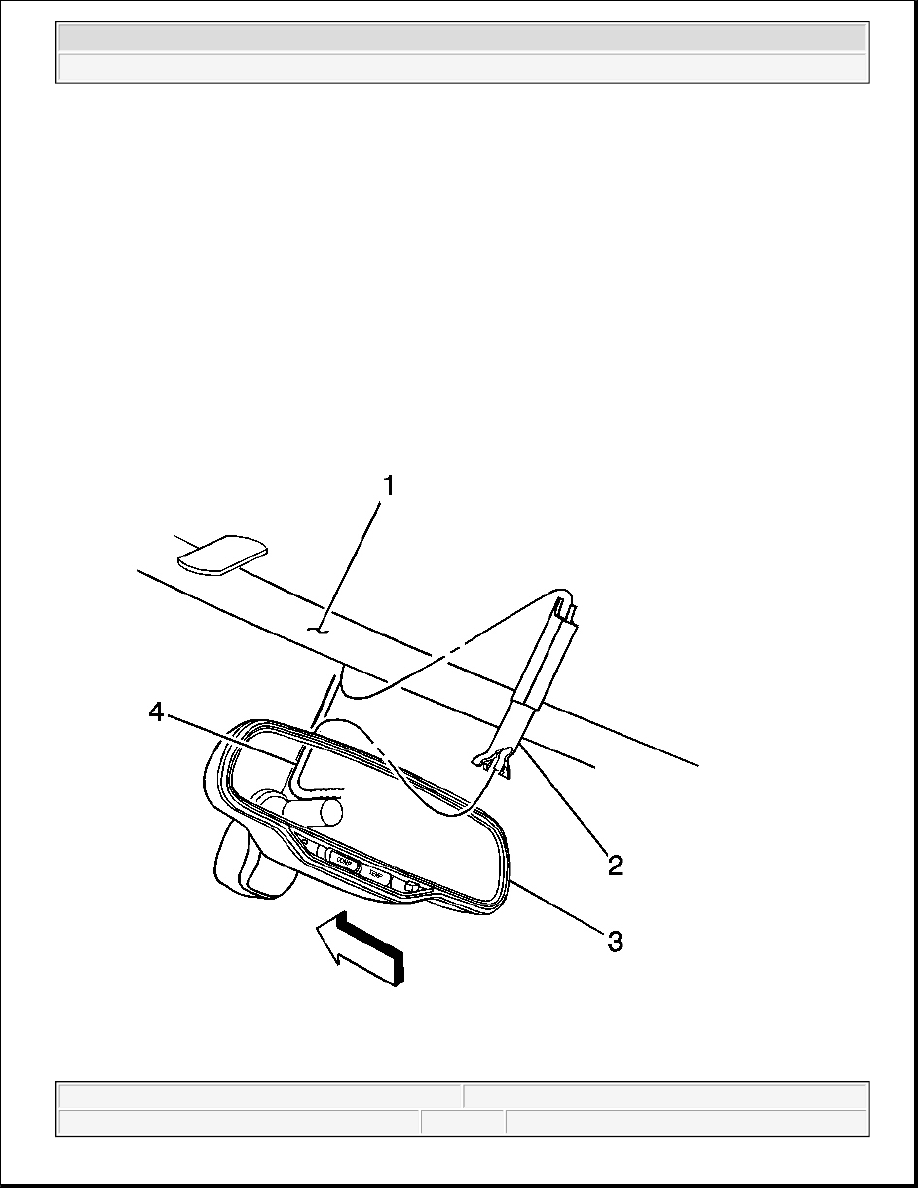

Fig. 14: Electrical Connector & Rearview Mirror



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector (4), if equipped.

3. Using a TORX-head(R) screwdriver, loosen the set screw that holds the mirror base to the windshield

button.

4. Slide the mirror (3) off of the support.

Installation Procedure

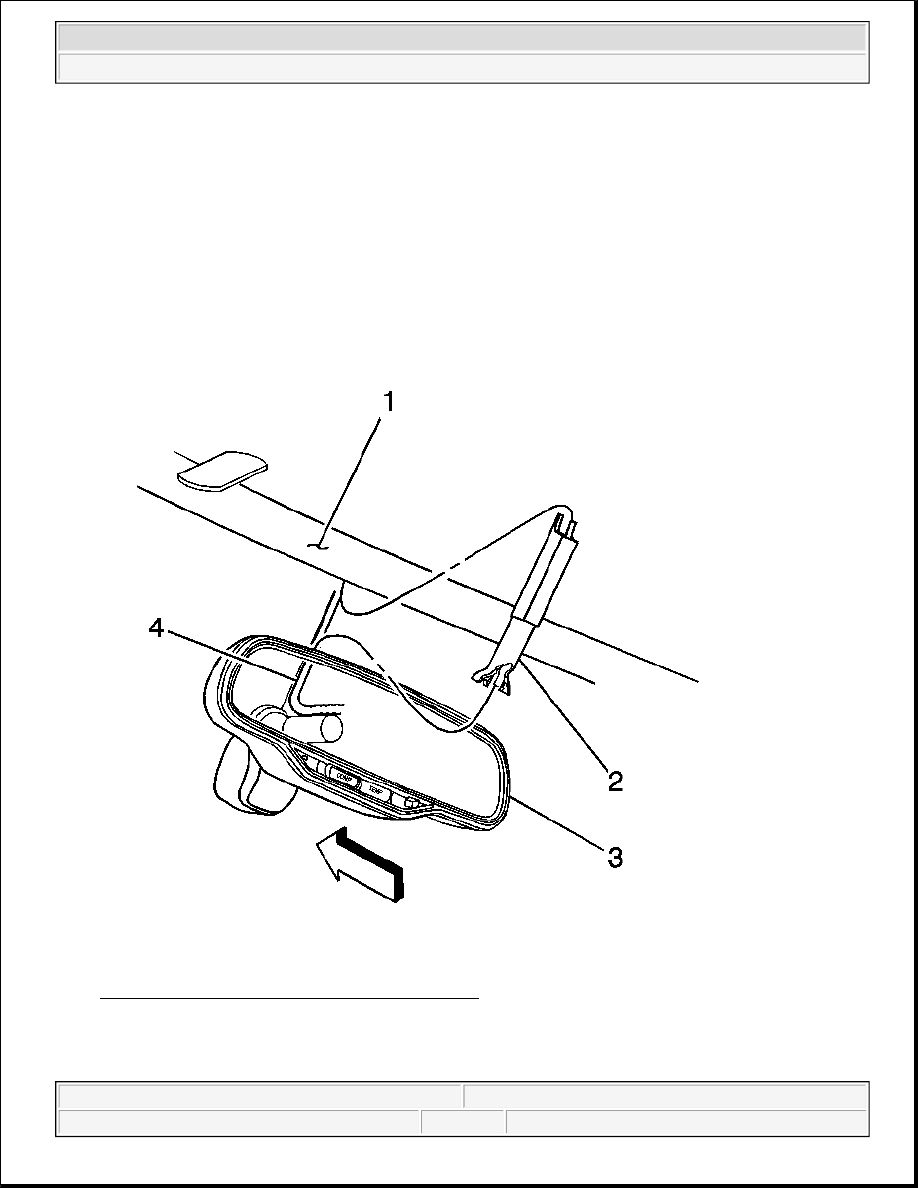

Fig. 15: Electrical Connector & Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

1. Slide the mirror (3) onto the mirror support.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2
