Fig. 8: Identifying Loose Window Molding
Courtesy of GENERAL MOTORS CORP.

1. Lift up on the loose area of the reveal molding.

2. Clean the top edge of the window surface and the reveal molding with a 50/50 mixture of isopropyl

alcohol and water by volume on a dampened lint-free cloth.

Installation Procedure

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and

Notices.

IMPORTANT: The window reveal molding fills the cavity between the body and window.

If the reveal molding is stretched or damaged, it cannot be reused and it
must be replaced.

CAUTION: Refer to Window Retention Caution in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



1. Verify all primers and urethane adhesive are within expiration dates.

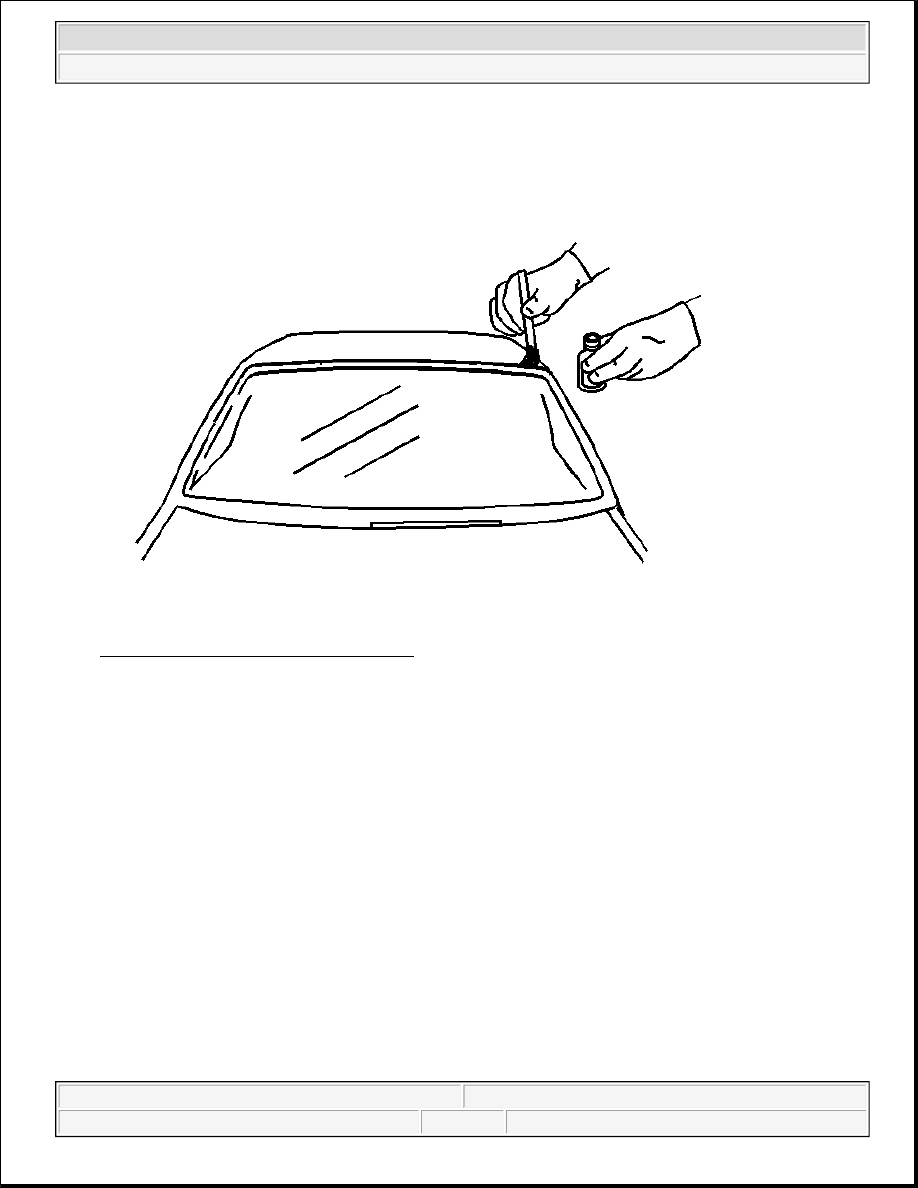

Fig. 9: Applying Glass Primer (Black #2)
Courtesy of GENERAL MOTORS CORP.

2. Use a new dauber in order to apply glass prep, clear #1, to the channel area approximately 13 mm (1/2 in)

to the upper edge of the window.

3. Wipe the glass primed area immediately with a clean lint-free cloth.

4. Shake the glass primer, black #2, for at least 1 minute.

5. Use a new dauber in order to apply glass primer, black #2, to the top edge of the window.

IMPORTANT: Use care when applying the prep, clear #1, to the window. This primer

dries almost instantly, and may stain the viewing area of the window if not
applied evenly.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



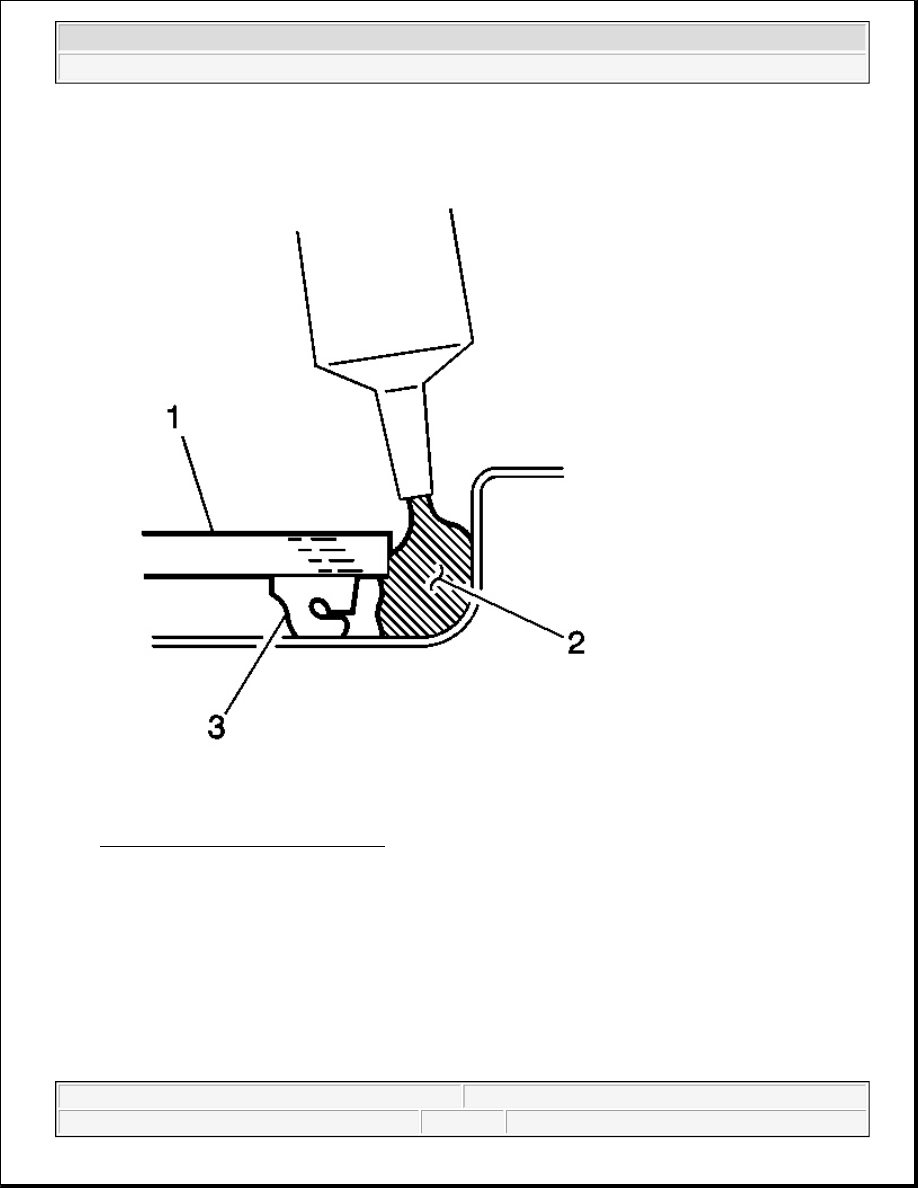

Fig. 10: Applying Urethane Adhesive
Courtesy of GENERAL MOTORS CORP.

6. Apply a small bead of urethane adhesive (2) between the window (1) and the pinch-weld.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



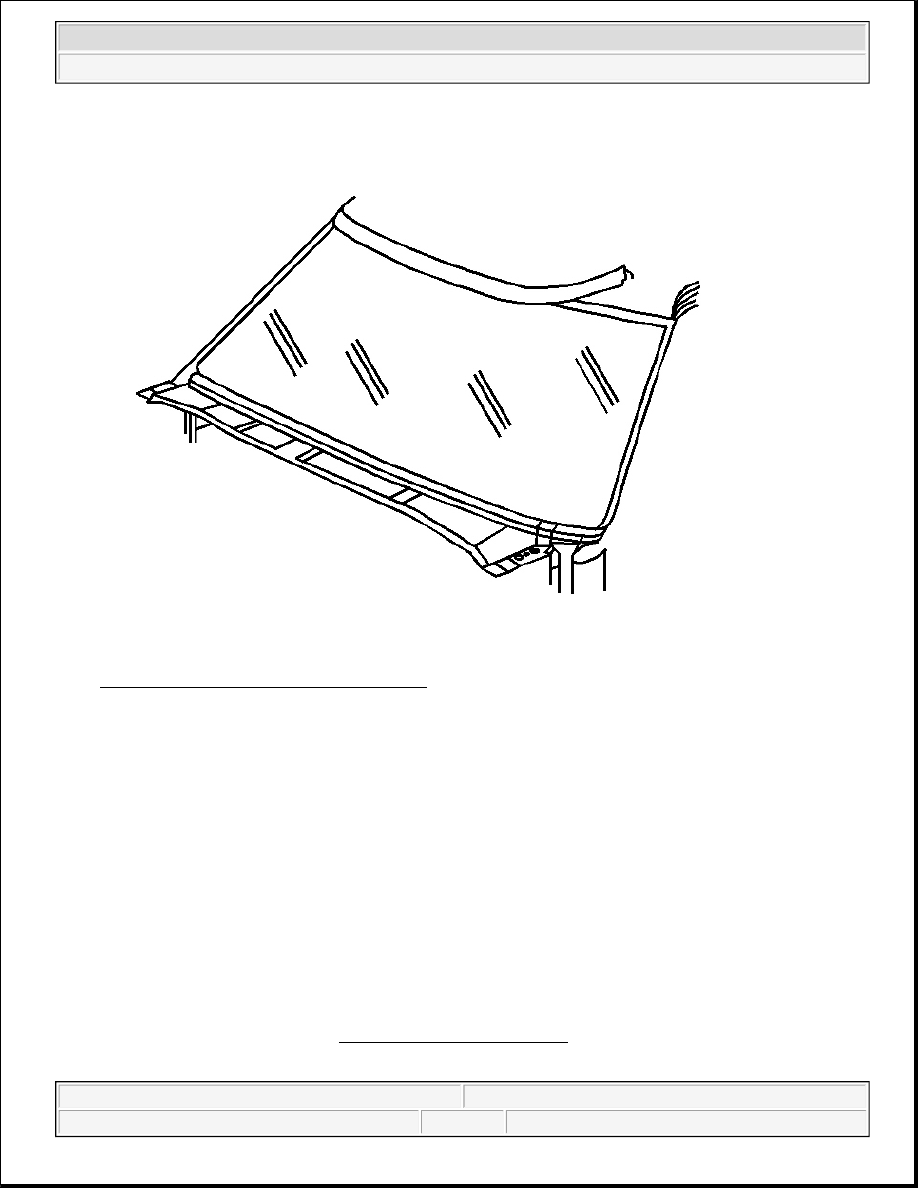

Fig. 11: Identifying Loose Window Molding
Courtesy of GENERAL MOTORS CORP.

7. Reinstall the window reveal molding.

1. Start from the loose area and hand-press the reveal molding into place over the edge of the window.

2. Run warm water over the reveal molding in order to speed the setup time of the urethane adhesive.

3. Tape should be applied in order to retain the reveal molding to the window. This will maintain a

flush fit with the body.

4. The tape is to be removed after 6 hours.

WINDSHIELD REVEAL MOLDING REPLACEMENT

The windshield reveal molding is an applied molding design separate from the window. The reveal molding is
bonded to the windshield and may be bonded to the body. The reveal molding may be replaced with the
windshield as an assembly, or the reveal molding may be available as a separate service part. Refer to Urethane
Adhesive Installation of Stationary Windows .

WINDSHIELD SIDE REVEAL MOLDING REPLACEMENT
