Stationary Windows - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

DEFOGGER SCHEMATICS

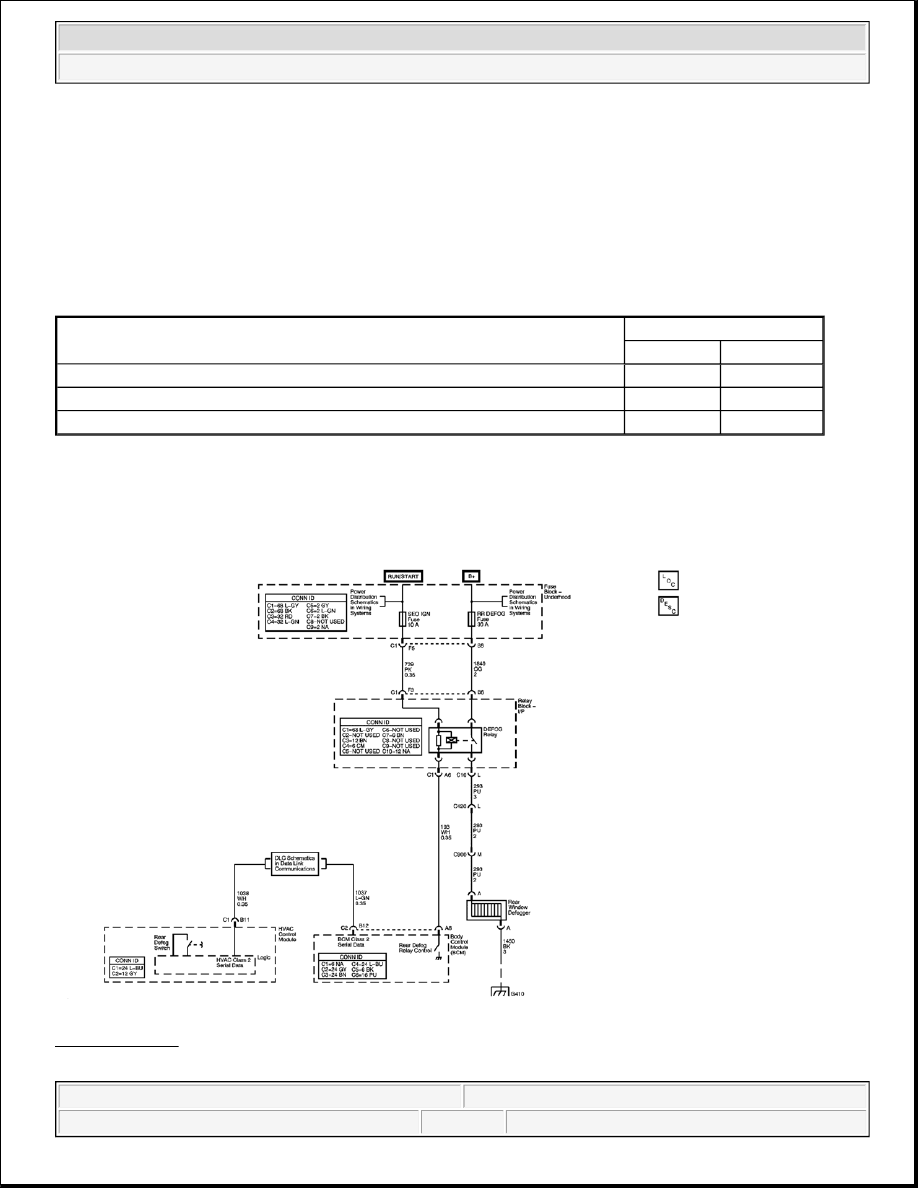

Fig. 1: Defogger
Courtesy of GENERAL MOTORS CORP.

Application

Specification

Metric

English

Ambient Air Temperature Sensor

10 N.m

89 lb in

Rearview Mirror Screw

2 N.m

18 lb in

Windshield Reveal Molding Right or Left Sides

2 N.m

18 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



INSIDE REARVIEW MIRROR SCHEMATICS

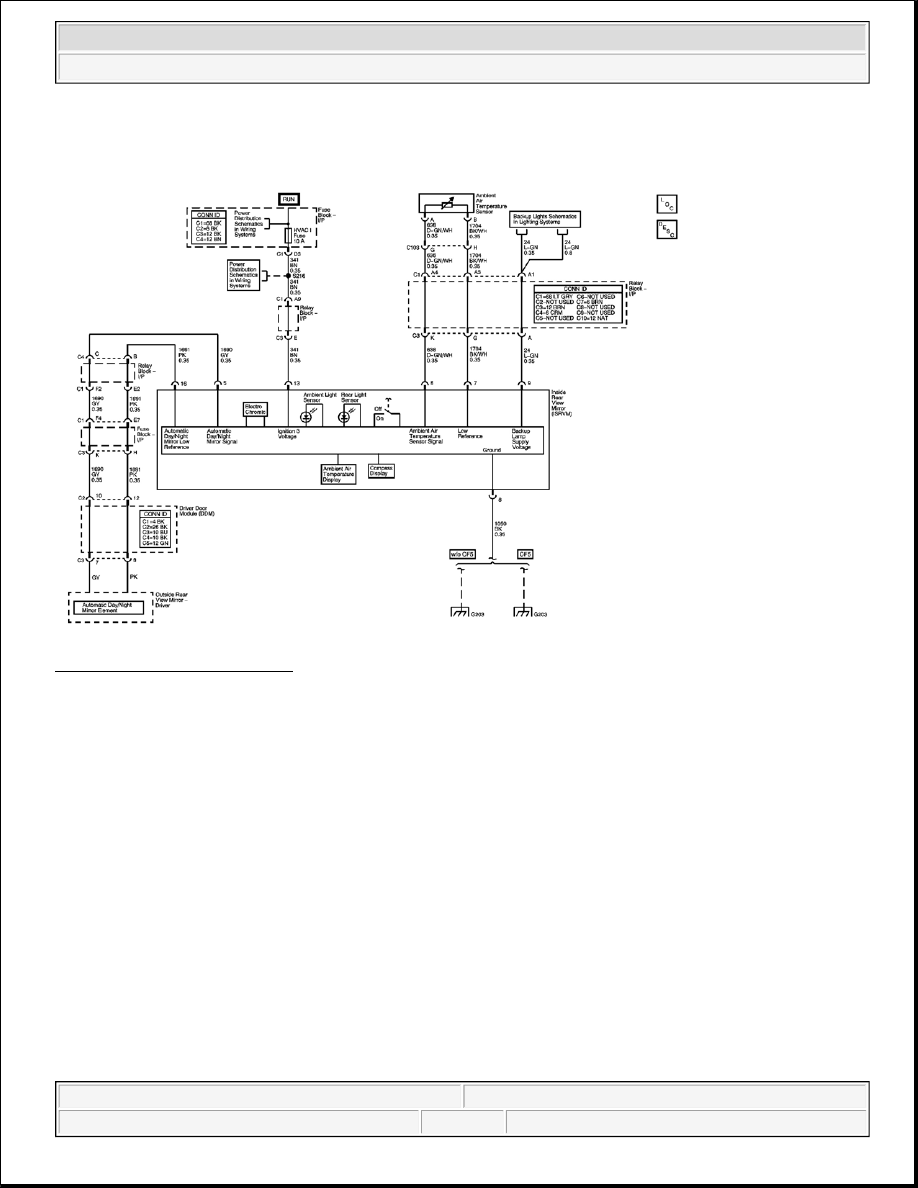

Fig. 2: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

STATIONARY WINDOWS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



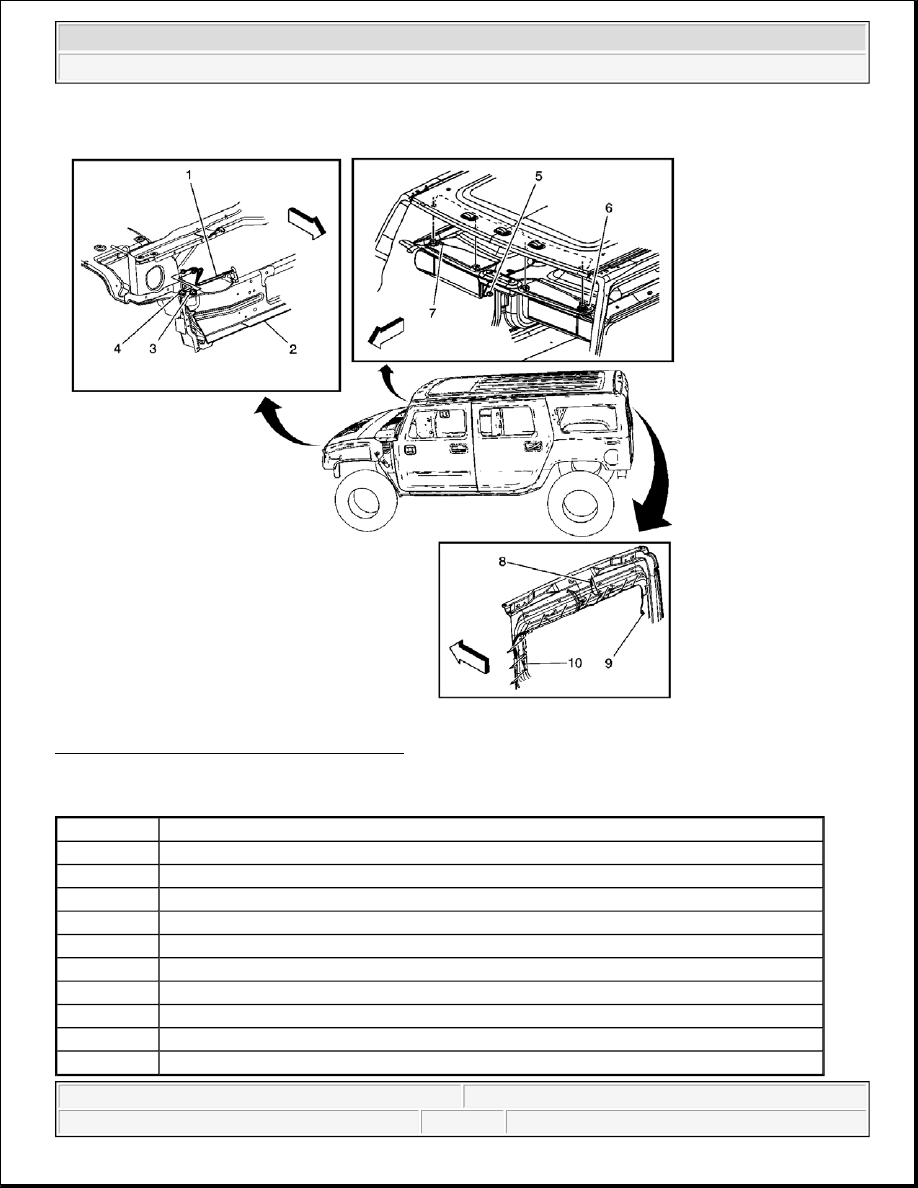

Fig. 3: Stationary Window Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Forward Lamp Harness

2

Radiator Support

3

Ambient Air Temperature Sensor - HVAC

4

Ambient Air Temperature Sensor - Mirror

5

Inside Rearview Mirror Connector

6

Vanity Mirror Lamp Connector - Left

7

Vanity Mirror Lamp Connector - Right

8

Center High Mounted Stop Lamp (CHMSL) Connector

9

Rear Window Defogger Grid Connector

10

Rear Window Defogger Grid Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



STATIONARY WINDOWS CONNECTOR END VIEWS

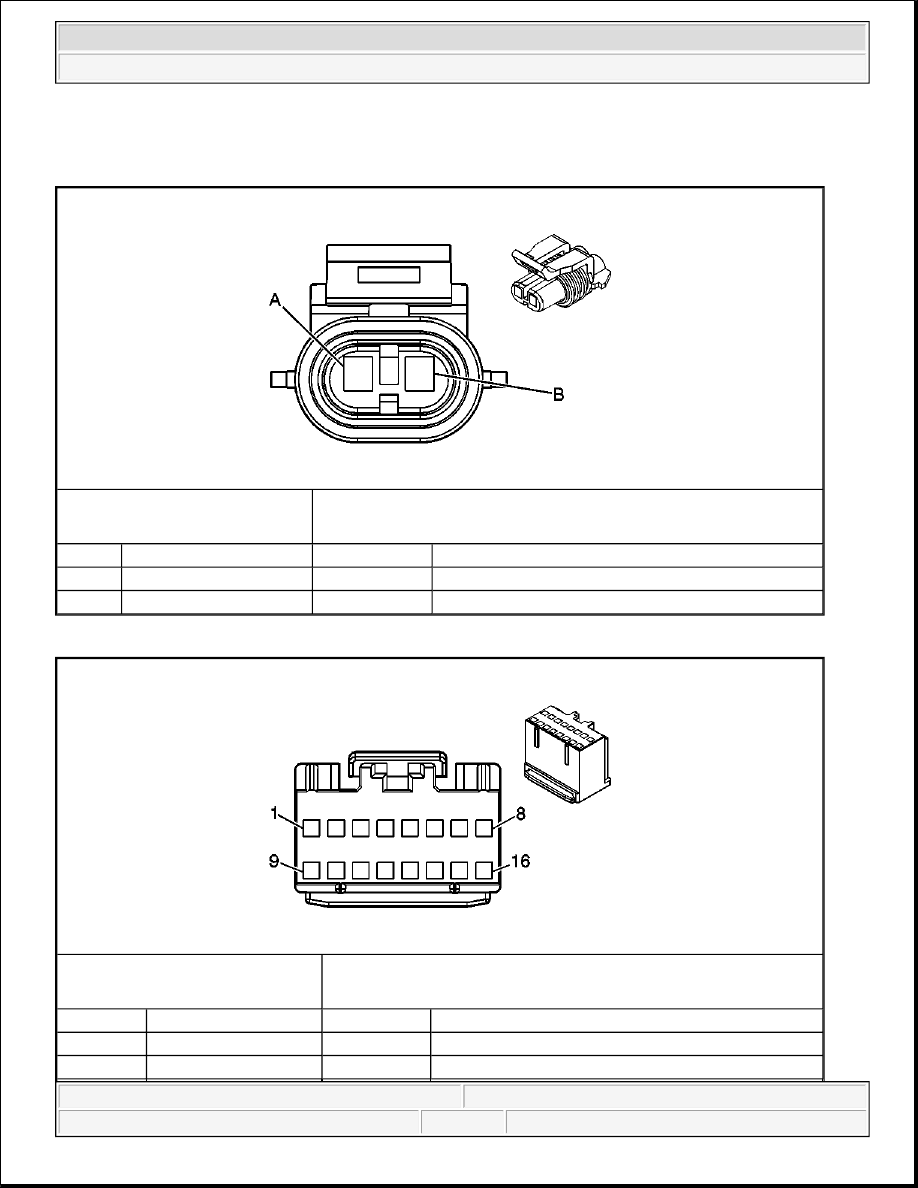

Ambient Air Temperature Sensor Terminal Identification - Mirror

Inside Rearview Mirror (ISRVM) Terminal Identification

Connector Part Information

z

12052642

z

2-Way F Metri-Pack 150 Series Sealed (L-GN)

Pin

Wire Color

Circuit No.

Function

A

D- GN/WH

636

Ambient Air Temperature Sensor Signal

B

BK/WH

1704

Low Reference

Connector Part Information

z

15324871

z

16-Way F AMP (BK)

Pin

Wire Color

Circuit No.

Function

1-4

-

-

Not Used

5

GY

1690

Automatic Day/Night Mirror Signal
