6. Loosen the clamps (1) securing the glass to the window module.

7. Remove the window through the opening at the bottom of the window frame.

Installation Procedure

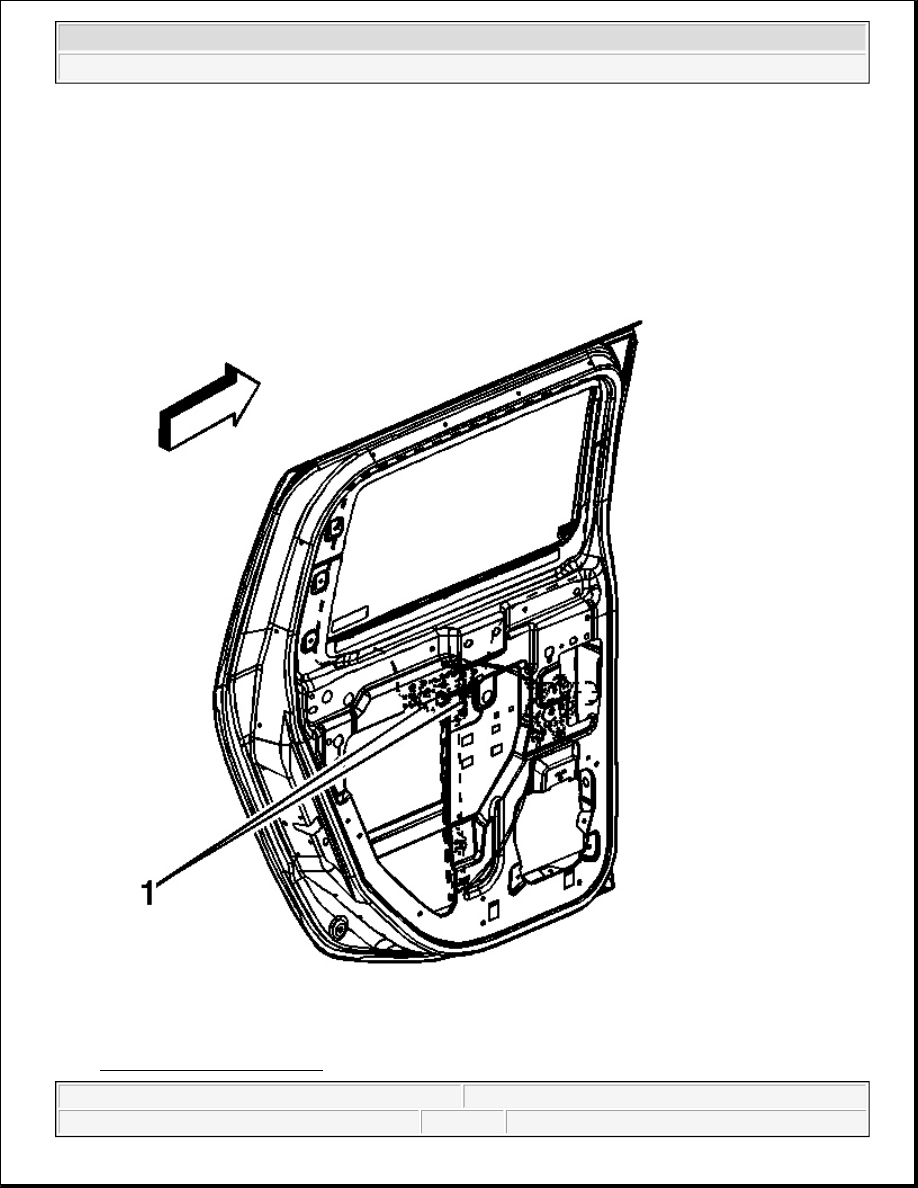

Fig. 106: Rear Door Window



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Slide the window through the opening at the bottom of the window frame into position in the window

clamps (1).

2. Install the sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .

3. Install the run channel. Refer to Window Run Channel Replacement - Rear Door .

Tighten: Tighten the clamps to 9 N.m (6 lb ft).

4. Install the stabilizer. Refer to Window Stabilizer Replacement - Rear Door .

5. Operate the window to ensure proper operation.

6. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

7. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

WINDOW RUN CHANNEL REPLACEMENT - REAR DOOR

Removal Procedure

1. Raise the window to the full up position.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

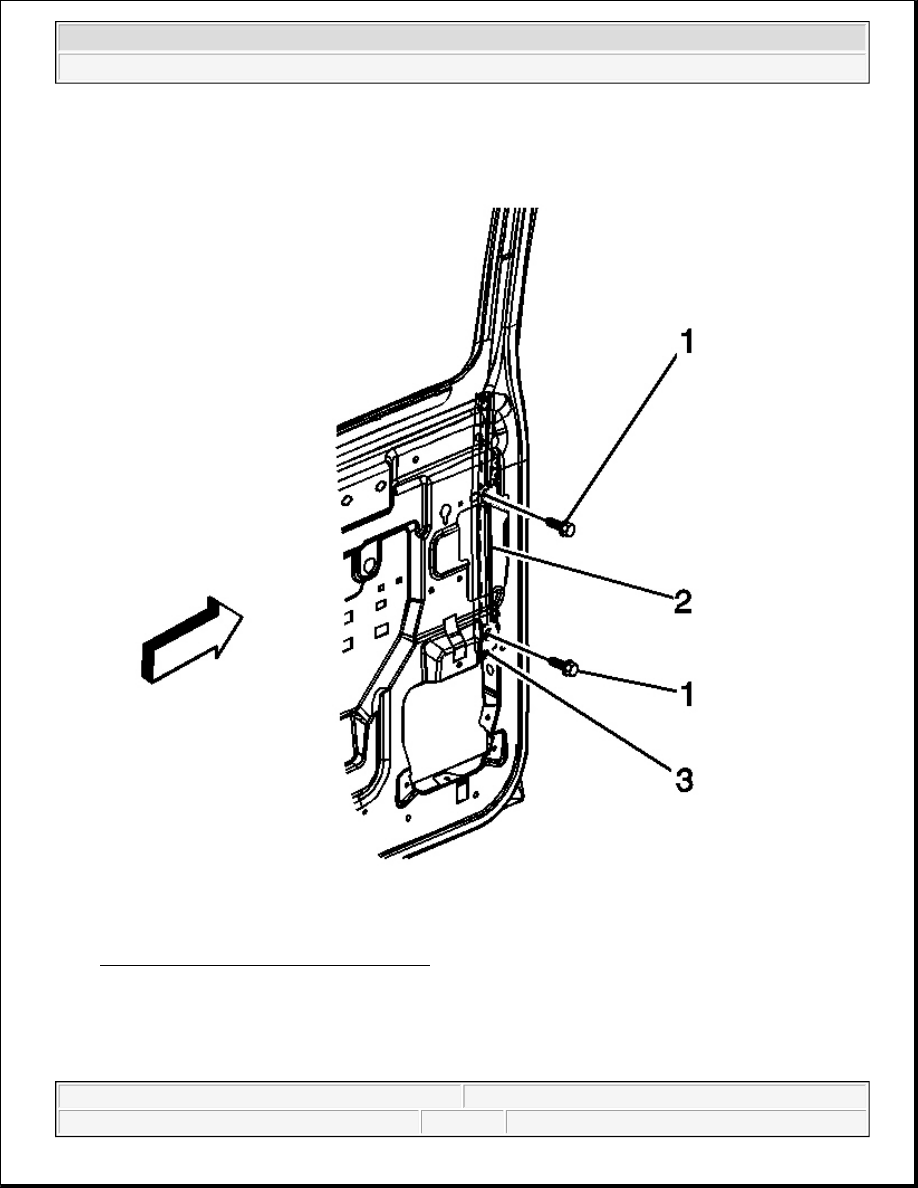

Fig. 107: Rear Door Window Run Channel
Courtesy of GENERAL MOTORS CORP.

4. Remove the 2 fasteners (1) retaining the run channel to the door.

5. Remove the run channel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

1. With the window in the full up position, position the run channel (2) in place inside the door.

2. Install the fasteners (1) retaining the run channel to the door.

Tighten: Tighten the fasteners to 9 N.m (6 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
