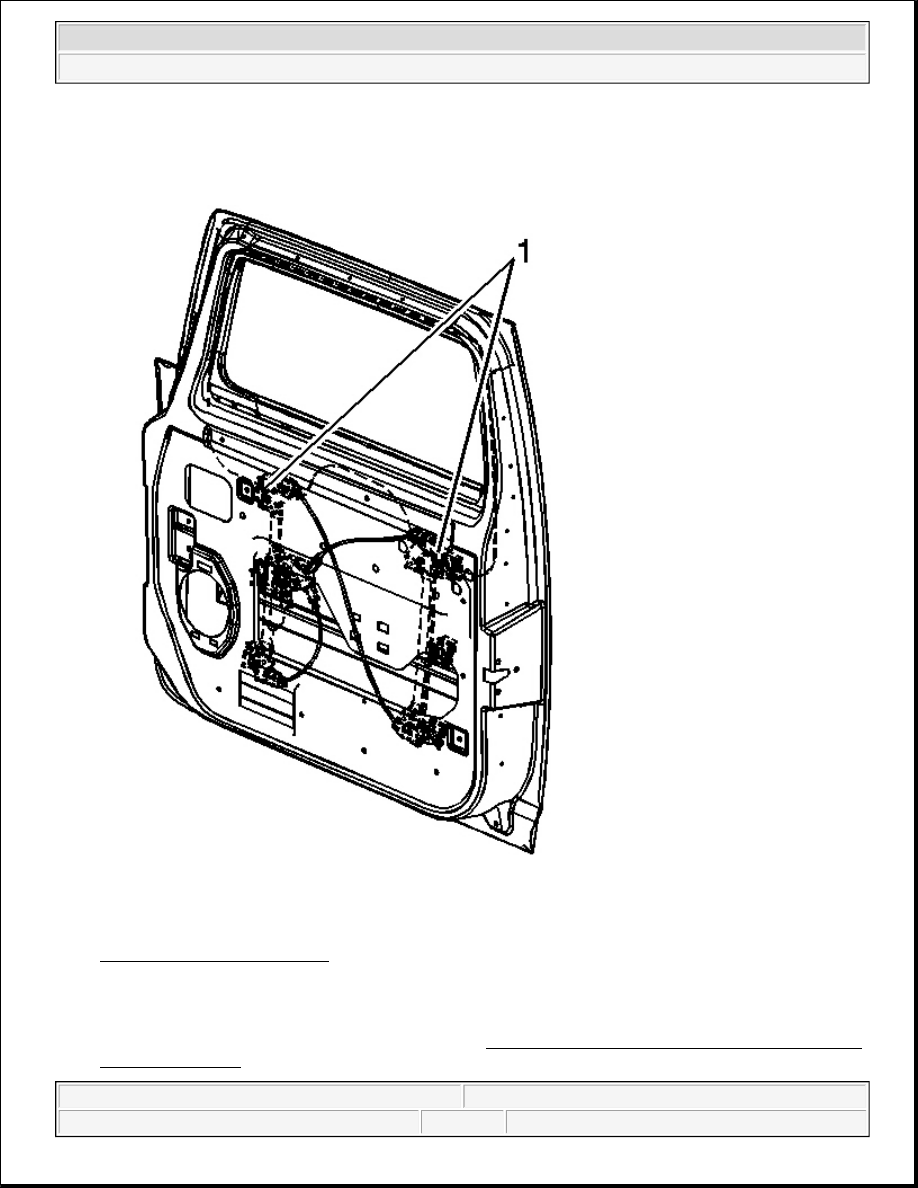

Fig. 103: Front Door Window
Courtesy of GENERAL MOTORS CORP.

3. Loosen the clamps (1) securing the window to the window module.

4. Remove the outer window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window

Belt Outer - Front .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



5. Remove the window through the bottom of the window frame.

Installation Procedure

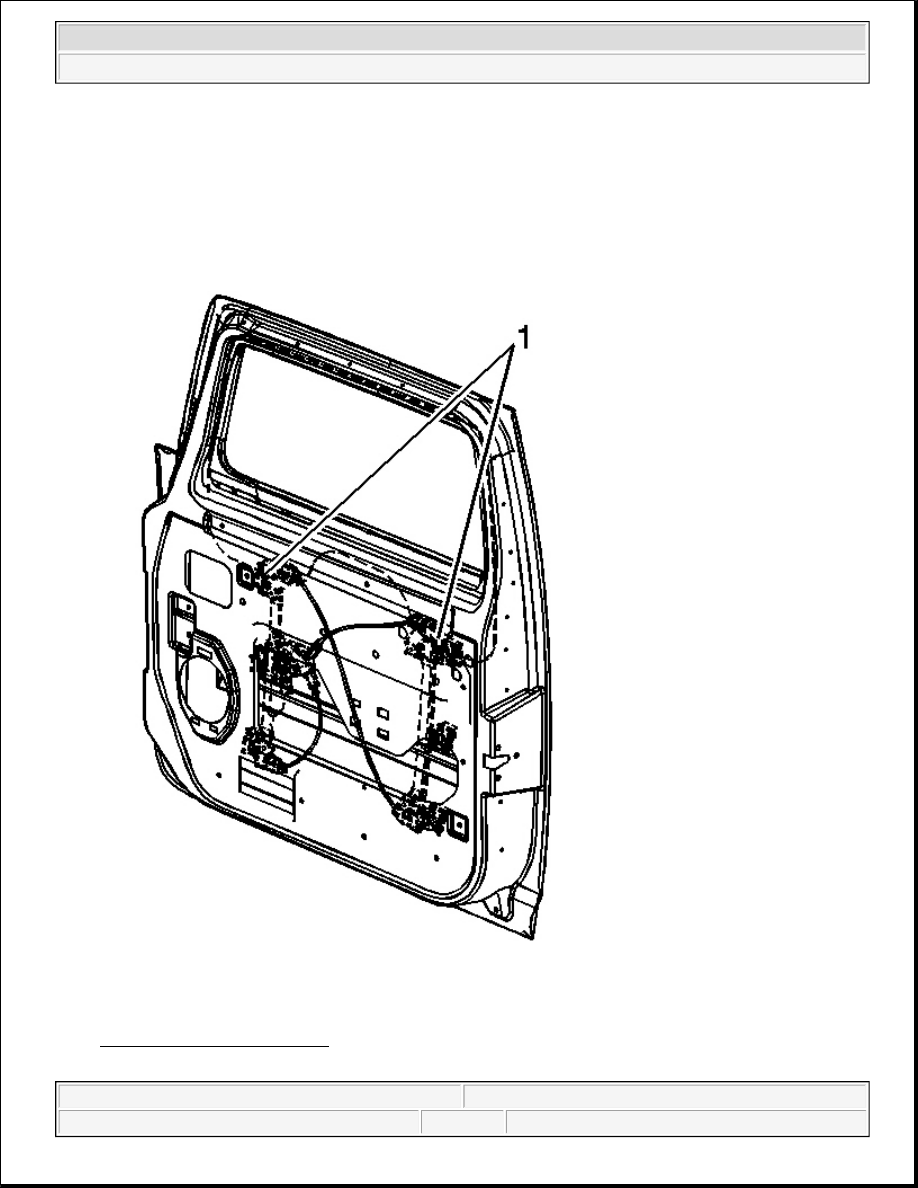

Fig. 104: Front Door Window
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Slide the window through the opening of the window frame into position into the window clamps (1).

2. Install the outer window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window

Belt Outer - Front .

3. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

Tighten: Tighten the clamps to 9 N.m (6 lb ft).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

5. Operate the window to ensure proper operation.

WINDOW REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



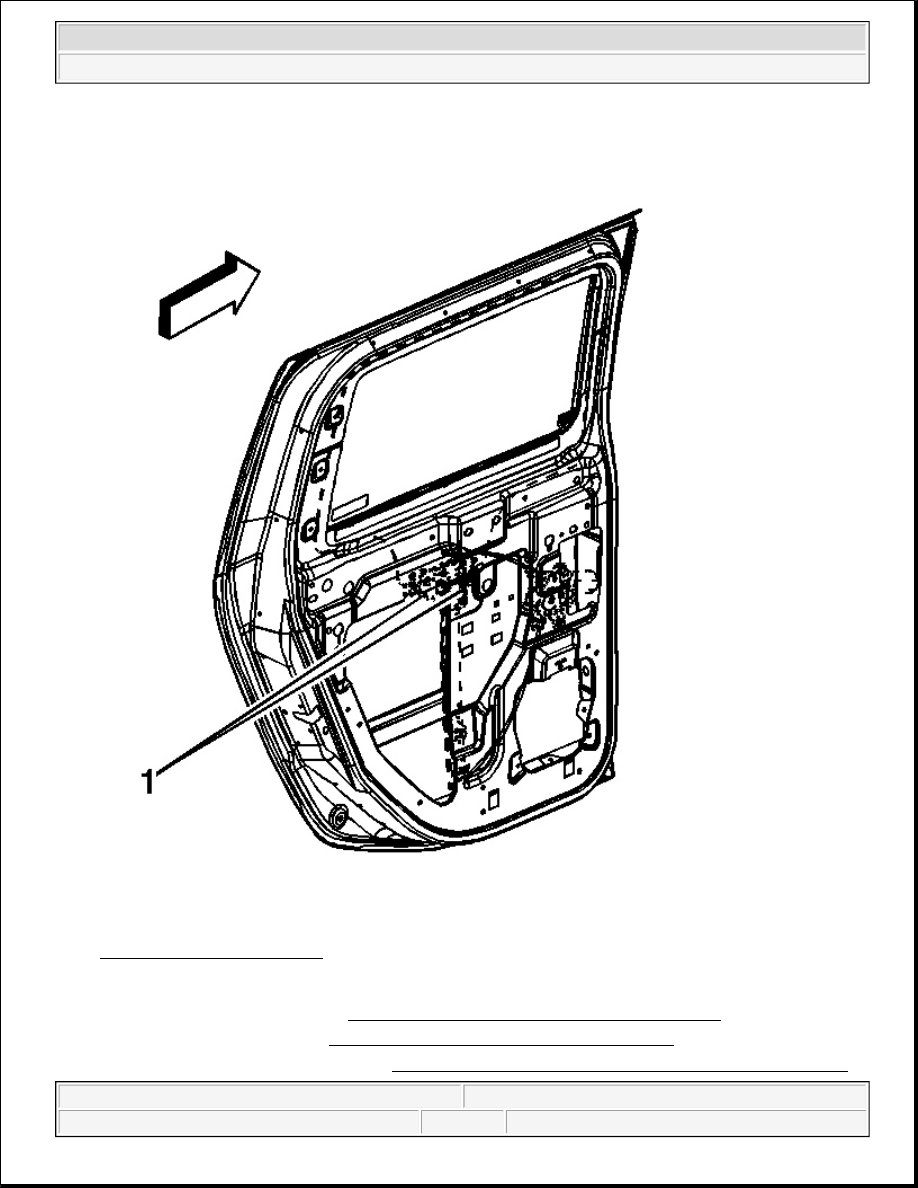

Fig. 105: Rear Door Window
Courtesy of GENERAL MOTORS CORP.

3. Remove the run channel. Refer to Window Run Channel Replacement - Rear Door .

4. Remove the stabilizer. Refer to Window Stabilizer Replacement - Rear Door .

5. Remove the outer sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
