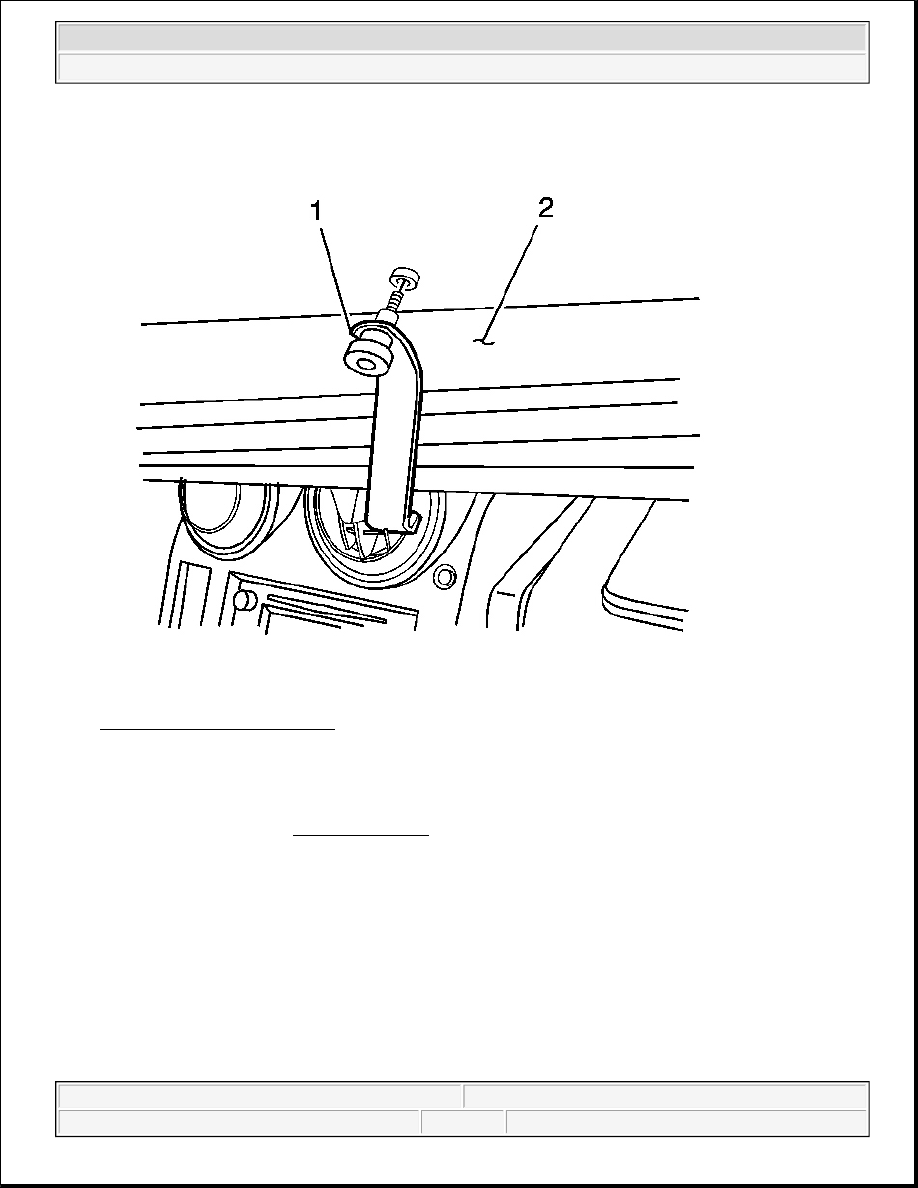

Fig. 10: Sunroof Air Deflector Retaining Clips
Courtesy of GENERAL MOTORS CORP.

2. Open the sunroof and remove the center retaining clip fastener and the 3 retaining clips (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

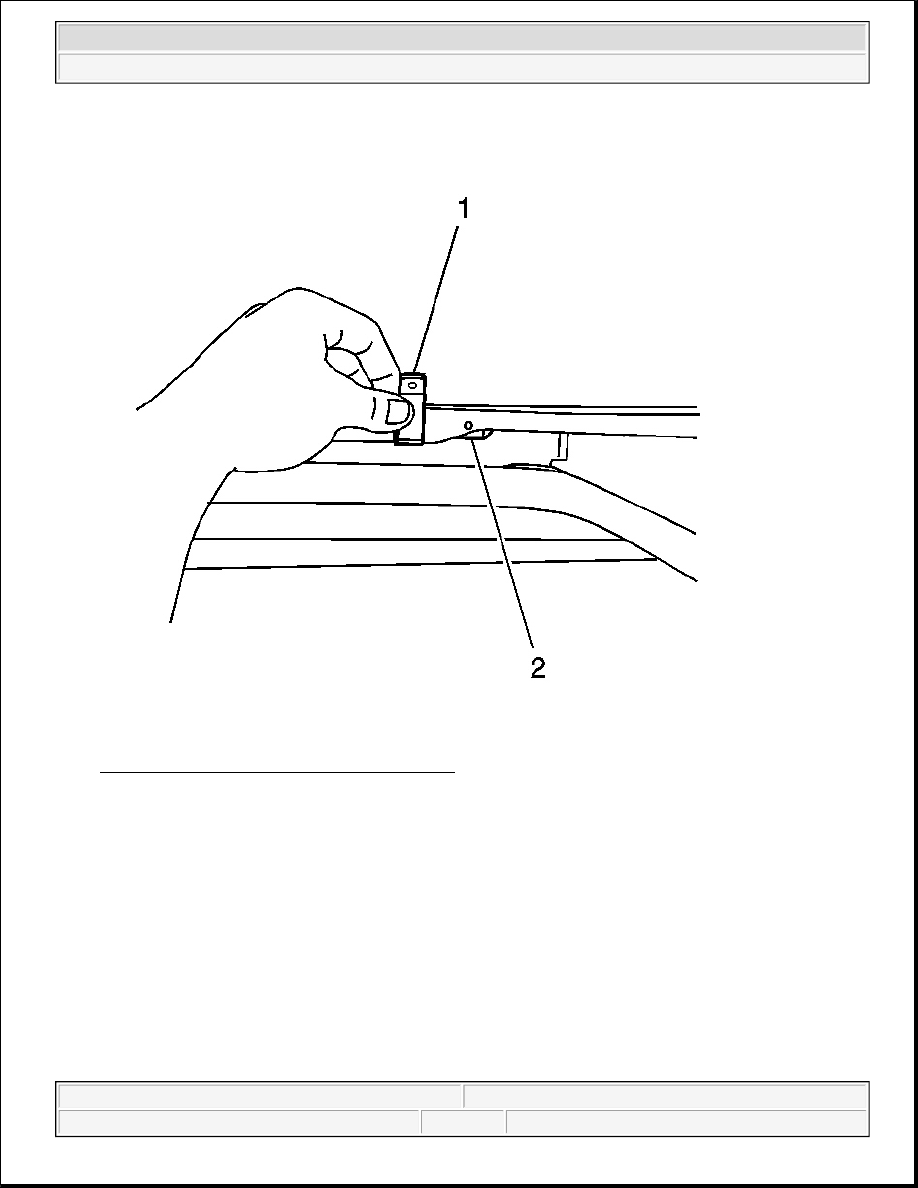

Fig. 11: Aligning Air Deflector
Courtesy of GENERAL MOTORS CORP.

1. Attach the air deflector retaining clips loosely to the deflector.

2. Align the air deflector in place on the vehicle, ensuring that the retaining clips are in place under the lip

(2) on the sunroof opening.

Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).

SUNROOF SWITCH REPLACEMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

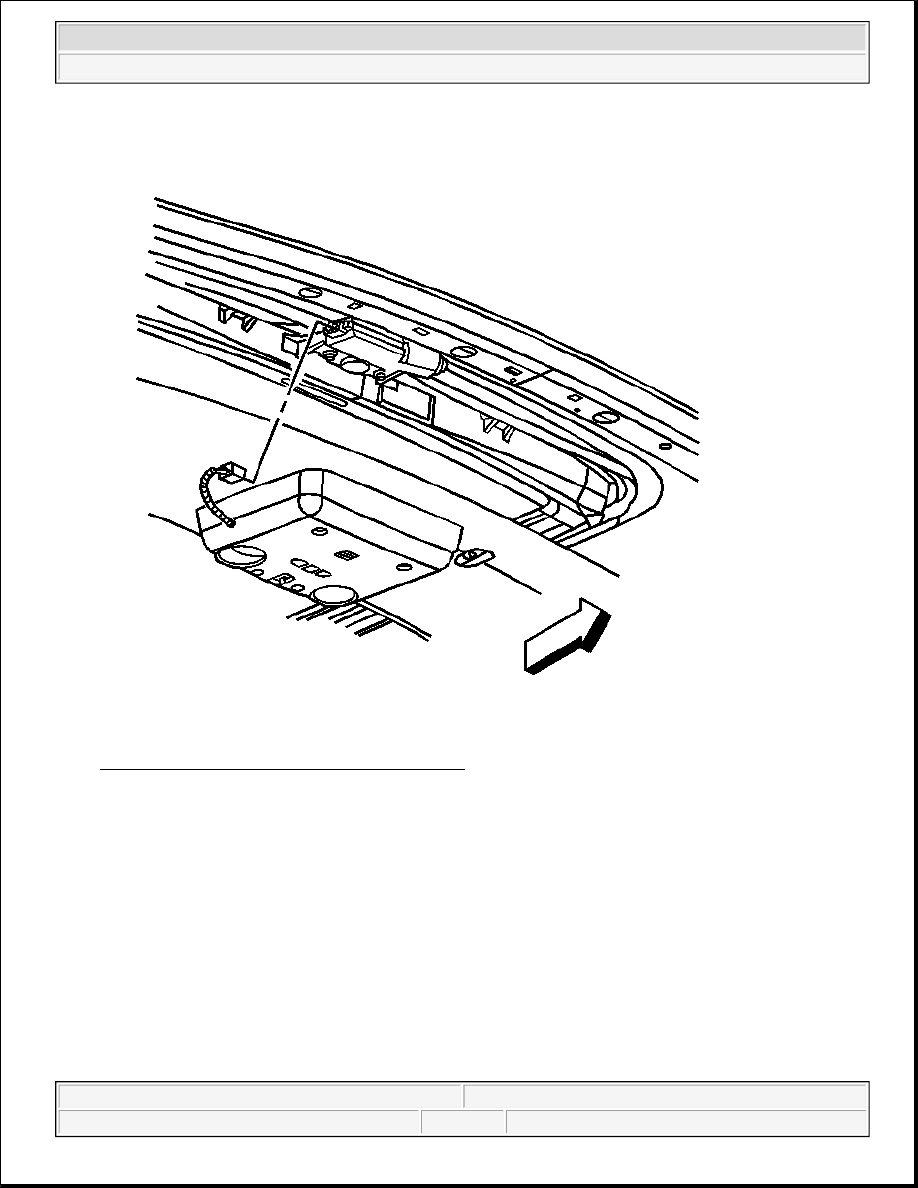

Fig. 12: Electrical Connector & Sunroof Switch
Courtesy of GENERAL MOTORS CORP.

1. Remove the screws from the overhead console.

2. Pull the console forward to disengage the mounting tabs.

3. Disconnect the electrical connector from the sunroof switch.

4. Depress the retaining clips to disengage the sunroof switch from the overhead console.

5. Remove the sunroof switch from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



Fig. 13: Electrical Connector & Sunroof Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the sunroof switch to the vehicle.

2. Install the sunroof switch through the retaining clips to secure into place.

3. Connect the electrical connector to the sunroof switch.

4. Engage the mounting tabs and push the overhead console rearward.

5. Install the screws to the overhead console.

Tighten: Tighten the screws to 3 N.m (26 lb in).

SUNROOF MODULE ASSEMBLY REPLACEMENT

NOTE:

Refer to Fastener Notice in Cautions and Notices.
