Fig. 7: Rear Sunroof Drain Hose (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Remove the headliner. Refer to Headliner Replacement in Interior Trim.

2. Disconnect the drain hose from the sunroof module.

3. Remove the drain hose from the floor pan.

4. Remove the sunroof drain hose from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



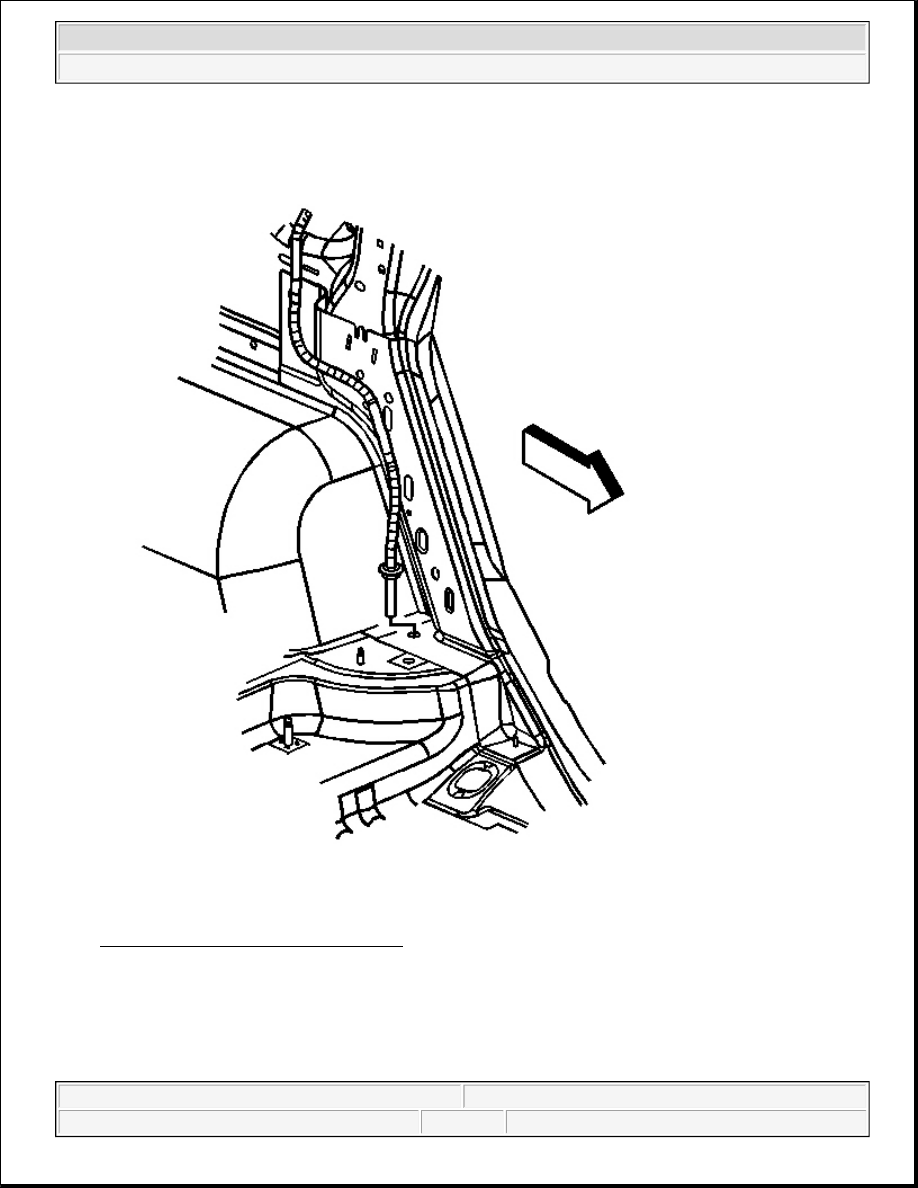

Fig. 8: Rear Sunroof Drain Hose (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Install the sunroof drain hose to the vehicle.

2. Install the drain hose in the floor pan.

3. Connect the drain hose to the sunroof module.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



4. Install the headliner. Refer to Headliner Replacement in Interior Trim.

SUNROOF SUNSHADE PANEL REPLACEMENT

Removal Procedure

1. Remove the headliner. Refer to Headliner Replacement in Interior Trim.

2. Remove the sunshade panel rubber stoppers.

3. Remove the sunshade panel by sliding rearward out of the sunroof module.

Installation Procedure

1. Install the sunshade panel by sliding forward into the sunroof module.

2. Install the sunshade panel rubber stoppers.

Tighten: Tighten the stoppers to 3 N.m (26 lb in).

3. Install the headliner. Refer to Headliner Replacement in Interior Trim.

SUNROOF AIR DEFLECTOR REPLACEMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



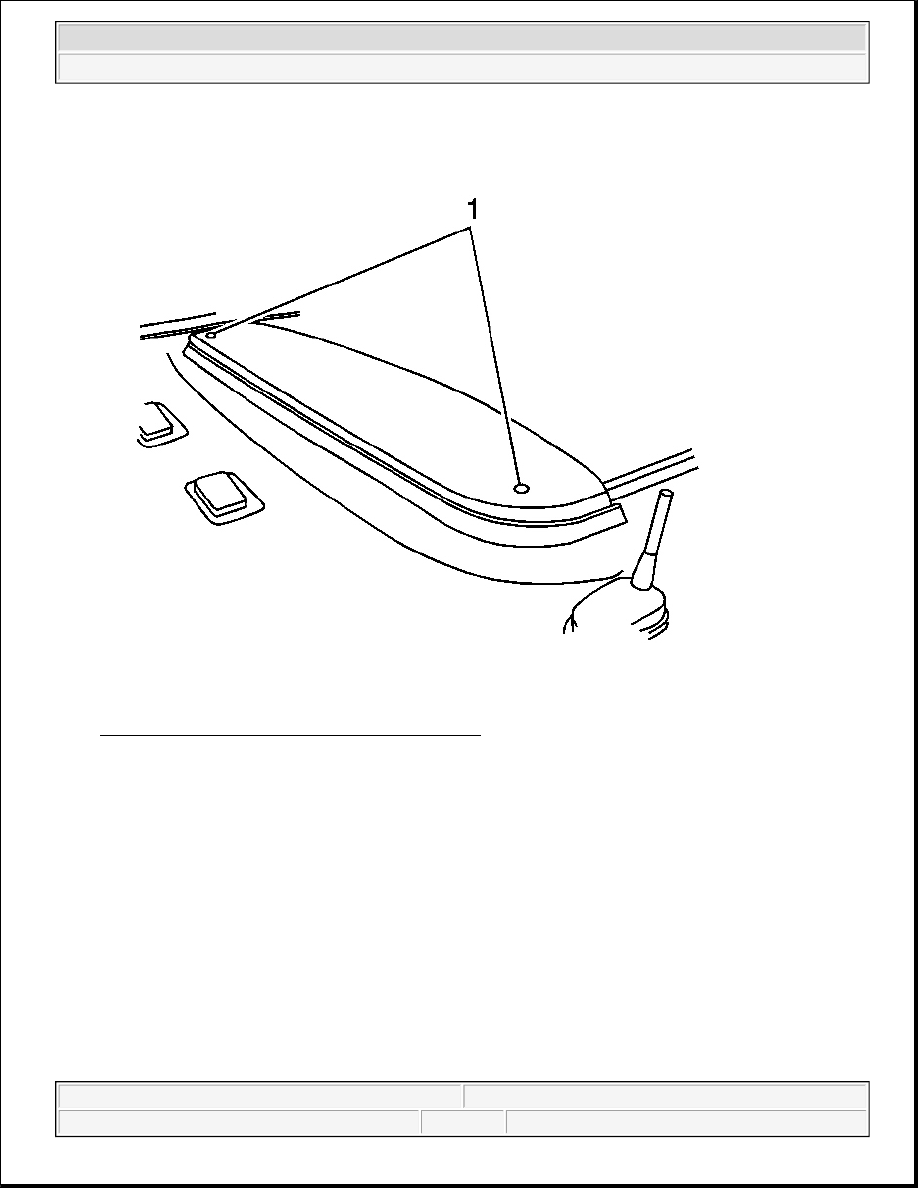

Fig. 9: Sunroof Air Deflector Outboard Fasteners
Courtesy of GENERAL MOTORS CORP.

1. Remove the 2 outboard fasteners (1) retaining the air deflector to the air deflector retaining clips.
