2004 ACCESSORIES & EQUIPMENT

Roof - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

POWER SUNROOF SCHEMATICS

Application

Specification

Metric

English

Glass Panel Retaining Screws

4 N.m

35 lb in

Overhead Console Screws

3 N.m

26 lb in

Sunroof Module Retaining Bolts

9 N.m

80 lb in

Sunroof Module Retaining Nuts

9 N.m

80 lb in

Sunroof Motor Bolts

6 N.m

53 lb in

Sunshade Panel Rubber Stoppers

3 N.m

26 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



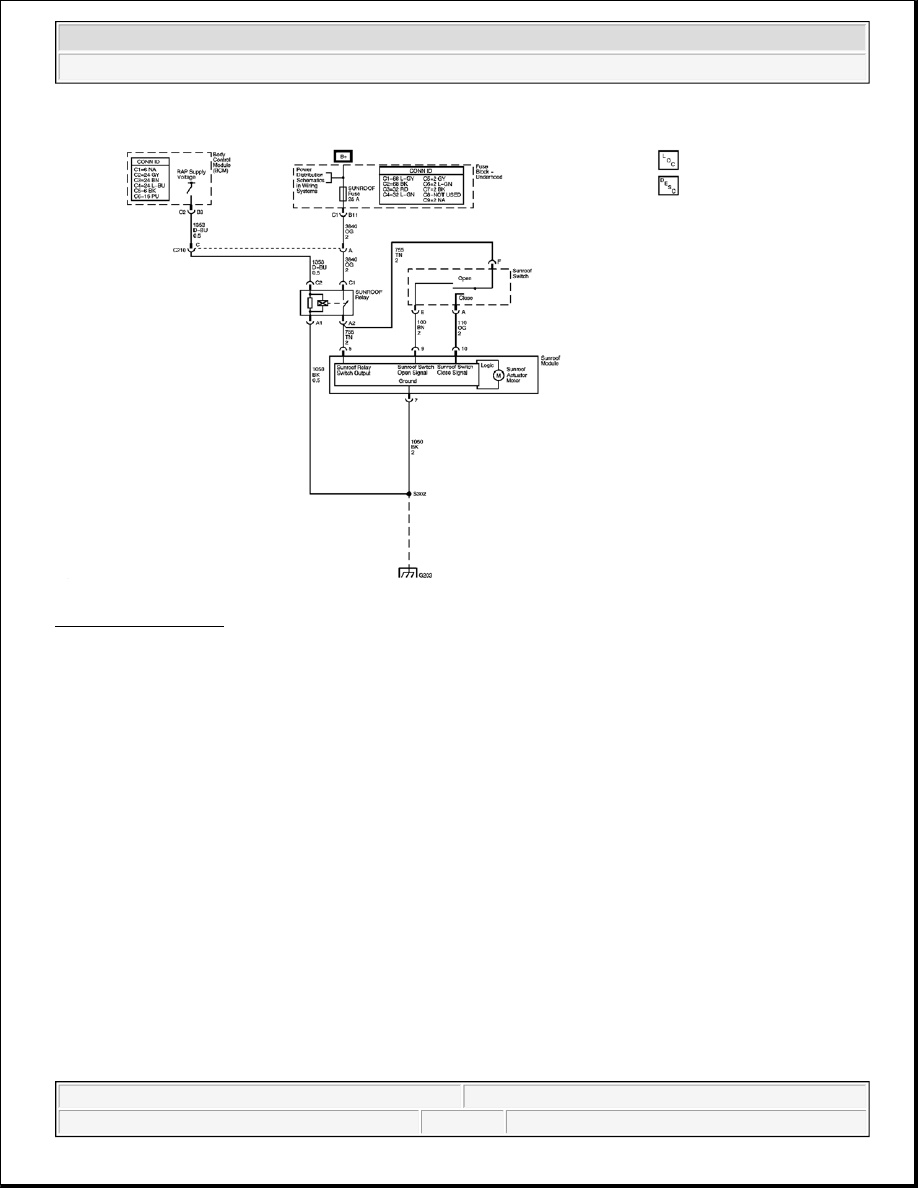

Fig. 1: Power Sunroof
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

POWER ROOF SYSTEMS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



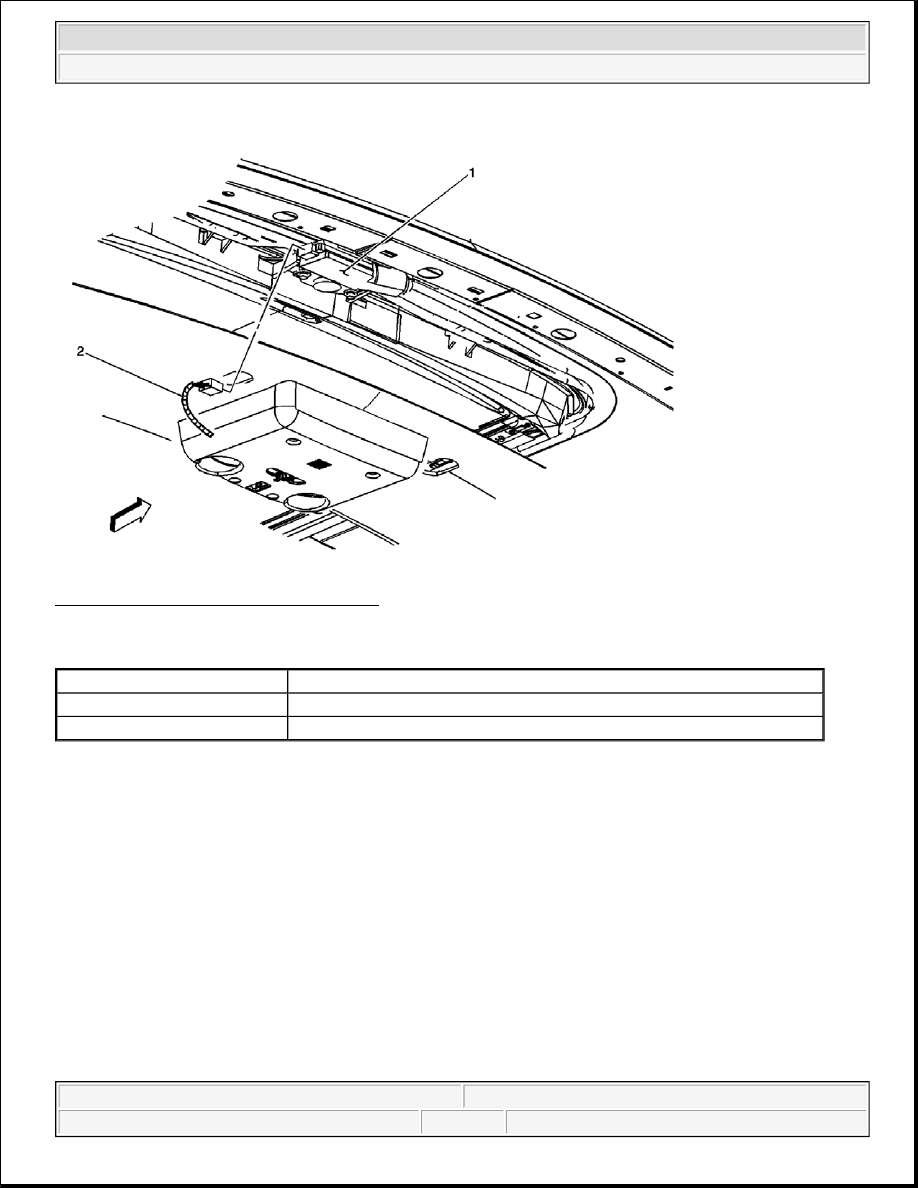

Fig. 2: Sunroof Module Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Sunroof Module

2

Headliner Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



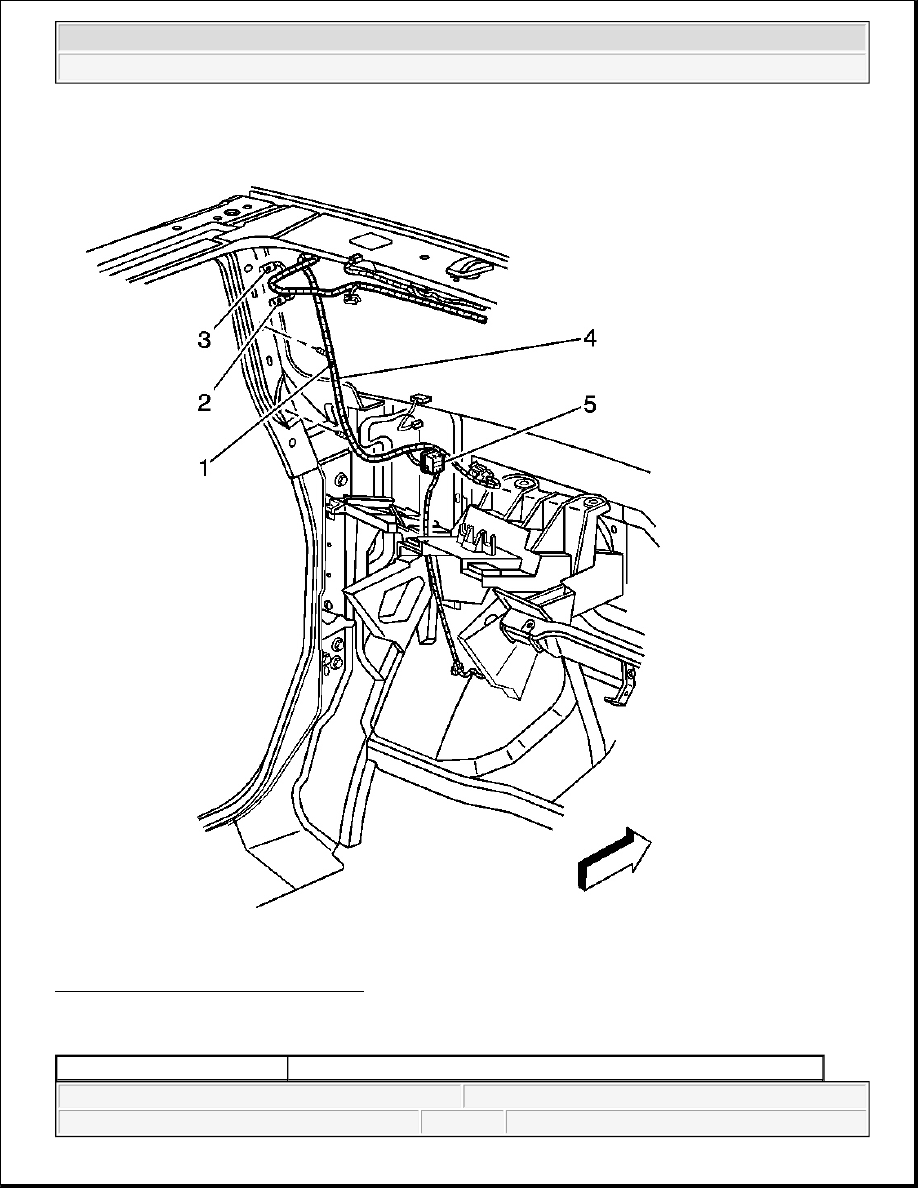

Fig. 3: Sunroof Relay Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name
