Removal Procedure

1. Open the door.

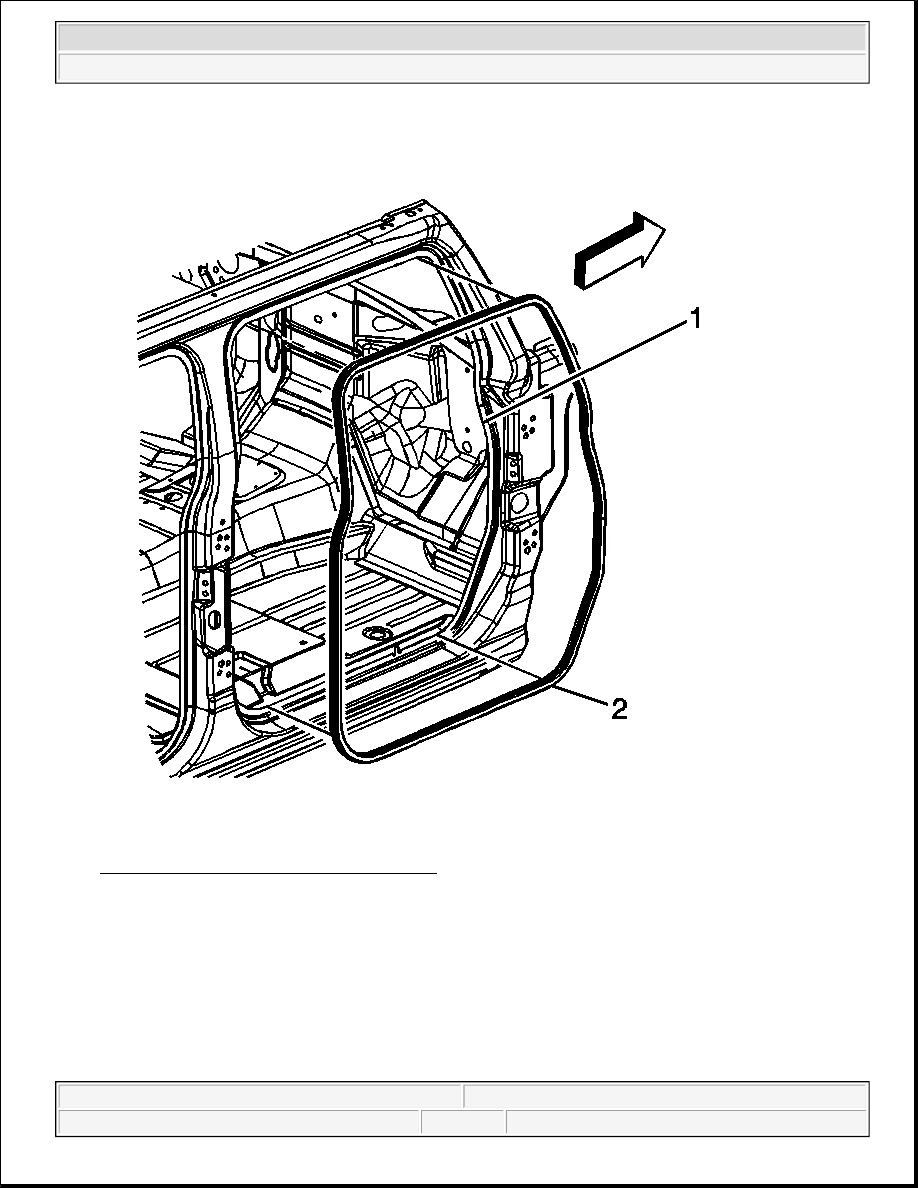

Fig. 137: Front Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the door opening pinch-weld flange (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



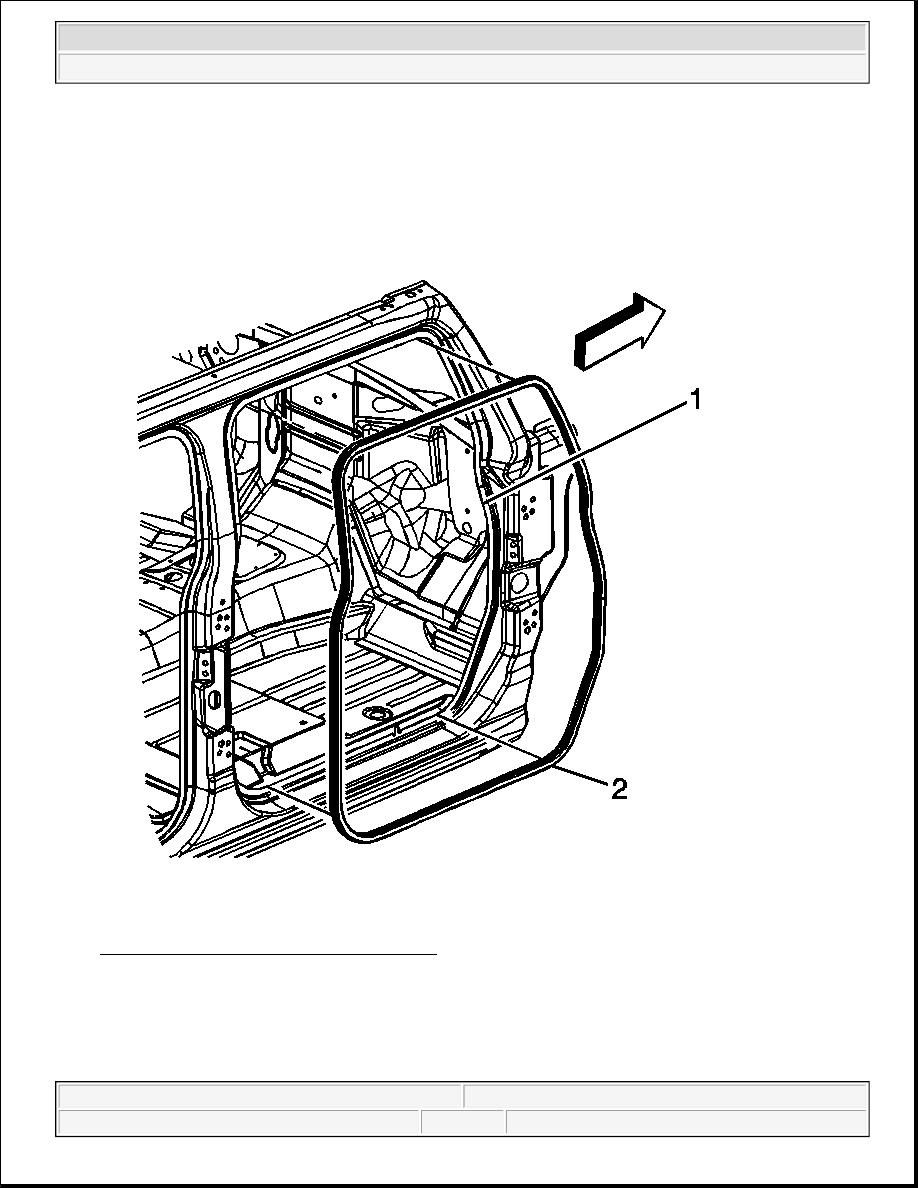

Fig. 138: Front Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Starting at the top center of the door opening, install the weatherstrip (2) to the pinch-weld flange (1) and

work down the right and left sides towards the bottom center, being careful not to stretch the weatherstrip
during installation.

2. Use a rubber mallet to ensure proper seating of the weatherstrip on the pinch-weld flange.

3. Close the door.

WEATHERSTRIP REPLACEMENT - REAR DOOR OPENING



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Removal Procedure

1. Open the door.

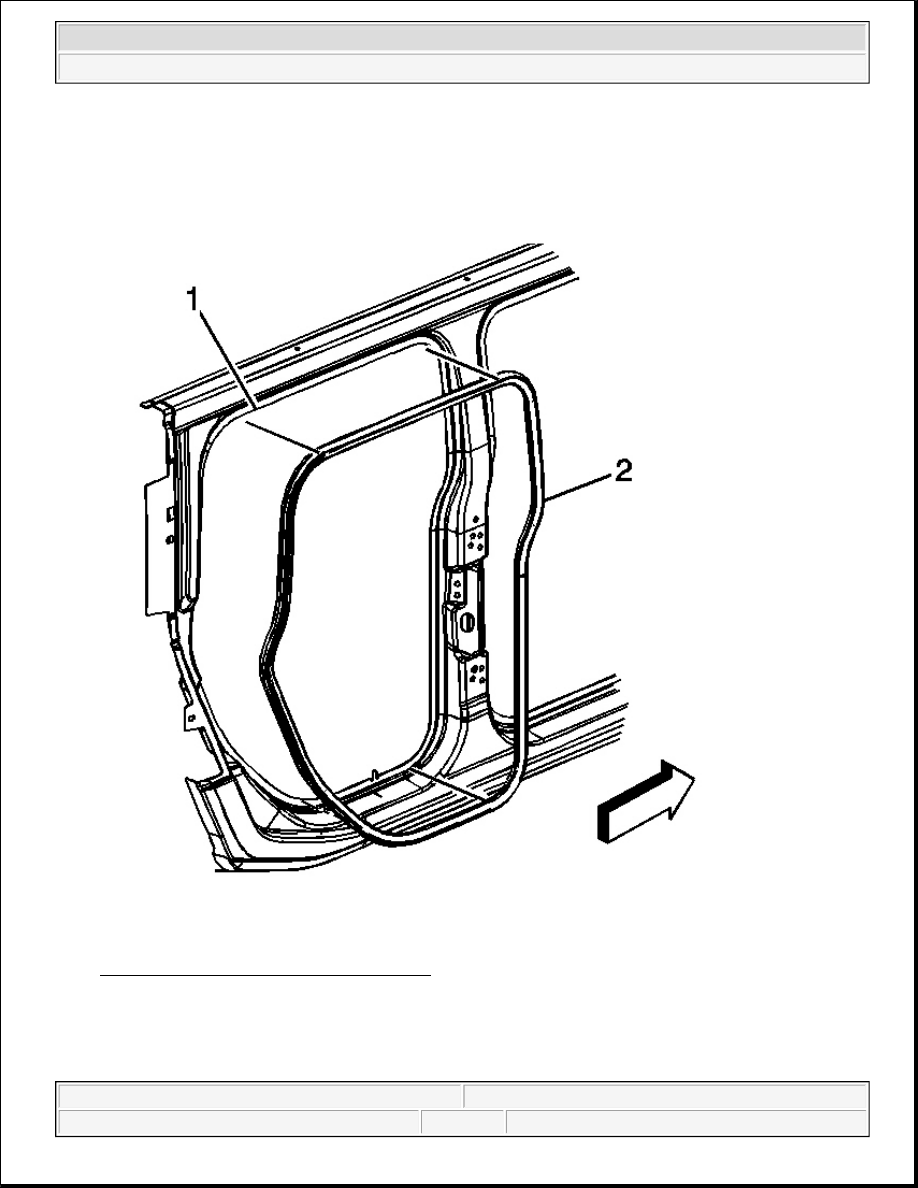

Fig. 139: Rear Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the door opening pinch-weld flange (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

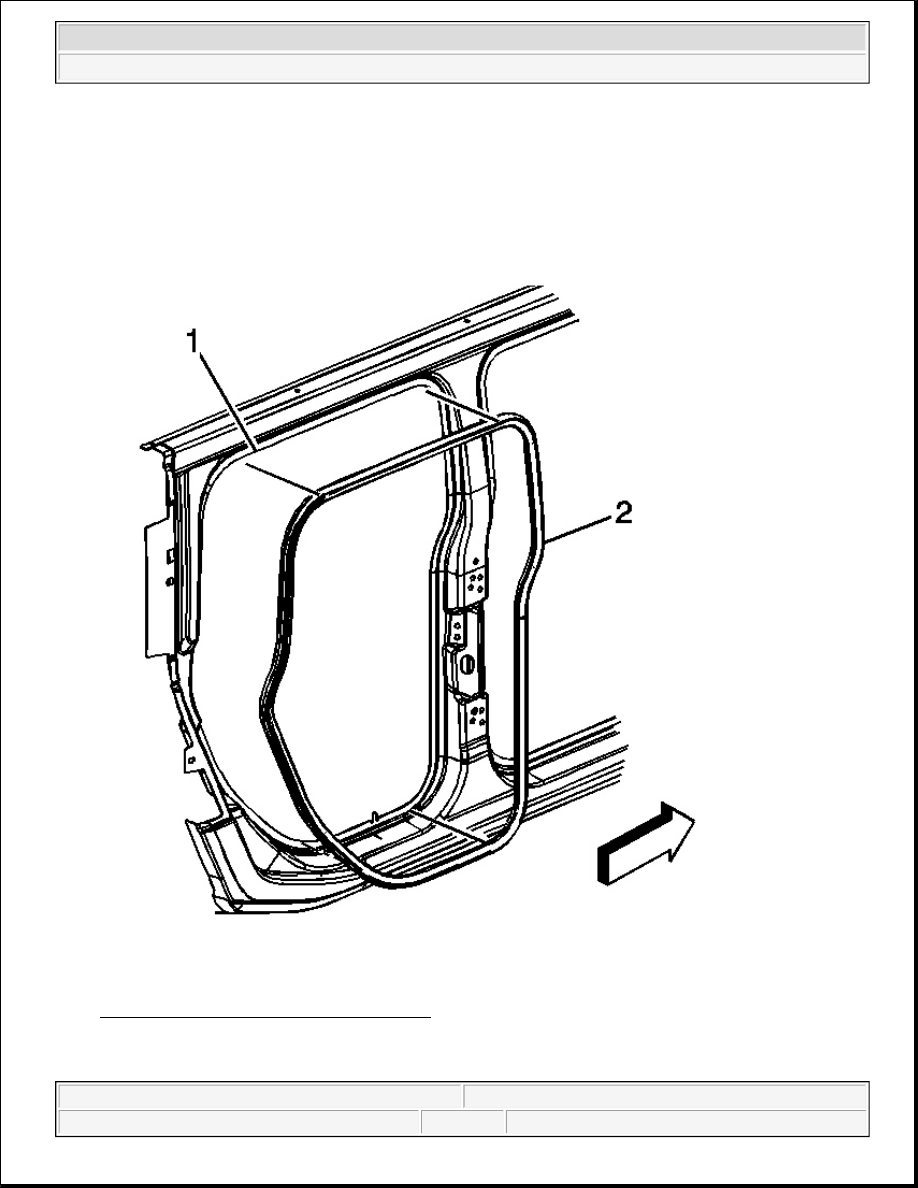

Fig. 140: Rear Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Starting at the top center of the door opening, install the weatherstrip (2) to the pinch-weld flange (1) and

work down the right and left sides towards the bottom center, being careful not to stretch the weatherstrip
during installation.
