Fig. 130: Upper Door Weatherstrip (Rear Door)
Courtesy of GENERAL MOTORS CORP.

1. Starting at the center of the door openings, install the weatherstrip (2) to the pinch-weld flange (1) and

work across the right and left sides towards the ends of the weatherstrip, being careful not to stretch the
weatherstrip during installation.

2. Close the doors.

WEATHERSTRIP REPLACEMENT - FRONT DOOR AUXILIARY

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Open the door.

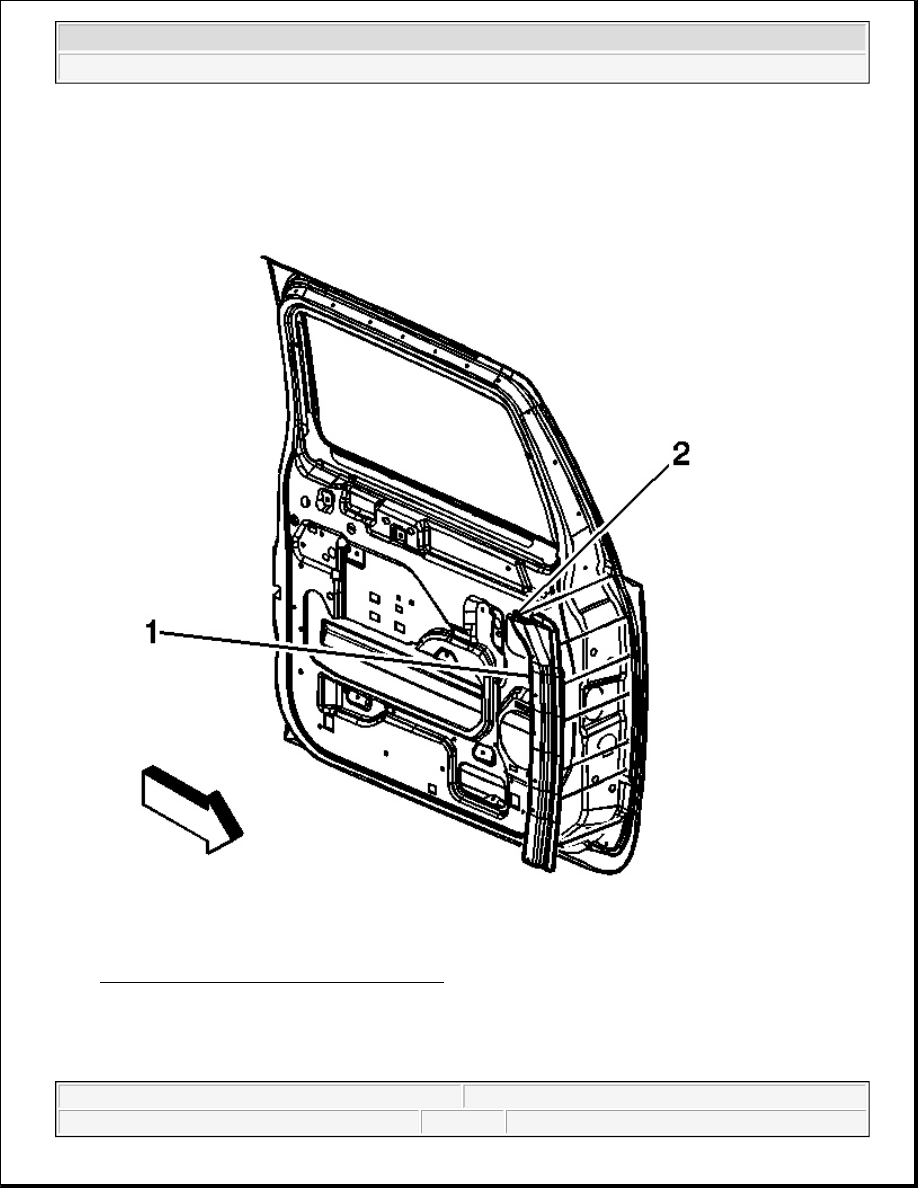

Fig. 131: Front Auxiliary Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Using a flat-bladed tool, release the 7 retainers (2) securing the weatherstrip (1) to the door.

3. Remove the weatherstrip from the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

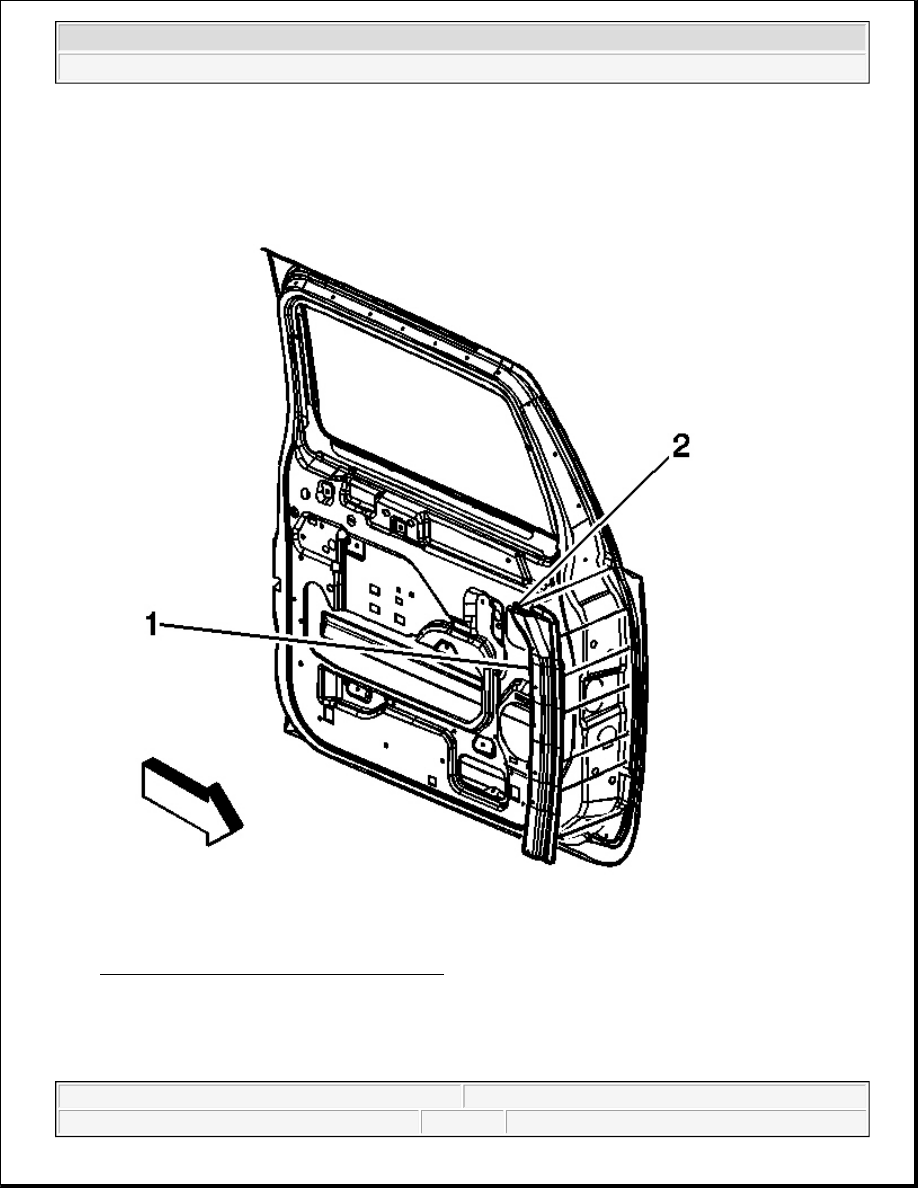

Fig. 132: Front Auxiliary Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Attach the weatherstrip (1) to the door by installing the 7 retainers (2) that secure it to the door.

2. Close the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



WEATHERSTRIP REPLACEMENT - REAR DOOR AUXILIARY

Removal Procedure

1. Open the doors.

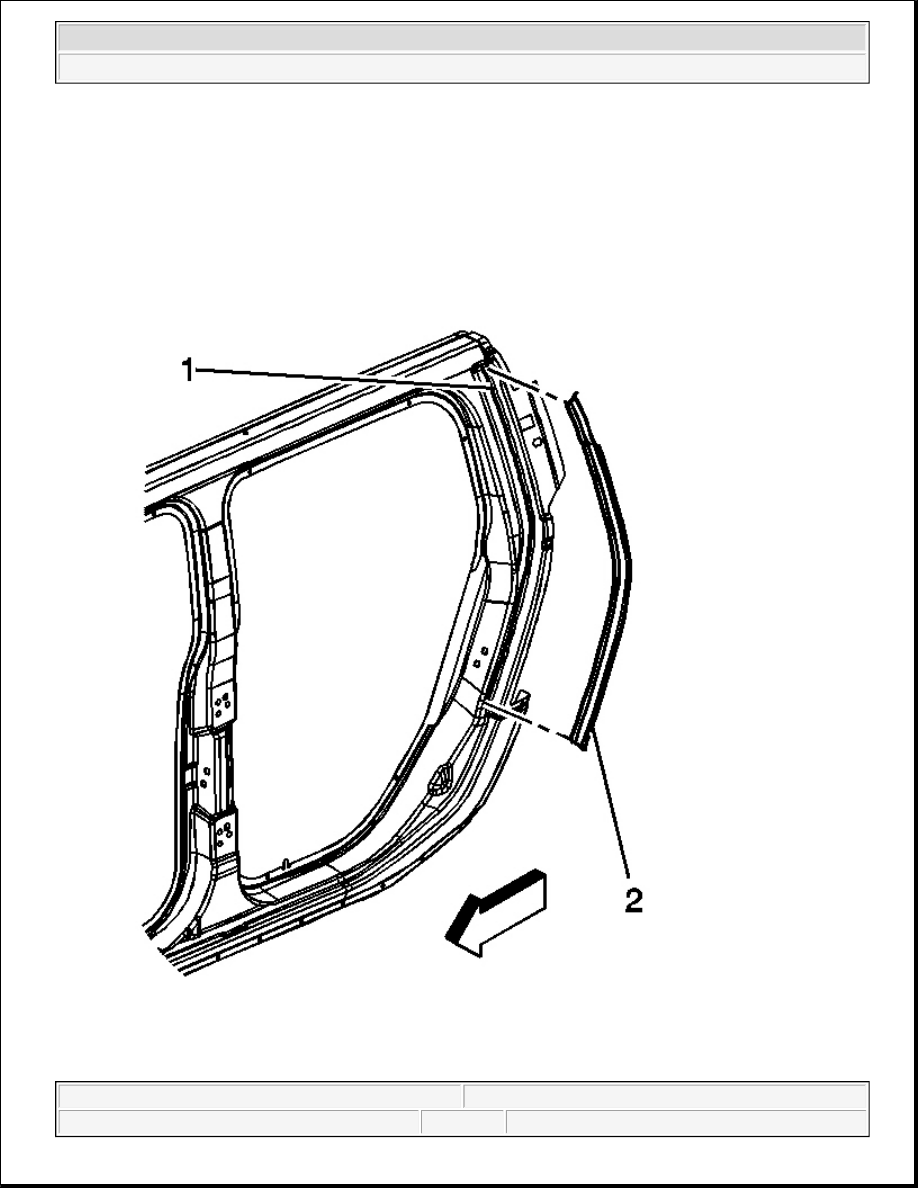

Fig. 133: Rear Auxiliary Door Weatherstrip
