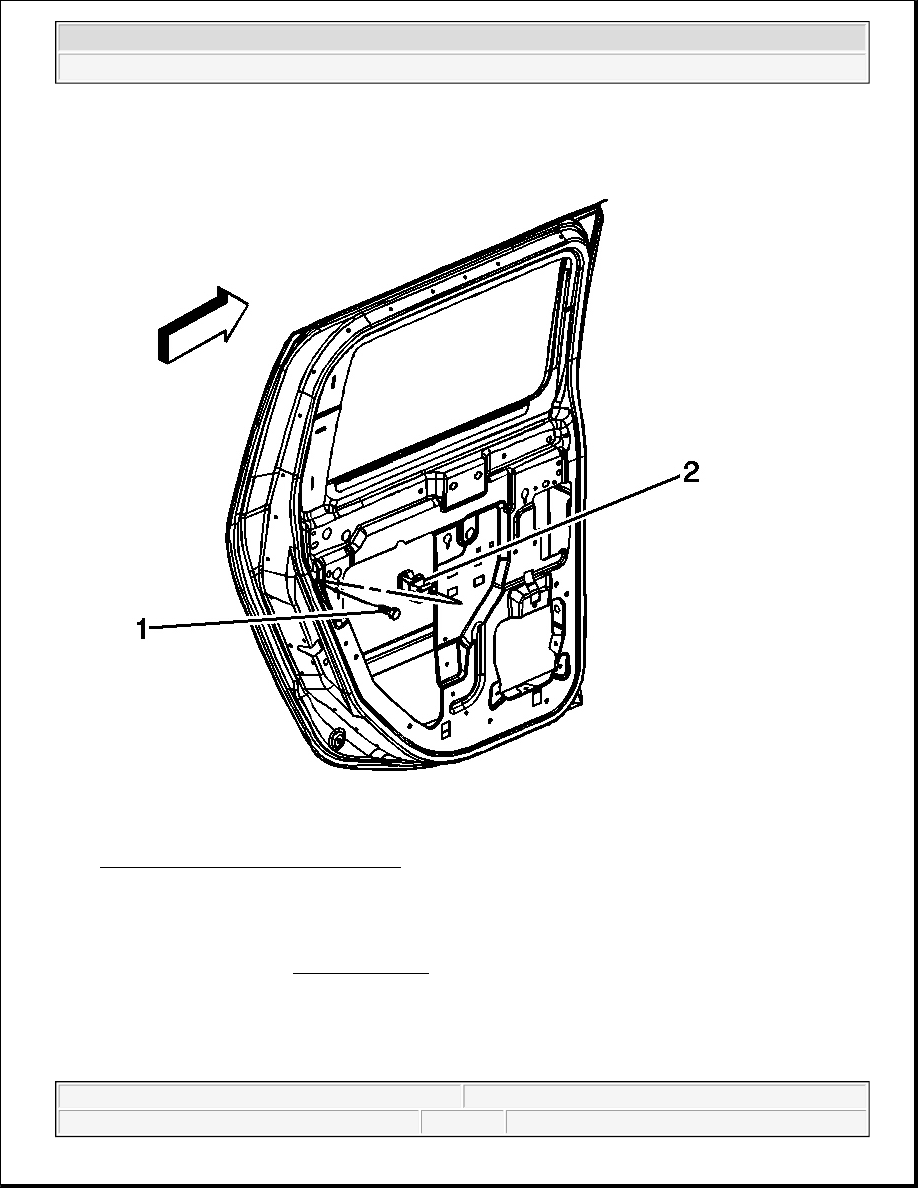

Fig. 113: Rear Door Window Stabilizer
Courtesy of GENERAL MOTORS CORP.

4. Remove the fastener (1) retaining the stabilizer to the door.

5. Remove the stabilizer (2).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 114: Rear Door Window Stabilizer
Courtesy of GENERAL MOTORS CORP.

1. With the window in the full up position, position the stabilizer (2) in place inside the door.

2. Install the fastener (1) retaining the stabilizer to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



3. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door

SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER - FRONT

Removal Procedure

1. Lower the window to the full down position.

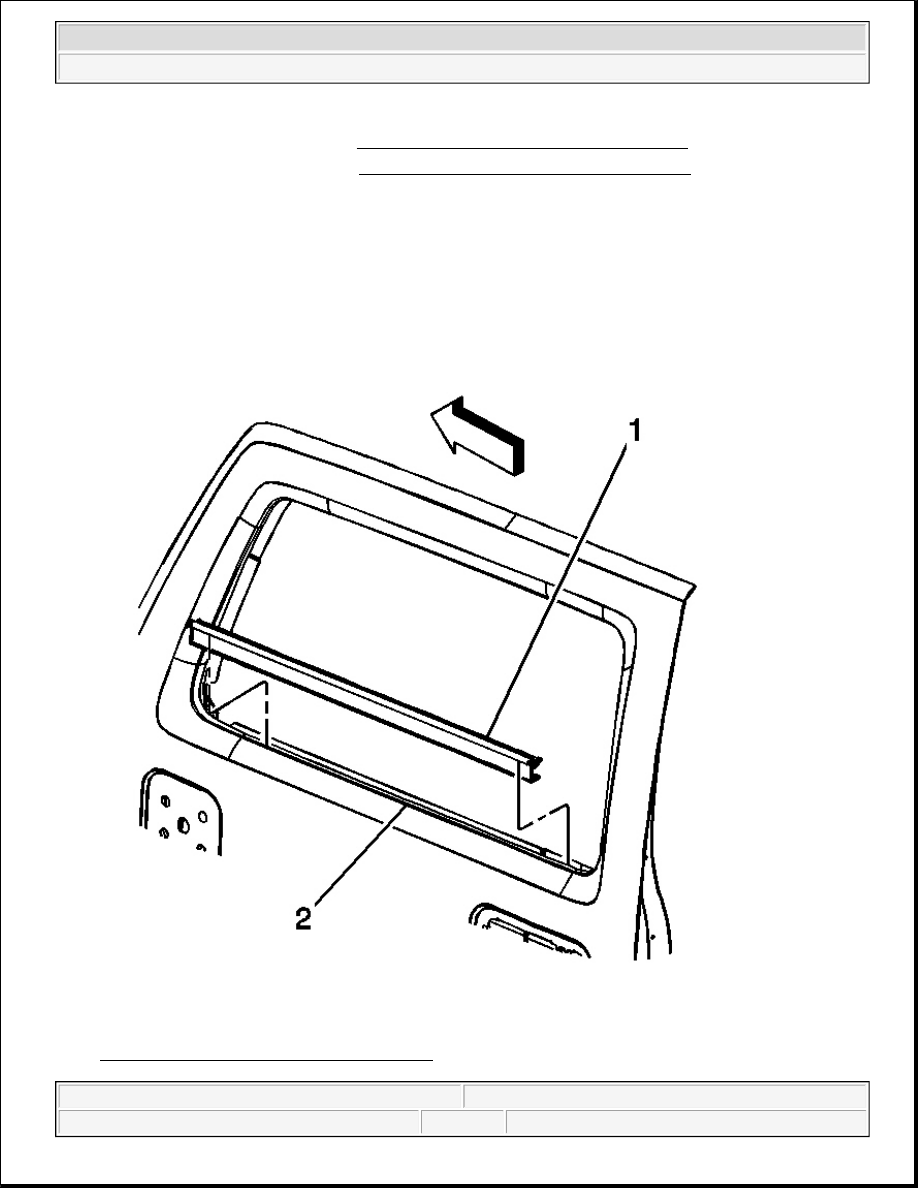

Fig. 115: Front Door Window Sealing Strip
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Starting at one side, carefully remove the sealing strip (1) by lifting the strip off of the pinch weld flange

(2).

Installation Procedure

1. Lower the window to the full down position.

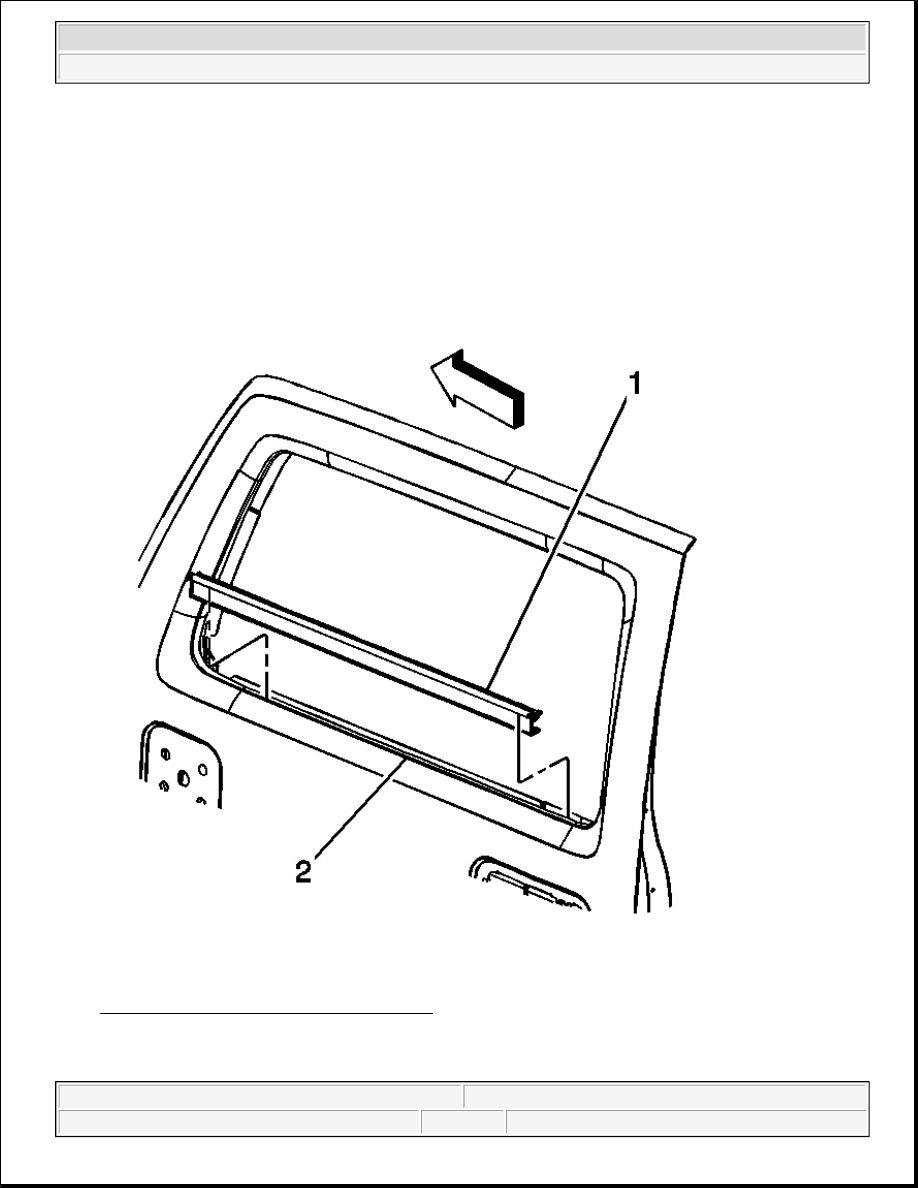

Fig. 116: Front Door Window Sealing Strip
Courtesy of GENERAL MOTORS CORP.

2. Starting at one side, carefully press the sealing strip (1) down on the pinch weld flange (2) ensuring that
