Hummer H2. Manual - part 545

Fig. 110: Front Door Window Run Channel
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (1) retaining the run channel to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Install water deflector. Refer to Water Deflector Replacement - Front Door .

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

WINDOW STABILIZER REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

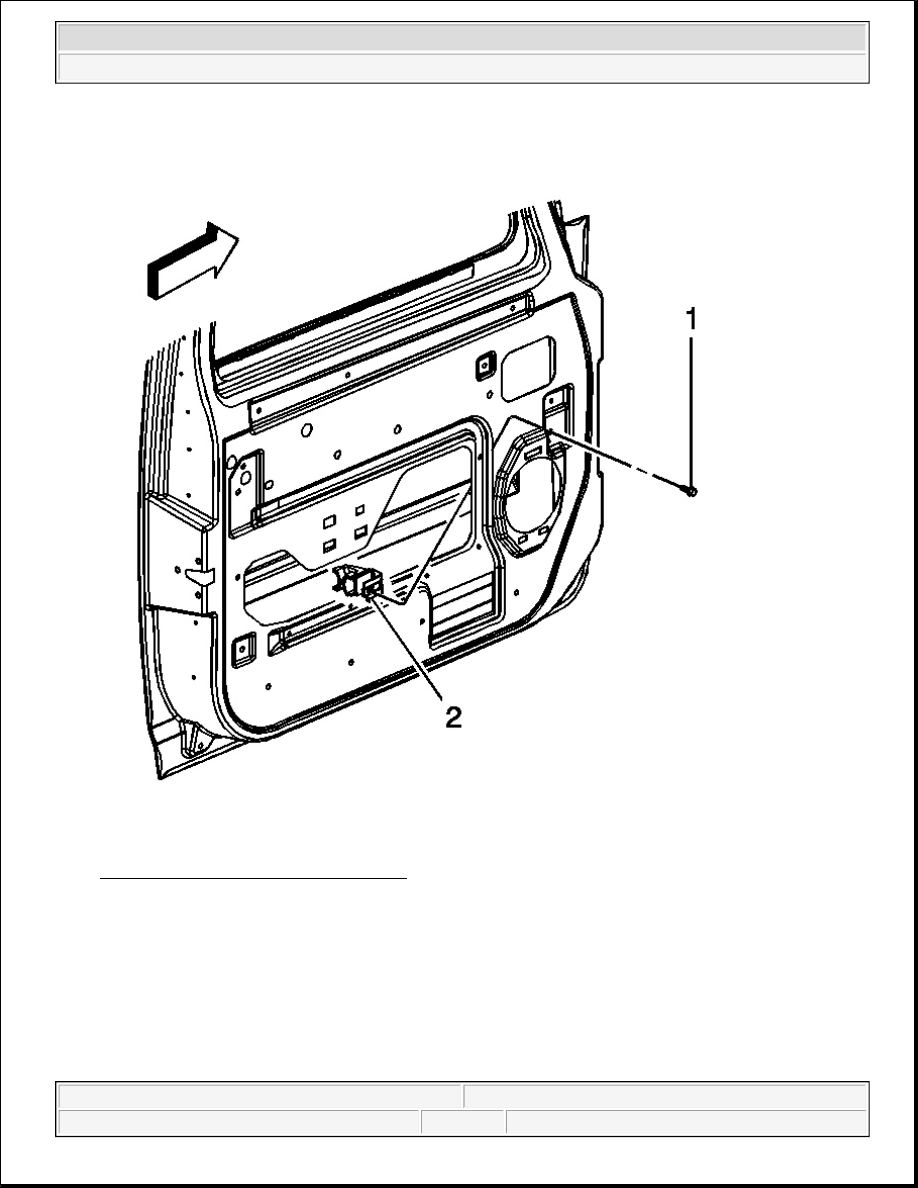

Fig. 111: Front Door Window Stabilizer
Courtesy of GENERAL MOTORS CORP.

3. Remove the fastener (1) retaining the stabilizer to the door.

4. Remove the stabilizer (2).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

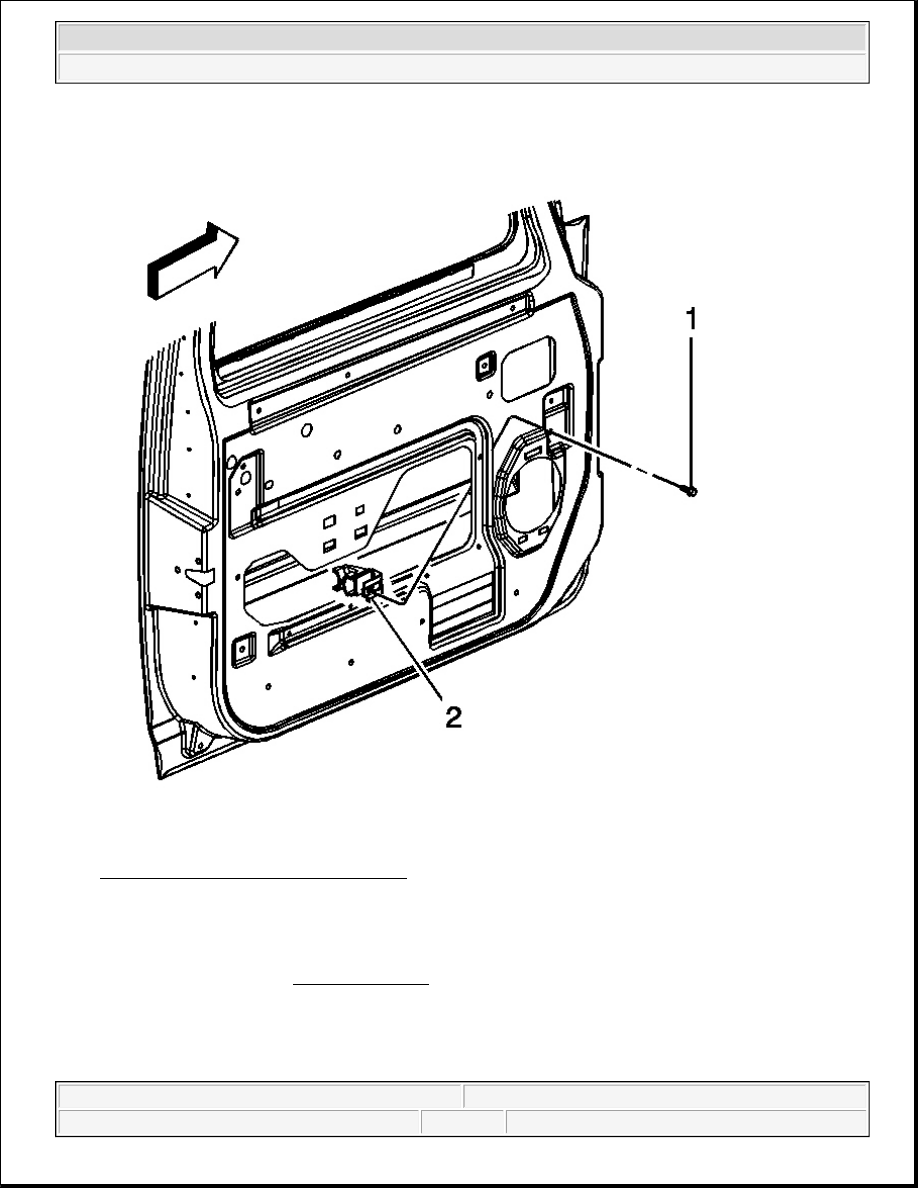

Fig. 112: Front Door Window Stabilizer
Courtesy of GENERAL MOTORS CORP.

1. Position the stabilizer (2) in place inside the door.

2. Install the fastener (1) retaining the stabilizer to the door.

Tighten: Tighten the fastener to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



3. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

WINDOW STABILIZER REPLACEMENT - REAR DOOR

Removal Procedure

1. Position the window in the full up position.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
