Hummer H2. Manual - part 542

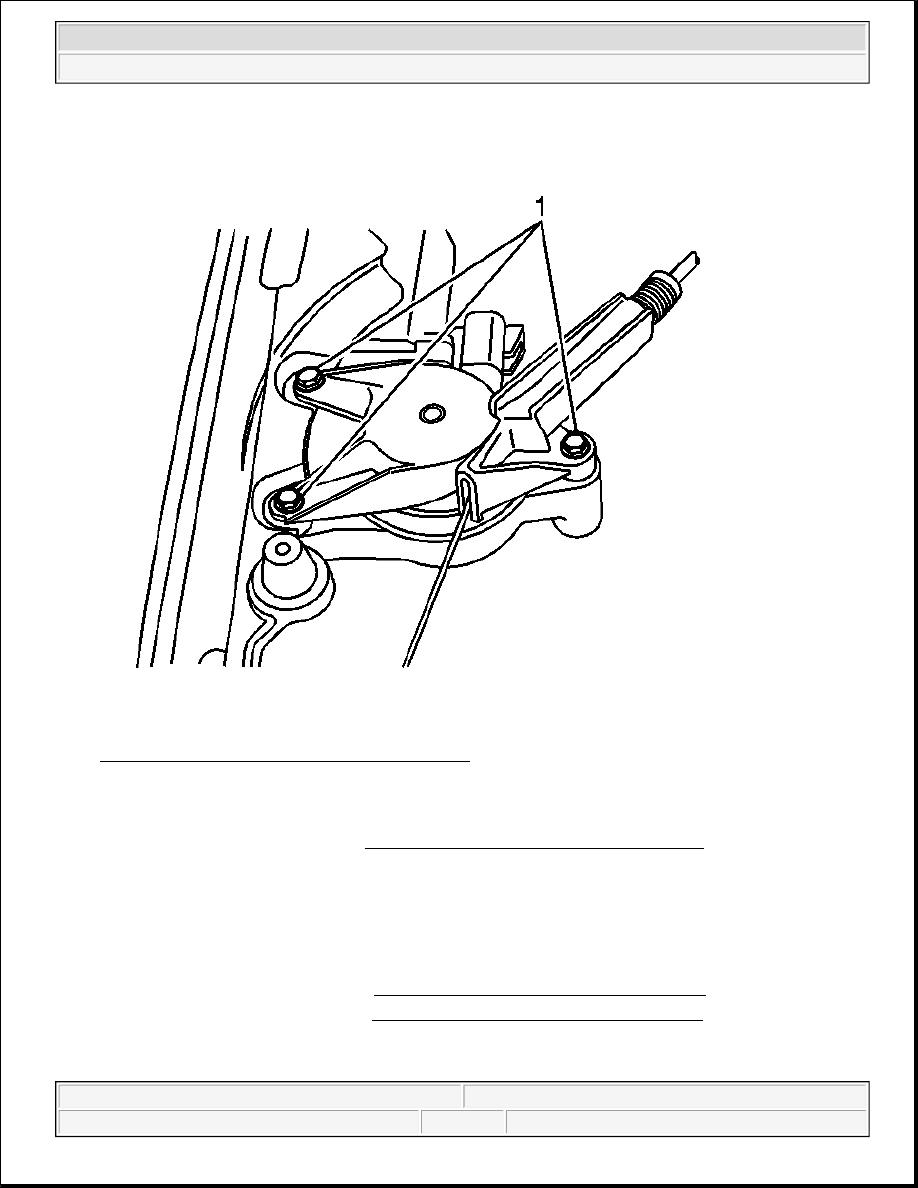

Fig. 102: Window Regulator Motor (Rear Door)
Courtesy of GENERAL MOTORS CORP.

2. Install the 3 fasteners (1) retaining the window motor to the window module.

3. Install the window module. Refer to Module Replacement - Rear Power Window .

4. Operate the window to ensure proper operation.

WINDOW REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



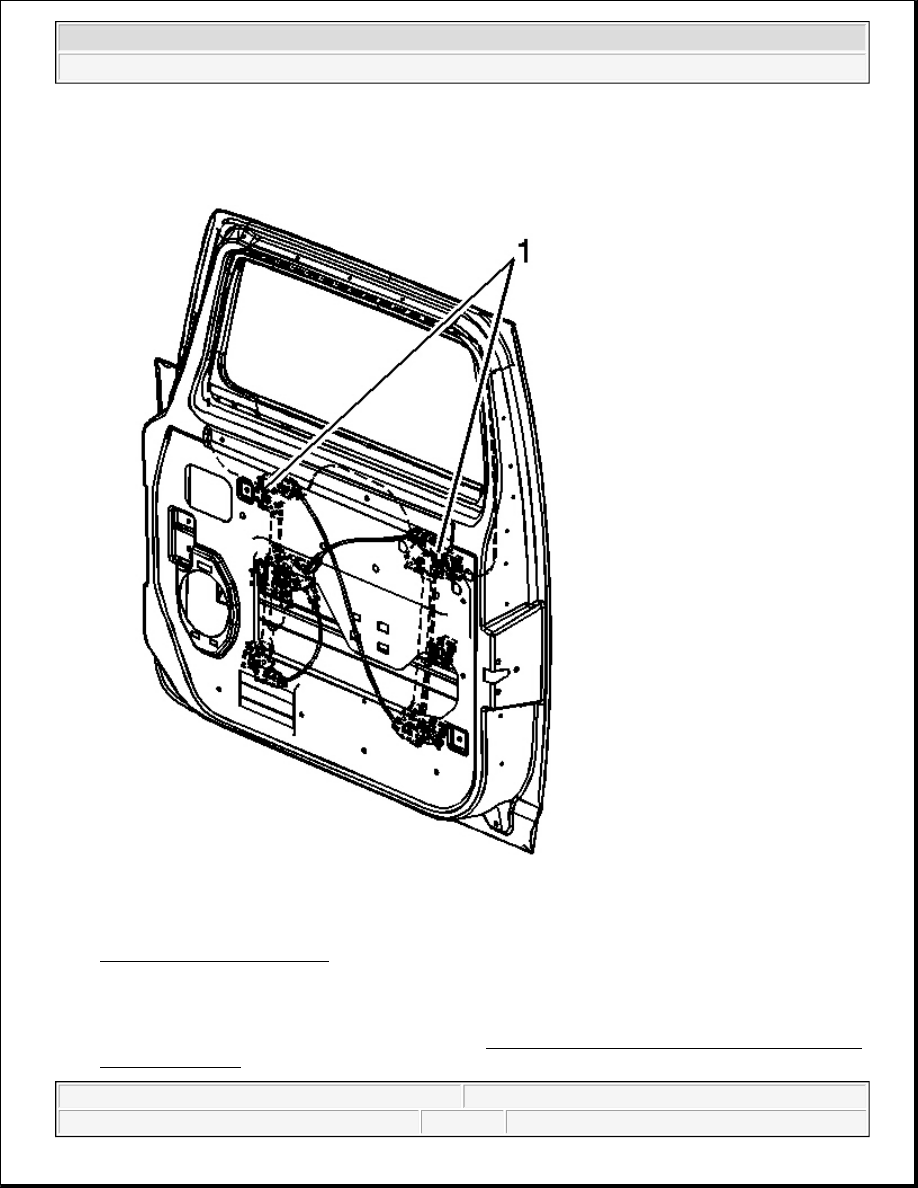

Fig. 103: Front Door Window
Courtesy of GENERAL MOTORS CORP.

3. Loosen the clamps (1) securing the window to the window module.

4. Remove the outer window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window

Belt Outer - Front .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



5. Remove the window through the bottom of the window frame.

Installation Procedure

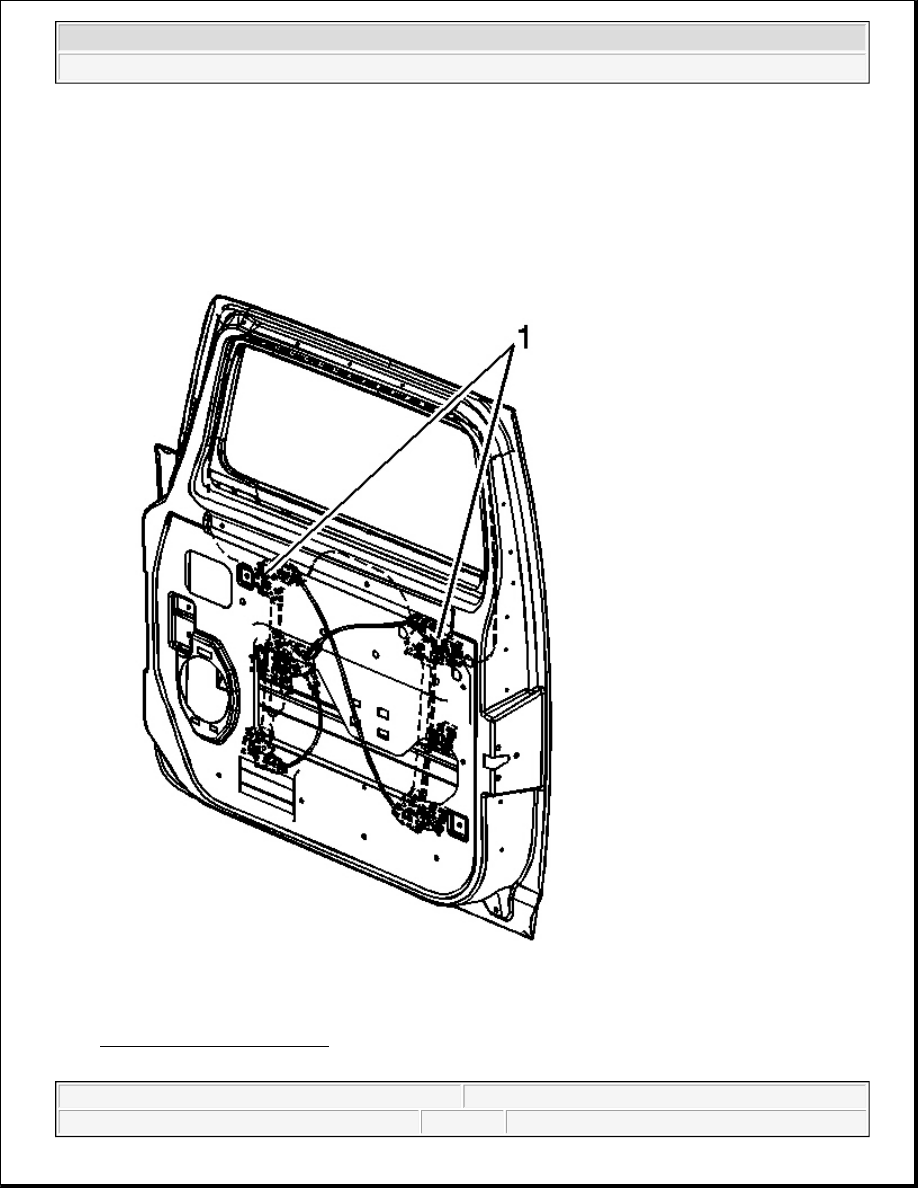

Fig. 104: Front Door Window
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Slide the window through the opening of the window frame into position into the window clamps (1).

2. Install the outer window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window

Belt Outer - Front .

3. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

Tighten: Tighten the clamps to 9 N.m (6 lb ft).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

5. Operate the window to ensure proper operation.

WINDOW REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
