2. Install the 5 fasteners (1) to the window regulator.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Place the window in the window clamps, and tighten the clamps.

Tighten: Tighten the clamps to 9 N.m (7 lb ft).

4. Connect the window motor electrical connector.

5. Operate the window module to inspect for proper operation.

6. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

7. Install trim panel. Refer to Trim Panel Replacement - Side Front Door .

WINDOW REGULATOR MOTOR REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the window module. Refer to Module Replacement - Front Power Window .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 99: Window Regulator Motor (Front Door)
Courtesy of GENERAL MOTORS CORP.

2. Remove the 3 fasteners (1) retaining the motor to the module.

3. Remove the window motor.

Installation Procedure

1. Place the window motor into position on the window module.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 100: Window Regulator Motor (Front Door)
Courtesy of GENERAL MOTORS CORP.

2. Install the 3 fasteners (1) retaining the window motor to the window module.

3. Install the window module. Refer to Module Replacement - Front Power Window .

4. Operate the window to ensure proper operation.

WINDOW REGULATOR MOTOR REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the window module. Refer to Module Replacement - Rear Power Window .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



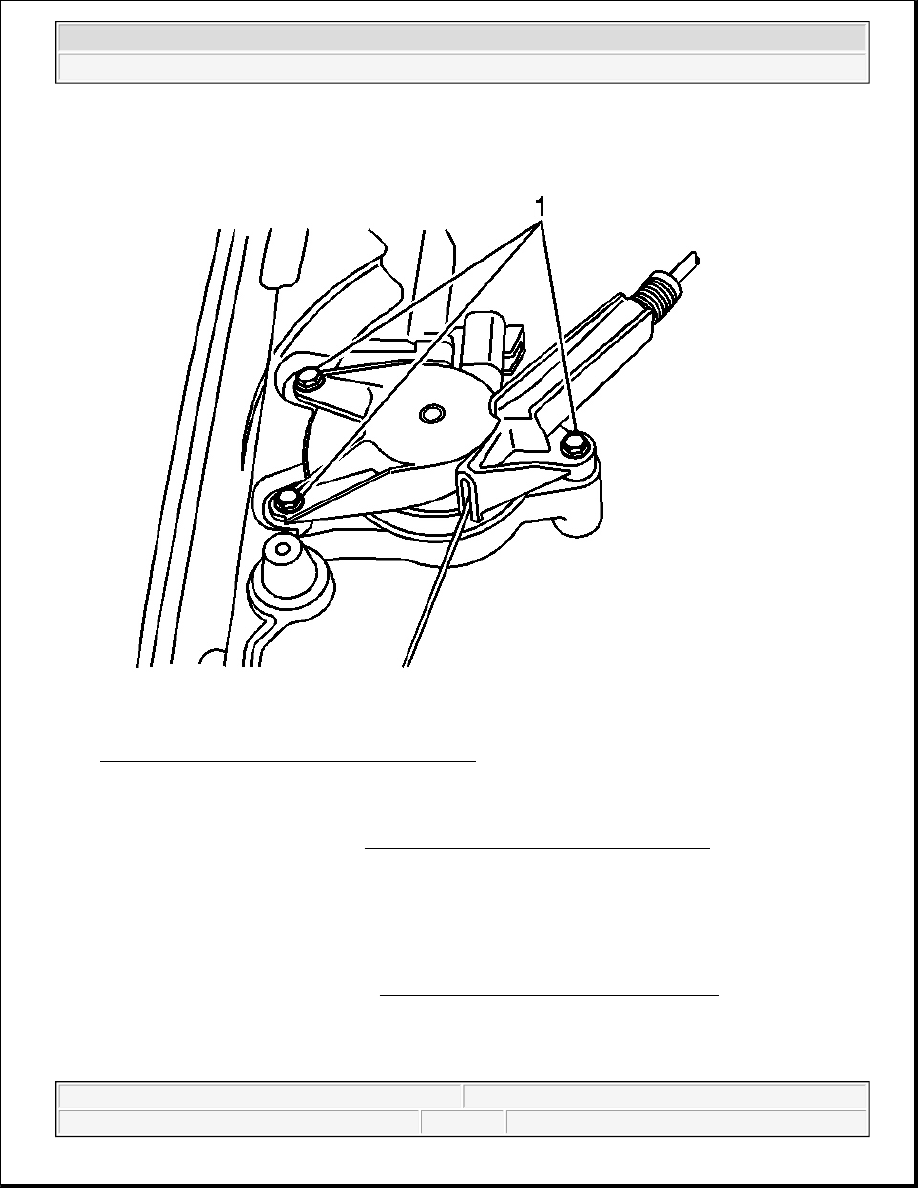

Fig. 101: Window Regulator Motor (Rear Door)
Courtesy of GENERAL MOTORS CORP.

2. Remove the 3 fasteners (1) retaining the motor to the module.

3. Remove the window motor.

Installation Procedure

1. Place the window motor into position on the window module.
