1. Install the bezel to the vehicle.

2. Install the bezel around the door handle.

3. Install the screw that retains the handle bezel to the door panel.

TRIM PANEL REPLACEMENT - UPPER EXTENSION

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



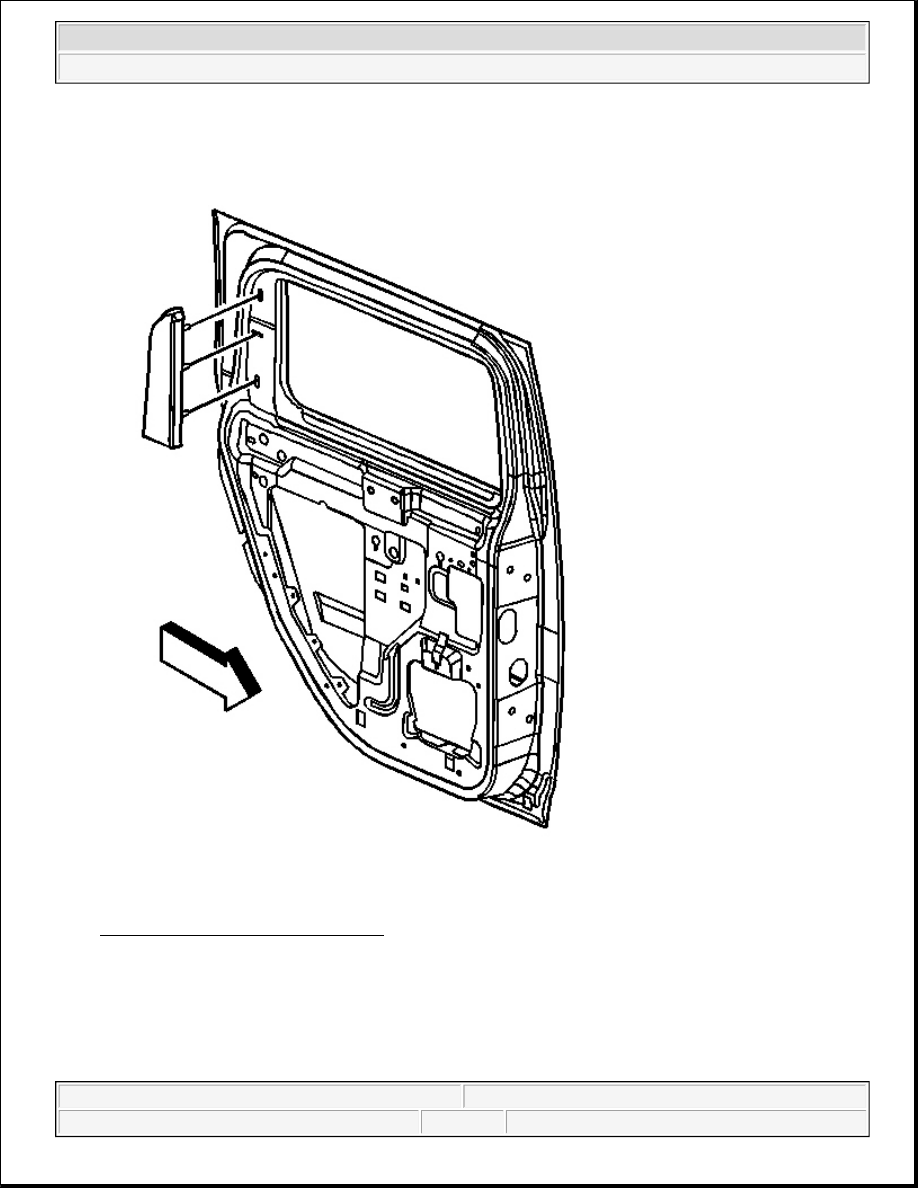

Fig. 26: Upper Extension Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Firmly grasp and gently pull to disengage the retaining clips.

2. Inspect for broke or missing retaining clips and replace as necessary.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 27: Upper Extension Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align the retaining clips with the openings in the body.

2. Press to fully seat the retaining clips.

TRIM PANEL REPLACEMENT - SIDE FRONT DOOR



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Tools Required

J 38778 Door Trim Pad Clip Remover. See Special Tools and Equipment .

Removal Procedure

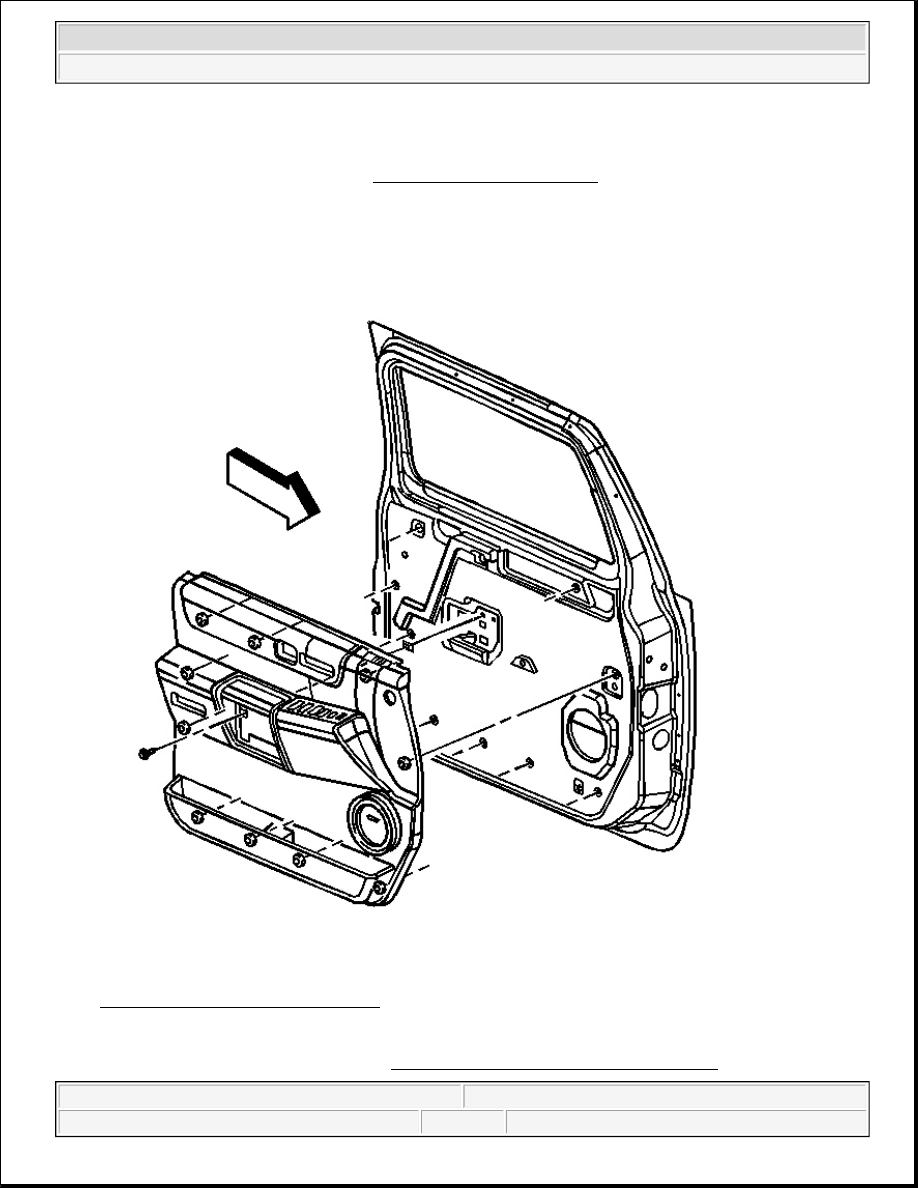

Fig. 28: Side Front Door Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside - Front
