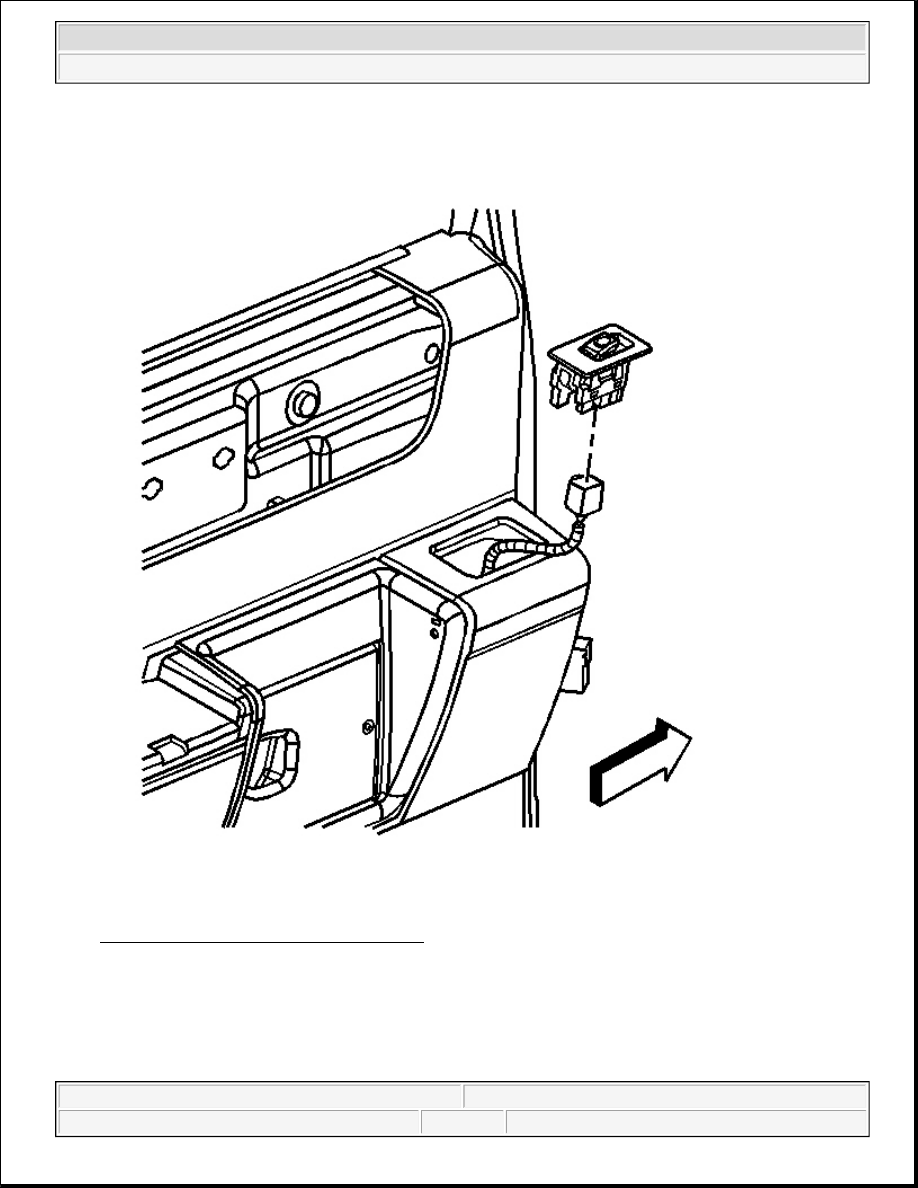

Fig. 15: Rear Door Power Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the power window switch to the connector.

2. Align the power window switch with the opening in the door panel and press to seat the switch.

SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Removal Procedure

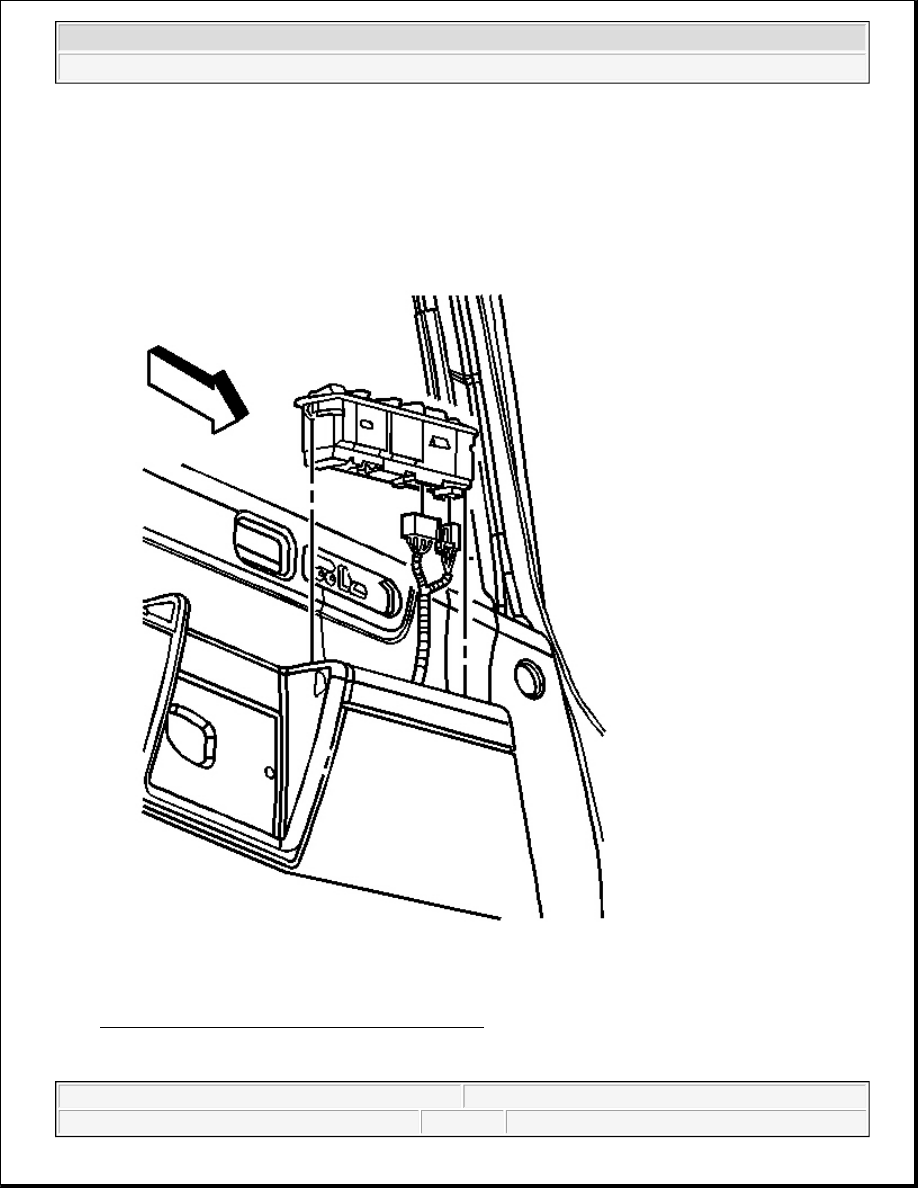

Fig. 16: Driver Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Use a suitable flat bladed tool to remove the driver door lock and side window switch from the door trim

panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Remove the driver door lock and side window switch from the connector.

Installation Procedure

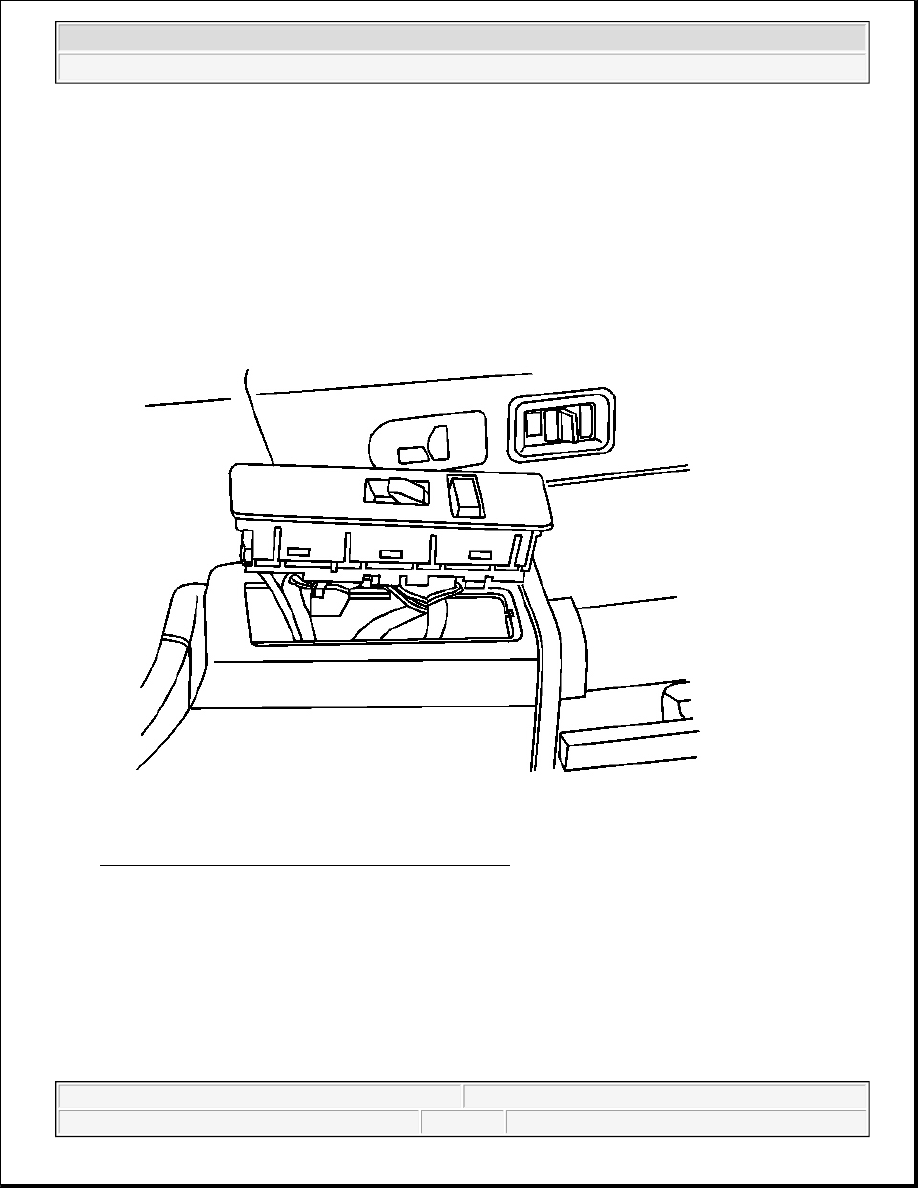

Fig. 17: Driver Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Install the driver door lock and side window switch to the connector.

2. Align the driver door lock and side window switch with the opening in the door panel and press to seat

the switch.

SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - PASSENGER

Removal Procedure

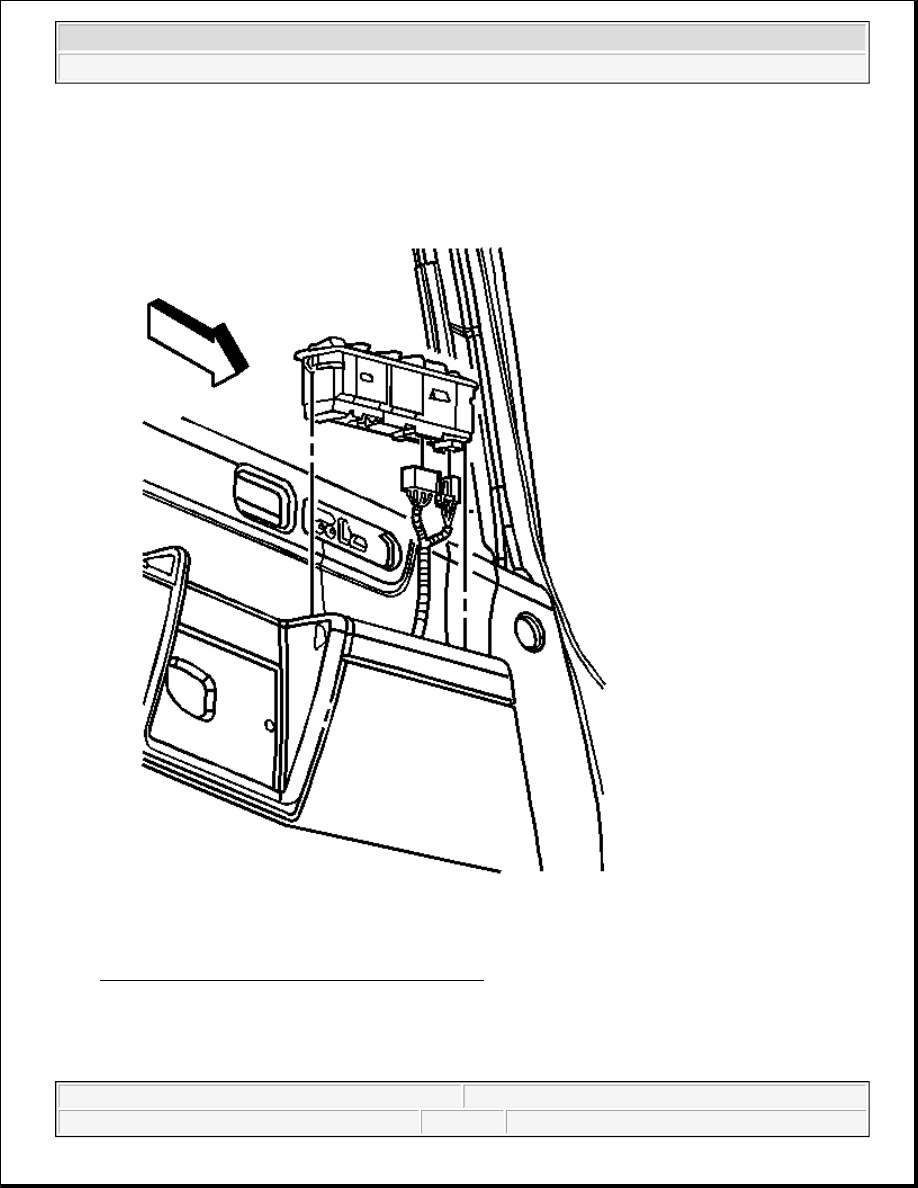

Fig. 18: Passenger Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Use a suitable flat-bladed tool to remove the door lock and side window switch from the door panel.

2. Disconnect the electrical connector from the switch.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
