10. Replace the planetary differential if any of the above conditions are found.

11. Inspect the thrust washers for excessive wear or scoring.

12. Replace the thrust washers if they are faulty.

Sun Gears and Lock-Up Hub

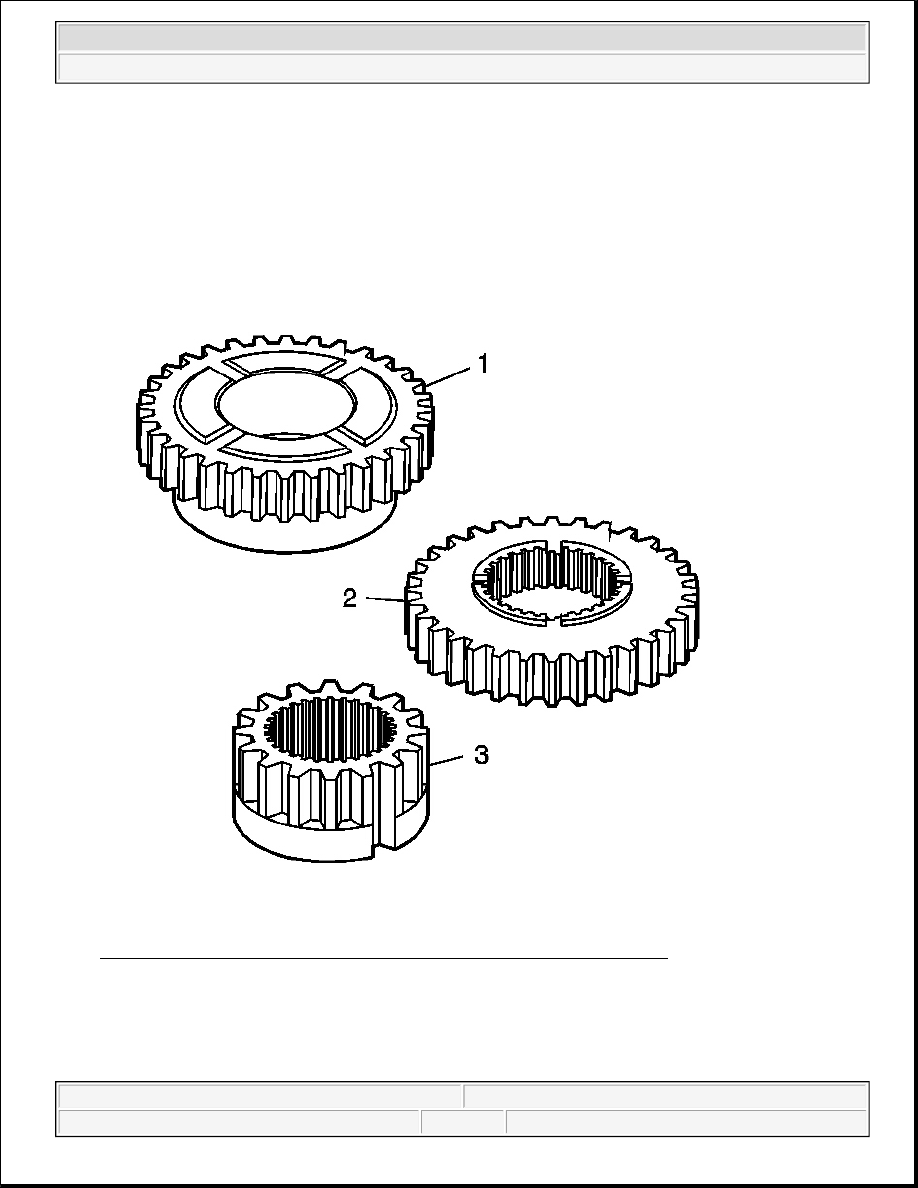

Fig. 60: Identifying Front Sun Gear, Rear Sun Gear & Inner Lockup Hub
Courtesy of GENERAL MOTORS CORP.

1. Clean the front sun gear (1), the rear sun gear (2), and the inner lockup hub (3) in cleaning solvent and air

dry.

2. Inspect the teeth on the front sun gear (1), the rear sun gear (2), and the inner lockup hub (3) for the



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



following conditions:

z

Chipped teeth

z

Excessively worn gear surfaces

Slight wear marks are normal.

z

Debris embedded in the root of the teeth

3. Inspect the thrust washer surfaces for excessive wear or scoring.

4. Replace the front sun gear (1), the rear sun gear (2), and the inner lockup hub (3) if they are faulty.

Lock-Up Shift Assembly



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



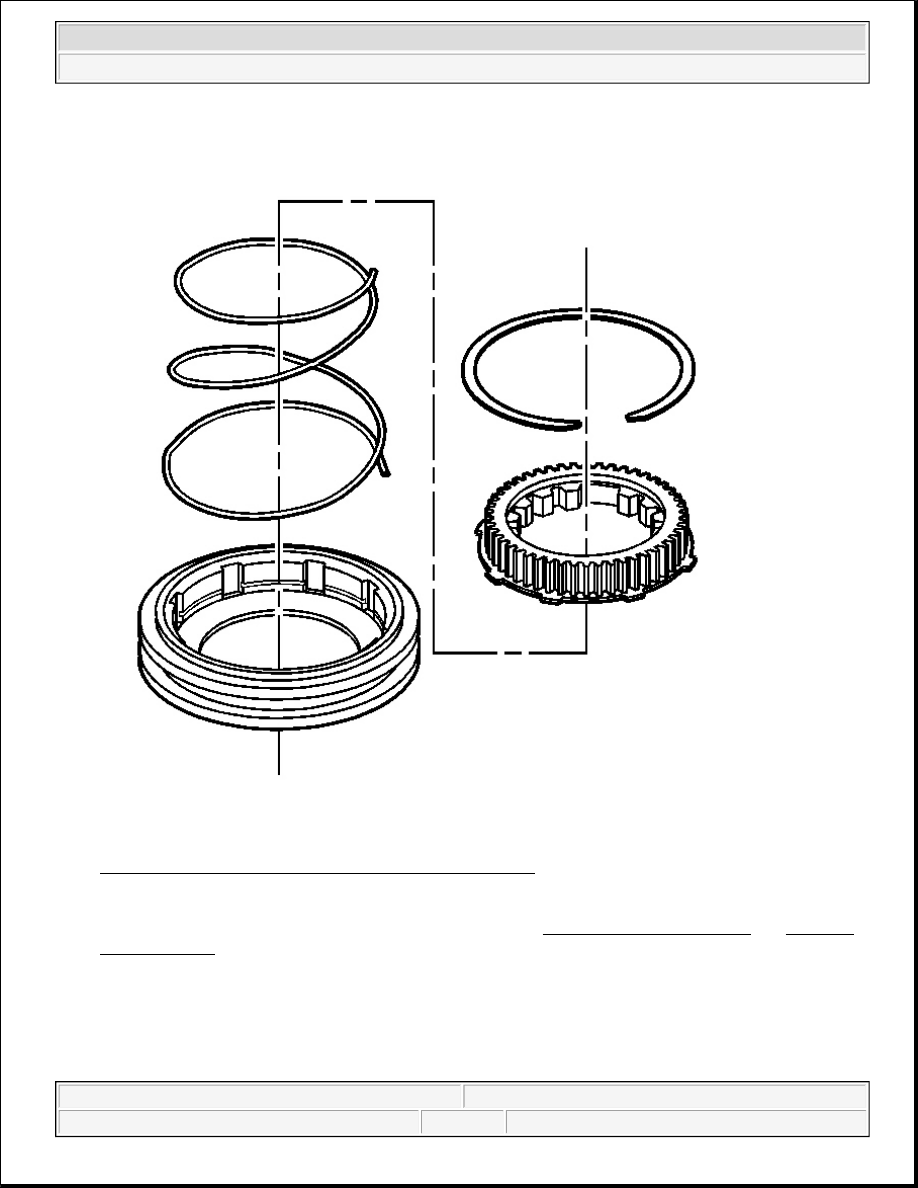

Fig. 61: Illustrating Lockup Shift Assembly Components
Courtesy of GENERAL MOTORS CORP.

1. If necessary, disassemble the lockup shift assembly. Refer to Transfer Case Disassemble and Transfer

Case Assemble .

2. Clean the lockup shift assembly components in cleaning solvent and air dry.

3. Inspect the lockup shift hub engagement teeth for the following conditions:

z

Chipped teeth

z

Excessively worn gear surfaces



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Slight wear marks are normal.

z

Debris embedded in the root of the teeth

4. Replace the lockup shift assembly if it is faulty. The lockup shift assembly components are not serviced

separately.

Drive Chain and Sprockets

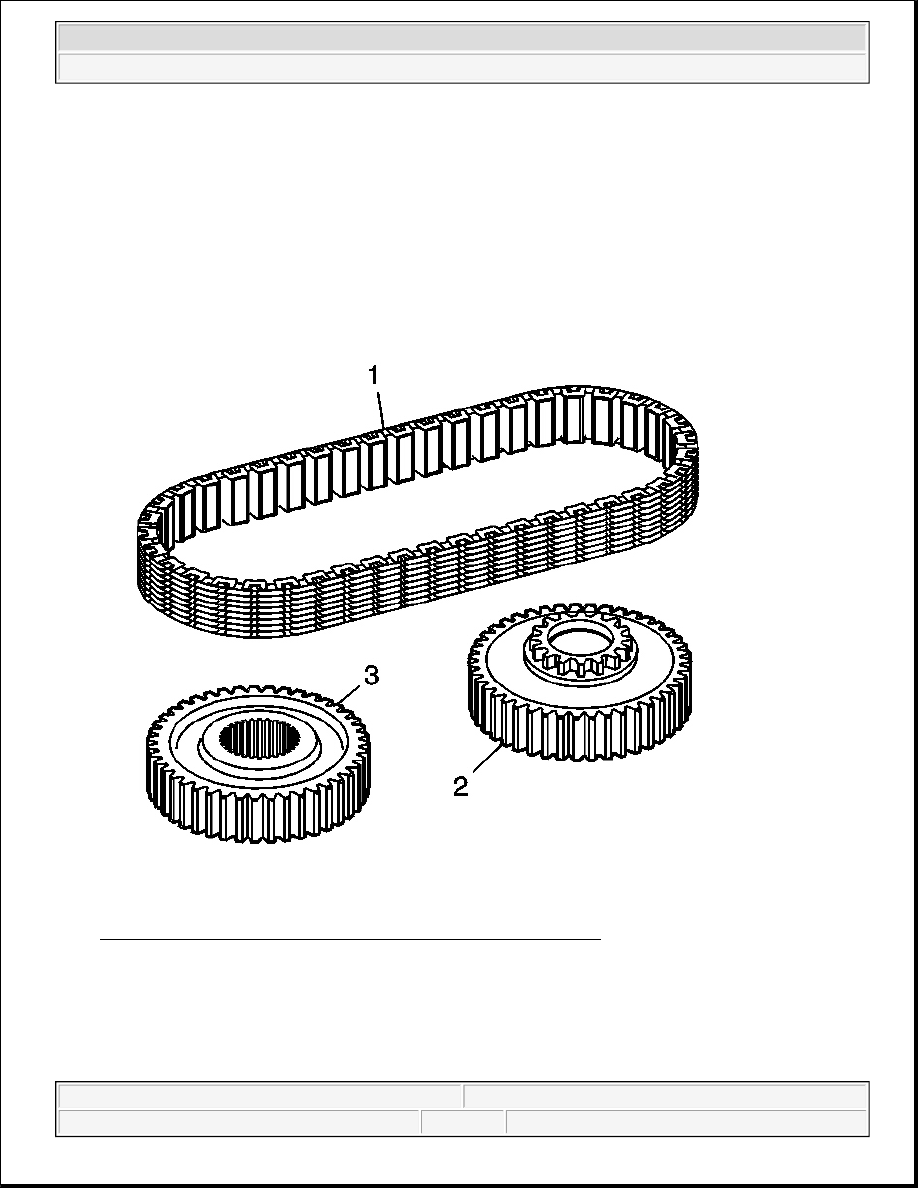

Fig. 62: View Of Drive Chain, Drive Sprocket & Driven Sprocket
Courtesy of GENERAL MOTORS CORP.

1. Clean the drive chain (1), drive sprocket (2), and driven sprocket (3) in cleaning solvent and air dry.

2. Inspect the drive chain (1) for the following conditions:

z

Loose link pins

z

Binding or stiff links



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4
