Hummer H2. Manual - part 2750

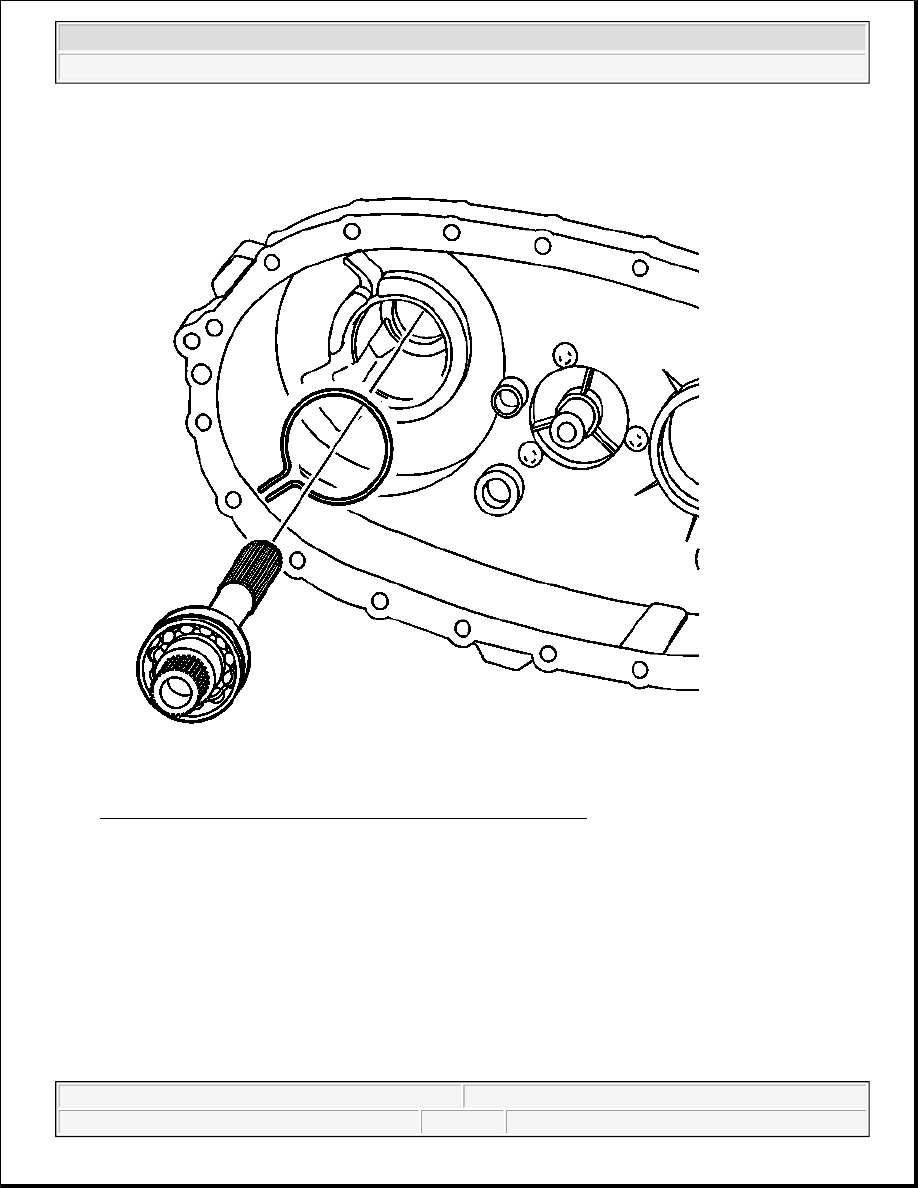

Fig. 46: Identifying Rear Output Shaft & Outer Retaining Ring
Courtesy of GENERAL MOTORS CORP.

54. Remove the rear output shaft from the rear case half.

1. Spread the rear output shaft rear bearing outer retaining ring.

2. Using a soft-face hammer, tap on the end of the rear output shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



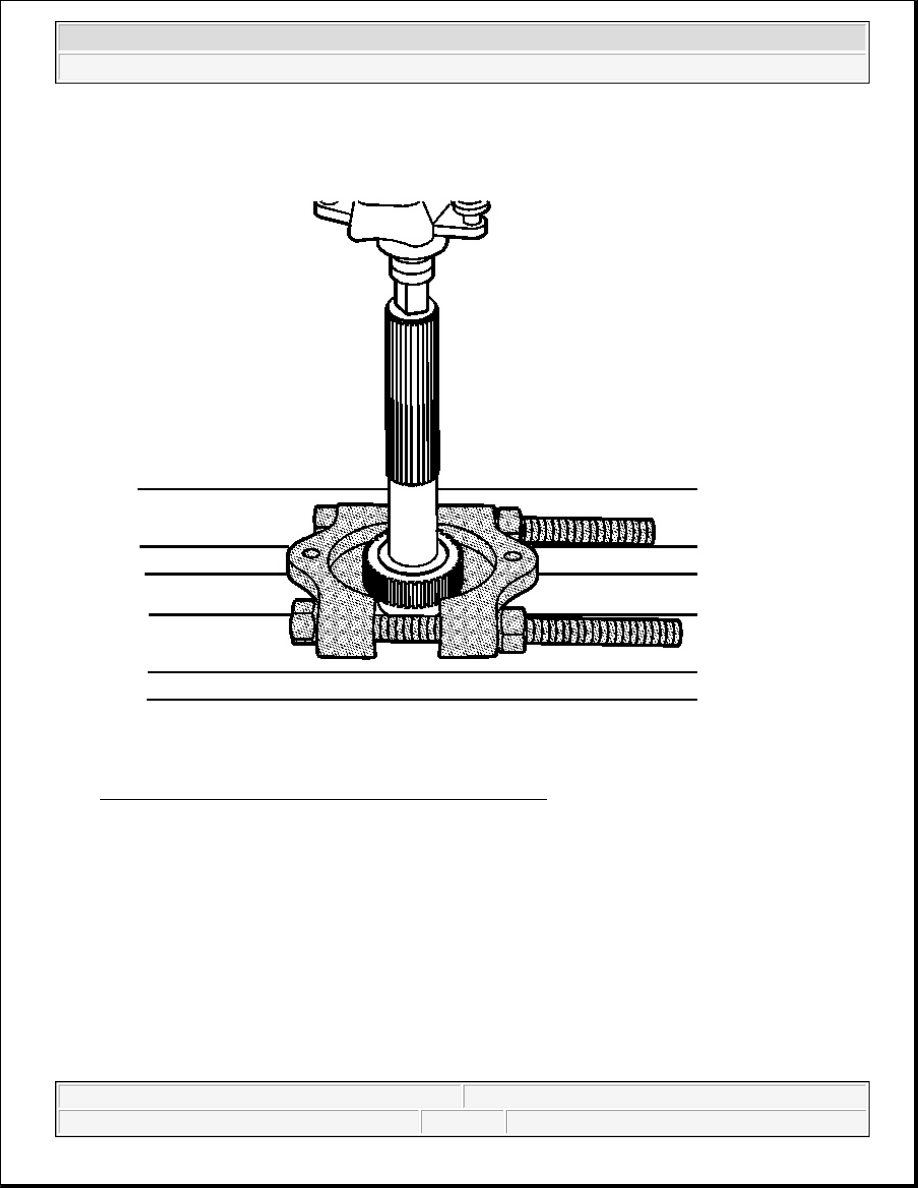

Fig. 47: Removing Speed Reluctor Wheel With J 22912-01
Courtesy of GENERAL MOTORS CORP.

55. Using a hydraulic press and the J 22912-01 , remove the speed reluctor wheel.

Do not use the speed reluctor wheel again.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



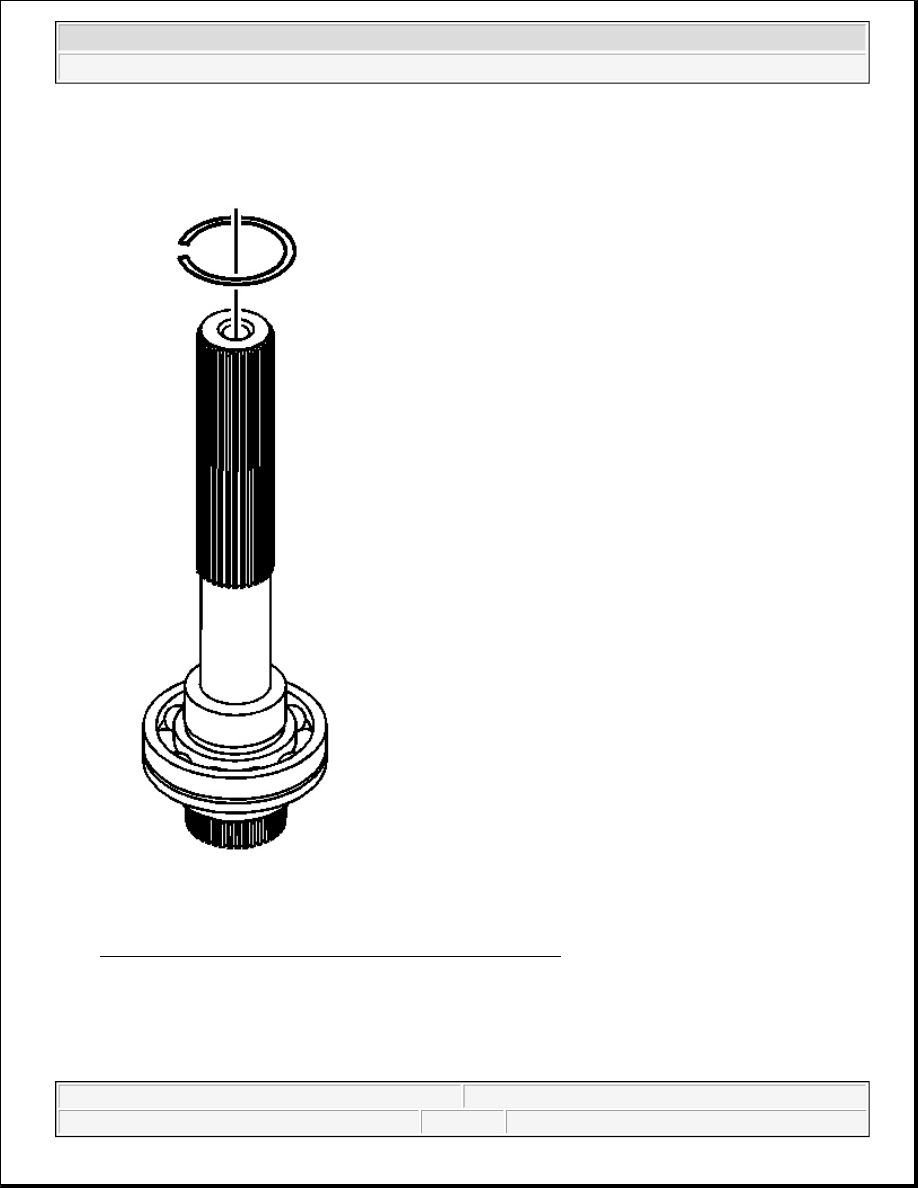

Fig. 48: View Of Rear Output Shaft Bearing Retaining Ring
Courtesy of GENERAL MOTORS CORP.

56. Remove the retaining ring for the rear output shaft bearing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



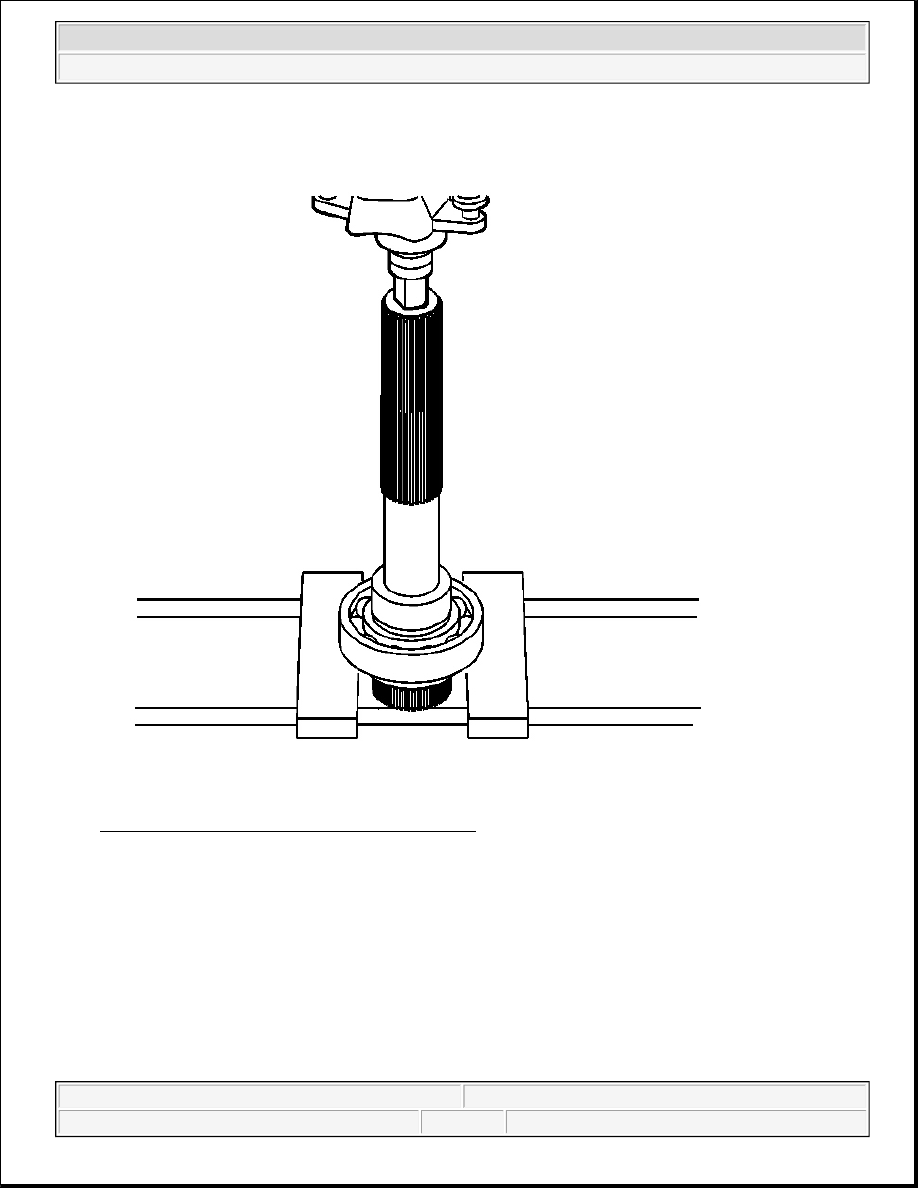

Fig. 49: Pressing Out Rear Output Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

57. Using a hydraulic press, remove the rear output shaft bearing.
