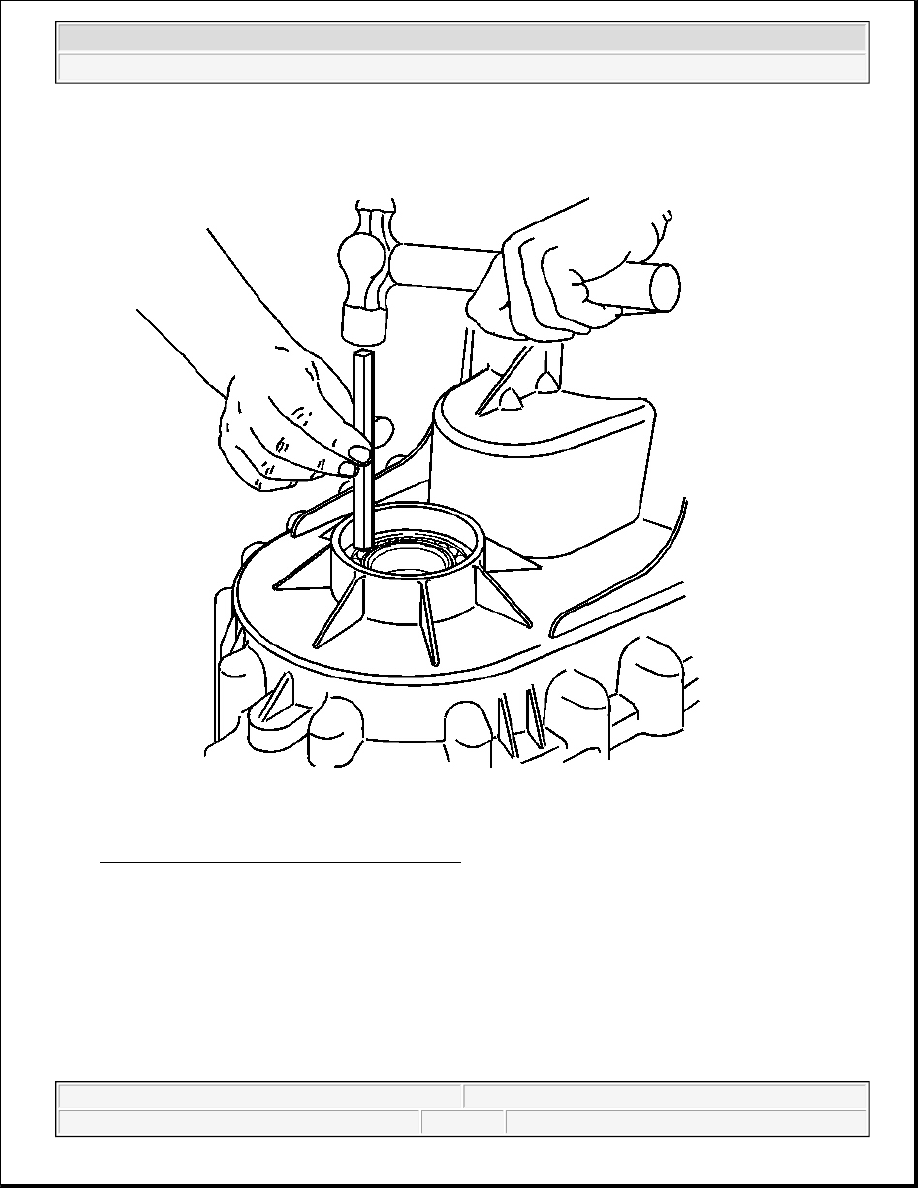

Fig. 42: Removing Front Output Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

50. Using a brass drift, remove the front output shaft bearing from the front case half.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

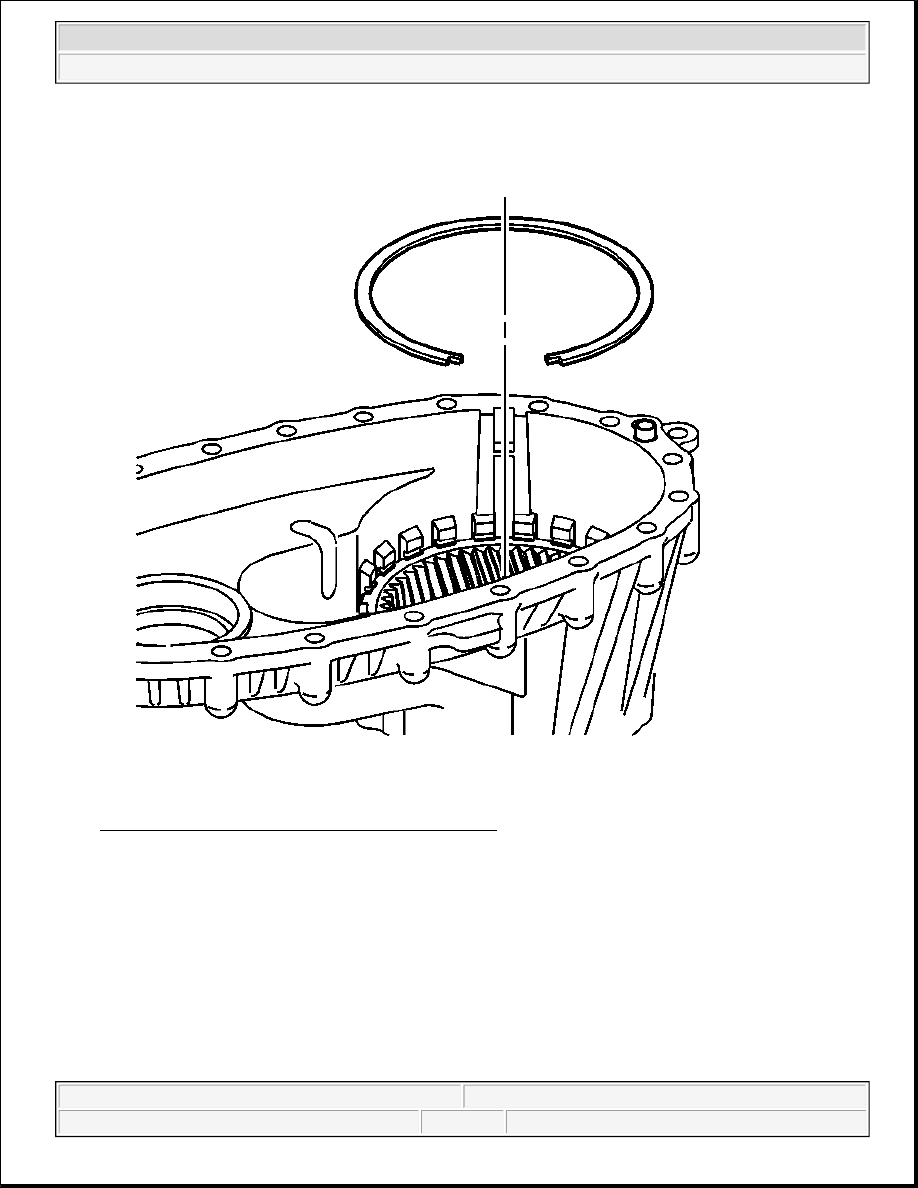

Fig. 43: Locating Retaining Ring For Annulus Gear
Courtesy of GENERAL MOTORS CORP.

51. Remove the retaining ring for the annulus gear.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

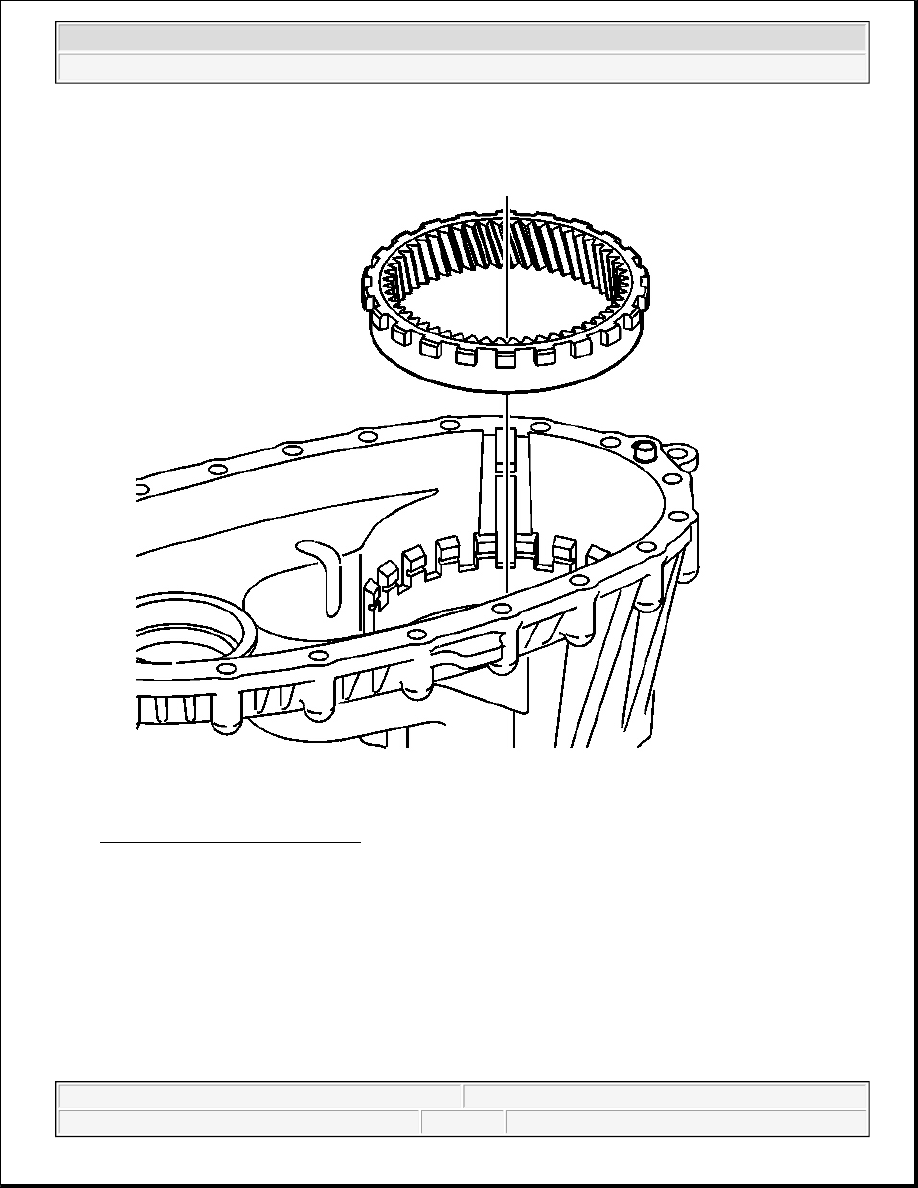

Fig. 44: Identifying Annulus Gear
Courtesy of GENERAL MOTORS CORP.

52. Remove the annulus gear from the front case half.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

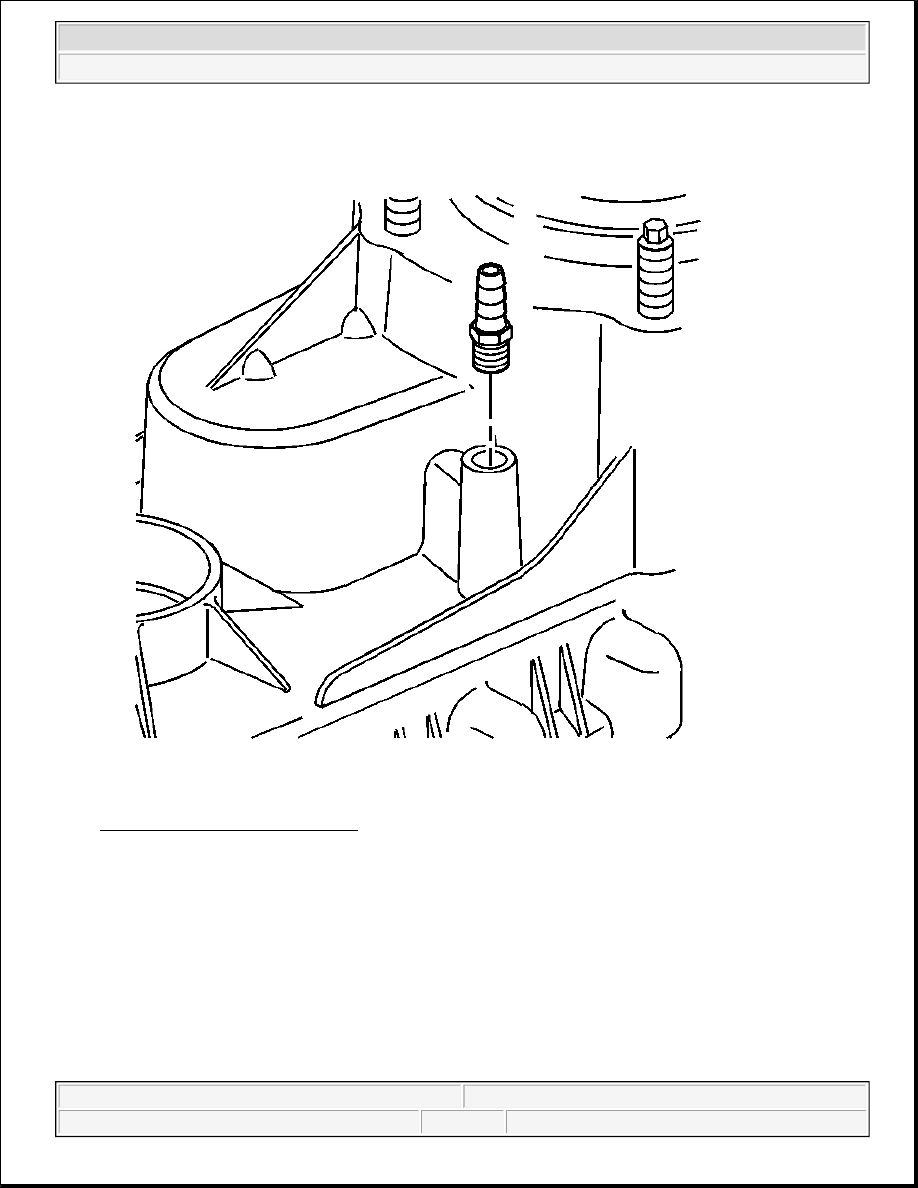

Fig. 45: View Of Front Case Vent
Courtesy of GENERAL MOTORS CORP.

53. If necessary, remove the vent from the front case half.
