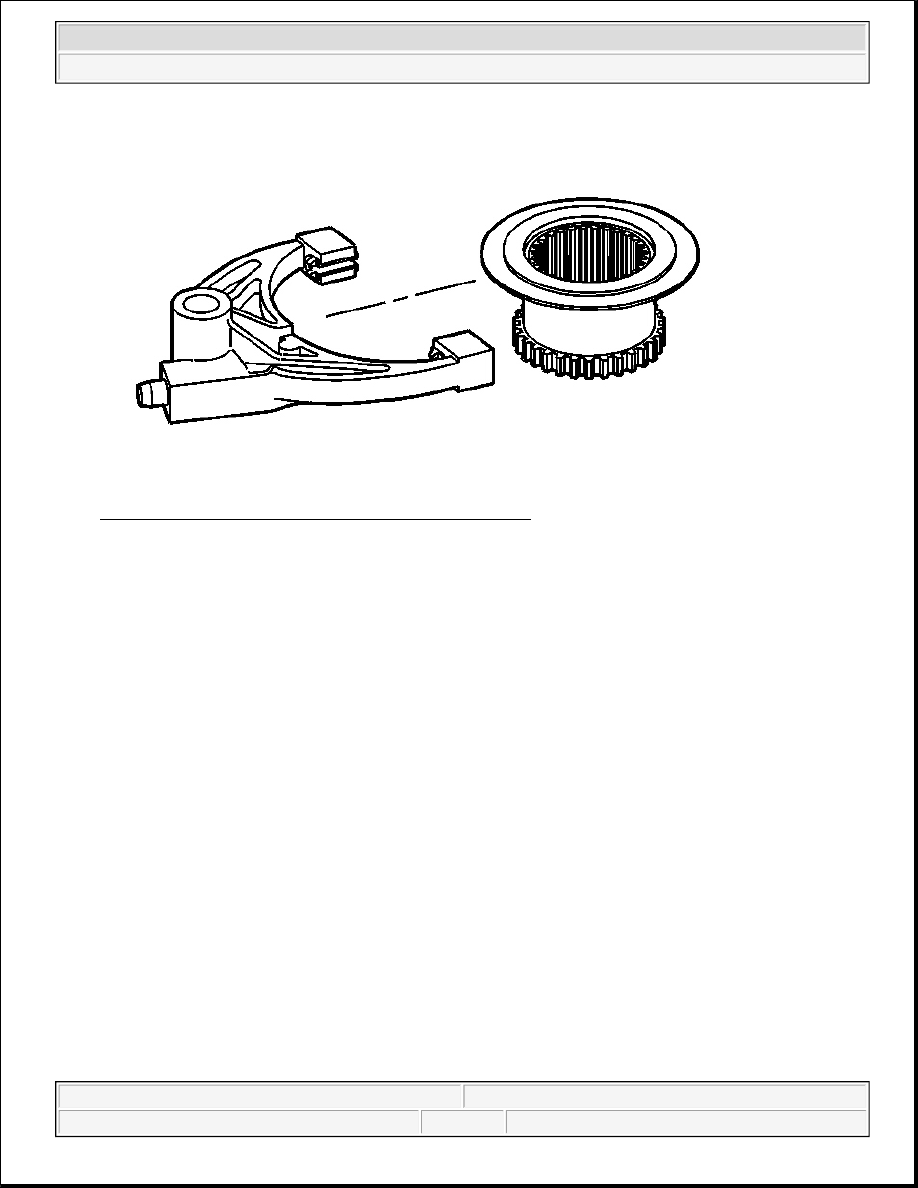

Fig. 34: View Of Range Shift Fork & Range Shift Sleeve
Courtesy of GENERAL MOTORS CORP.

41. Remove the range shift fork from the range shift sleeve.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



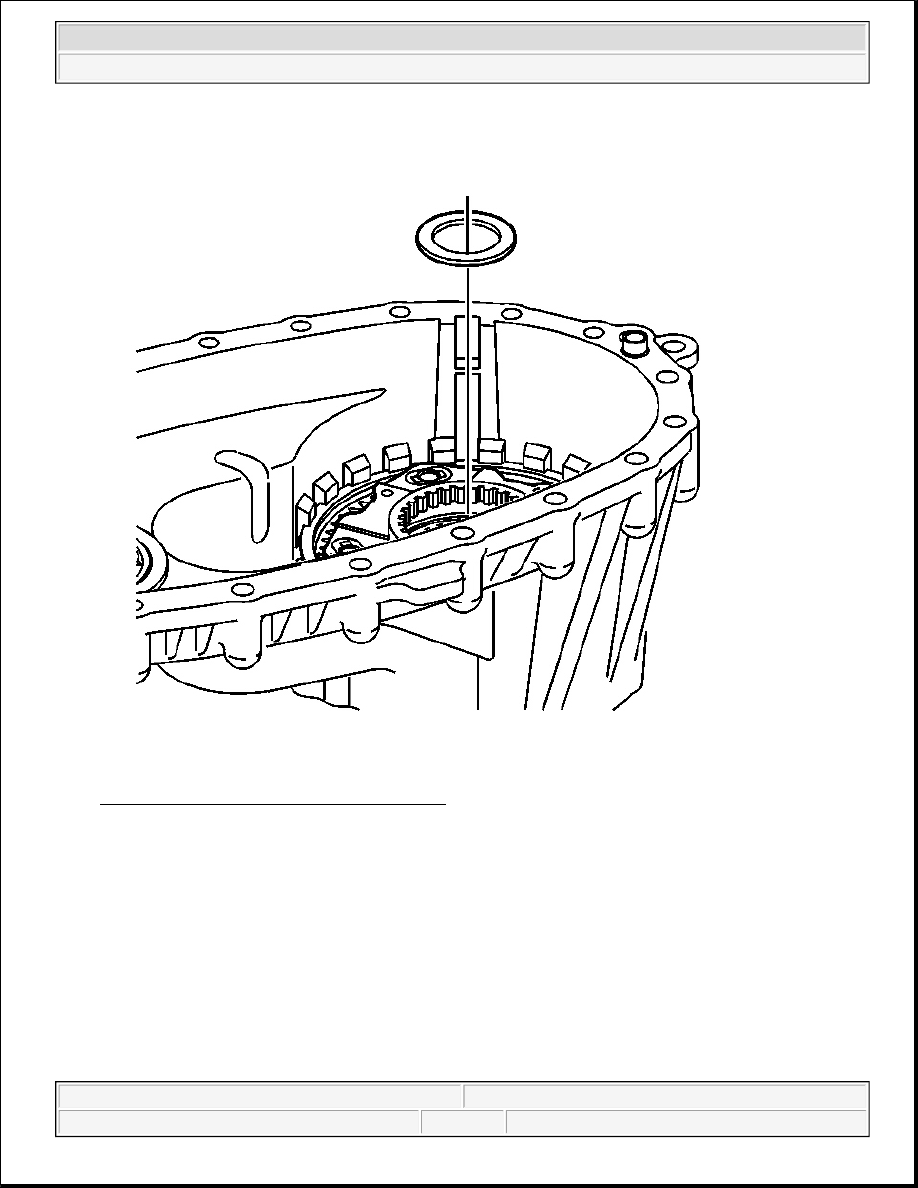

Fig. 35: Locating Input Shaft Thrust Washer
Courtesy of GENERAL MOTORS CORP.

42. Remove the input shaft thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



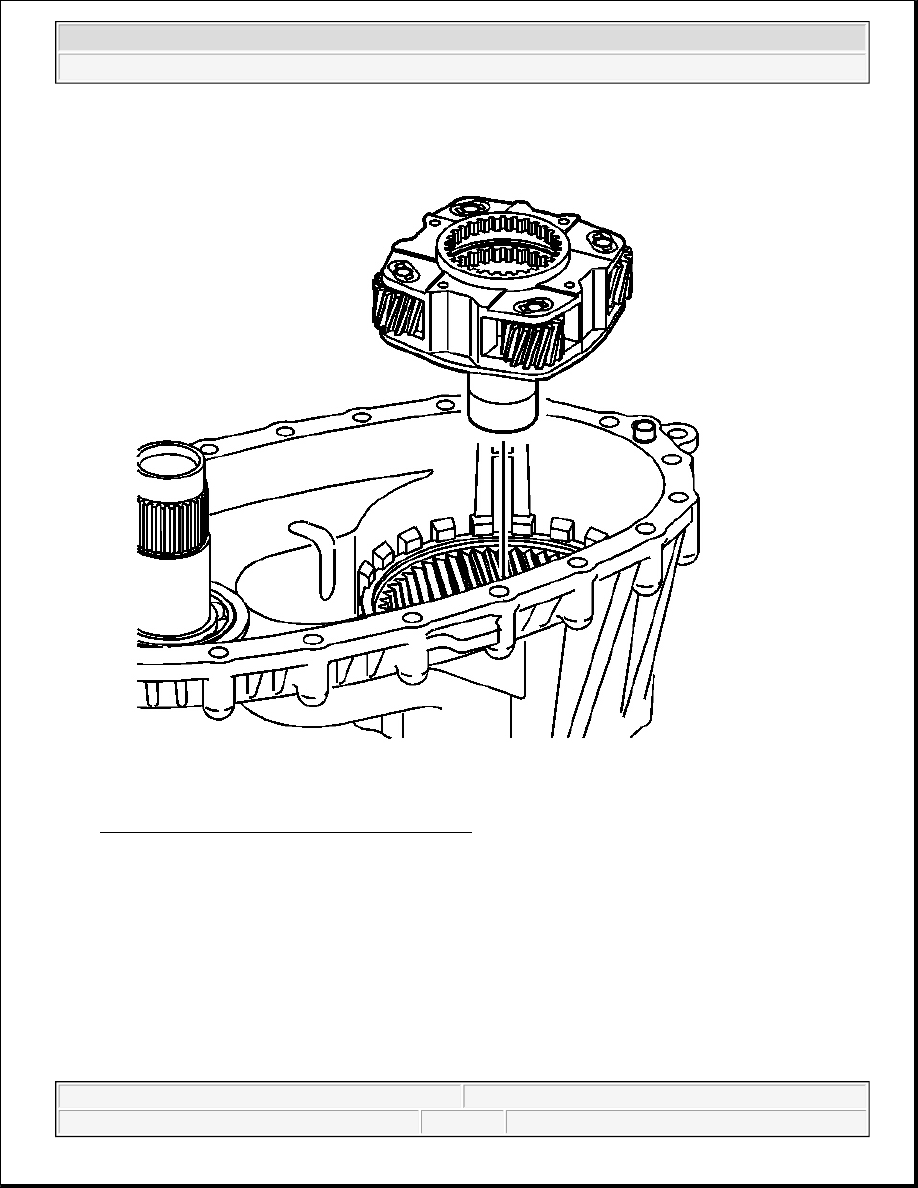

Fig. 36: Identifying High/Low Planetary Carrier
Courtesy of GENERAL MOTORS CORP.

43. Remove the high/low planetary carrier.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

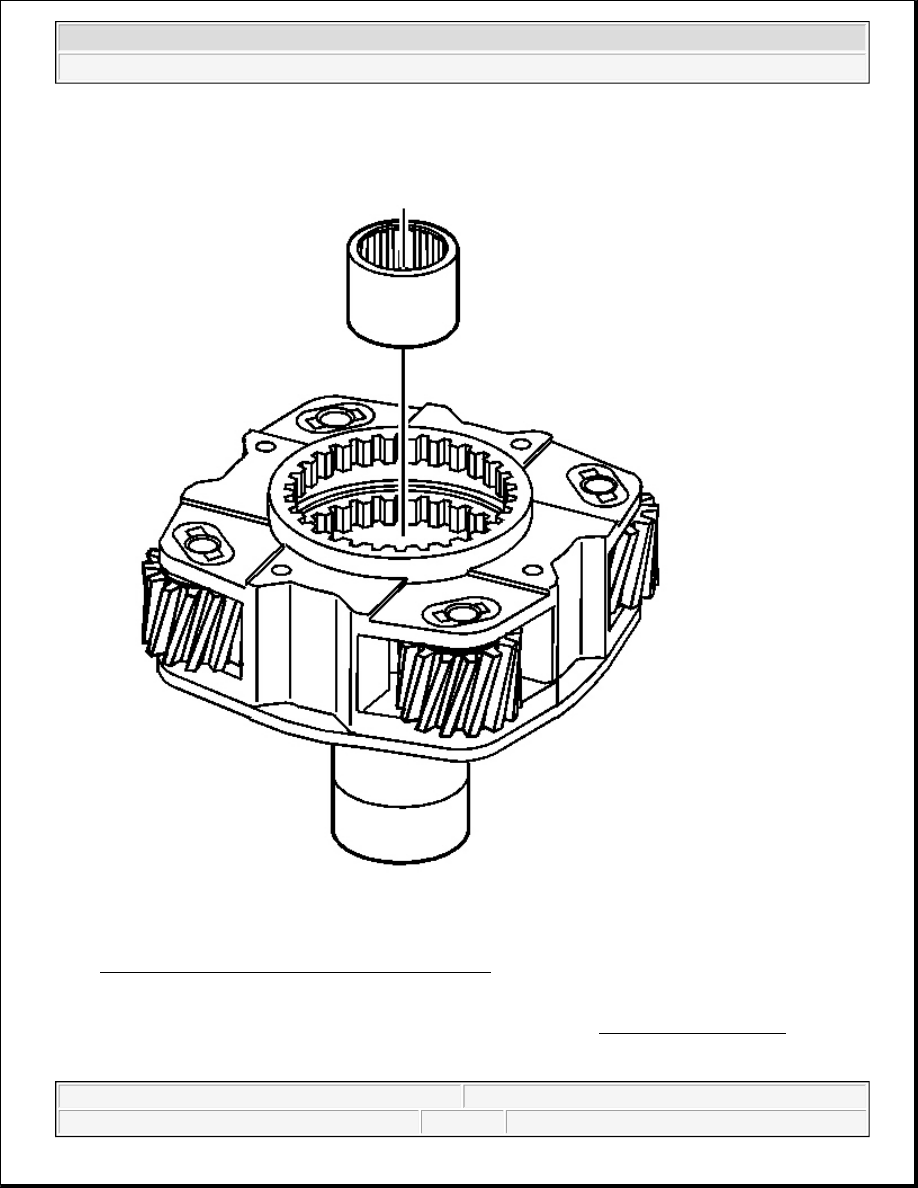

Fig. 37: View Of Mainshaft Front Support Bearing
Courtesy of GENERAL MOTORS CORP.

44. Inspect the mainshaft front support bearing for being faulty. Refer to Cleaning and Inspection .

45. Using a brass drift and a hammer, remove the mainshaft front support bearing from the planetary carrier

assembly.
