Hummer H2. Manual - part 268

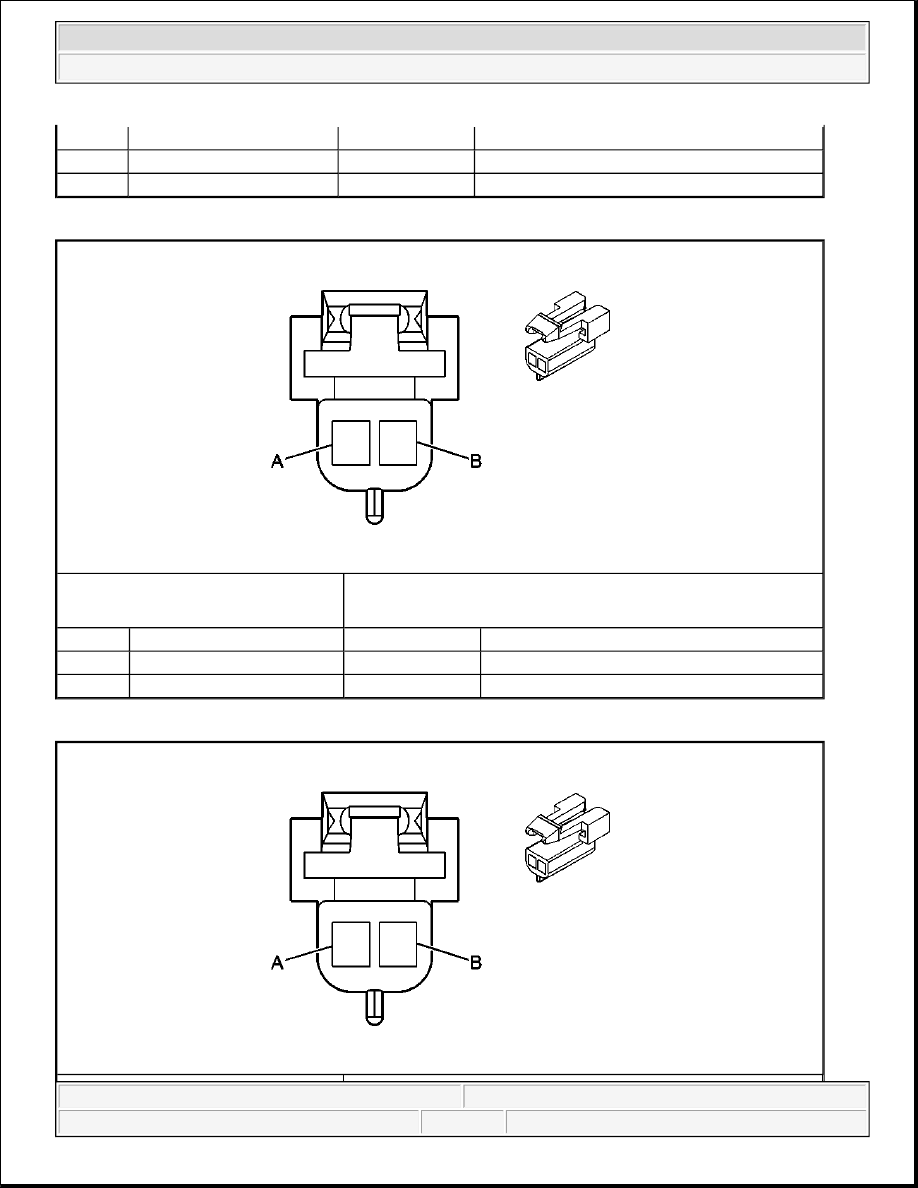

Speaker - Terminal Identification - RR Door

Speaker - Terminal Identification - LR Twiddler

Pin

Wire Color

Circuit No.

Function

A

D-GN

117

Right Front Speaker Output (-)

B

L-GN

200

Right Front Speaker Output (+)

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-BU

115

Right Rear Speaker Output (-)

B

D-BU

46

Right Rear Speaker Output (+)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



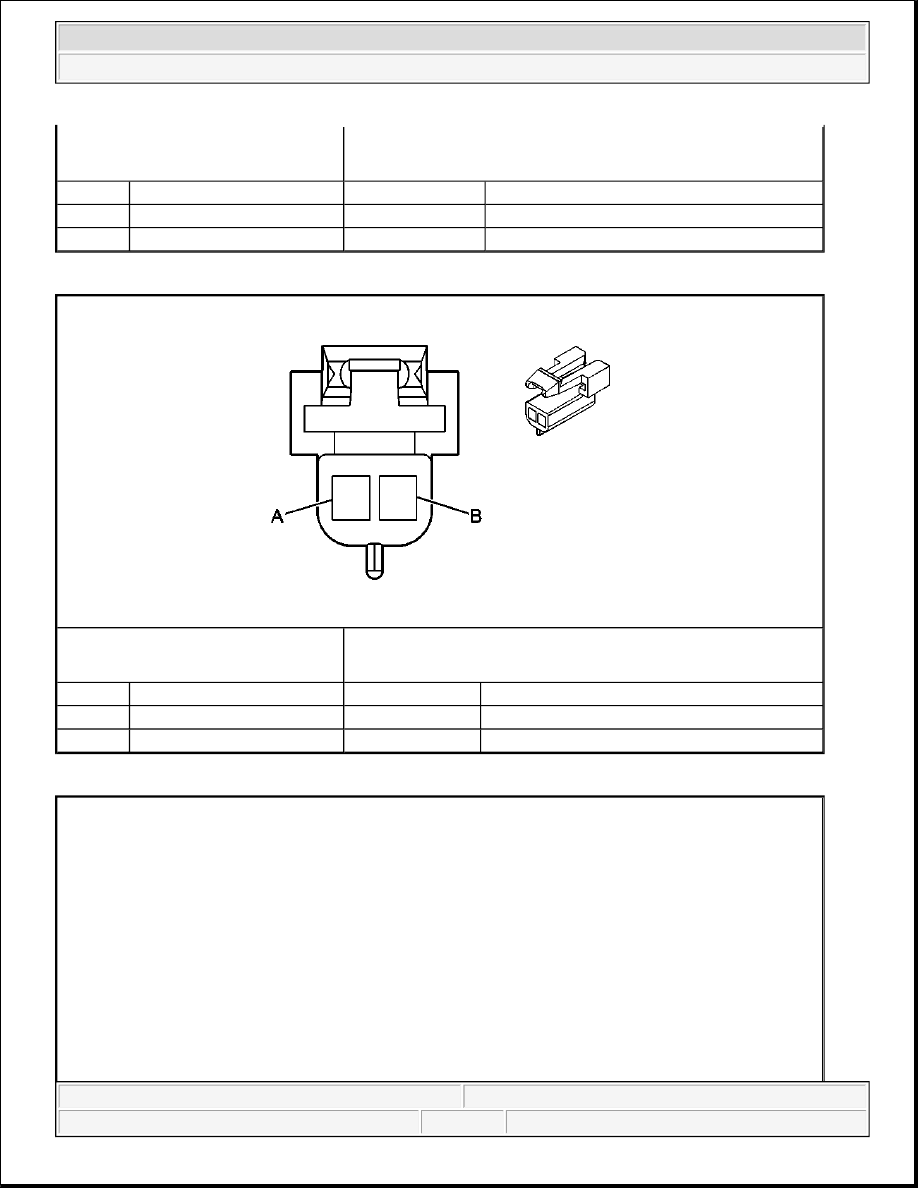

Speaker - Terminal Identification - RR Twiddler

Speaker - Terminal Identification - Subwoofer

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

YE

116

Left Rear Speaker Output (-)

B

BN

199

Left Rear Speaker Output (+)

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-BU

115

Right Rear Speaker Output (-)

B

D-BU

46

Right Rear Speaker Output (+)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



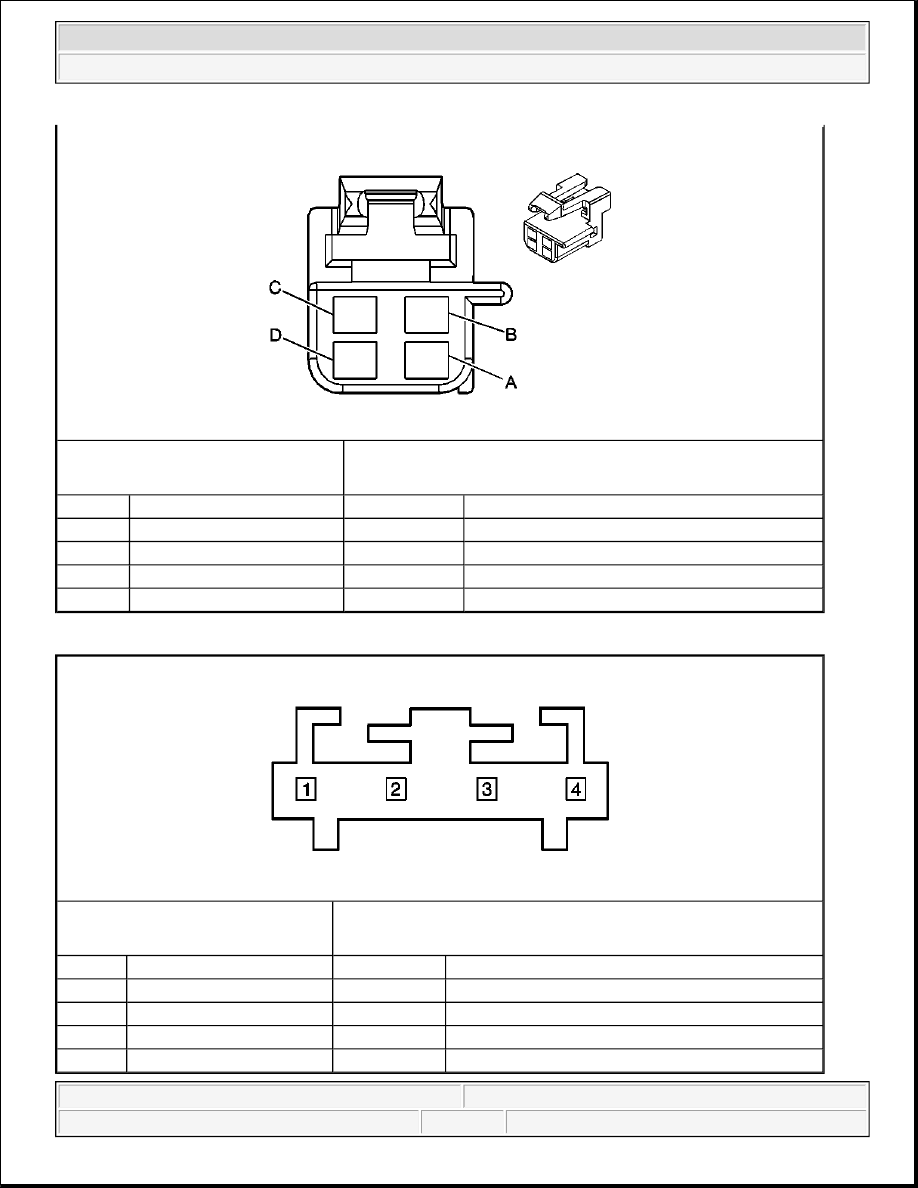

Steering Wheel Controls - Terminal Identification - Left Lower (Fuel/Trip)

Connector Part Information

z

12064760

z

4-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-GN/BK

1794

Left Subwoofer Speaker Output (-)

B

D-BU/WH

346

Left Subwoofer Speaker Output (+)

C

D-GN

1795

Right Subwoofer Speaker Output (+)

D

L-BU/BK

315

Right Subwoofer Speaker Output (-)

Connector Part Information

z

50579404

z

4-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

230

Steering Wheel Switch Dimming Control

2

YE

1327

DIC Fuel Signal

3

D-BU

894

DIC Toggle Switch Signal

4

BK

1851

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Steering Wheel Controls - Terminal Identification - Right Lower (Personalization/Select)

Steering Wheel Controls - Terminal Identification - Upper Left (Radio-Program/Source)

Connector Part Information

z

50579405

z

5-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

230

Steering Wheel Switch Dimming Control

2

D-GN

1358

DIC Switch Signal

3

OG

1816

DIC Set/Reset Switch Signal

4

BK

1851

Ground

5

-

-

Not Used

Connector Part Information

z

50579405

z

5-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

L-GN

1011

Remote Radio Control Signal

2

BN

230

Steering Wheel Switch Dimming Control

3

BK

1851

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
