4. Lower the vehicle.

TRANSFER CASE ASSEMBLY REPLACEMENT

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Drain the transfer case. Refer to Transfer Case Fluid Replacement .

3. Drain the transmission fluid. Refer to Automatic Transmission Fluid/Filter Replacement in Automatic

Transmission - 4L60-E/4L65-E.

4. Remove the transmission support member. Refer to Transmission Support Replacement .

5. Remove the rear propeller shaft from the transfer case. Refer to Propeller Shaft Replacement - Rear in

Propeller Shaft.

6. Remove the front propeller shaft from the transfer case. Refer to Propeller Shaft Replacement - Front

in Propeller Shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



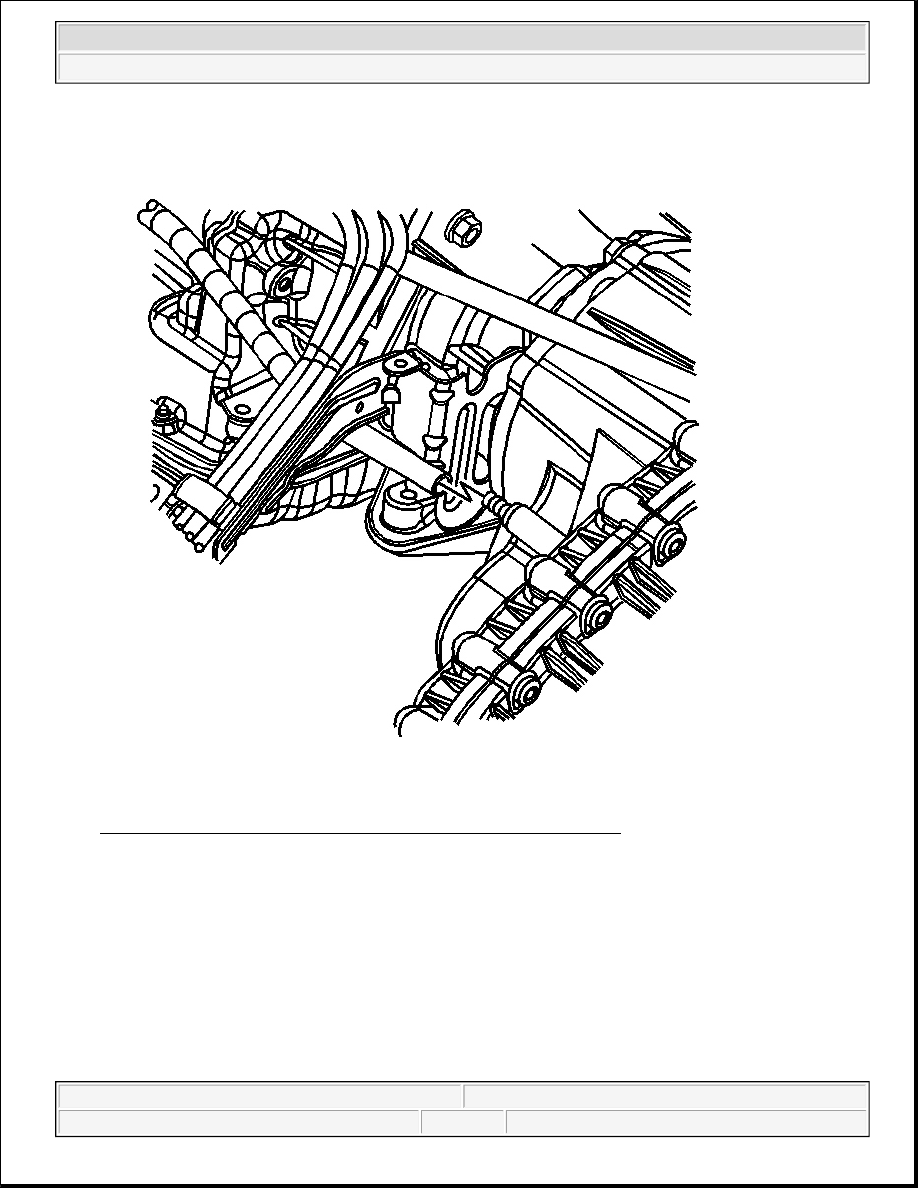

Fig. 25: Removing Vent Hoses From Transfer Case & Transmission
Courtesy of GENERAL MOTORS CORP.

7. Remove the vent hoses from the transfer case and transmission.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



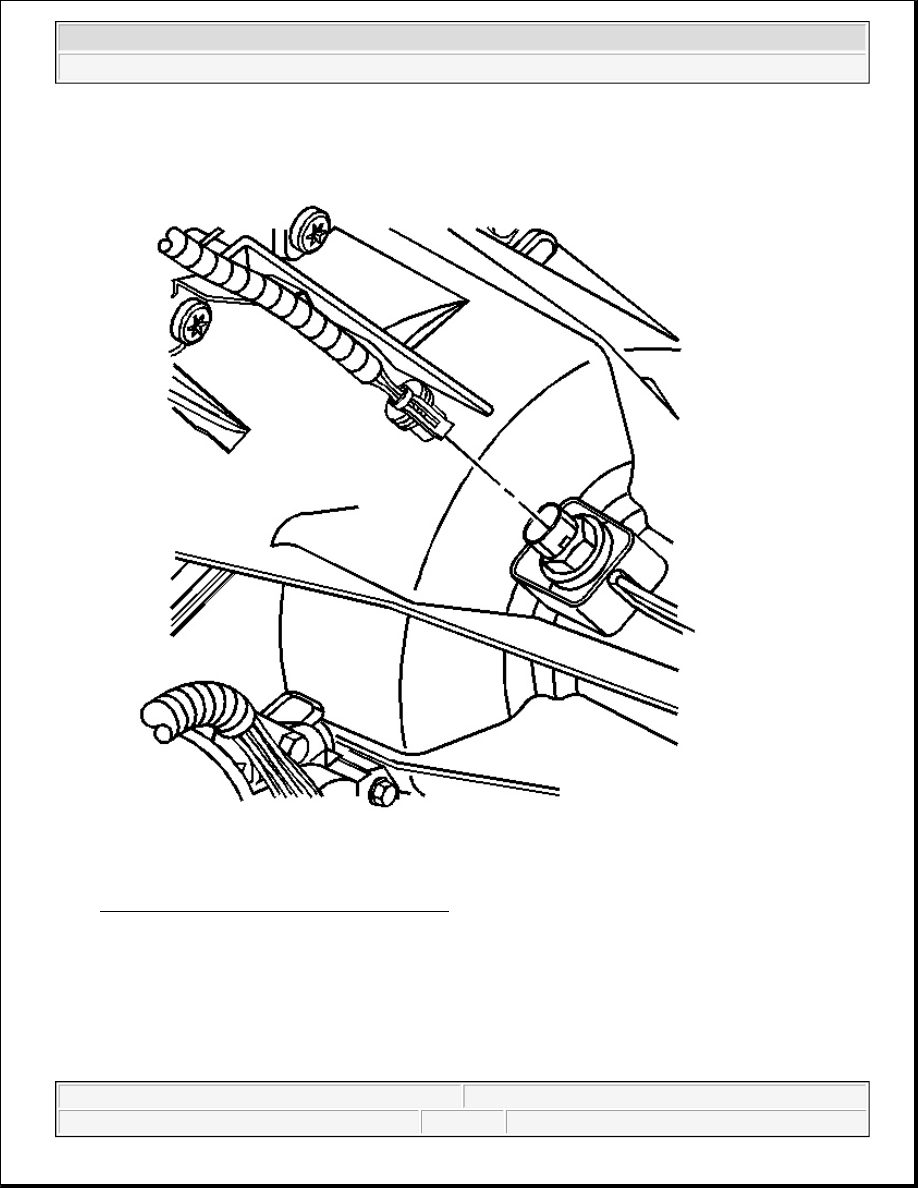

Fig. 26: Electrical Connector & Speed Sensor
Courtesy of GENERAL MOTORS CORP.

8. Disconnect the electrical connector from the speed sensor.

9. Disconnect the encoder motor from the electrical connector.

10. Remove the fuel lines from the retainer at the top of the transfer case.

11. Install a suitable transmission jack to the transfer case.

12. Remove the bolts from the transfer case to the adapter.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



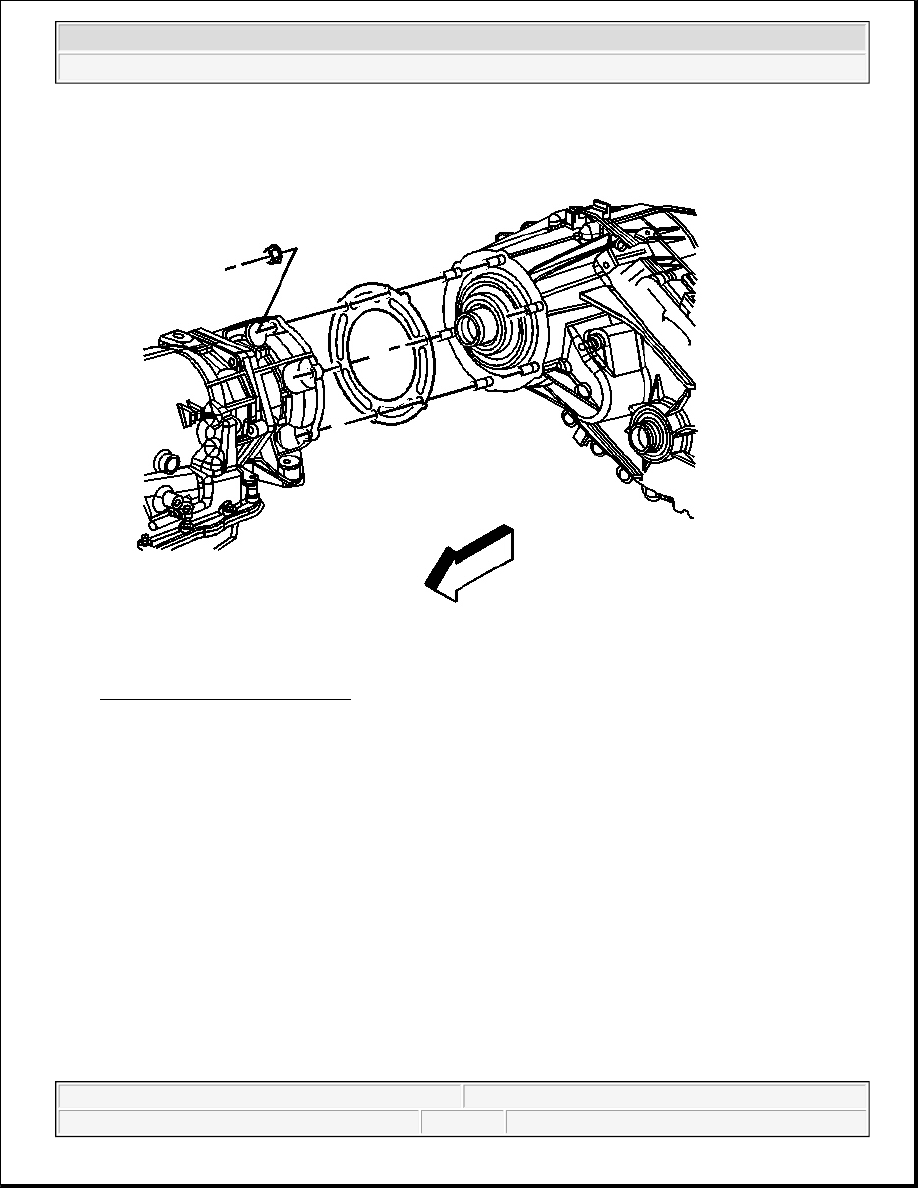

Fig. 27: Transfer Case Assembly
Courtesy of GENERAL MOTORS CORP.

13. Remove the transfer case from the transfer case adapter.

14. Rotate the transfer case so that the transfer case is perpendicular to the torsion bar mounting bracket.

15. Lower the transfer case.

16. Remove the gasket from the transfer case.

17. Remove the transfer case from the transmission jack.

Installation Procedure

IMPORTANT: Pull straight back on the transfer case in order to position the transfer

case so that the transfer case can be turned parallel to the transmission.
