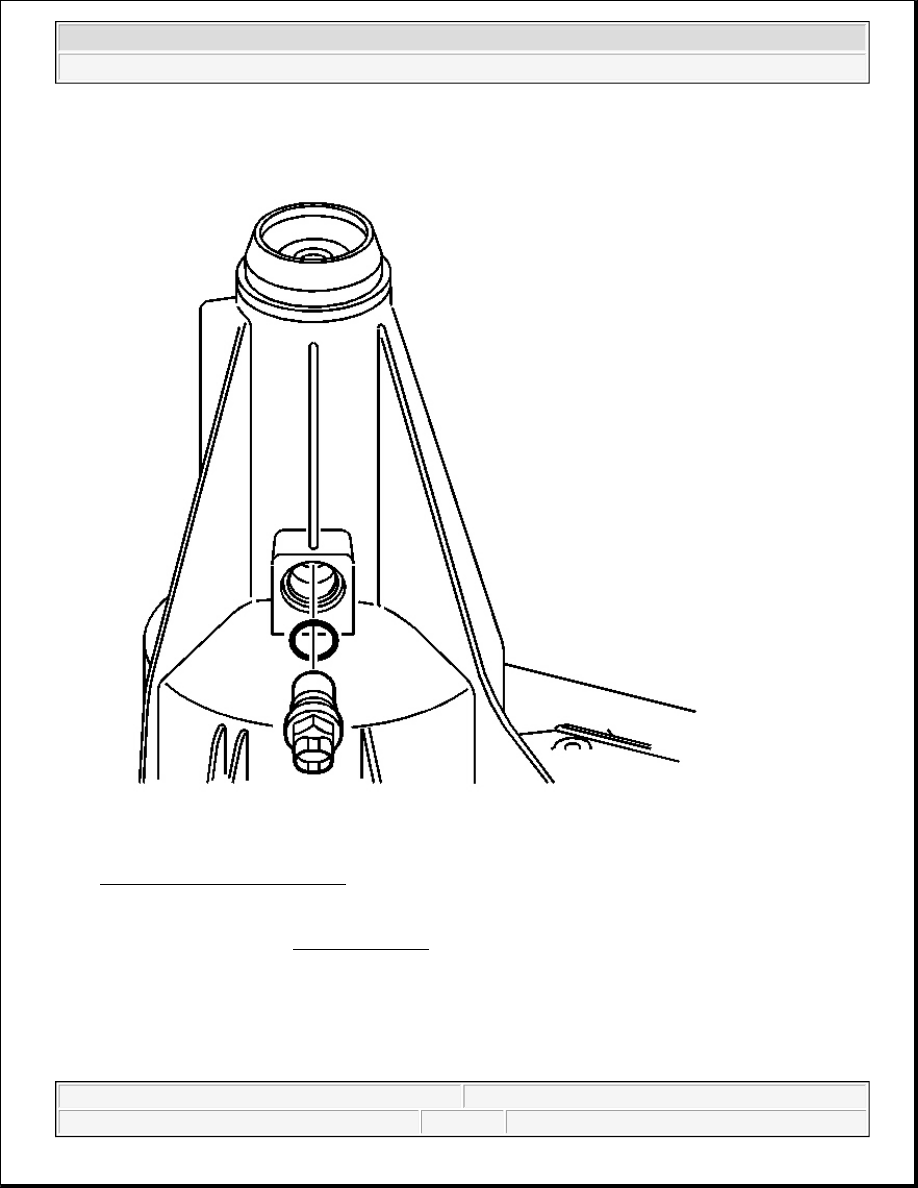

Fig. 17: Speed Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.

1. Install the new rear speed sensor into the transfer case with a new O-ring seal.

Tighten: Tighten the speed sensor to 17 N.m (13 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

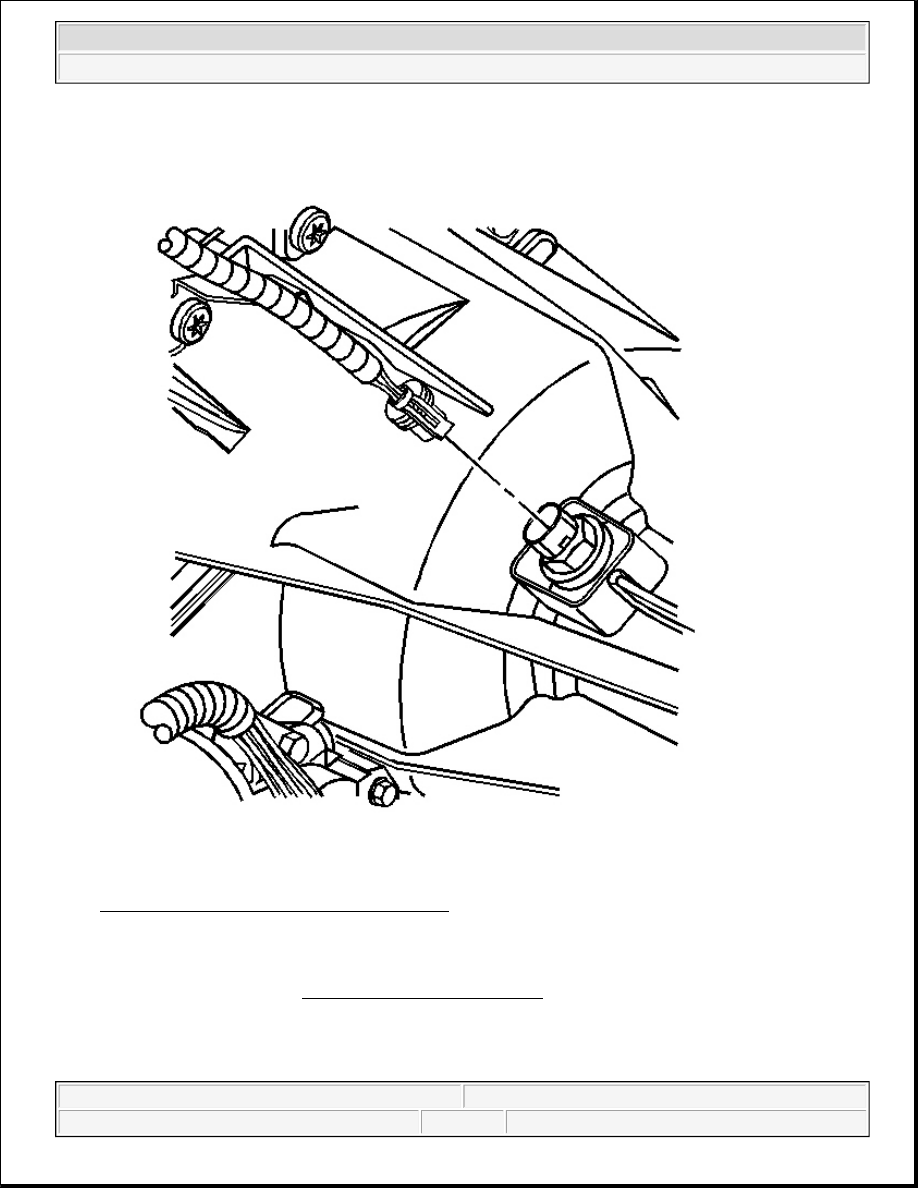

Fig. 18: Electrical Connector & Speed Sensor
Courtesy of GENERAL MOTORS CORP.

2. Install the electrical connector to the speed sensor.

3. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

TRANSFER CASE OUTPUT SHAFT SEAL REPLACEMENT - FRONT

Tools Required



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



z

J 8092 Universal Handle

z

J 43484 Front Output Shaft Seal Installer. See Special Tools and Equipment .

Removal Procedure

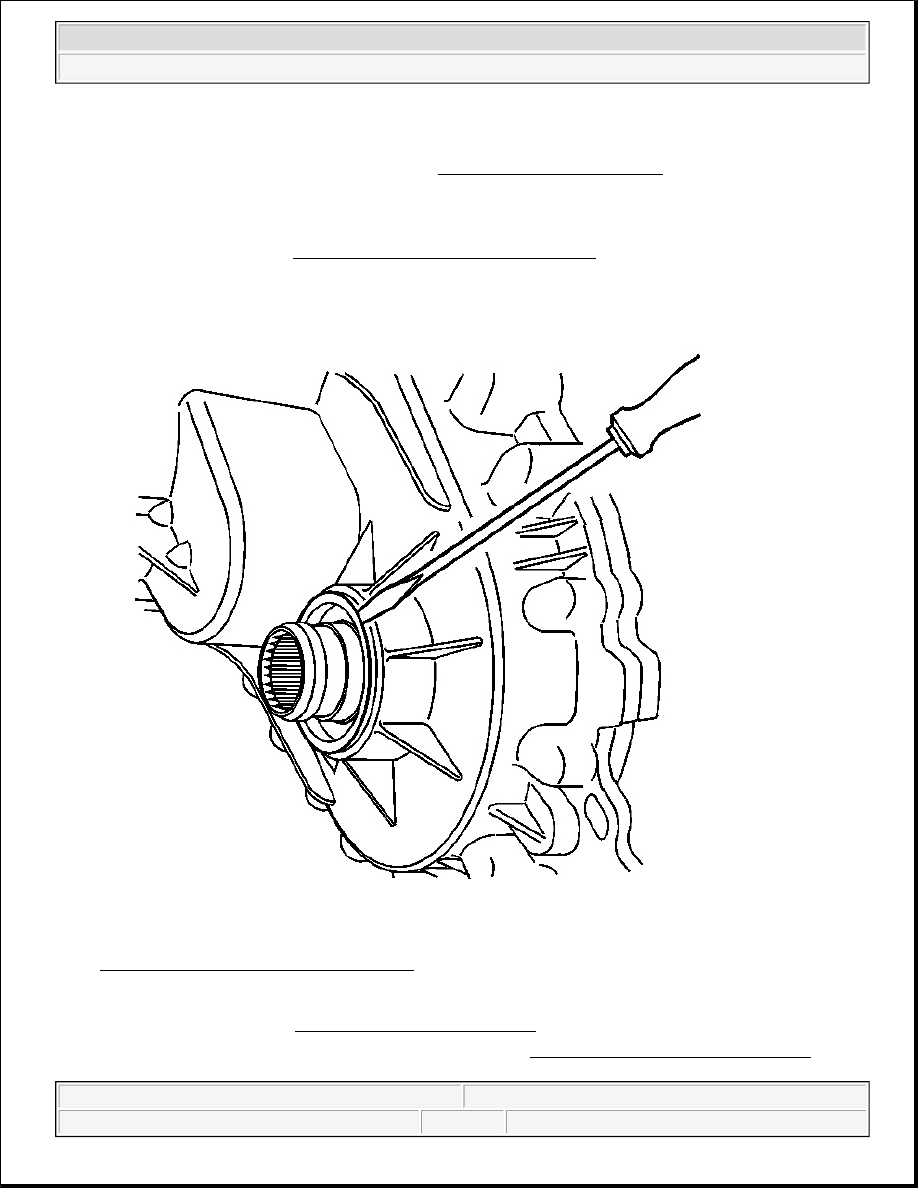

Fig. 19: Prying Inner Seal Race Forward
Courtesy of GENERAL MOTORS CORP.

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the front propeller shaft from the vehicle. Refer to Propeller Shaft Replacement - Front in

Propeller Shaft.

NOTE:

Refer to Transfer Case Seal Removal Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



3. Insert a flat-tipped screw driver in the inner race.

4. Pry the inner race forward.

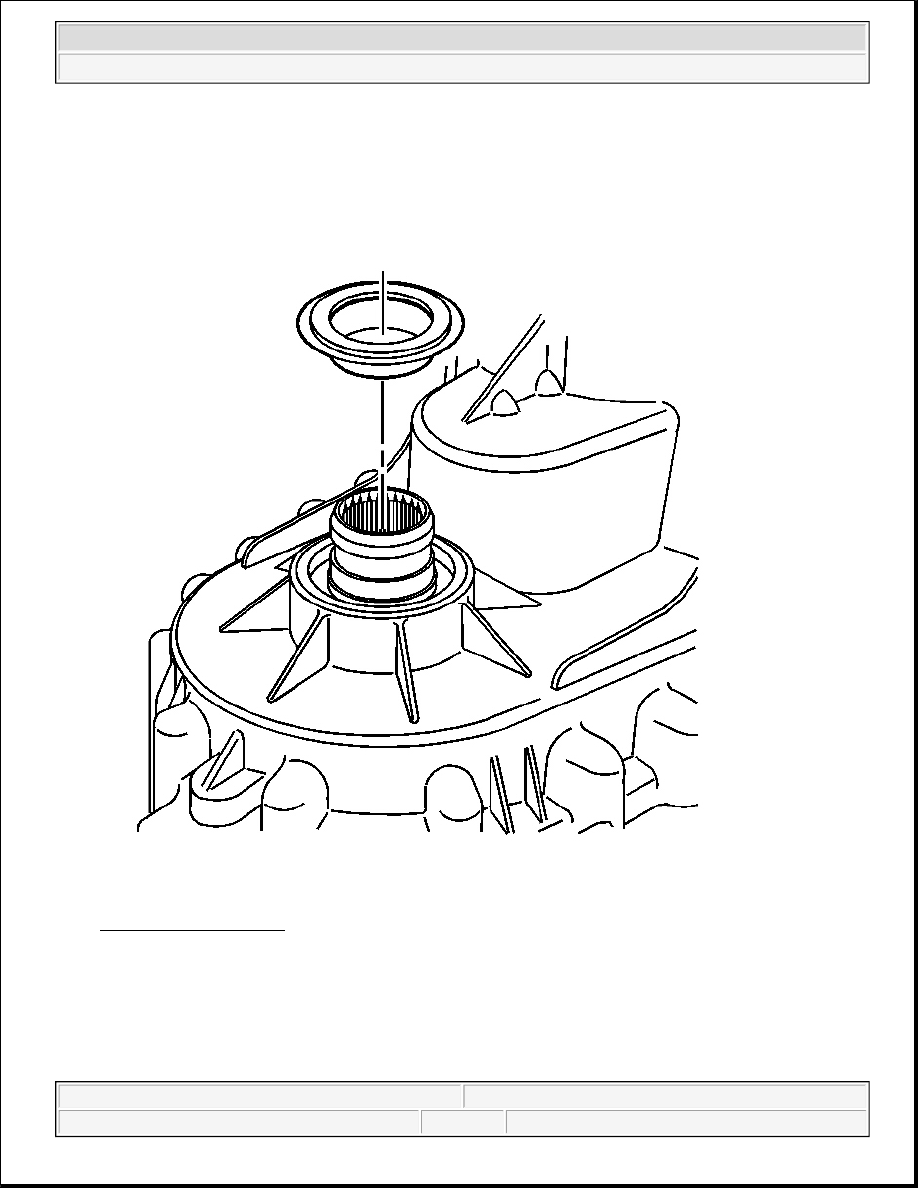

Fig. 20: Inner Seal Race
Courtesy of GENERAL MOTORS CORP.

5. Insert a small pry bar in the inner race.

6. Pry the inner part of the seal from the outer seal body.

7. Remove the inner part of the seal.
