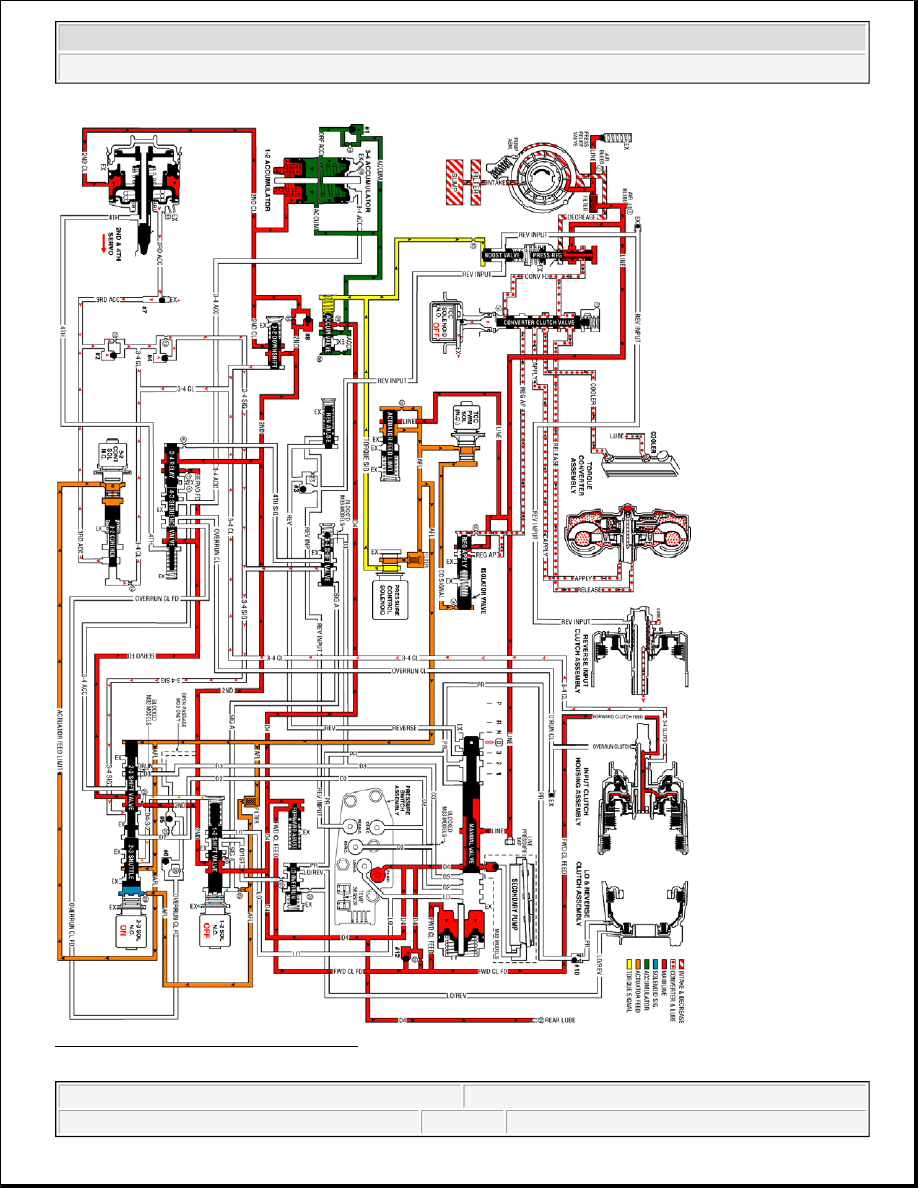

Fig. 6: Overdrive Range, Third Gear
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

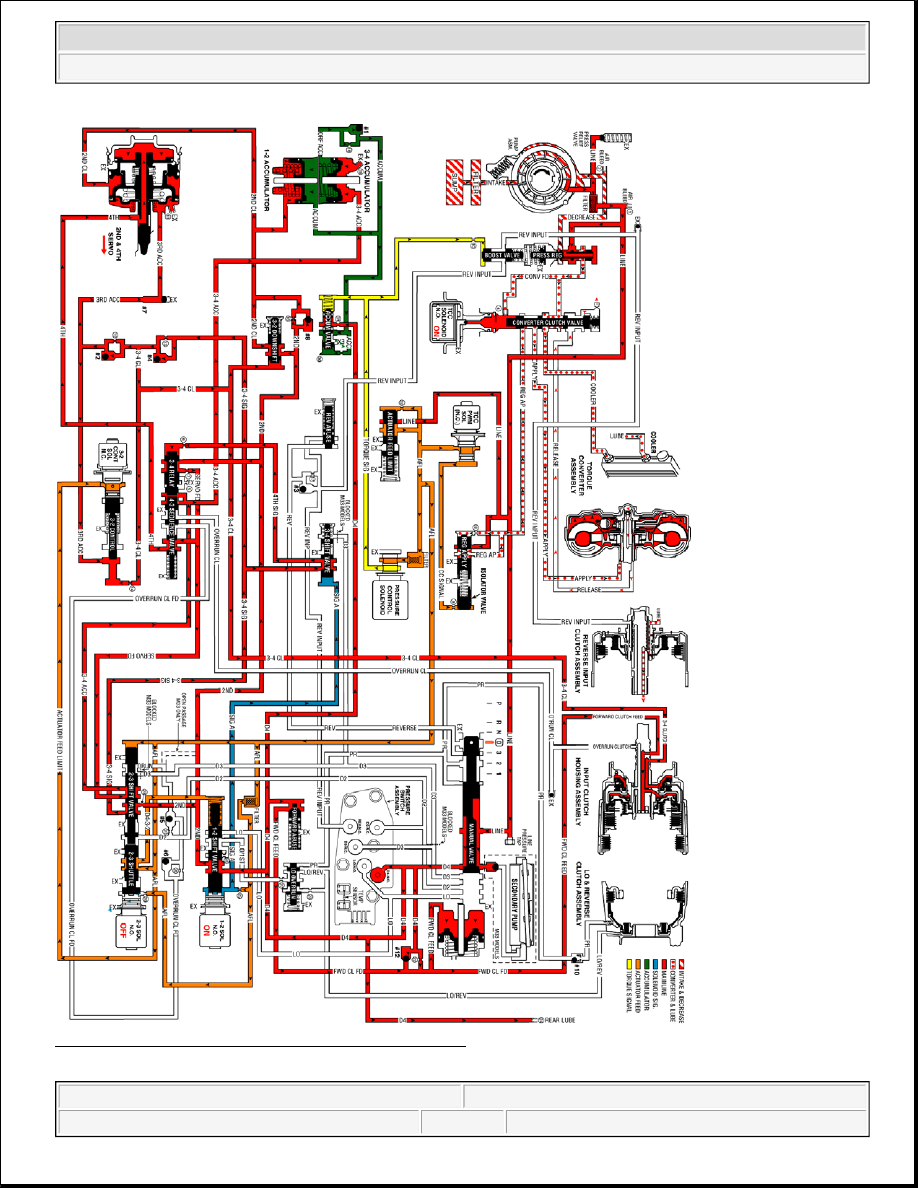

Fig. 7: Overdrive Range, Fourth Gear - TCC Applied
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

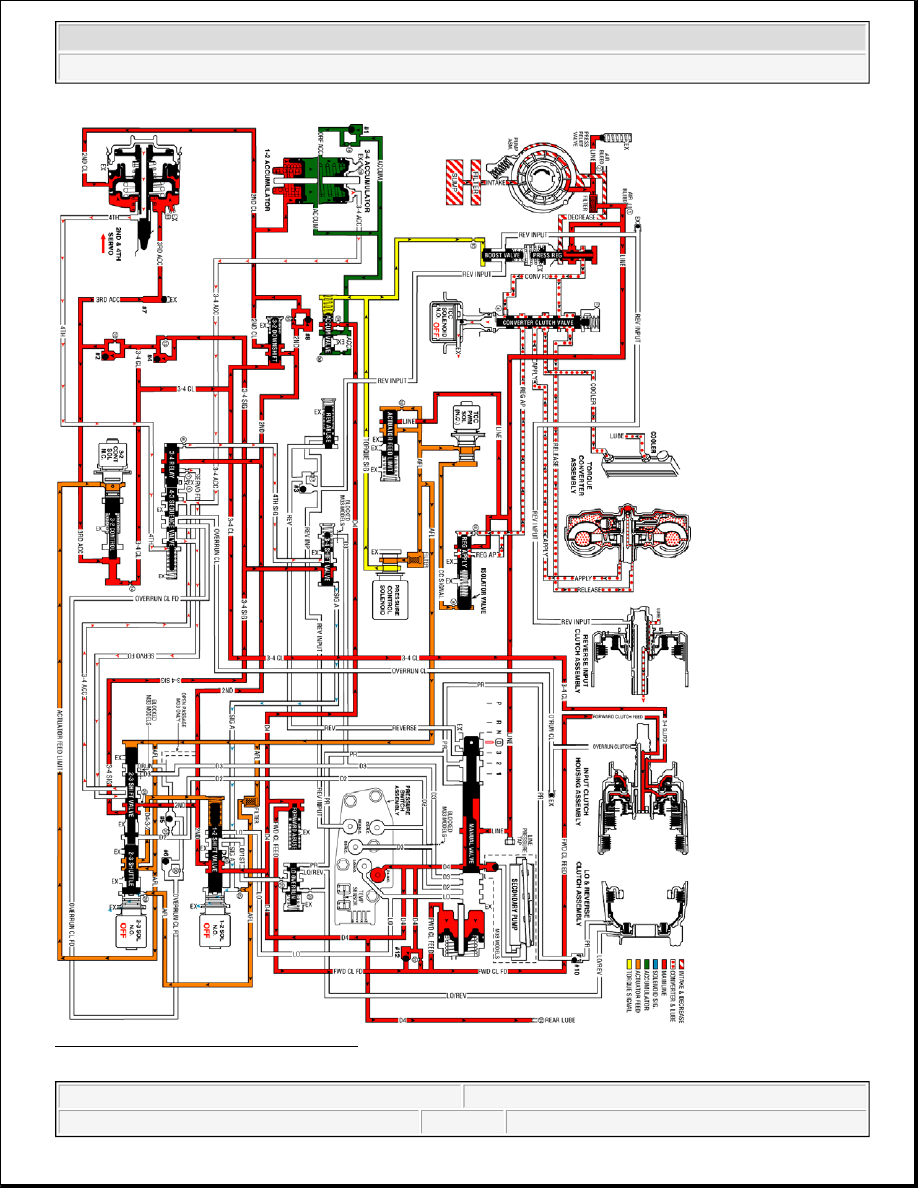

Fig. 8: Overdrive Range, 4-3 Downshift
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

Fig. 9: Overdrive Range, 3-2 Downshift
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E
