Hummer H2. Manual - part 2640

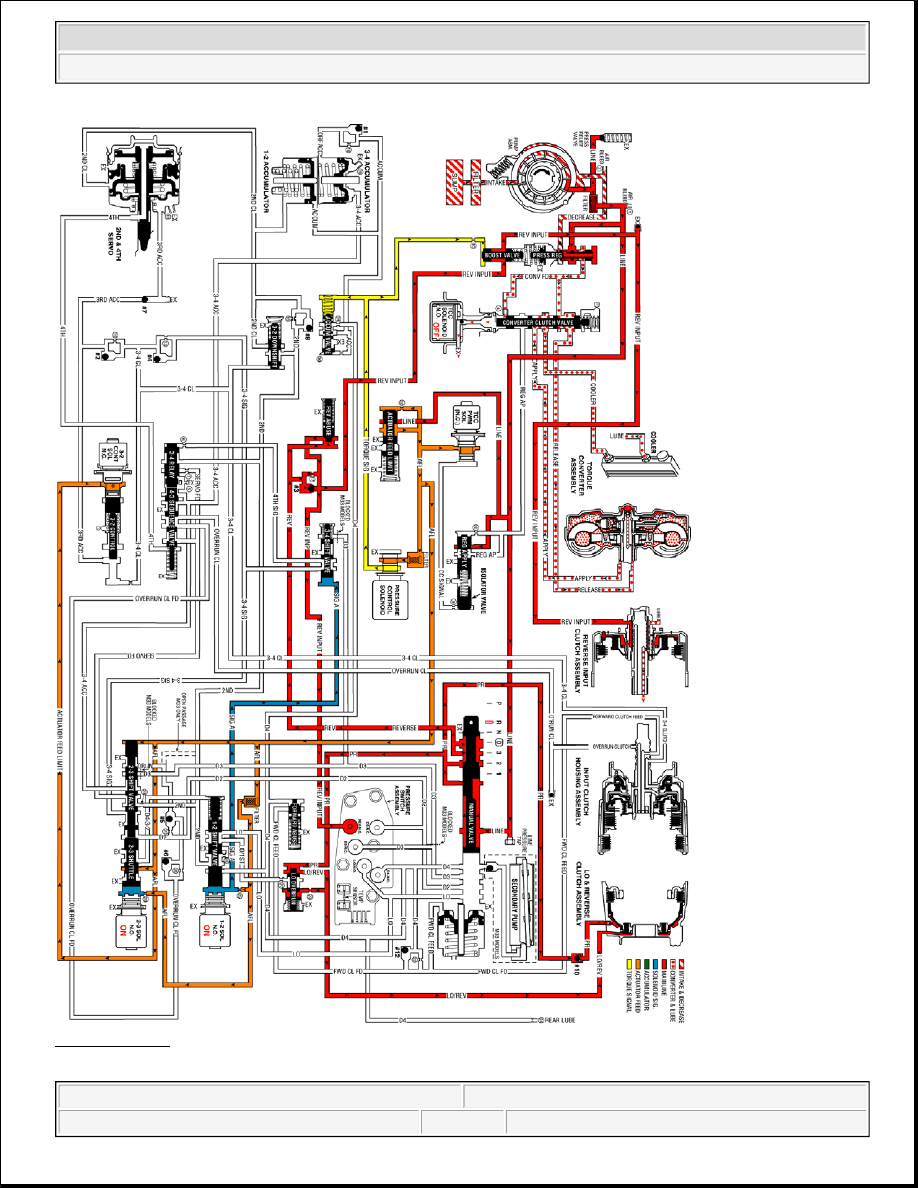

Fig. 2: Reverse
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

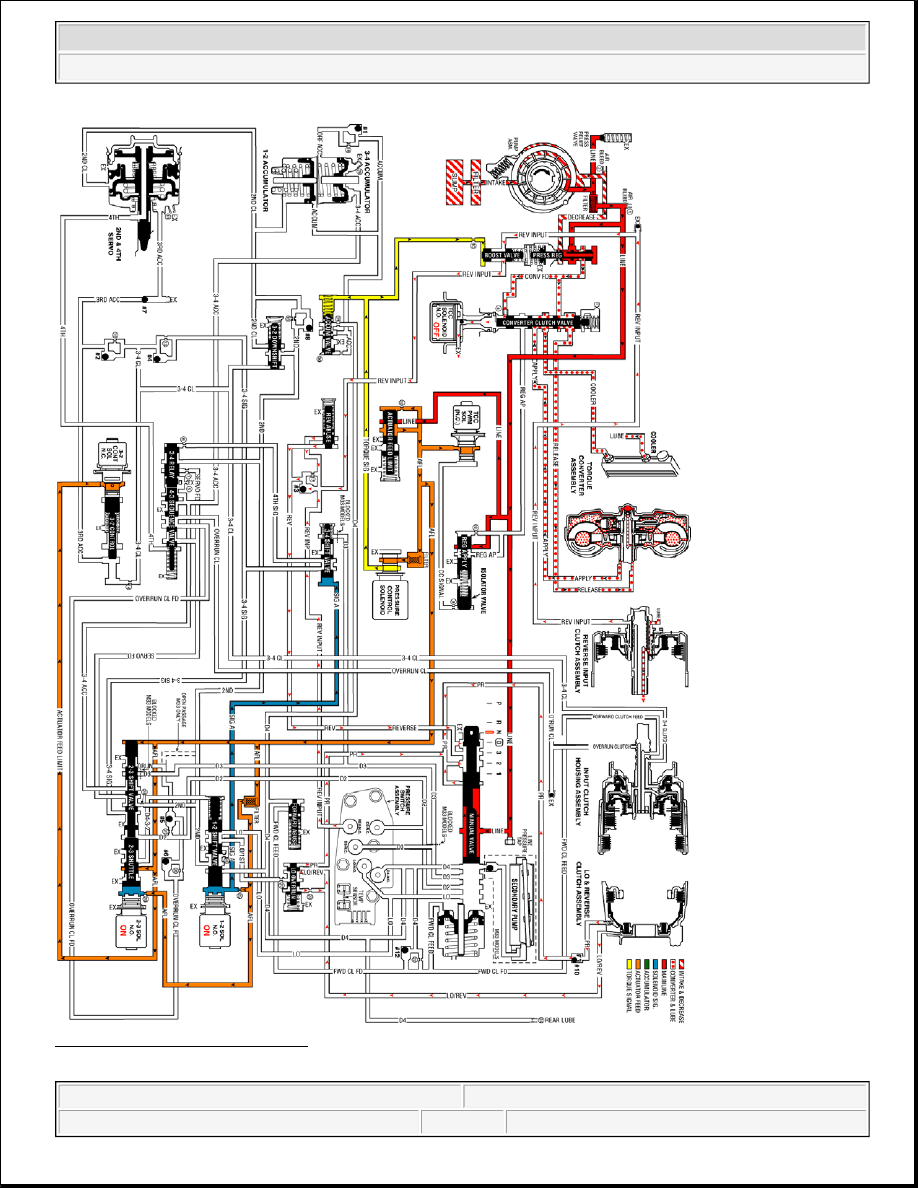

Fig. 3: Neutral - Engine Running
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

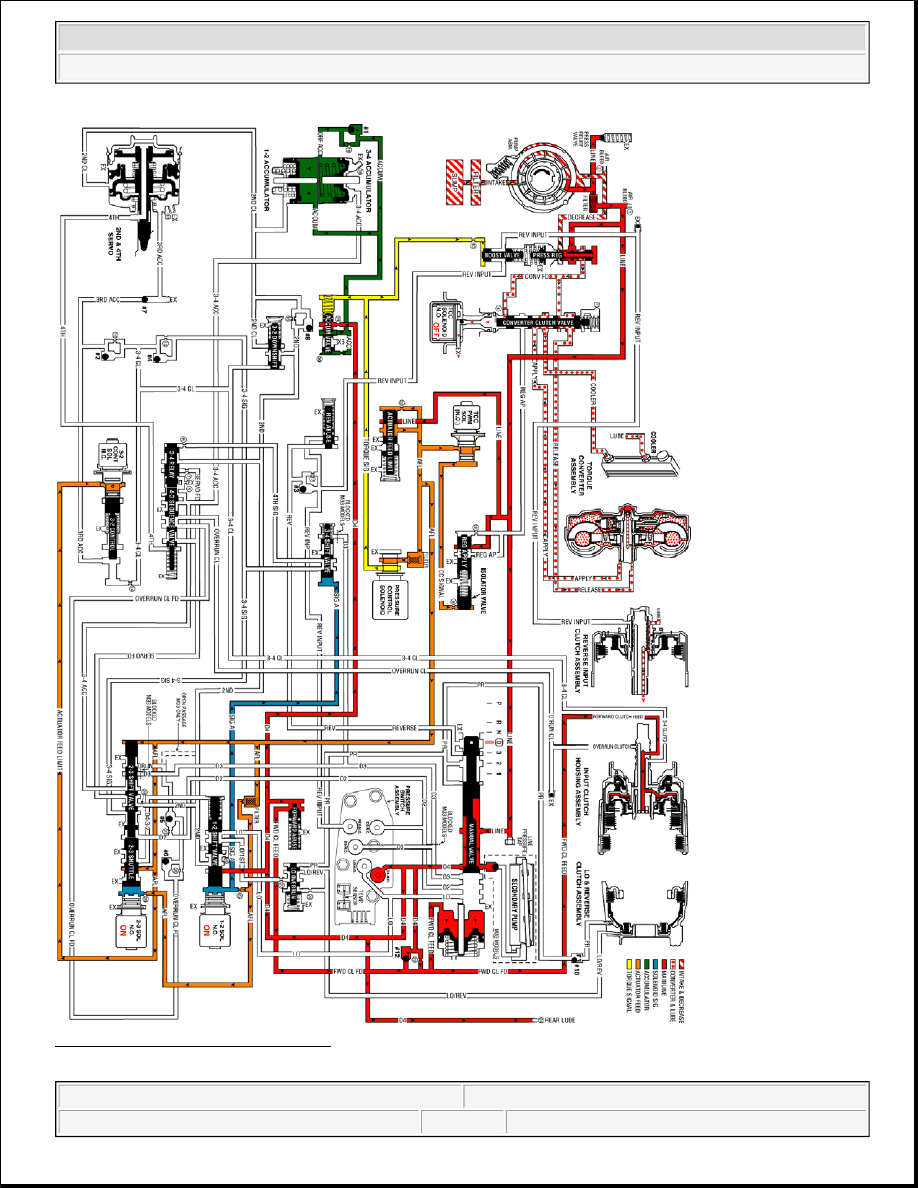

Fig. 4: Overdrive Range, First Gear
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E

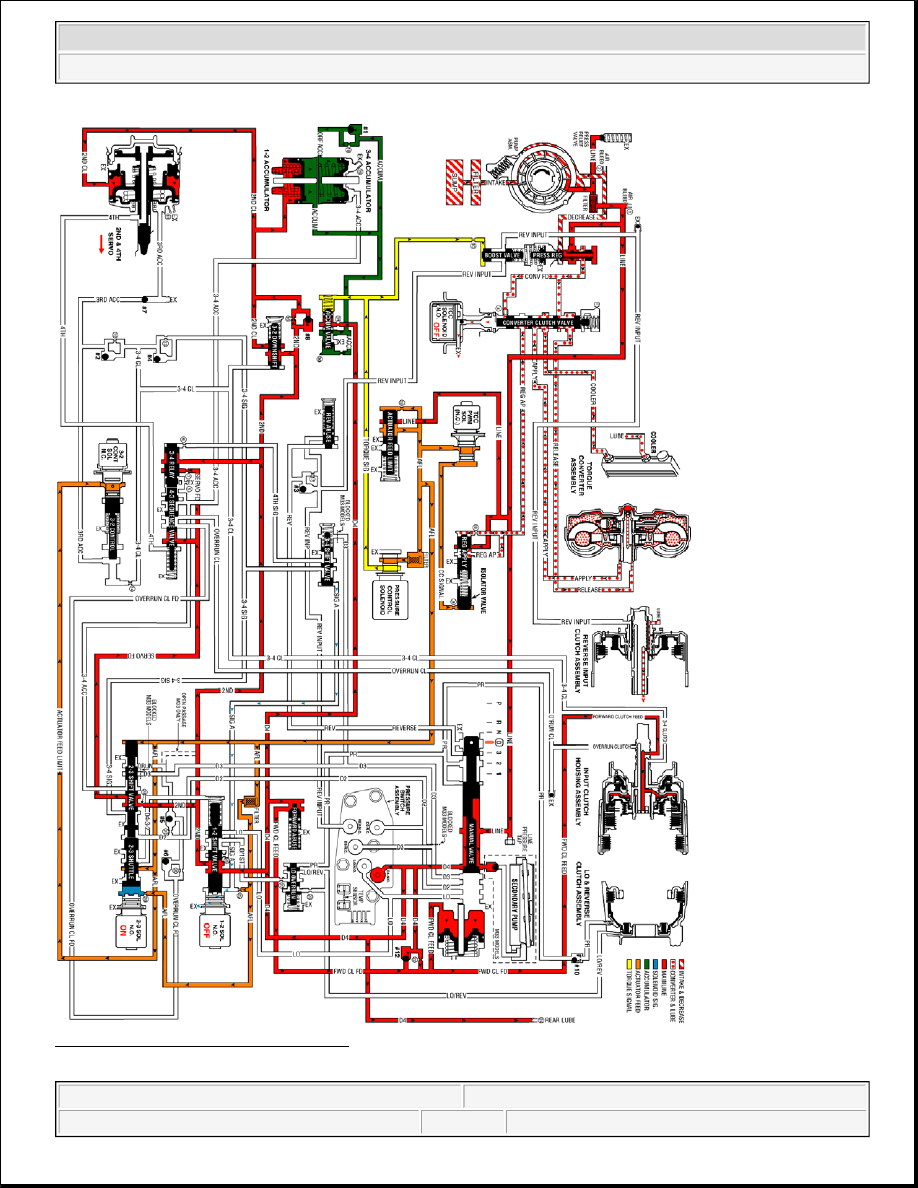

Fig. 5: Overdrive Range, Second Gear
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 OIL CIRCUIT DIAGRAMS Hydraulic Diagrams - 4L60-E/4L65-E
