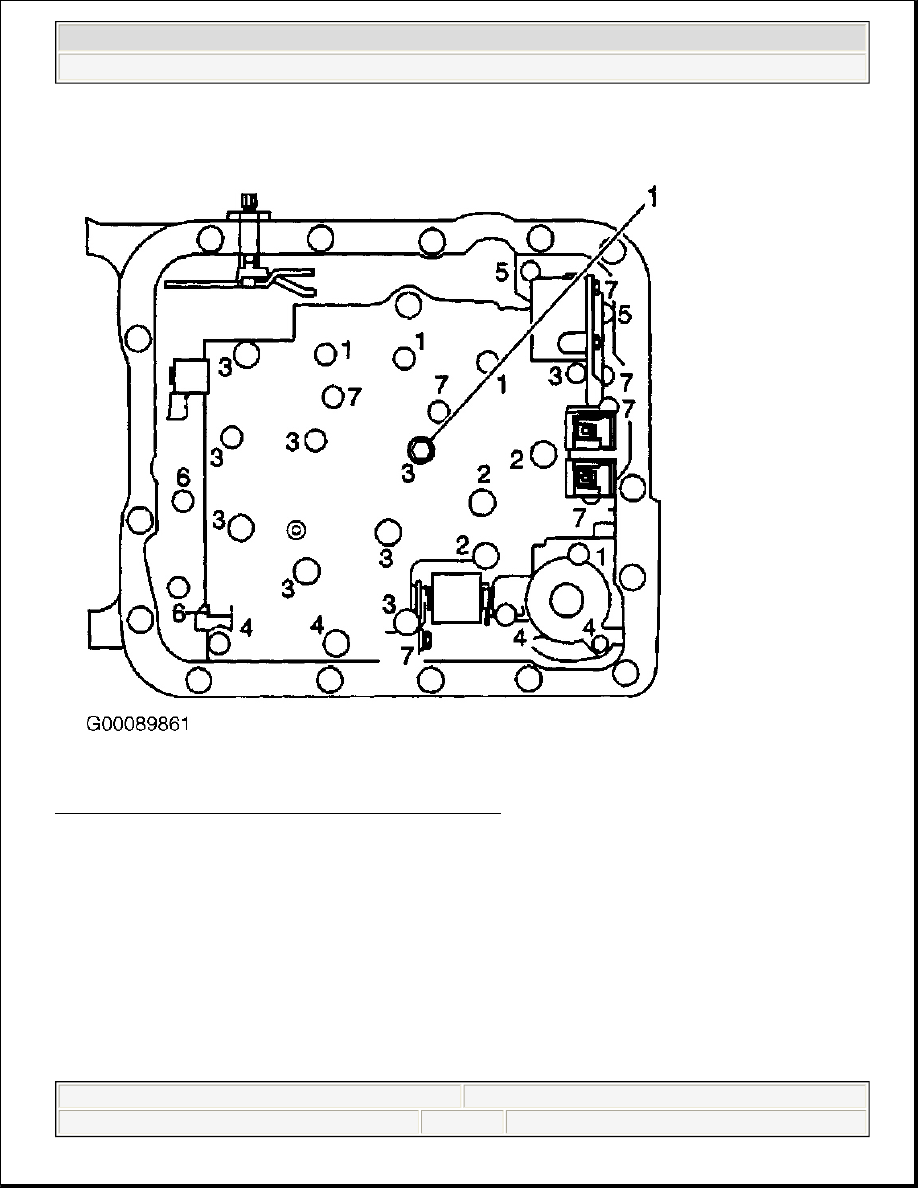

Fig. 72: Location Of 1st Bolt To Hold Valve Body In Place
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

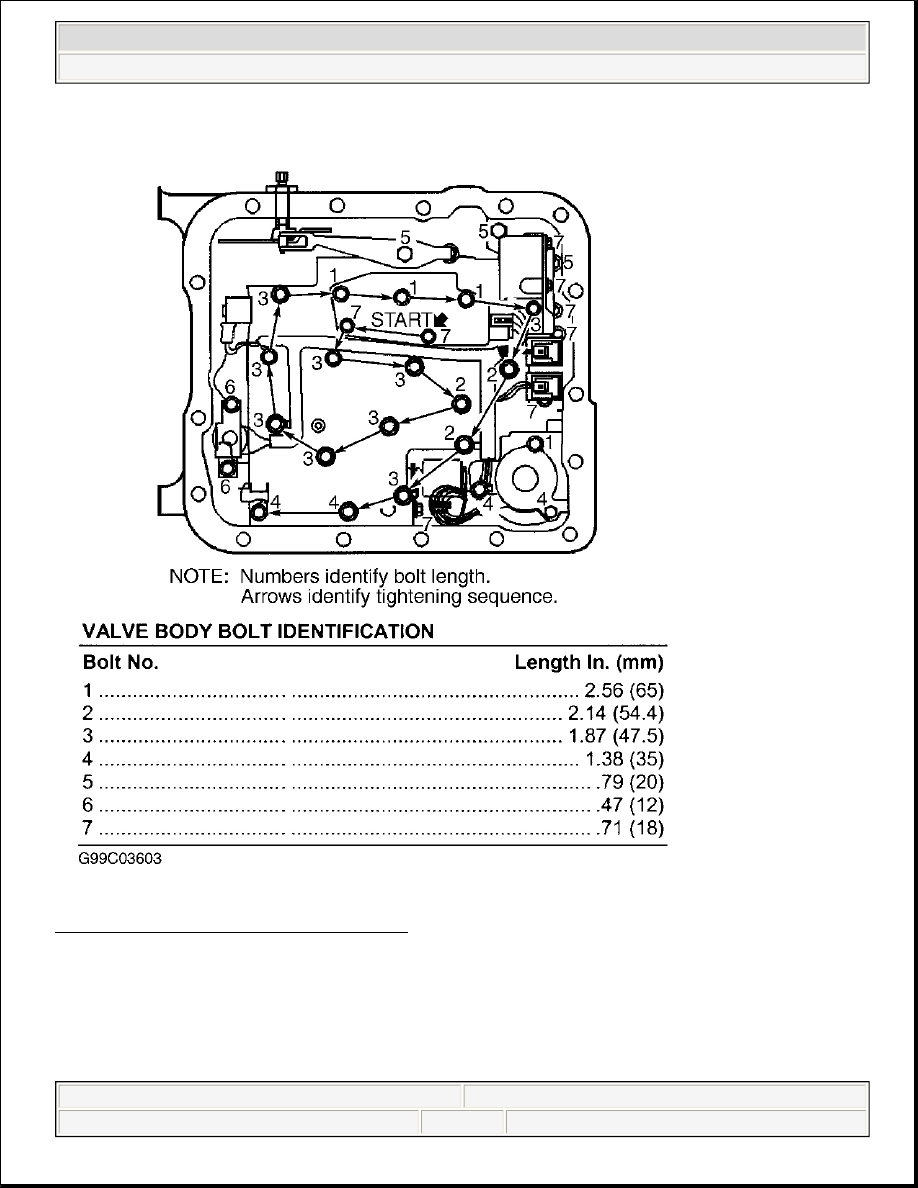

Fig. 73: Valve Body Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

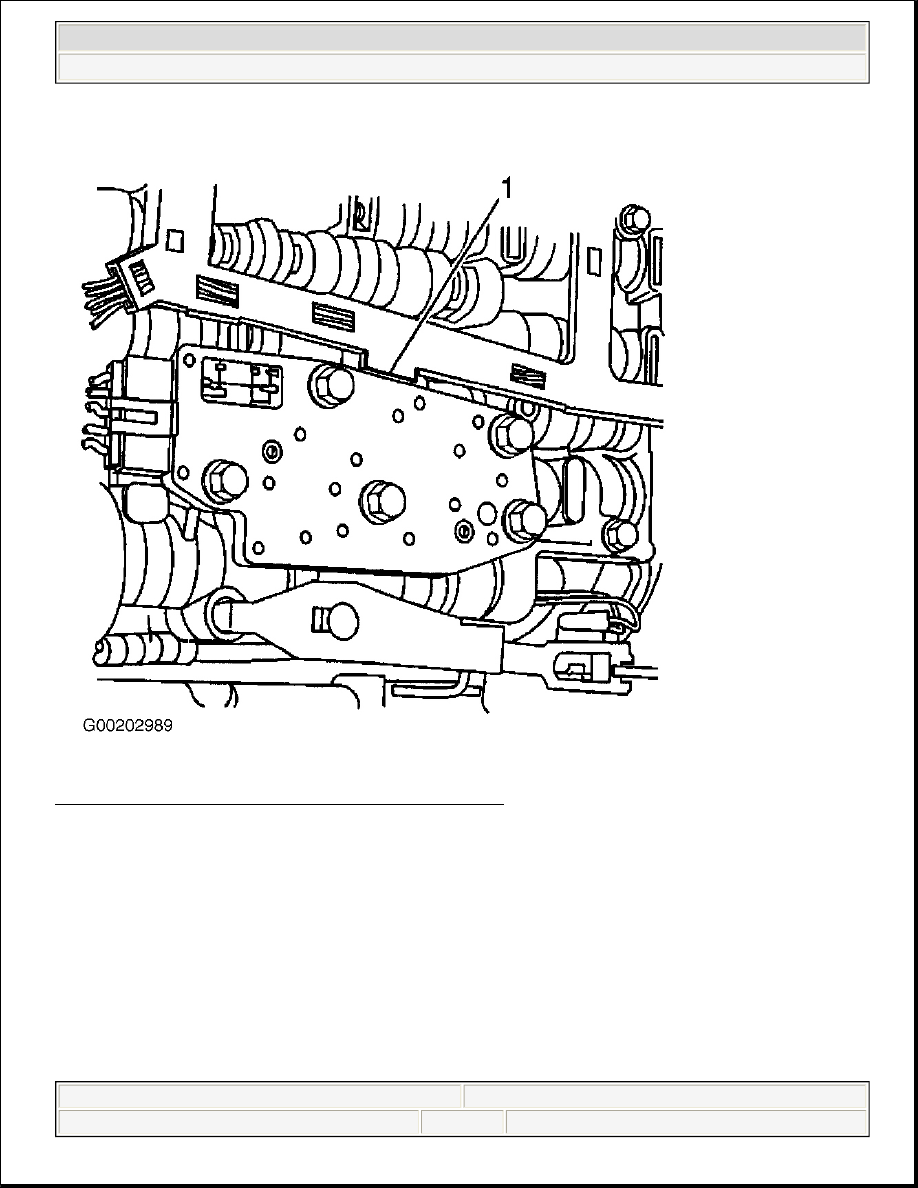

Fig. 74: Installing Internal Wiring Harness To Valve Body
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2



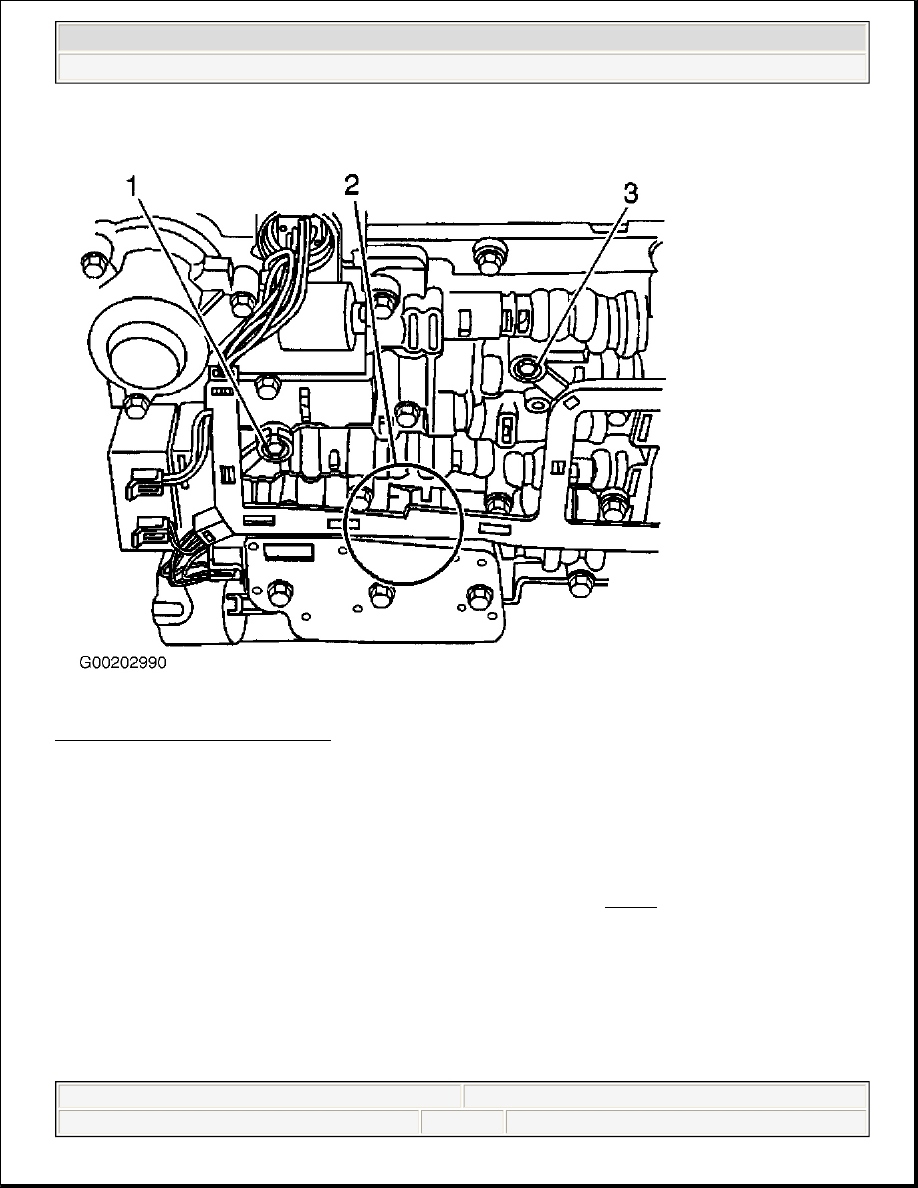

Fig. 75: Positioning Wiring Harness
Courtesy of GENERAL MOTORS CORP.

VEHICLE SPEED SENSOR

Removal

1. Raise and support the vehicle.

2. Disconnect the Vehicle Speed Sensor (VSS) electrical connector. See Fig. 76 .

3. Remove the VSS and "O" ring seal from transfer case.
