Hummer H2. Manual - part 2634

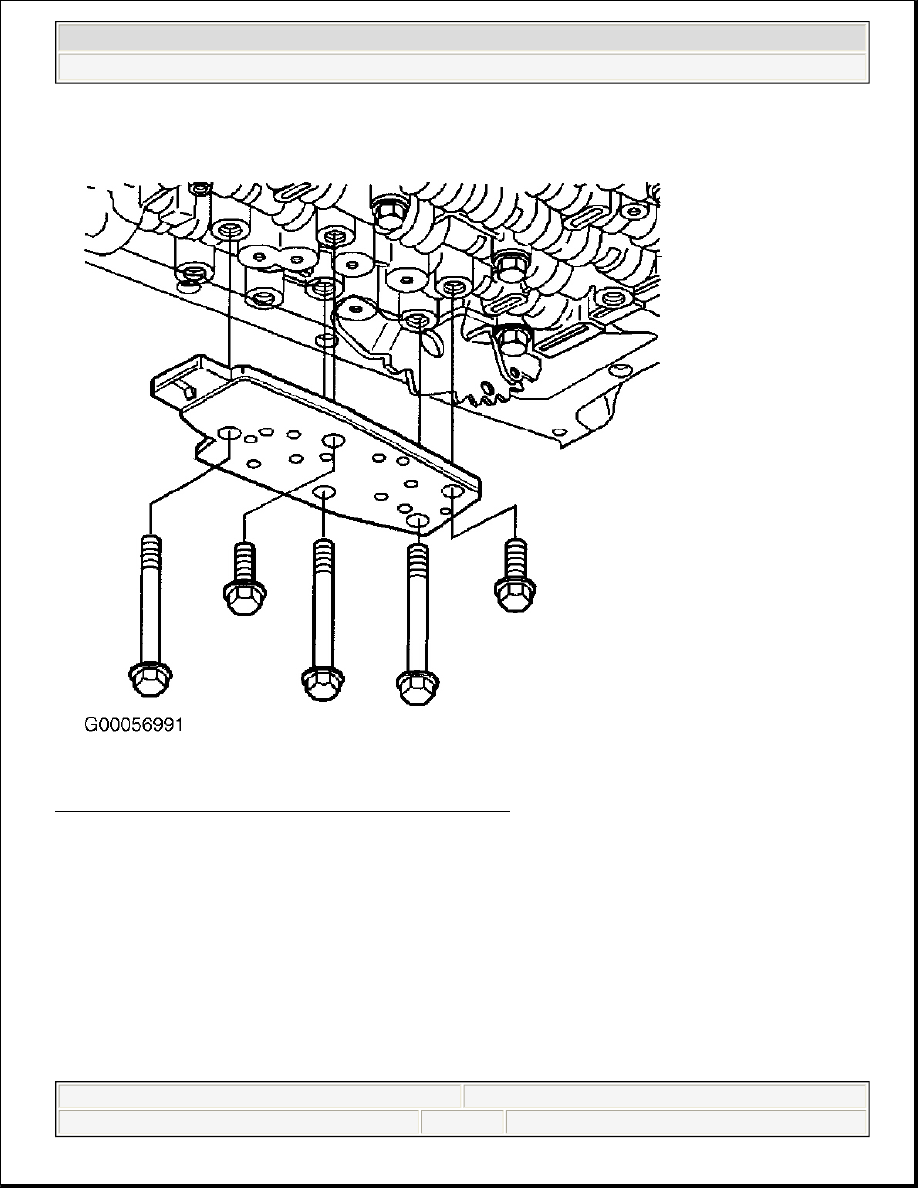

Fig. 66: Removing & Installing Fluid Pressure Switch Bolts
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2



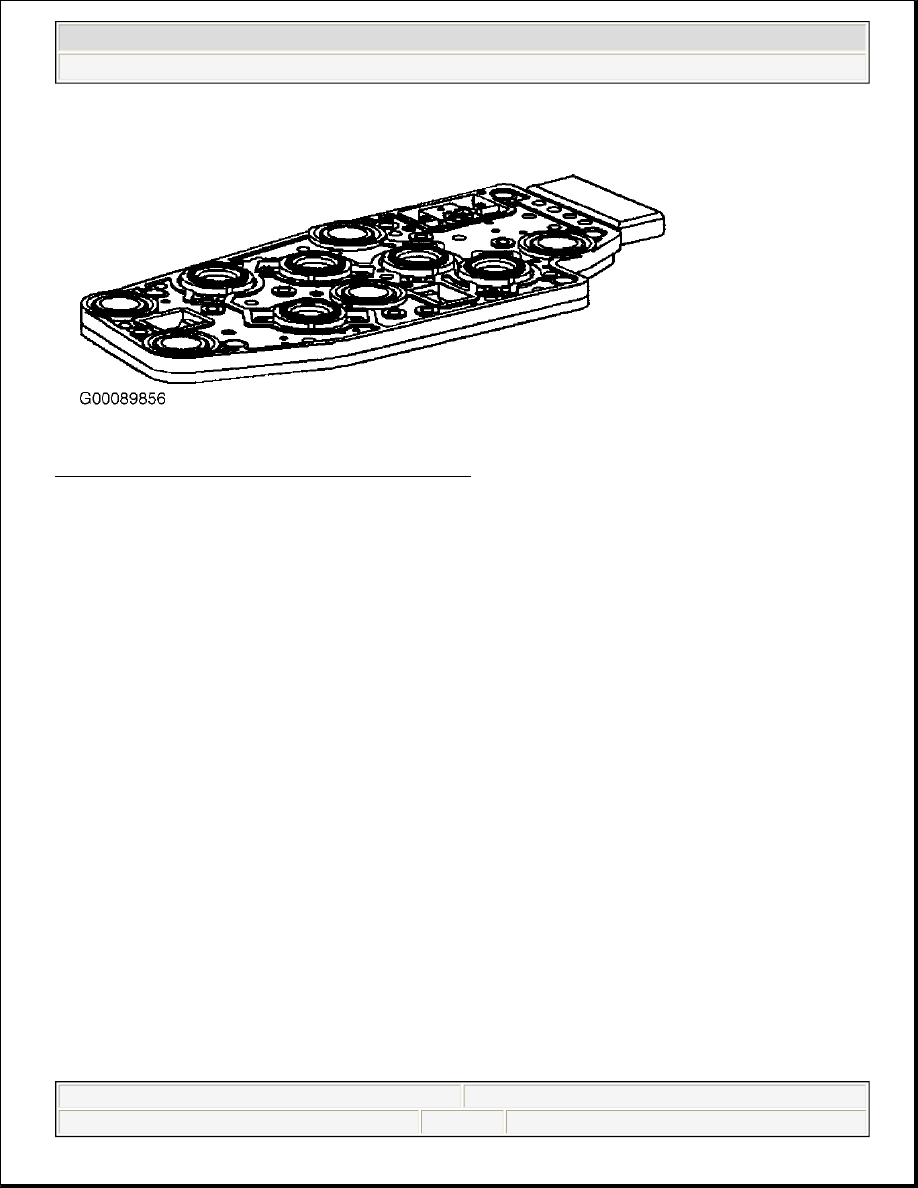

Fig. 67: Inspecting Fluid Pressure Switch For Damage
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2



Fig. 68: Removing & Installing Manual Detent Lever
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2



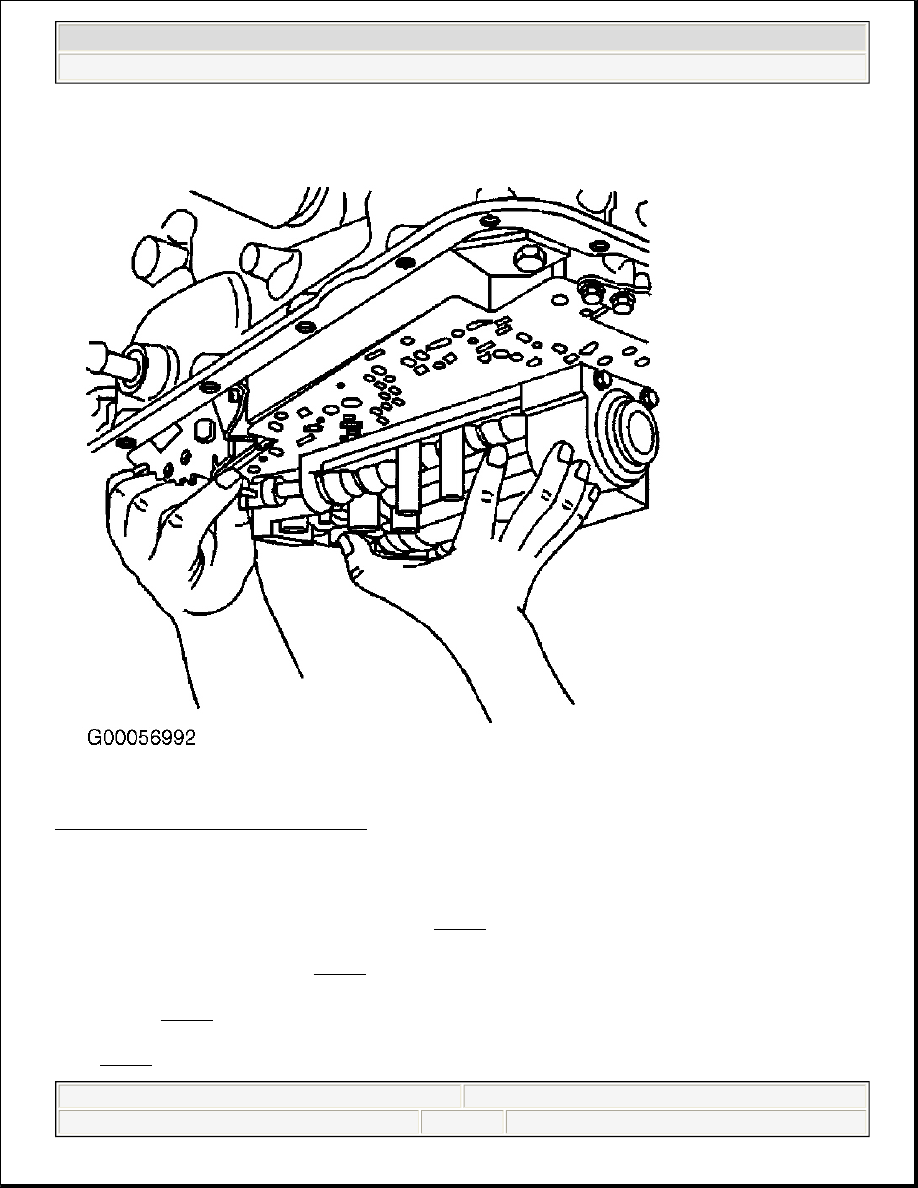

Fig. 69: Lowering & Raising Valve Body
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the 7 checkballs in the valve body. See Fig. 70 .

2. Install the control valve body to the transmission case while simultaneously connecting the manual valve

link to the manual valve. See Fig. 69 .

3. Verify the manual valve link (3) is installed properly to the inside detent lever (1) and the manual valve

(2). See Fig. 71 .

4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place. See

Fig. 72 .
