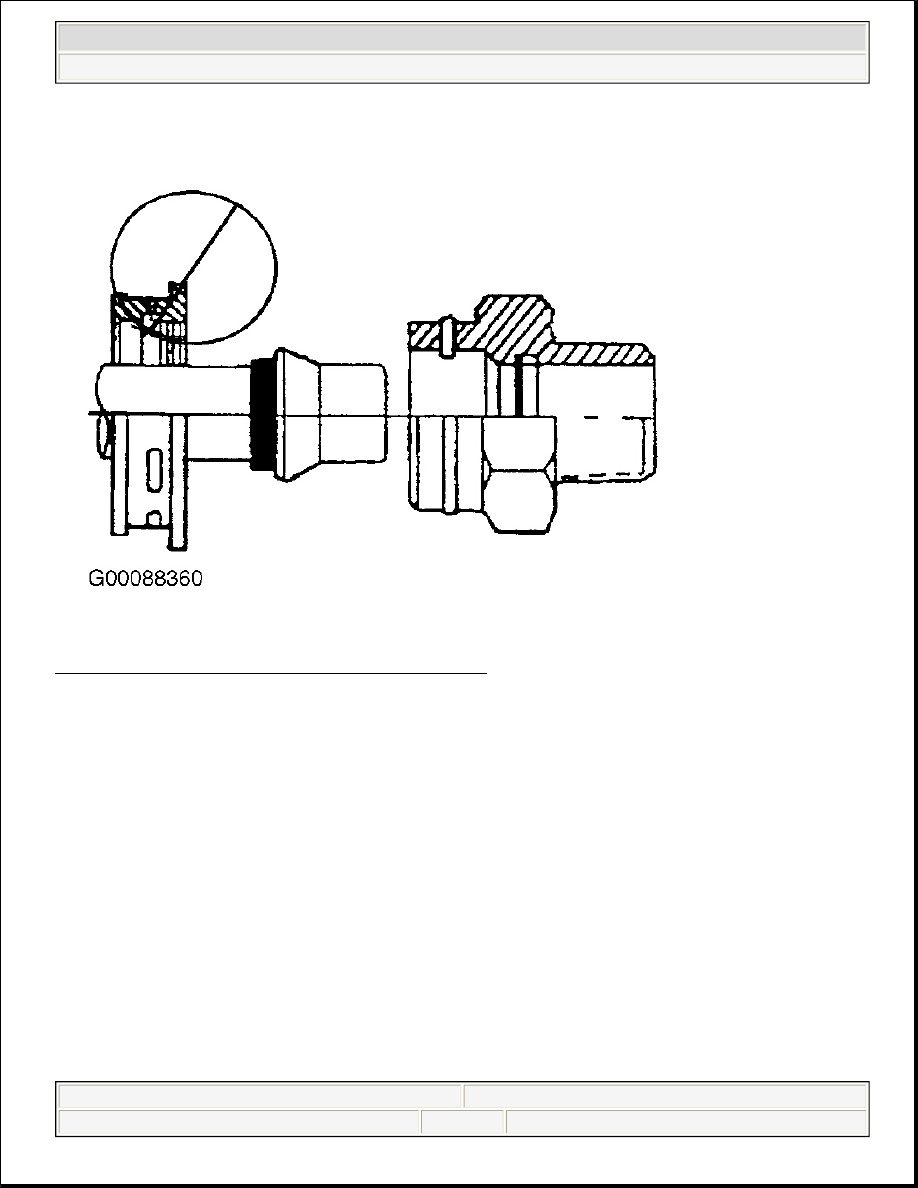

Fig. 59: Incorrect Installation Method Using Plastic Cap
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

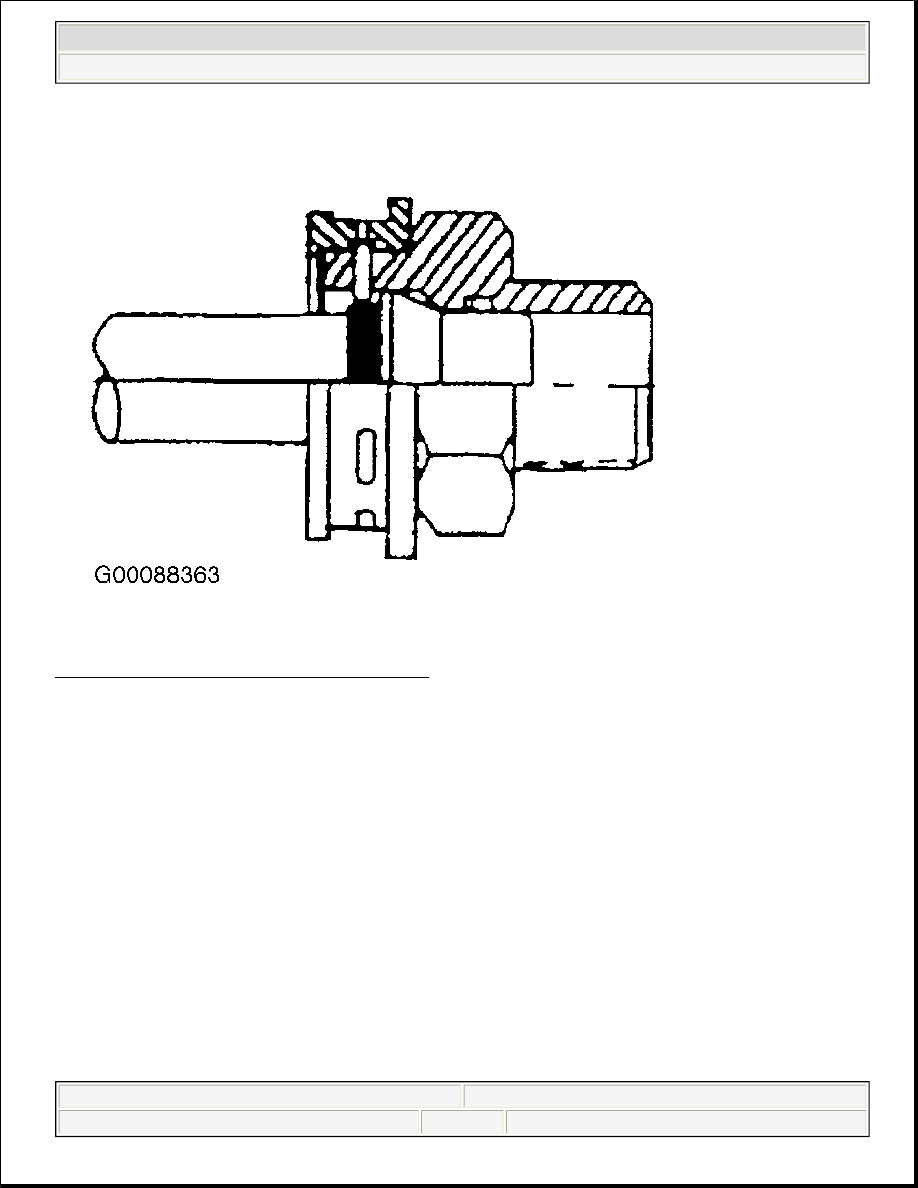

Fig. 60: Installed View Of Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

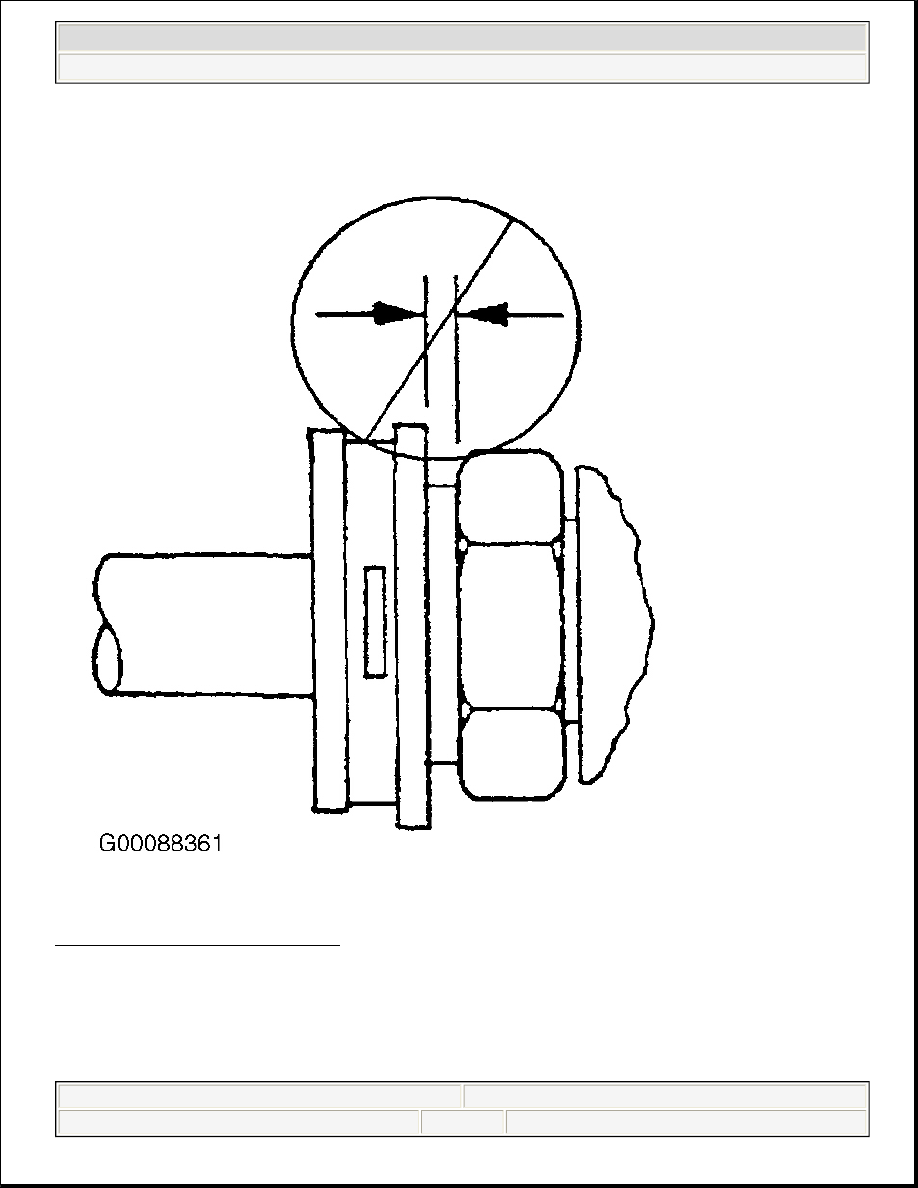

Fig. 61: Checking For Improper Gap
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

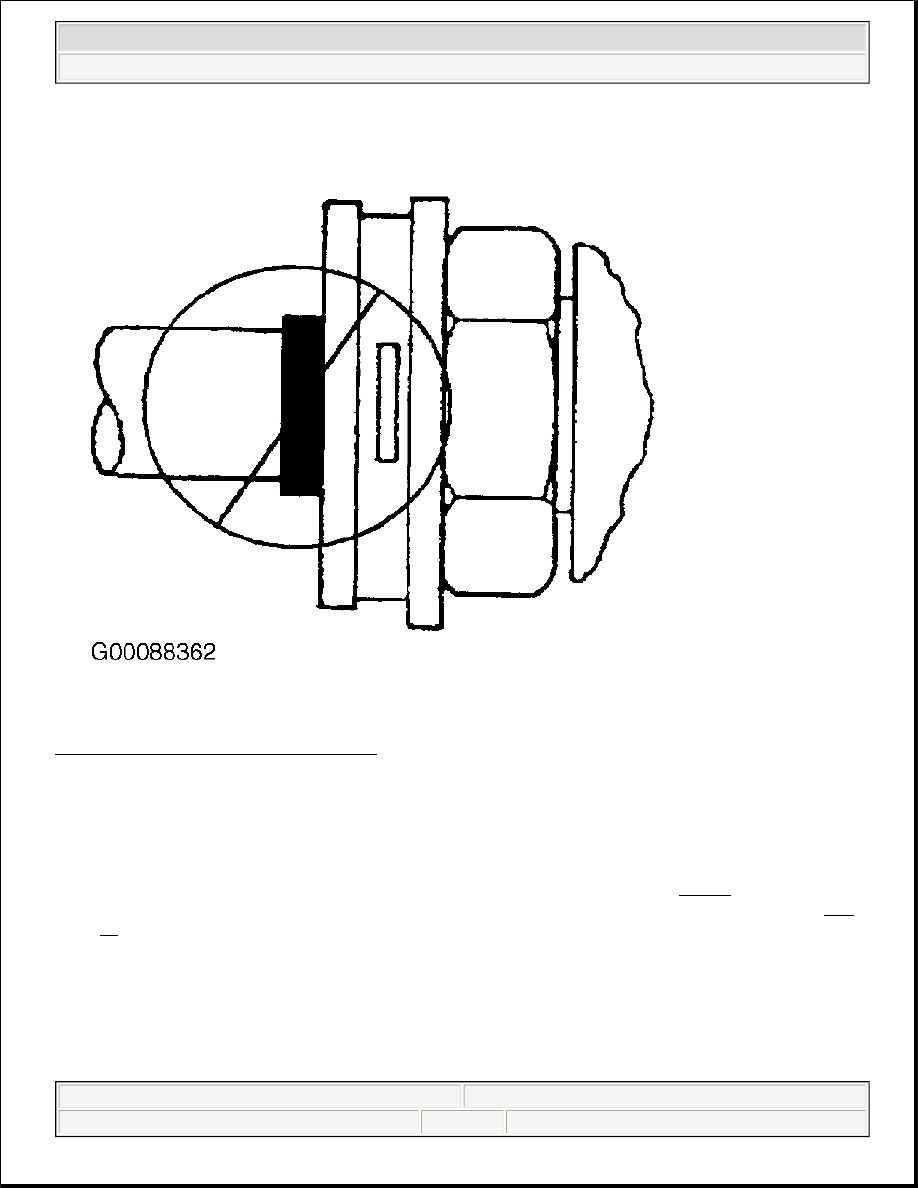

Fig. 62: Checking For Identification Band
Courtesy of GENERAL MOTORS CORP.

TRANSMISSION MOUNT

Removal

1. Raise and support vehicle. Remove frame-to-engine protection shield bolts. See Fig. 35 . Remove engine

protection shield. Remove the catalytic converter guard mounting bolts and guard from vehicle. See Fig.
36 .

2. Support the transmission with a transmission jack. Remove the two nuts securing the transmission mount

to the transmission support. Raise the transmission off of the transmission support. Remove the bolts and
transmission mount.

Installation

1. Install the transmission mount to the vehicle. Install the bolts. Tighten the bolts to specification. See
